Description
The Mishimoto MMOC-GEN6-10T is a direct-fit oil cooler kit engineered specifically for the Genesis Coupe’s 3.8L Lambda V6, and this listing is the Silver Cooler, Thermostatic configuration. It replaces the factory oil filter housing and canister filter with a CNC-machined 6061 aluminum housing, converting the system to a sandwich plate and conventional spin-on filter setup fed by a 19-row bar-and-plate cooler.
High oil temperatures accelerate oil breakdown, which can increase engine wear and risk failure over time, so this Mishimoto cooling upgrade is built to keep oil temperature in check on street or track duty. The kit is proven to reduce oil temperatures by 37°F while maintaining minimal pressure drop, and it increases overall oil capacity by .75 qt for added thermal buffer. Because this variant includes the thermostatic sandwich plate, oil is routed through the cooler only as needed for more refined temperature management, and the Performance-grade, Silver, anodized 19-row core mounts in the front grille for optimum airflow.
Vehicle Applications
This Mishimoto oil cooler kit is designed for the 3.8L Lambda V6-powered Genesis Coupe, with chassis code BK38. Confirmed fitment covers the 2010-2012 Genesis Coupe 2.0T, 2.0T Premium, and 2.0T R-Spec trims, the 2010 Genesis Coupe 2.0T Track and 3.8, the 2010-2012 Genesis Coupe 3.8 Grand Touring and 3.8 Track, and the 2011-2012 Genesis Coupe 3.8 R-Spec.
Features

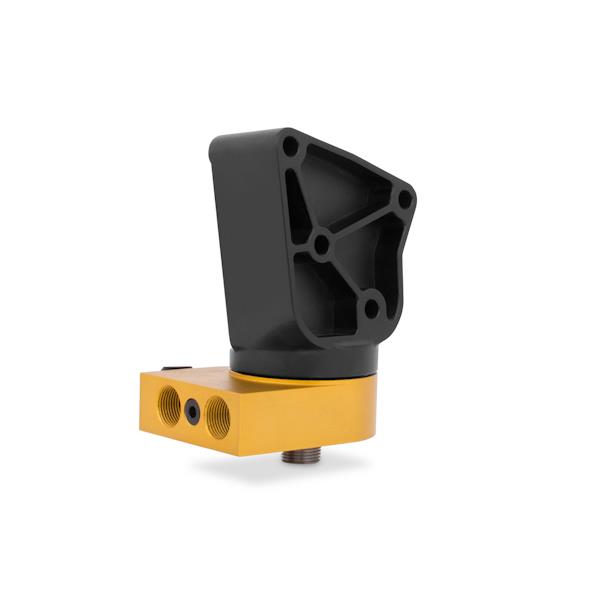

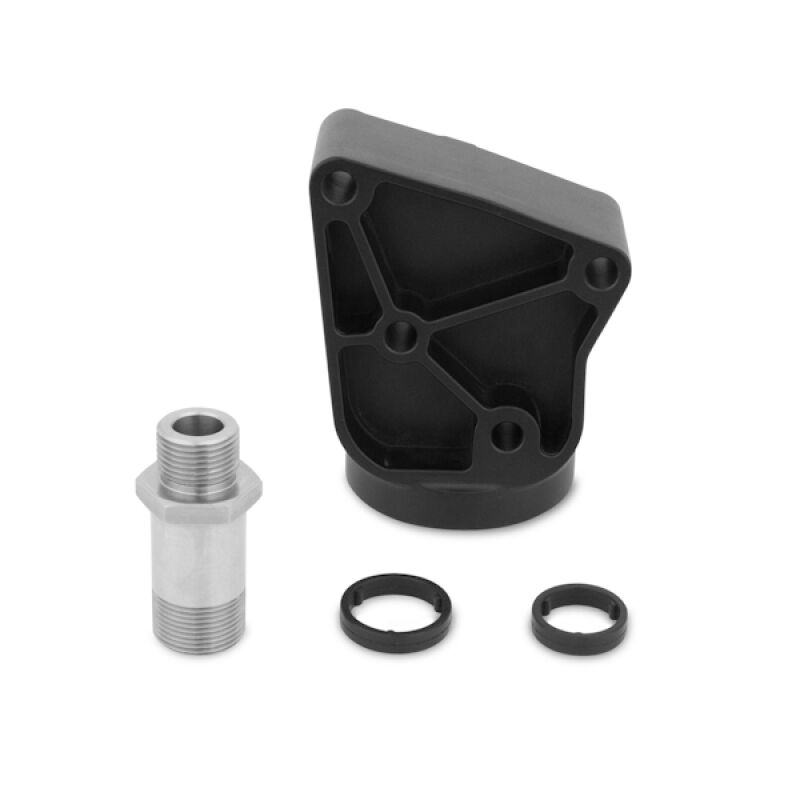

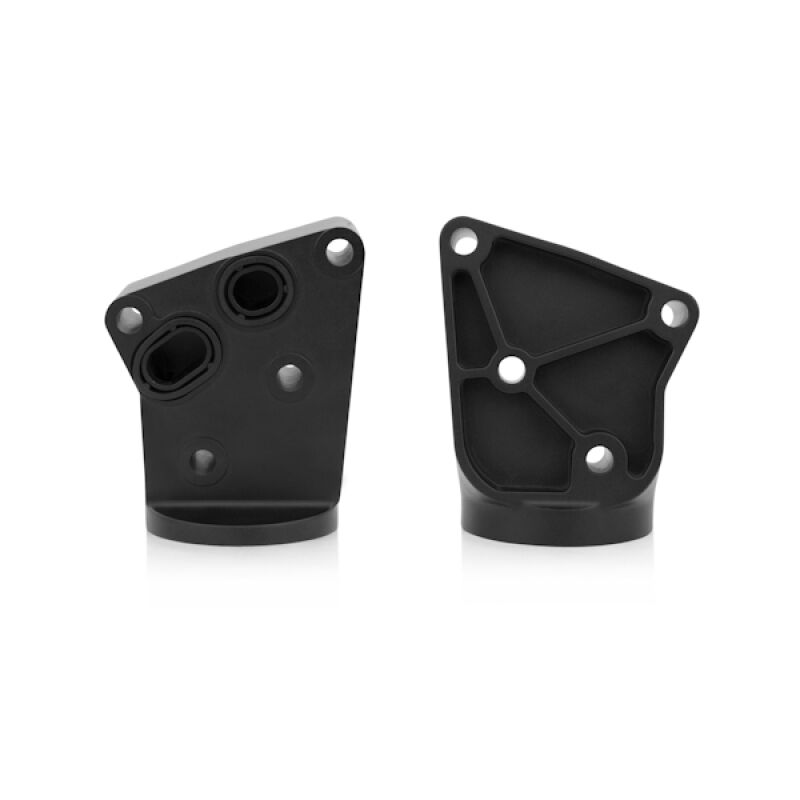

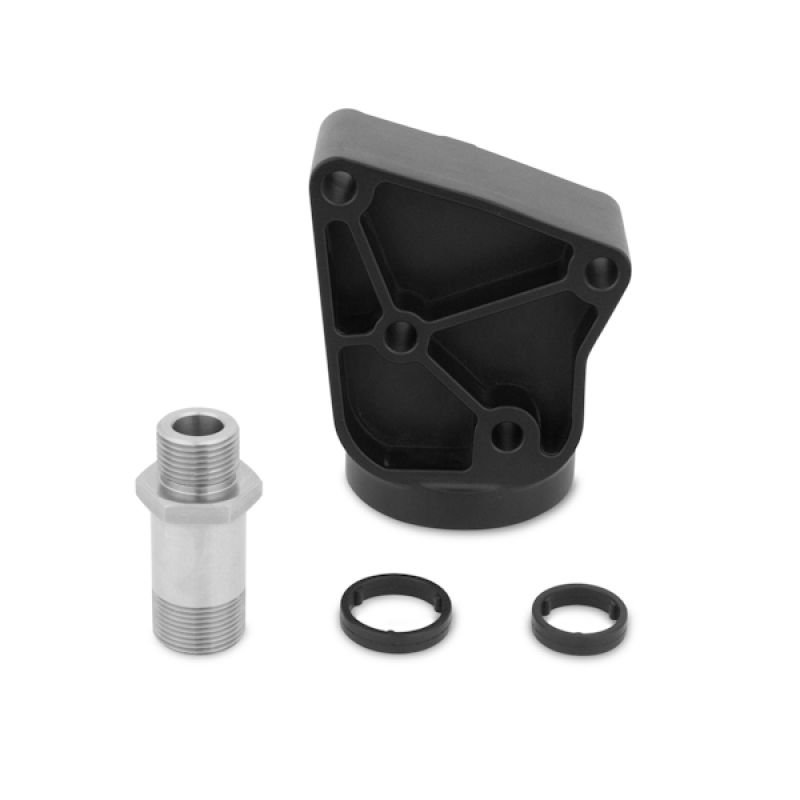

- Precision-engineered, CNC-machined 6061 aluminum oil filter housing (black) replaces the factory housing and canister filter
- Enables use of an oil sandwich plate with a conventional spin-on oil filter
- Preassembled stainless steel braided lines with -10AN fittings (2ft 7in and 3ft 3.5in lengths)

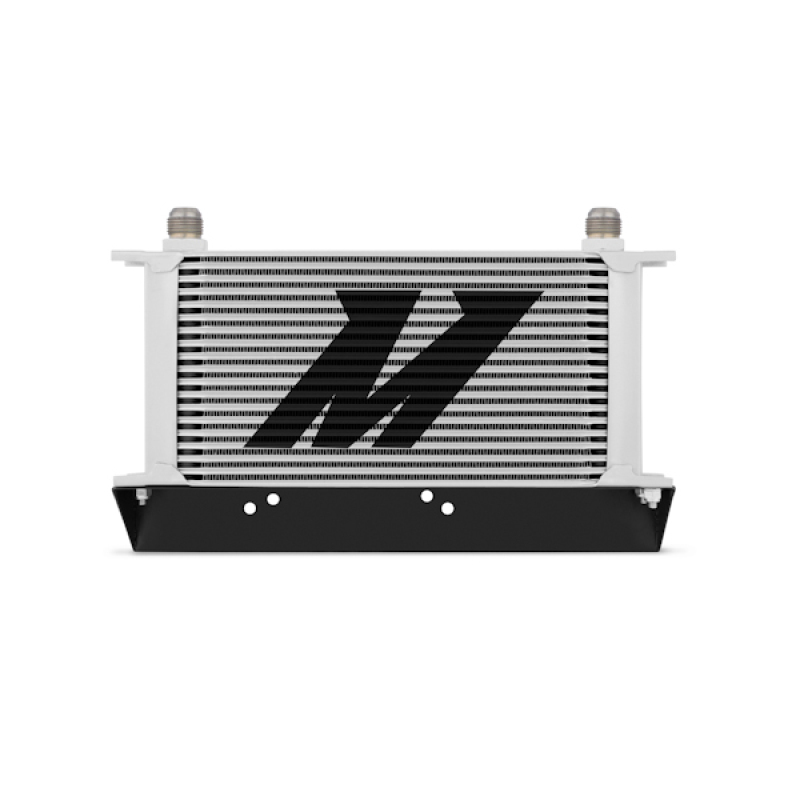

- Efficient 19-row bar-and-plate oil cooler mounts in the front grille for optimum airflow
- Reduces oil temperature by 37°F while maintaining minimal pressure drop
- Increases overall oil capacity by .75 qt
- Thermostatic sandwich plate option (included in this kit) for additional oil temperature control

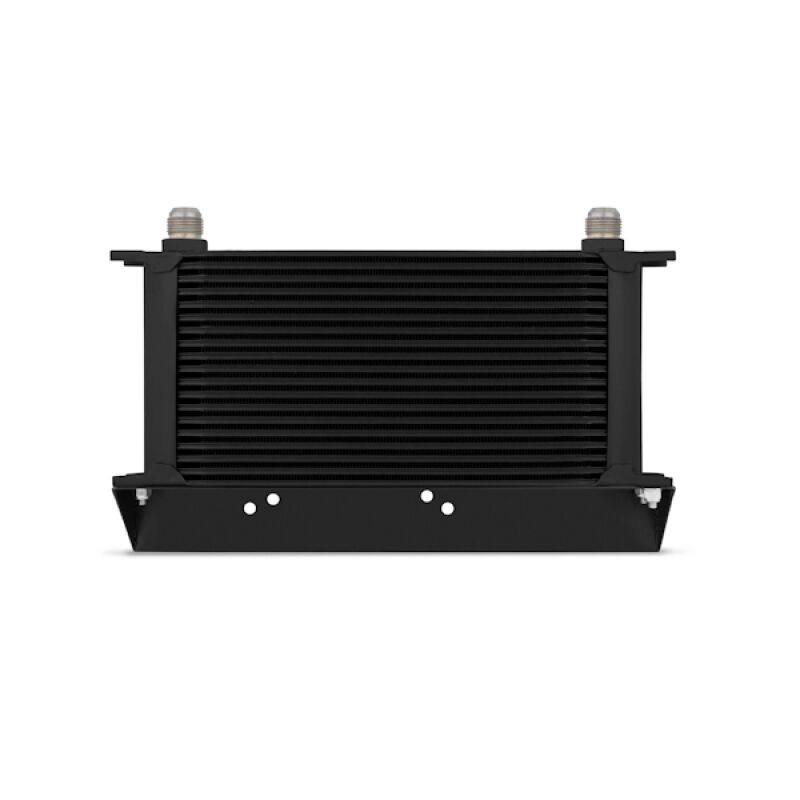

- Available in stealth black or sleek silver cooler finishes

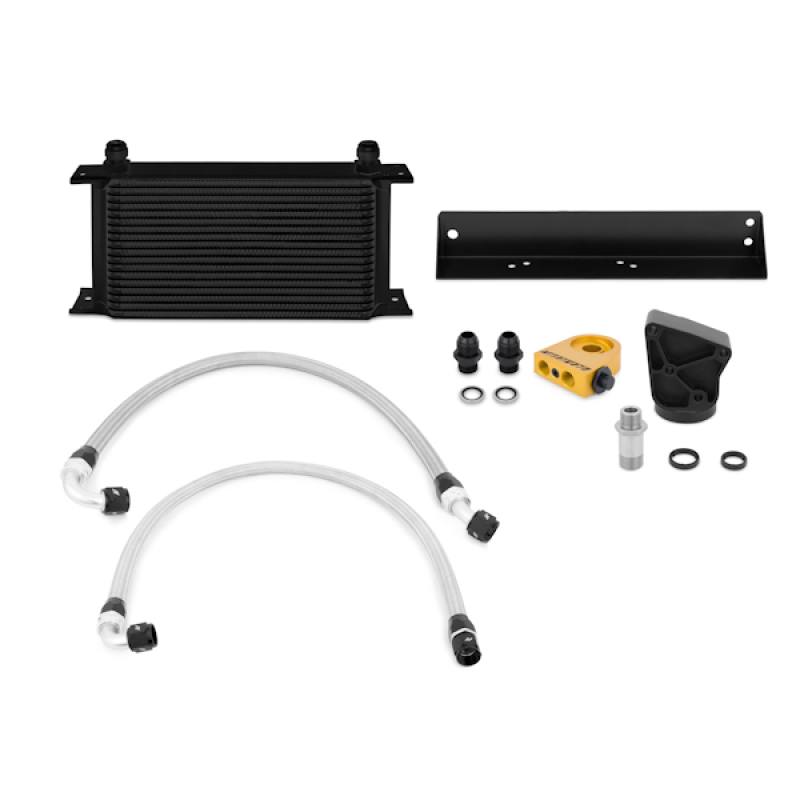

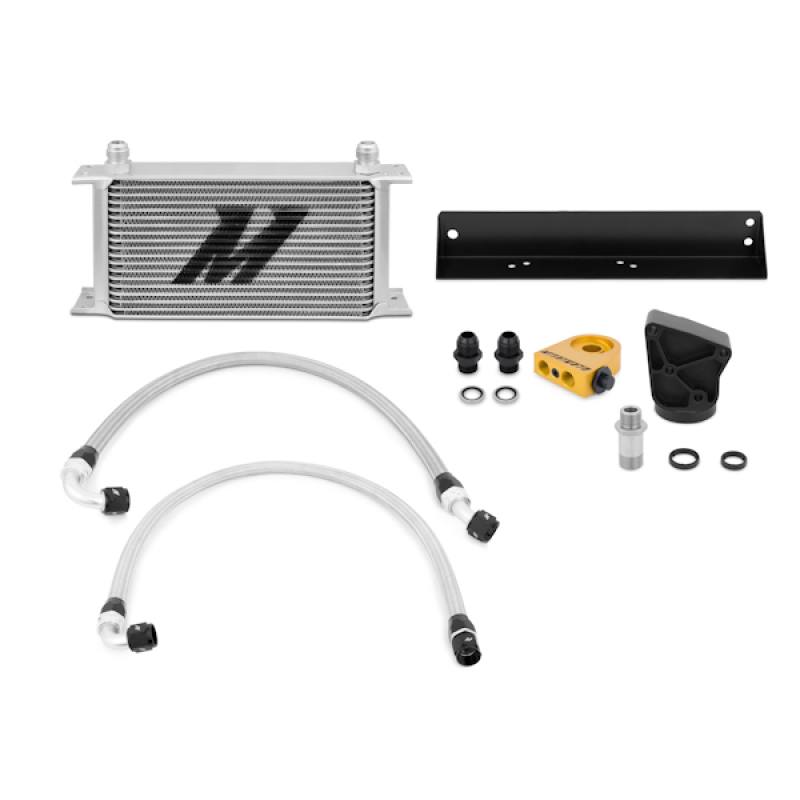

- Kit includes application-specific mounting bracket, M20 sandwich plate adapter, M20 x -10AN black straight fittings, 1/8-in NPT plugs, O-rings, and mounting hardware
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-GEN6-10T
- Core Type: Bar-and-Plate
- Core Row Quantity: 19-Row
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Core Color: Silver
- Finish: Anodized
- Grade Type: Performance
- Inlet Fitting Type: AN Flare (Male)
- Outlet Fitting Type: AN Flare (Male)
- Fluid Capacity Increase: .75 qt
- Oil Temperature Reduction: 37°F
- Engine Code: 3.8L Lambda V6
- Chassis Code: BK38
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb)
Frequently Asked Questions
What vehicles does the Mishimoto MMOC-GEN6-10T oil cooler kit fit?
This kit fits the 2010-2012 Hyundai Genesis Coupe 2.0T, 2.0T Premium, and 2.0T R-Spec; the 2010 Genesis Coupe 2.0T Track and 3.8; the 2010-2012 Genesis Coupe 3.8 Grand Touring and 3.8 Track; and the 2011-2012 Genesis Coupe 3.8 R-Spec, all with the 3.8L Lambda V6 (chassis code BK38).
How much does this Mishimoto oil cooler reduce oil temperature?
The kit is proven to reduce oil temperatures by 37°F while maintaining minimal pressure drop.
Does this kit require a different oil filter setup?
Yes. It replaces the factory oil filter housing and canister filter with a CNC-machined aluminum housing, allowing the use of an oil sandwich plate and a conventional spin-on filter.
Does this kit increase oil capacity?
Yes, installing this Mishimoto oil cooler kit increases overall oil capacity by .75 qt.
What color and configuration is this specific kit?
This listing (MMOC-GEN6-10T) is the Silver Cooler, Thermostatic configuration, though Mishimoto also offers a stealth black cooler option.
What warranty comes with this Mishimoto oil cooler kit?
This kit includes the Mishimoto Lifetime Warranty.
