Description

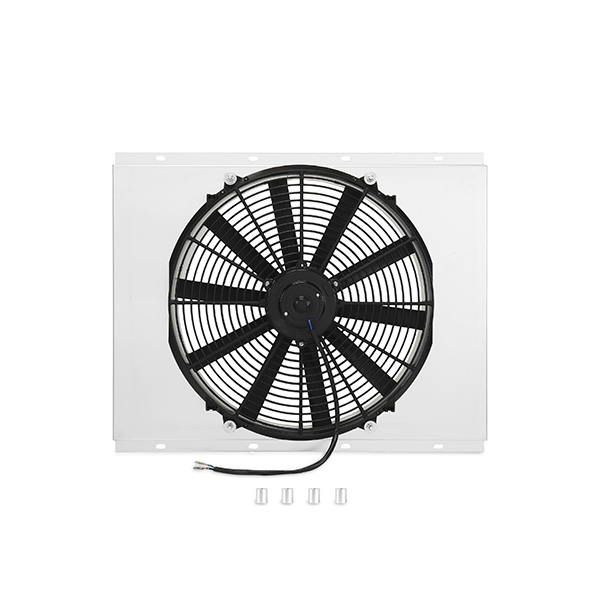

The Mishimoto Performance Fan Shroud Kit (MMFS-FIR-67K) is purpose-built for the 1967-1969 Pontiac Firebird, pairing an all-aluminum shroud with a 16-inch high-flow electric fan that moves over 1850 cfm of air. Unlike the factory setup, this kit does away with the failure-prone stock mechanical fan entirely, giving classic Firebird and Camaro owners a modern electric cooling solution engineered specifically to bolt to Mishimoto’s Pontiac Firebird Performance Radiator.
Built from aluminum with a brushed finish and silver shroud color, this Cooling system fan shroud is designed for a direct fit with no cutting or bending required, and it ships with all mounting hardware for a straightforward installation. The plug-in electric fan features 10 black plastic straight blades and is already mounted to the shroud from the factory, simplifying wiring on install day. For owners who want more precise thermal management, the kit can be optioned with the Mishimoto Adjustable Fan Controller (MMFAN-CNTL-U), which uses both NPT and probe-type sensors to give total control over coolant temperatures at idle. Every Mishimoto fan shroud kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This fan shroud kit is designed for the 1967-1969 Pontiac Firebird, covering the Base and 400 trims across all three model years, the 326 trim in 1967, the HO trim from 1967-1968, the 350 trim from 1968-1969, the 350 HO trim in 1969, and the Trans Am in 1969. Listed engine applications for the Firebird include the 326ci (5.3L) V8, 350ci (5.7L) V8, and 400ci (6.6L) V8. It also fits the 1967-1969 Chevrolet Camaro Base and SS trims and the 1967 Camaro RS, applications that pair with the 396ci (6.5L) V8.
Features
- Includes a high-flow 16-inch electric fan producing over 1850 cfm of airflow
- All-aluminum shroud and fan housing construction with a brushed, silver finish
- Optional Mishimoto Adjustable Fan Controller Kit provides complete control of coolant temperatures at idle
- Designed to mate exclusively with Mishimoto’s Pontiac Firebird Performance Radiator
- Replaces the failure-prone stock mechanical fan with an electric plug-in setup
- No cutting or bending of the shroud required for installation
- Includes all mounting hardware needed for installation
- Electric fan comes pre-mounted to the shroud
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-FIR-67K
- Product Type: Cooling
- Shroud Material: Aluminum
- Shroud Color: Silver
- Housing/Overall Material: Aluminum
- Finish: Brushed
- Width: 3.69 in
- Height: 19.64 in
- Depth: 3.69 in
- Length: 24 in
- Fan Diameter: 16 in
- Fan Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Maximum CFM / Airflow Rate: 1850
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Shroud Included: Yes
- Blade Included: Yes
- Mounting Hardware Included: Yes
- Grade Type: Performance
- Optional Add-On: w/ Fan Controller (Mishimoto MMFAN-CNTL-U)
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-FIR-67K fan shroud kit fit?
It fits the 1967-1969 Pontiac Firebird (Base and 400 trims all three years, 326 in 1967, HO in 1967-1968, 350 in 1968-1969, 350 HO in 1969, and Trans Am in 1969) as well as the 1967-1969 Chevrolet Camaro Base and SS and the 1967 Camaro RS. Listed engines include the 326ci (5.3L), 350ci (5.7L), and 400ci (6.6L) V8 for the Firebird and the 396ci (6.5L) V8 for the Camaro.
How much airflow does the included electric fan produce?
The kit includes a 16-inch high-flow electric fan that produces over 1850 cfm of airflow.
Does this shroud fit any radiator?
No, the fan shroud is designed to mate exclusively with Mishimoto’s Pontiac Firebird Performance Radiator.
Can I add temperature control to this fan shroud kit?
Yes, the kit can optionally include the Mishimoto Adjustable Fan Controller Kit (MMFAN-CNTL-U), which uses both NPT and probe-type sensors to provide control over coolant temperatures at idle.
What materials and finish does the shroud use?
The shroud is made from aluminum with a silver color and a brushed finish, and the fan blades are black plastic in a straight-blade design.
What warranty comes with this Mishimoto fan shroud kit?
This fan shroud kit includes the Mishimoto Lifetime Warranty.
