Description

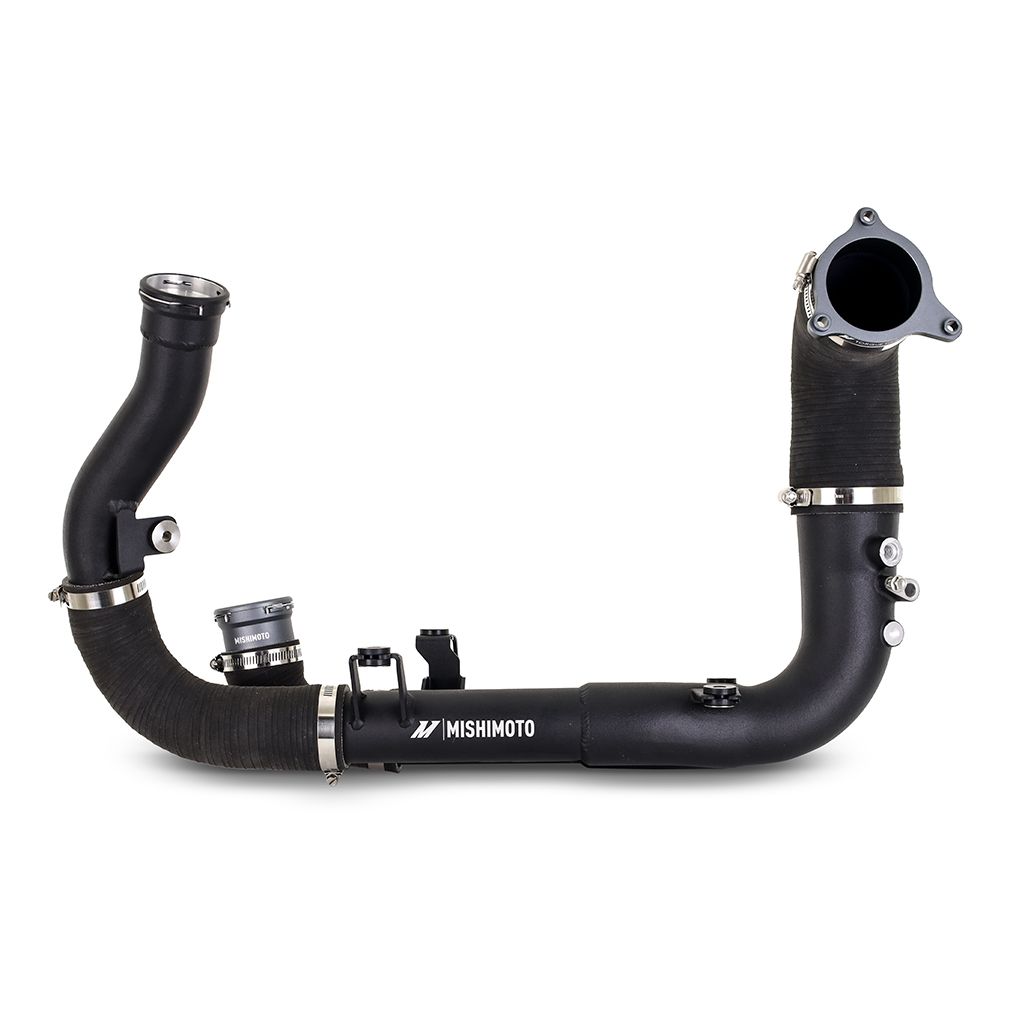

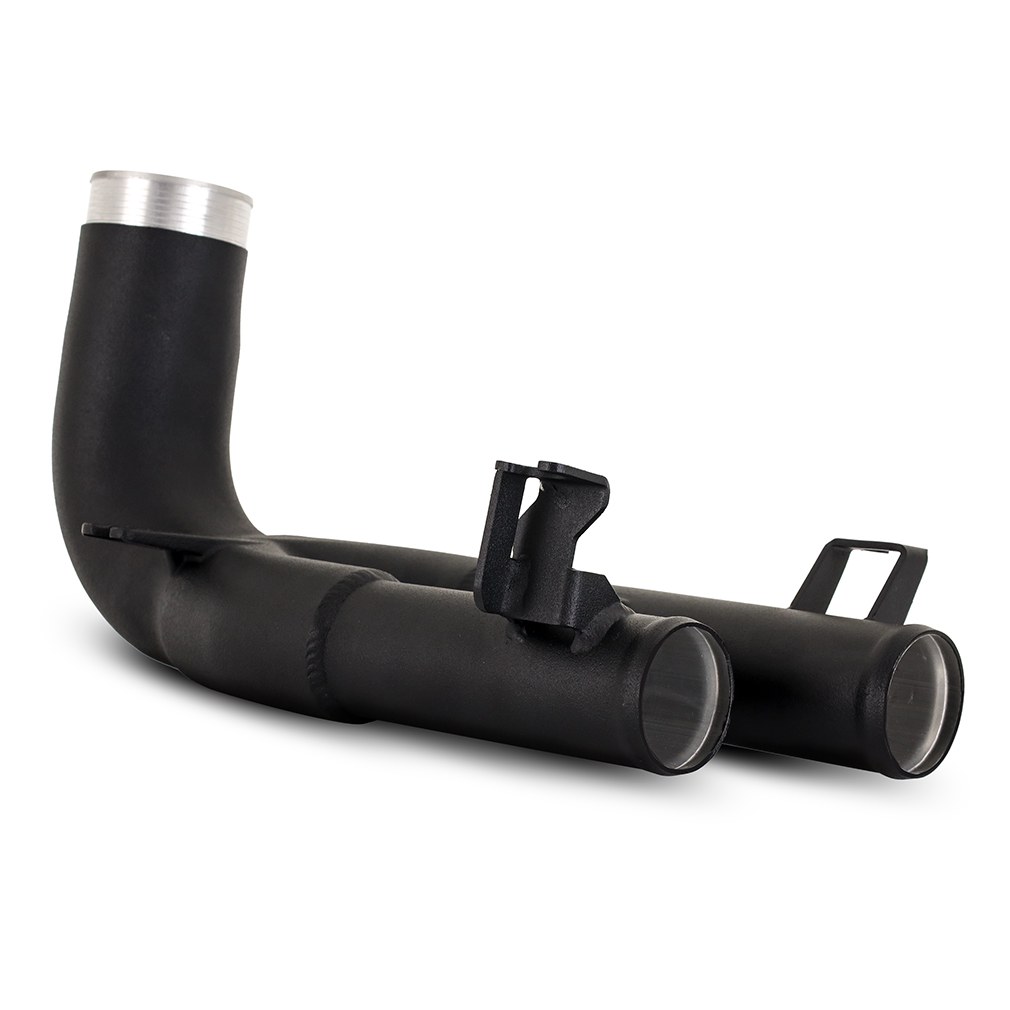

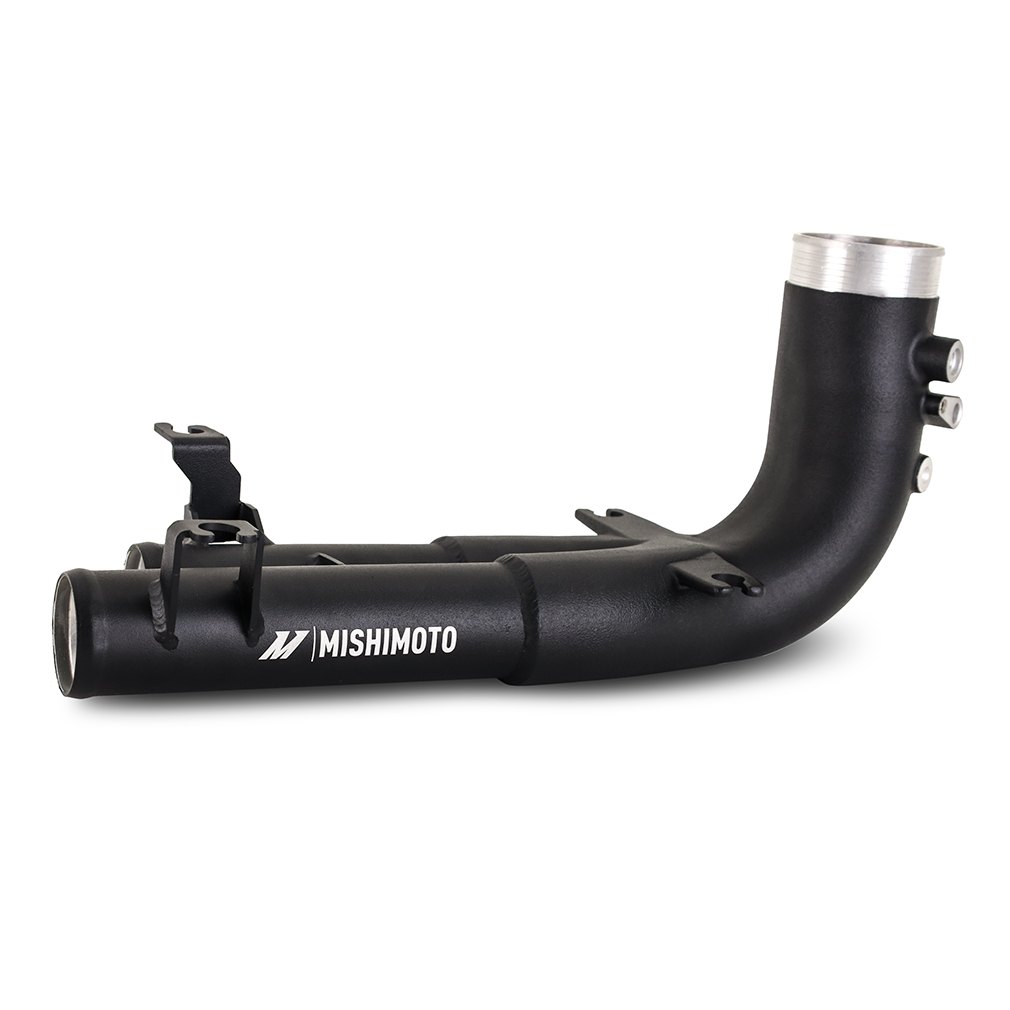

The Mishimoto MMICP-G80-21 performance charge pipe is purpose-built for the twin-turbocharged S58 engine that powers the BMW G8X M2, M3, and M4. Where the factory charge pipe relies on two rubber hoses feeding into a plastic merge that some owners have already seen crack under boost, this Mishimoto forced induction charge pipe replaces those weak points with robust cast aluminum and durable silicone, delivering a pipe that Mishimoto measures as 27% less restrictive than the stock unit.
As the connection between both turbos and the intake manifold and intercooler, the charge pipe is a critical piece of any forced induction system, and a restrictive or failure-prone design directly limits how much boost pressure can safely reach the engine. This Mishimoto forced induction turbo charge pipe keeps the flexibility of the stock front section but upgrades the rubber hoses to silicone for better heat and pressure tolerance, replaces the fragile plastic merge with cast aluminum, and smooths internal transitions to improve flow — supporting the induction system as you add future performance upgrades. It’s the kind of performance induction upgrade built for drivers who want their forced induction turbos breathing as freely as possible.
Vehicle Applications
This Mishimoto performance charge pipe is a direct fit for the S58-powered BMW M2 Base and M2 Coupe (2023–2025), M3 Base and M3 Competition (2021–2025), M3 Competition xDrive (2022–2025), and M3 CS (2024), as well as the M4 Base and M4 Competition (2021–2025), M4 Competition Heritage (2023), M4 Competition xDrive (2022–2025), and M4 CSL (2023) — covering chassis codes G80, G82, G83, and G87. Fitment also extends to the BMW X3 M and X3 M Competition (2021–2024).
Features
- Direct fit for 2021+ BMW G8X M2/M3/M4
- 27% less restrictive than stock for improved flow and power potential

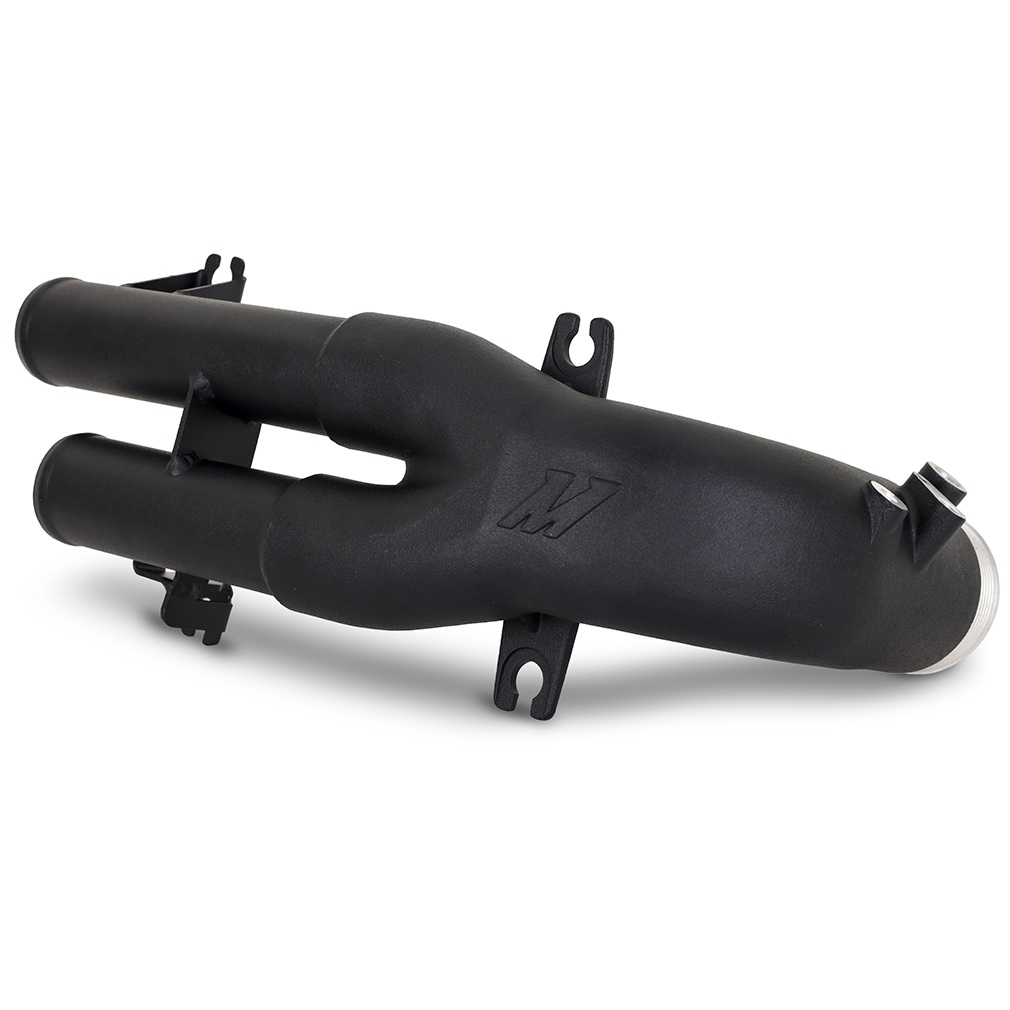

- Replaces fragile plastic with durable cast aluminum to help prevent costly failures
- Optimized transitions reduce restrictions and improve flow

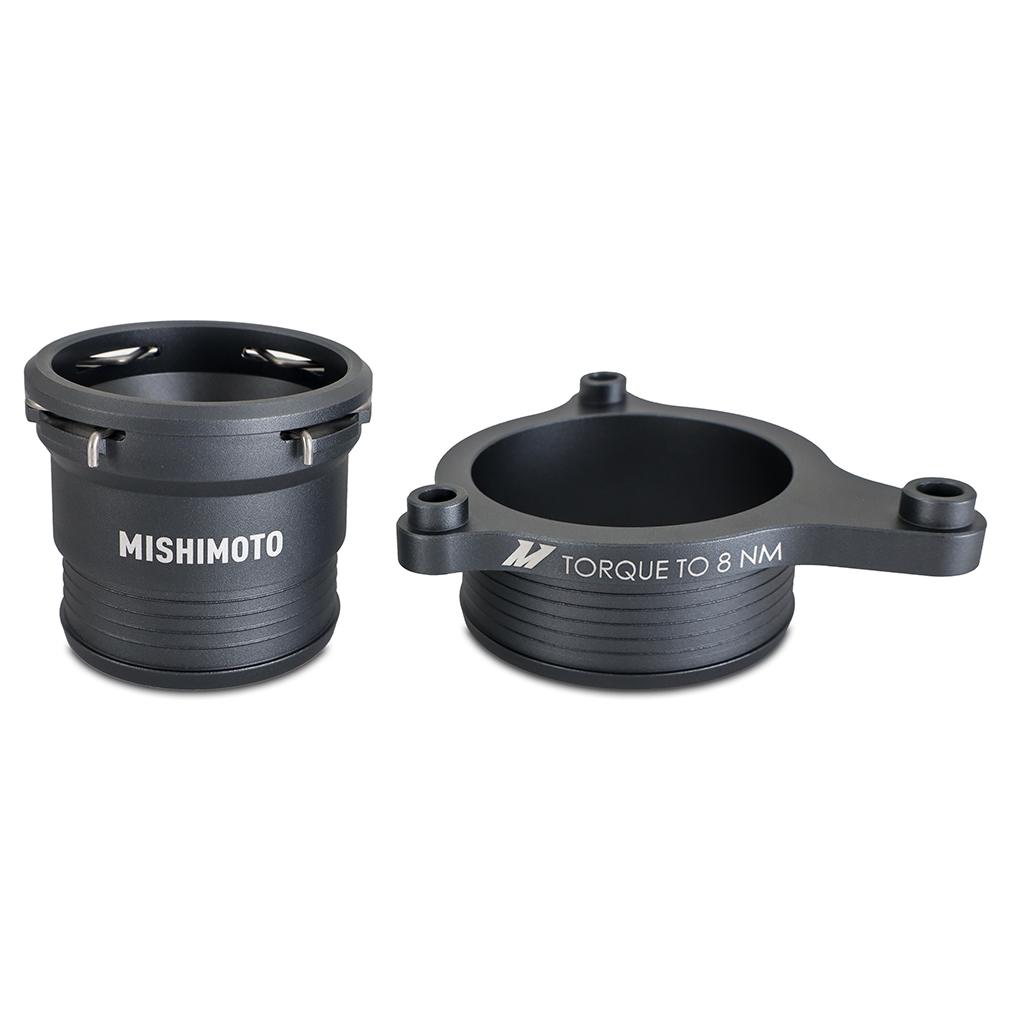

- CNC-machined turbo and throttle adapters ensure leak-free operation
- Serrated adapters prevent hoses from blowing off with high boost pressure
- Includes additional port that can be drilled and tapped for methanol injection or sensors
- Larger throttle body quick-disconnect matches throttle ID
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-G80-21
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Bend Type: Mandrel
- Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Engine Code: S58
- Chassis Codes: G80, G82, G83, G87
- Maximum Recommended Horsepower: 1000
- Maximum Recommended Boost Pressure: 60 PSI

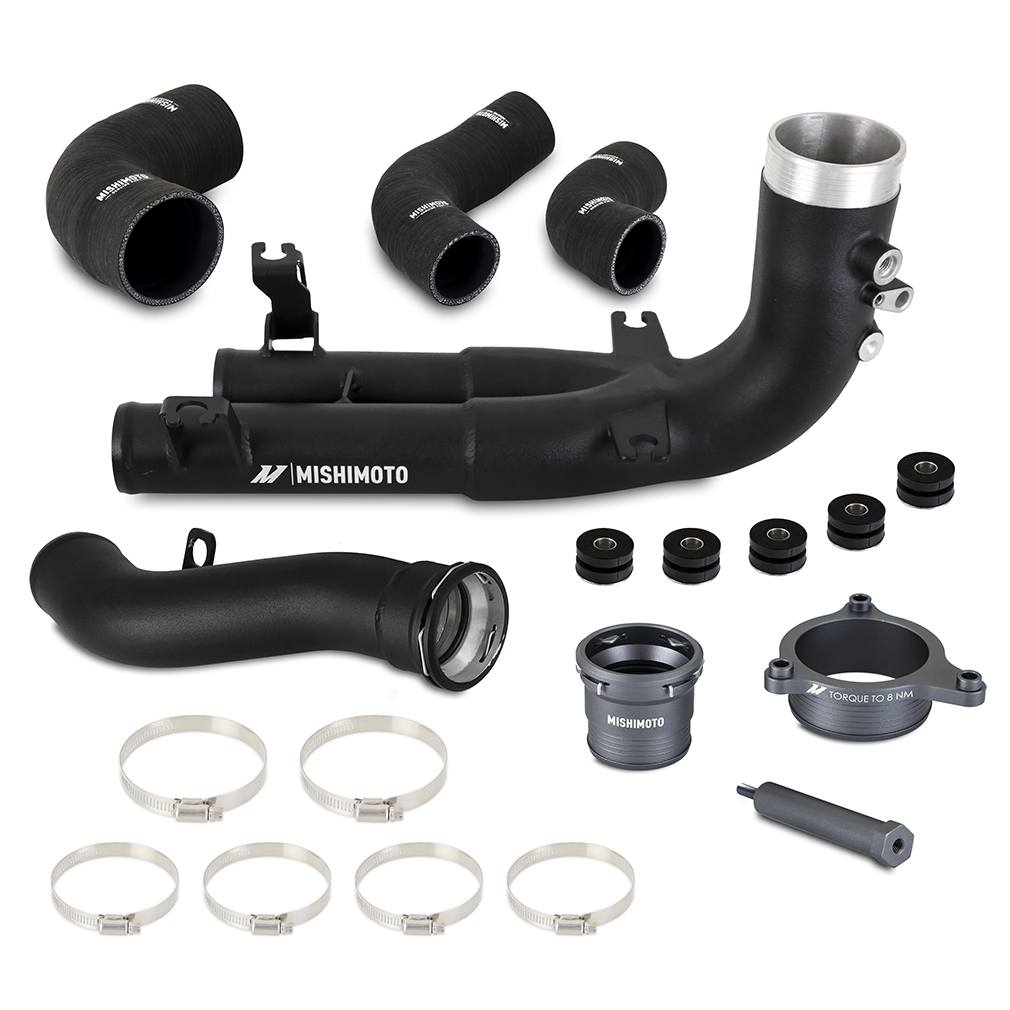

- Includes: (2) Aluminum Charge Pipes, (2) CNC Adapters, (1) Aluminum Spacer, (5) Rubber Grommets, (3) Silicone Couplers, (6) High-Torque Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto MMICP-G80-21 charge pipe fit?
It fits the S58-powered BMW M2 Base and M2 Coupe (2023–2025), M3 Base and M3 Competition (2021–2025), M3 Competition xDrive (2022–2025), M3 CS (2024), M4 Base and M4 Competition (2021–2025), M4 Competition Heritage (2023), M4 Competition xDrive (2022–2025), and M4 CSL (2023), as well as the BMW X3 M and X3 M Competition (2021–2024). Chassis codes covered are G80, G82, G83, and G87.
What materials replace the stock plastic and rubber sections?
The plastic merge is replaced with cast aluminum, and the stock rubber hoses are replaced with durable silicone, while retaining the flexibility of the stock front section.
How much less restrictive is this charge pipe compared to stock?
Mishimoto states this performance charge pipe is 27% less restrictive than the stock charge pipe.
What is included with the Mishimoto charge pipe kit?
The kit includes (2) Aluminum Charge Pipes, (2) CNC Adapters, (1) Aluminum Spacer, (5) Rubber Grommets, (3) Silicone Couplers, (6) High-Torque Worm Gear Clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What is the maximum recommended horsepower and boost pressure for this charge pipe?
Mishimoto lists a maximum recommended horsepower of 1000 and a maximum recommended boost pressure of 60 PSI.
Does this charge pipe come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
