Description
The Mishimoto Subaru BRZ / Scion FR-S Performance Air Intake (MMAI-BRZ-13BBK) is a purpose-built cold air intake engineered specifically for the ZC6/ZN6 chassis and the FA20/4U-GSE engine platform, delivering a bolt-on 7 whp / 5 wtq power increase without requiring front bumper removal for installation. Backed by the Mishimoto Lifetime Warranty, this air intake system pairs a wrinkle black aluminum intake pipe with a CNC-machined MAF housing and air straightener, a fully serviceable oiled air filter, and a powder-coated airbox for a complete performance-focused package.
This cold air intake was engineered to maintain safe A/F ratios throughout the entire powerband with no additional tuning required, while the smooth aluminum intake pipe and silicone induction hose eliminate airflow restrictions found in the stock intake tract. The included high-flow oiled air filter offers a 16-percent increase in filter surface area over the factory filter, improving both airflow and filtration, while the black powder-coated airbox shields the filter from hot engine bay air to keep intake temperatures down. Beyond the measurable power gain, this intake filter setup also sharpens throttle response character and adds a noticeably throatier intake tone under full throttle, giving drivers an air intake system that performs as good as it sounds.
Vehicle Applications
This Mishimoto performance intake is a direct fit for the 2013-2020 Subaru BRZ, covering Base, Limited, and Sport-tech trims across the full 2013-2020 run, the Premium trim from 2013-2019, the Sport-tech RS from 2018-2020, the TS trim in 2018 and 2020, the Aozora Edition and Series.Blue in 2015, the Series.HyperBlue in 2016, the Series.Yellow in 2017, and the Series.Gray in 2019. It also fits the 2013-2016 Scion FR-S Base, as well as the Toyota 86, including the Base and GT trims from 2017-2020 (GT starting 2018), the 2017 Special Edition, the 2019 TRD Special Edition, and the 2020 Hakone Edition. The kit is engineered around the FA20 and 4U-GSE engine codes on the ZC6 and ZN6 chassis codes.
Features
- Direct fit for the 2013-2020 Subaru BRZ and Scion FR-S
- Provides 7 whp / 5 wtq gains while maintaining A/F ratios with no additional tuning
- No bumper removal required and installs in under 30 minutes
- Designed to fit with the Mishimoto BRZ / FR-S Oil Cooler Kit and Mishimoto Oil Fill Cap

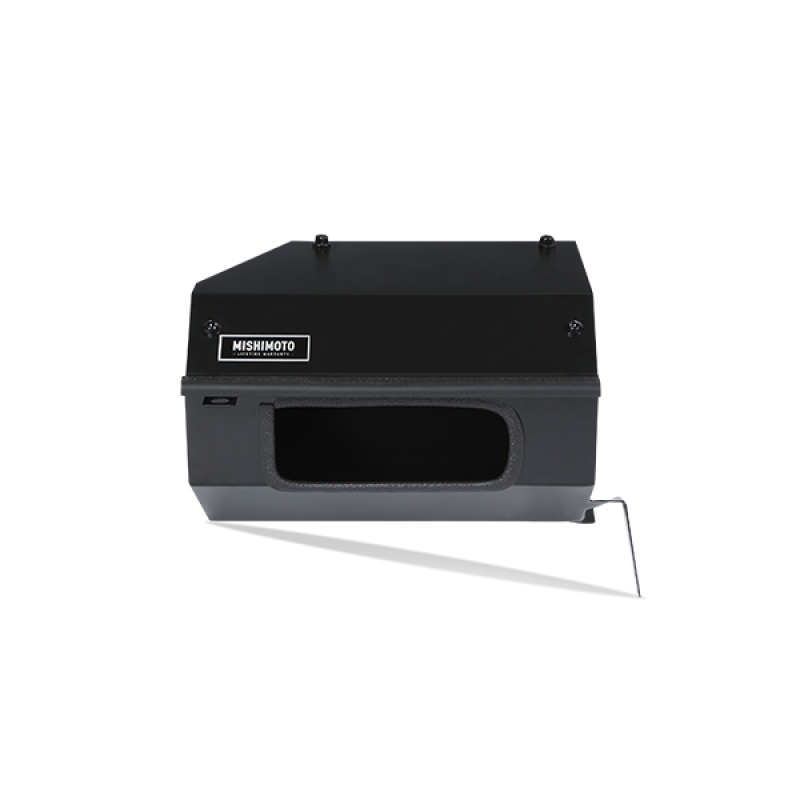

- Black powder-coated airbox keeps unwanted hot air from entering the air filter

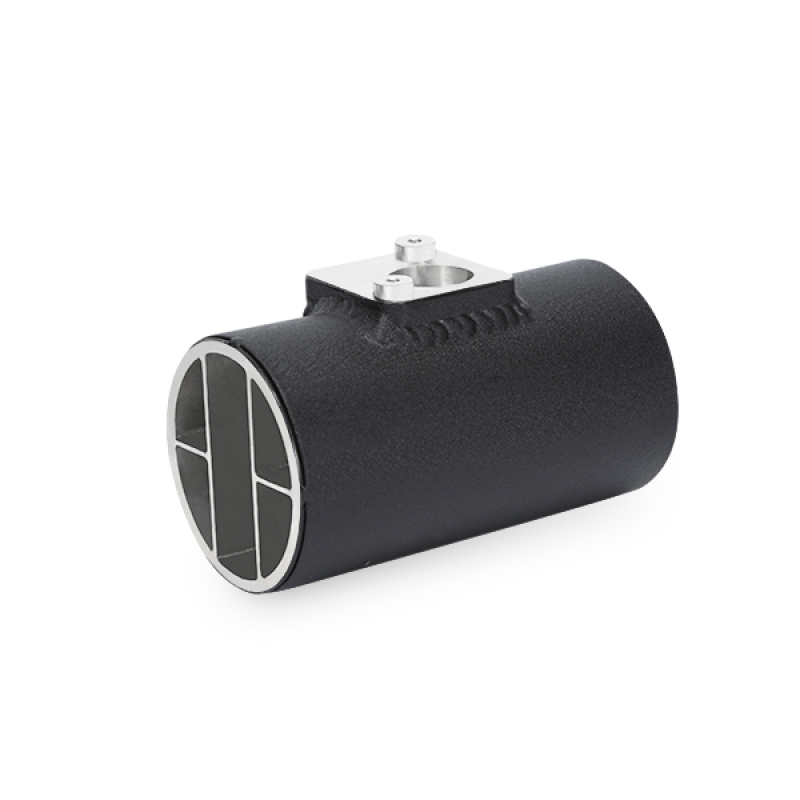

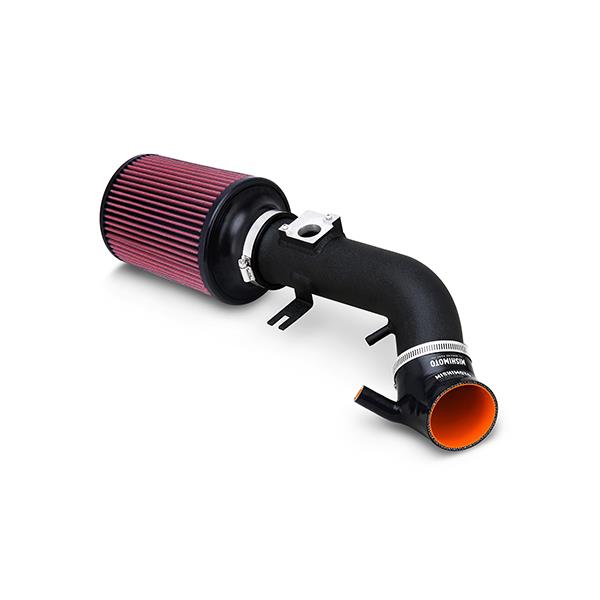

- Wrinkle black aluminum intake pipe includes CNC-machined MAF housing and air straightener

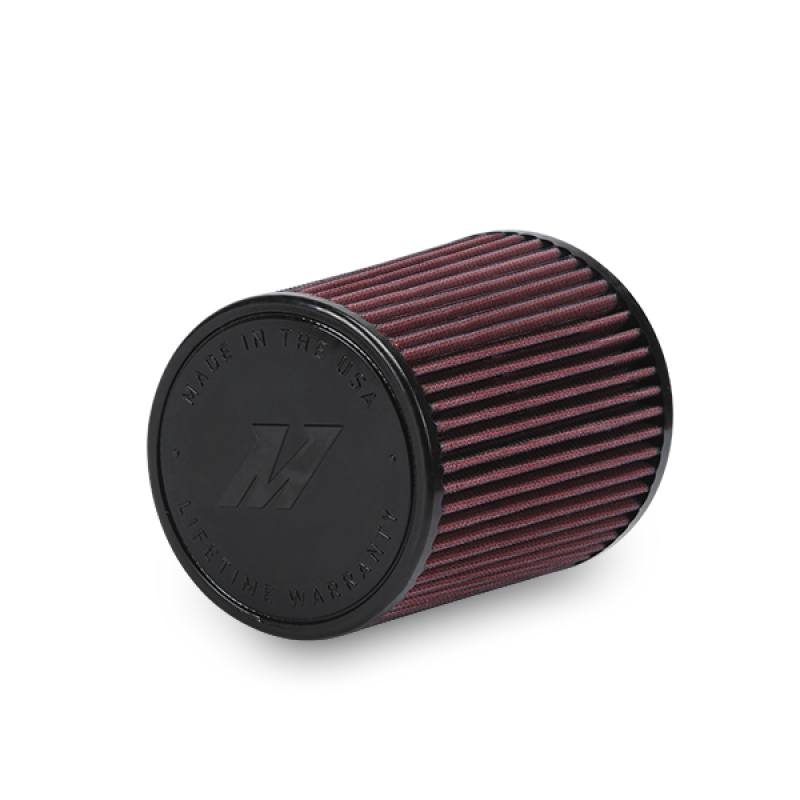

- Fully serviceable oiled air filter provides a 16-percent increase in filter surface area compared to the stock filter
- Improves engine tone
- Smooth design eliminates restrictions and improves airflow

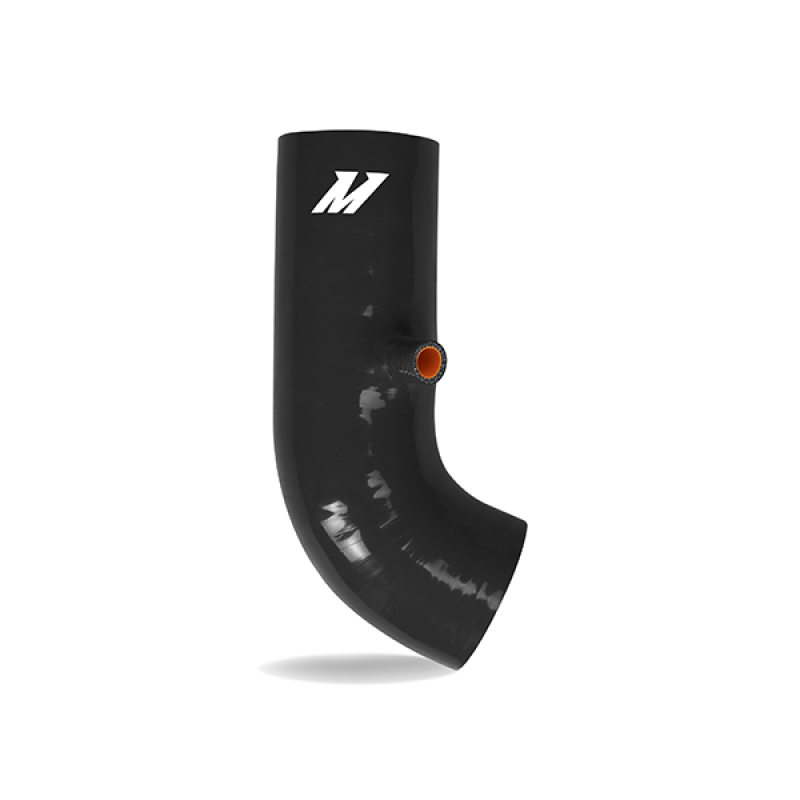

- Available with a black, blue, or red silicone induction hose
- Designed in Delaware, USA, and filter made in USA
- Mishimoto Lifetime Warranty
Specifications
- Filter Material: Multi-layered cotton
- Hose Material: Polyethylene
- Hose Color: Black (also available in blue or red)
- Filter Color: Black
- Grade Type: Performance
- Finish: Powder-Coat
- Material: Aluminum
- Filter Diameter: 2.75 inches
- Air Filter Part Number: MMAF-3006
- Engine Codes: FA20, 4U-GSE
- Chassis Codes: ZC6, ZN6
- CARB EO Number: D-759-3

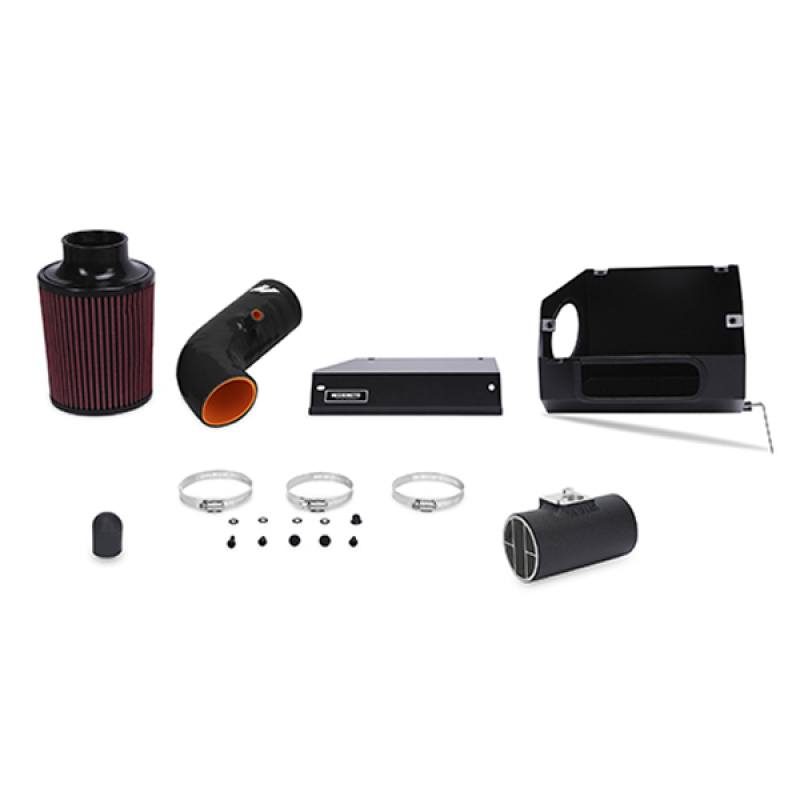

- Kit Includes: (1) Wrinkle Black Aluminum Intake Pipe w/ CNC-Machined MAF, (1) Airbox w/ Protective Edging, (1) High-Flow Oiled Filter, (1) Silicone Induction Hose, (1) Sound Generator Cap, (2) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What power gain does the Mishimoto Performance Air Intake provide?
This intake was designed to develop a 7 whp / 5 wtq bolt-on power increase while maintaining safe A/F ratios throughout the powerband, with no additional tuning required.
Do I need to remove the front bumper to install this cold air intake?
No. The Mishimoto Performance Air Intake was engineered so that no bumper removal is required, and it installs in under 30 minutes.
Which vehicles does this intake fit?
It fits the 2013-2020 Subaru BRZ (Base, Limited, Sport-tech, Premium through 2019, Sport-tech RS 2018-2020, TS in 2018 and 2020, plus the Aozora Edition, Series.Blue, Series.HyperBlue, Series.Yellow, and Series.Gray special editions), the 2013-2016 Scion FR-S Base, and the Toyota 86 (Base and GT 2017-2020, Special Edition 2017, TRD Special Edition 2019, and Hakone Edition 2020).
Is the air filter reusable or serviceable?
Yes, the kit includes a fully serviceable oiled air filter (part number MMAF-3006) with a 2.75-inch filter diameter that provides a 16-percent increase in filter surface area compared to the stock filter. Mishimoto recommends cleaning and re-oiling it every 10,000–15,000 miles under normal driving conditions.
Does this intake work with the Mishimoto BRZ/FR-S Oil Cooler Kit?
Yes, the airbox was designed to fit properly alongside the Mishimoto BRZ / FR-S Oil Cooler Kit and Mishimoto Oil Fill Cap.
What color options are available for the induction hose?
The intake kit is offered with a black, blue, or red silicone induction hose for personalized styling.
