Description
The Mishimoto Subaru BRZ / Scion FR-S Performance Air Intake (MPN: MMAI-BRZ-13BBL) is a purpose-built air intake system engineered specifically for the FA20-powered BRZ and FR-S platform, delivering a bolt-on 7 whp / 5 wtq power increase without requiring front bumper removal. This particular kit ships with a blue silicone induction hose, pairing a smooth-flowing aluminum intake pipe with a CNC-machined mass airflow housing to help keep sensor readings accurate while unlocking additional airflow.
As a true cold air intake, this system replaces the factory intake filter setup with a fully serviceable Mishimoto oiled air filter that offers a 16-percent increase in filter surface area over the stock piece, translating into greater airflow and stronger filtration while maintaining safe air/fuel ratios throughout the powerband. The black powder-coated airbox shields the filter from hot engine bay air, so this air intake system stays cooler than an open-element cool air intake, while the smooth aluminum pipe and induction hose eliminate the restrictions of the stock intake filter housing. Drivers looking for an intake filter upgrade that also sharpens sound will notice a noticeably throatier intake tone under full throttle.
Vehicle Applications
This Mishimoto intake is a direct fit for the 2013-2016 Scion FR-S Base and spans the full 2013-2020 Subaru BRZ lineup, including the Base, Limited, and Sport-tech trims for all of those model years, the Premium trim from 2013-2019, the Sport-tech RS from 2018-2020, and the TS trim in 2018 and 2020. It also covers the limited-production BRZ Aozora Edition (2015), Series.Blue (2015), Series.HyperBlue (2016), Series.Yellow (2017), and Series.Gray (2019). On the Toyota side, this air intake fits the 2017-2020 Toyota 86 Base along with the 2020 Hakone Edition, 2017 Special Edition, and 2019 TRD Special Edition, and it was designed to work alongside the Mishimoto BRZ/FR-S Oil Cooler Kit.
Features
- Direct fit for the 2013-2020 Subaru BRZ and Scion FR-S with no bumper removal required, installing in under 30 minutes
- Delivers 7 whp / 5 wtq gains while maintaining safe A/F ratios with no additional tuning
- Designed to fit with the Mishimoto BRZ / FR-S Oil Cooler Kit and Mishimoto Oil Fill Cap

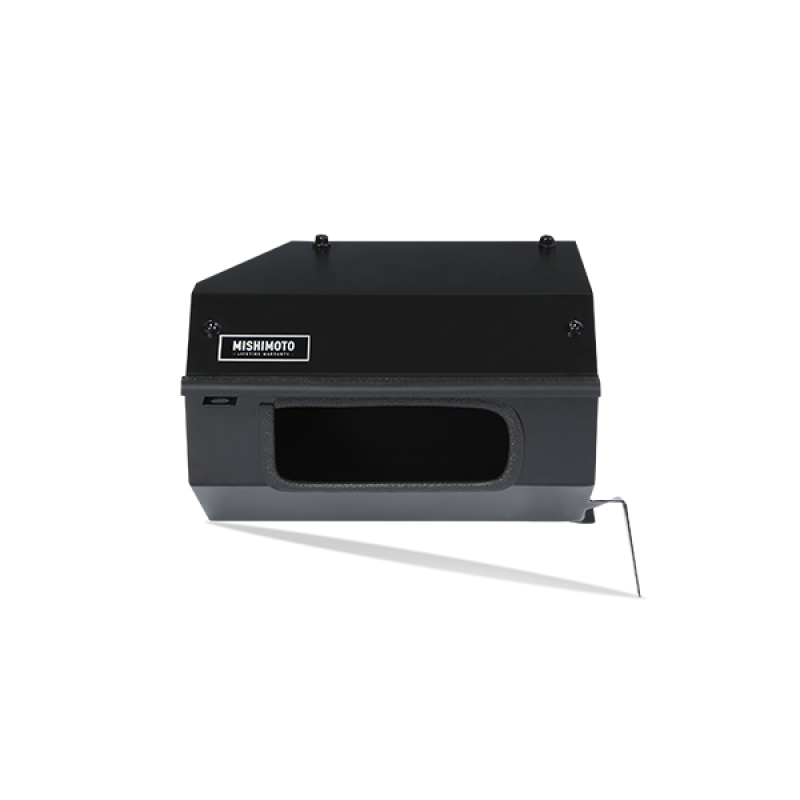

- Black powder-coated airbox with protective edging keeps hot engine bay air from heat-soaking the filter

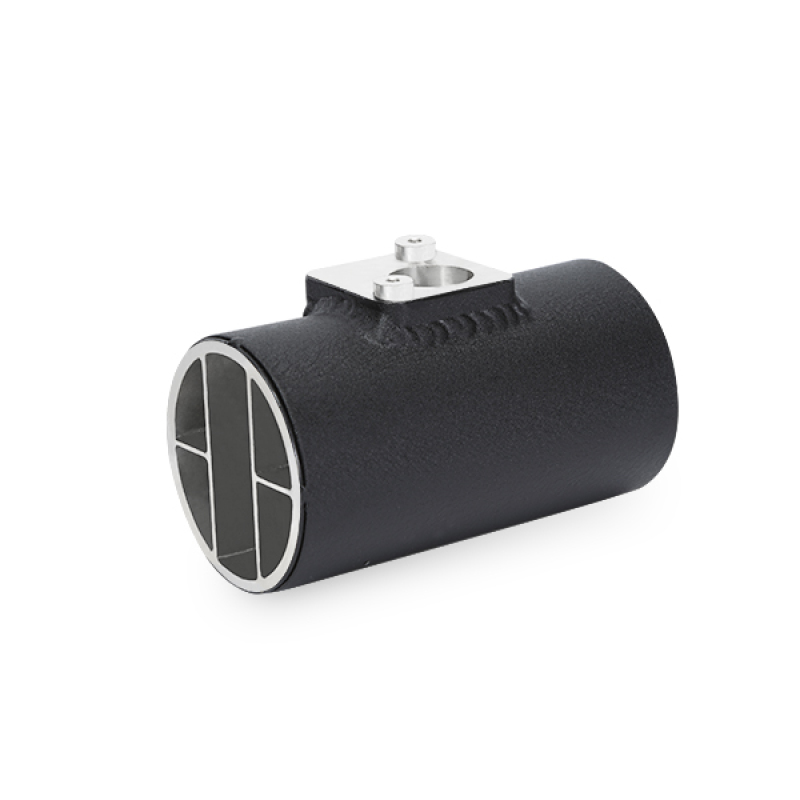

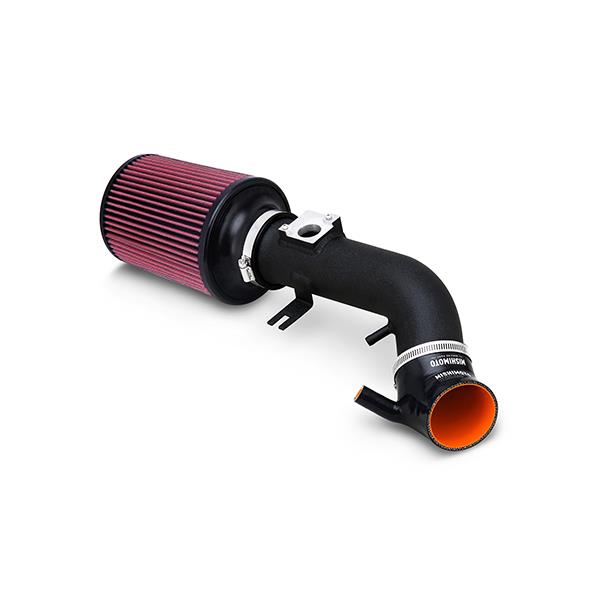

- Wrinkle black aluminum intake pipe with CNC-machined MAF housing and air straightener for laminar airflow

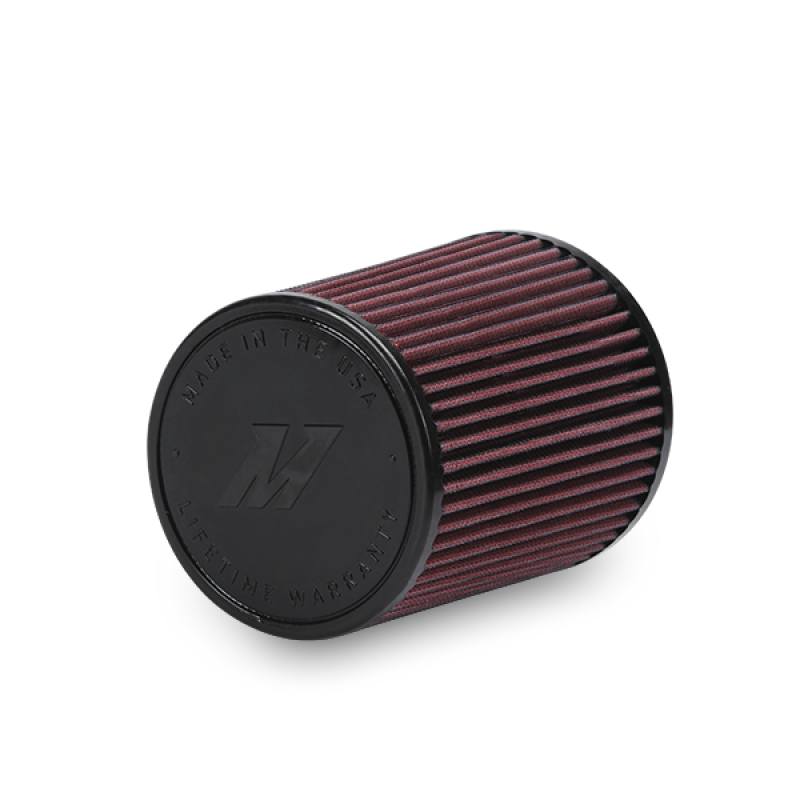

- Fully serviceable oiled air filter delivers a 16-percent increase in filter surface area versus stock
- Smooth intake design eliminates restrictions and improves airflow while sharpening intake tone

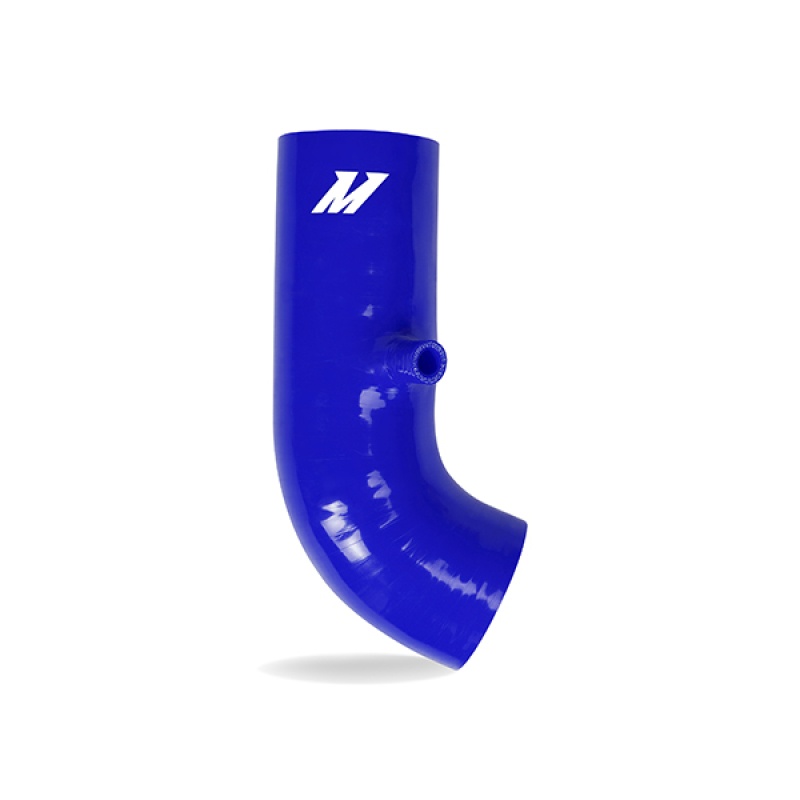

- Available with a black, blue, or red silicone induction hose (this kit includes the blue hose)

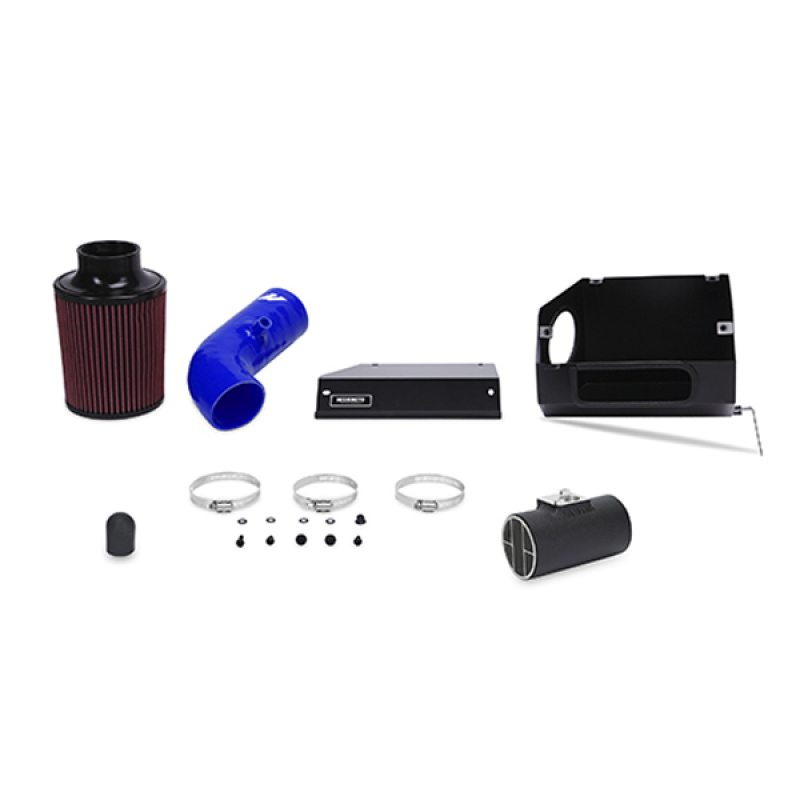

- Kit includes wrinkle black aluminum intake pipe, airbox, oiled filter, silicone induction hose, sound generator cap, worm gear clamps, and mounting hardware
- Designed in Delaware, USA, with a filter made in USA, backed by the Mishimoto Lifetime Warranty
Specifications
- Filter Material: Multi-layered cotton
- Filter Diameter: 2.75 in
- Air Filter Part Number: MMAF-3006
- Filter Color: Red
- Intake Pipe Material: Aluminum
- Airbox Finish: Powder-Coat
- Grade Type: Performance
- Hose Color: Blue (also available in black or red)
- Engine Codes: FA20, 4U-GSE
- Chassis Codes: ZC6, ZN6
- CARB EO Number: D-759-3 (covers model years 2013-2017; does not cover Scion FR-S vehicles)
Frequently Asked Questions
What vehicles does the Mishimoto MMAI-BRZ-13BBL intake fit?
It fits the 2013-2016 Scion FR-S Base, the 2013-2020 Subaru BRZ Base/Limited/Sport-tech, BRZ Premium (2013-2019), Sport-tech RS (2018-2020), TS (2018, 2020), Aozora Edition (2015), Series.Blue (2015), Series.HyperBlue (2016), Series.Yellow (2017), Series.Gray (2019), and the Toyota 86 Base (2017-2020), Hakone Edition (2020), Special Edition (2017), and TRD Special Edition (2019).
Do I need to remove the front bumper to install this intake?
No, this Mishimoto intake was engineered to install without front bumper removal and installs in under 30 minutes.
How much power does this intake add?
It provides a bolt-on 7 whp / 5 wtq power increase while maintaining safe A/F ratios with no additional tuning required.
What does the intake kit include?
The kit includes a wrinkle black aluminum intake pipe with CNC-machined MAF, an airbox with protective edging, a high-flow oiled filter, a silicone induction hose, a sound generator cap, worm gear clamps, and mounting hardware.
Is this intake compatible with the Mishimoto Oil Cooler Kit?
Yes, this airbox was designed to fit properly with the Mishimoto BRZ / FR-S Oil Cooler Kit and the Mishimoto Oil Fill Cap.
How often should I service the oiled air filter?
Mishimoto recommends cleaning and re-oiling the filter every 10,000-15,000 miles under normal driving, and inspecting it more often in dusty or off-road conditions; filter re-oiling is not covered under the Lifetime Warranty.
