Description
The Mishimoto Performance Front-Mount Intercooler Kit (MMINT-WRX-22AISLBK) is a purpose-built forced induction upgrade engineered specifically for the 2022+ Subaru WRX. Built around a massive bar-and-plate core, CFD-optimized cast end tanks, and high-flow, ID-matched pipes, this kit is designed to replace the factory intercooler with a system tuned for real dyno-proven results: gains of 12 hp and 11.8 lb-ft of torque on a stock tune.
As one of the more demanding components in any induction system, the intercooler determines how consistently your engine can make power run after run. Mishimoto’s forced induction system relocates the core to the lower bumper grille for maximum airflow, and the 4-inch thick core combined with ID-matched pipes produces just a 1.5 PSI pressure drop, meaning less boost is wasted before it reaches the engine. For drivers pursuing performance induction upgrades on the street, track, or dragstrip, this intercooler is built to keep pace with aggressive forced induction turbo setups while remaining safe on stock tuning. The kit also includes the Mishimoto Performance intake for maximum airflow, pairing the induction system upgrade with a complete, easy-to-install package.
Vehicle Applications
This Mishimoto intercooler kit is a specific-fit forced induction system engineered for the Subaru WRX equipped with the 2.4L H4 FA24F engine and VB chassis code. Coverage includes the WRX Base for 2022–2024, along with the WRX GT, Limited, Premium, Sport, and Sport-tech trims for 2022–2026. It also fits the WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims for the 2026 model year.
Features
- Max power gains of 12 hp and 11.8 lb-ft of torque on stock tune
- 4-inch thick core helps protect against heat soak and detonation
- Includes Mishimoto Performance Intake for maximum flow and easy install

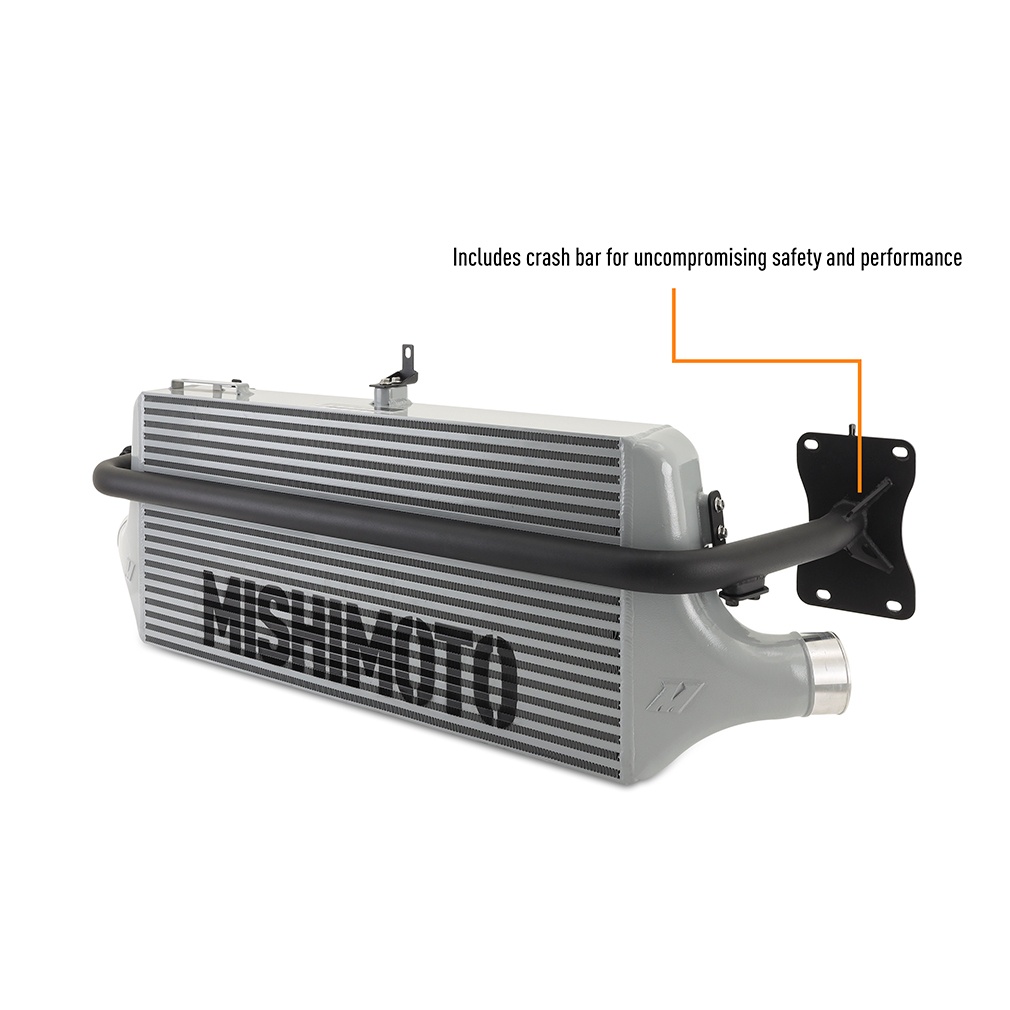

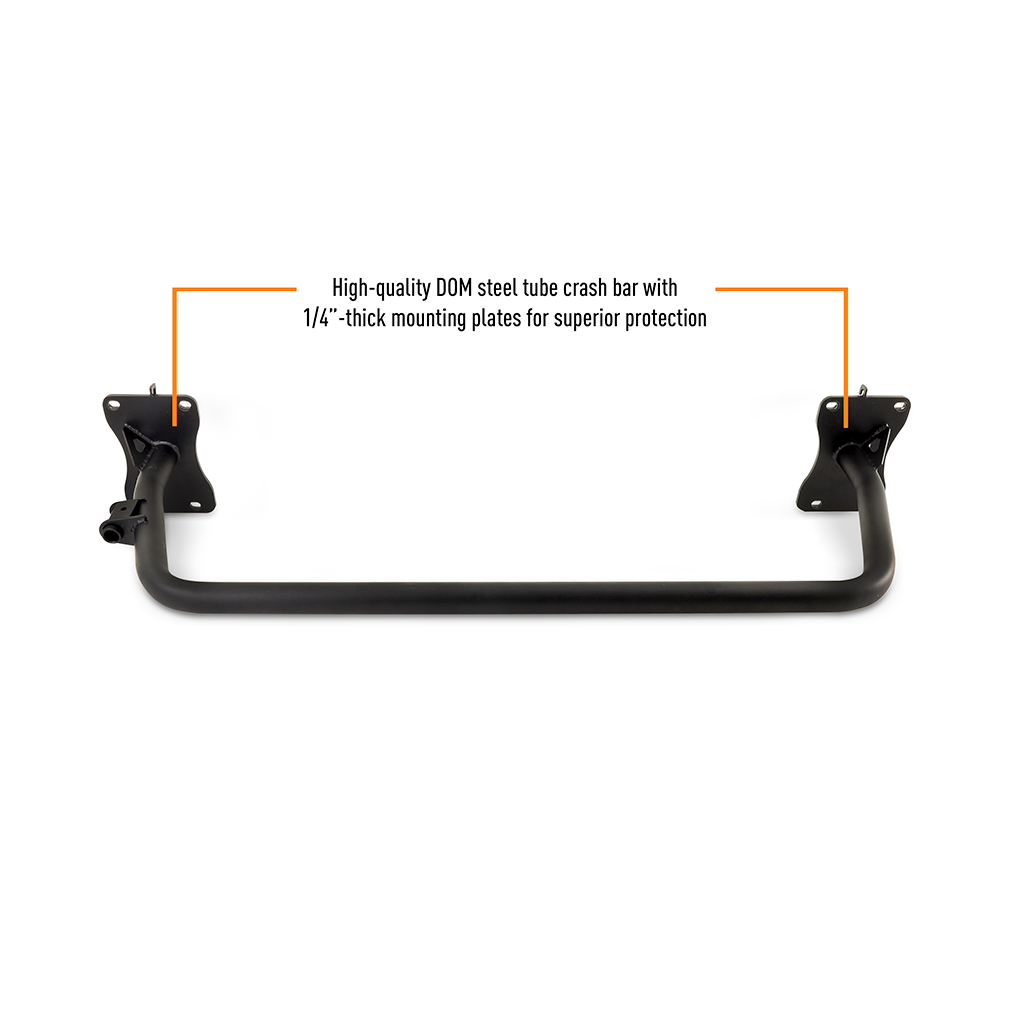

- Includes bumper support bar with factory tow hook mounting for track and street use
- Comprehensive kit includes everything needed for installation, with no cutting of the bumper or body required
- Retains factory side impact bars for safety
- Safe for use with stock tuning

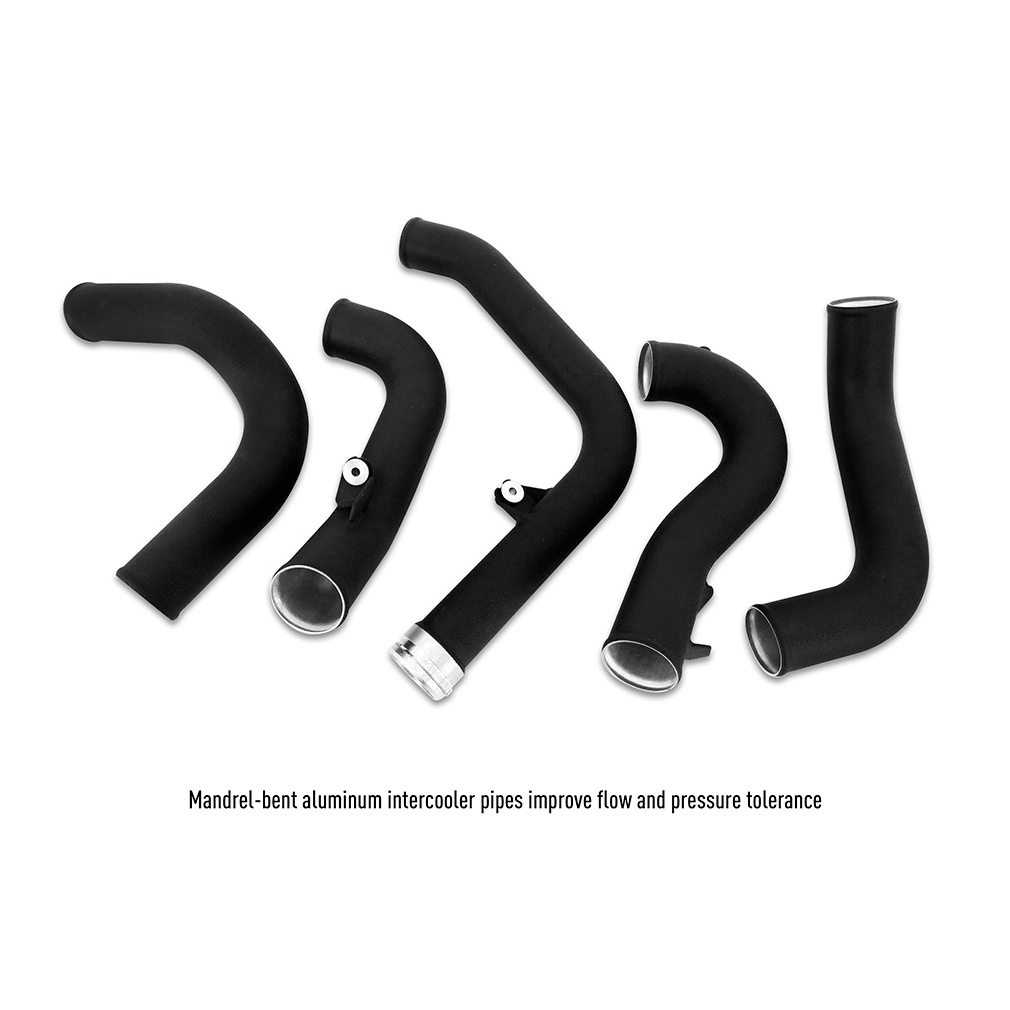

- ID-matched pipes and intercooler ensure unrestricted airflow and a low 1.5 PSI pressure drop

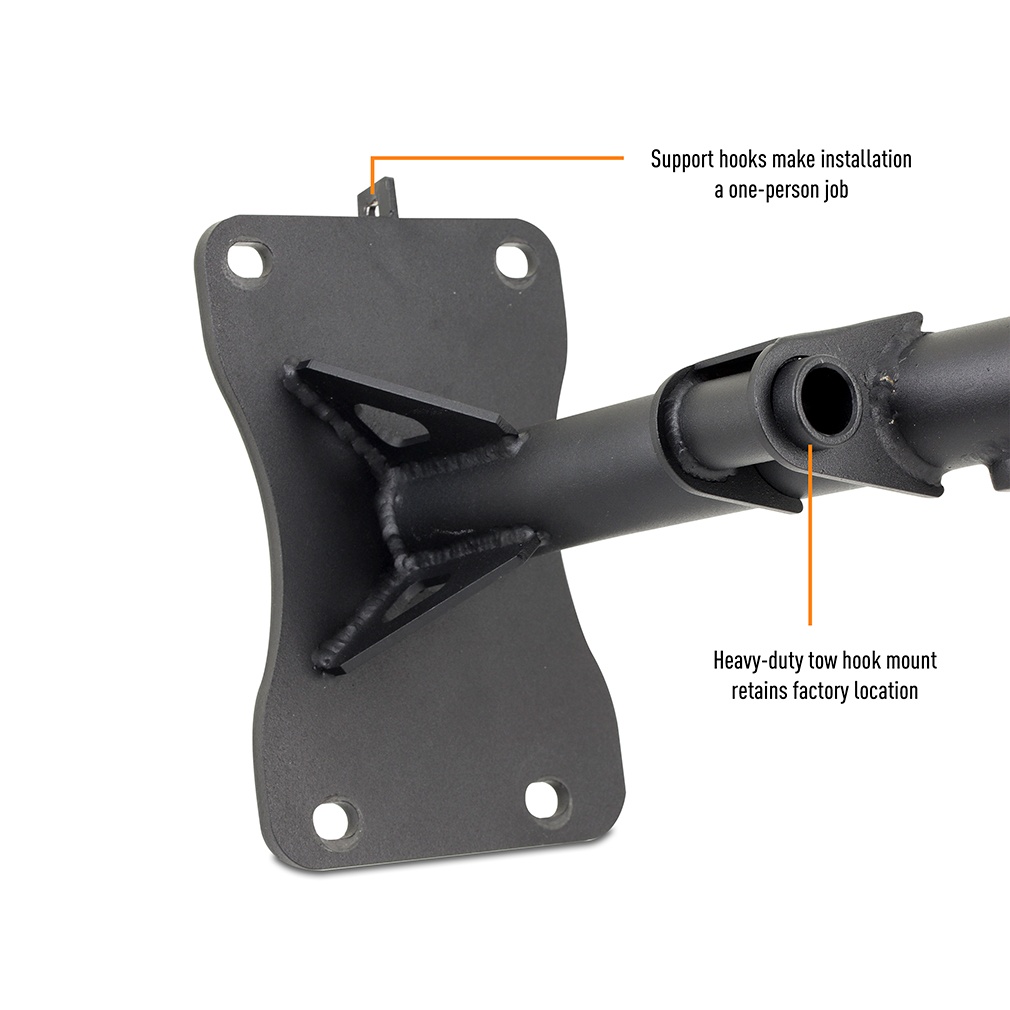

- Built-in crash bar hooks make installation a one-person job
- Cast end tanks withstand massive boost pressures

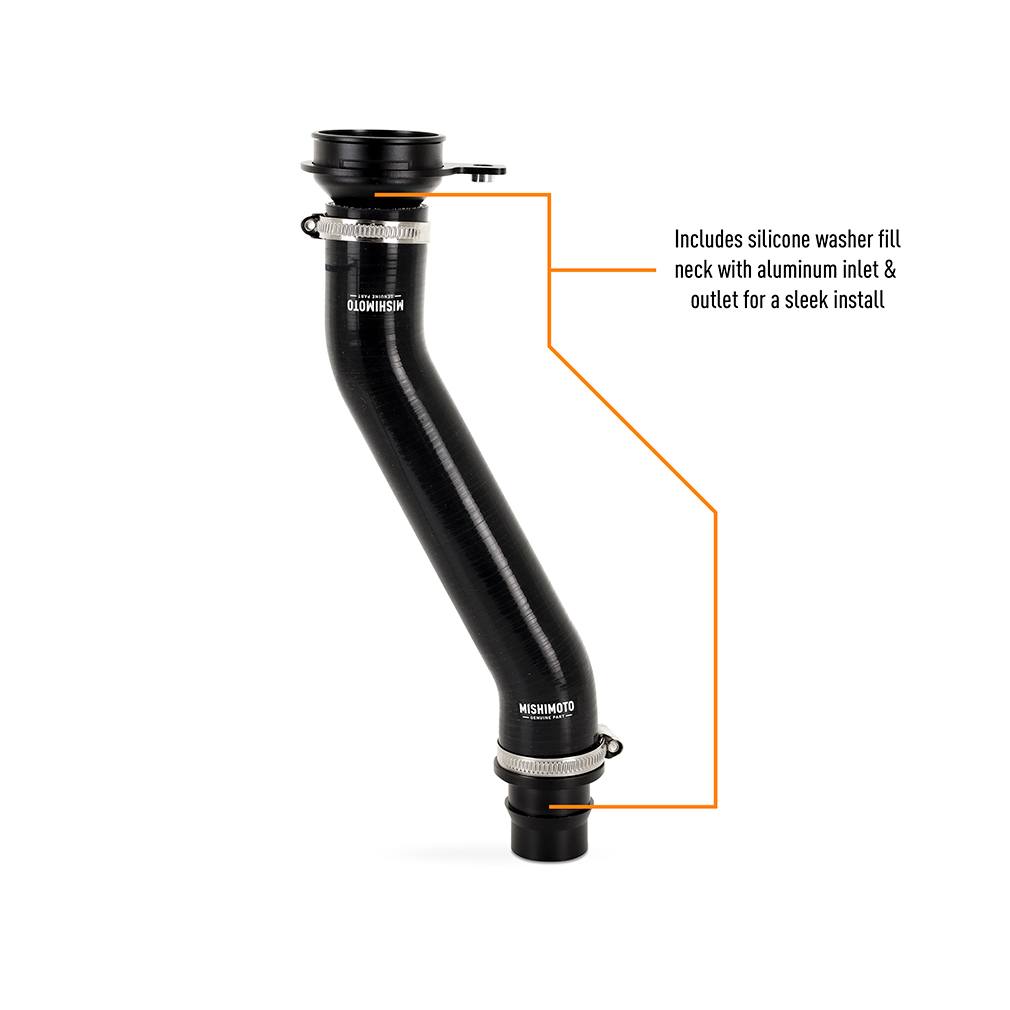

- Includes washer fluid fill neck relocation kit for easy maintenance and a clean install
- No bending of A/C lines required
- Fits with most popular strut bars
- Patent Pending

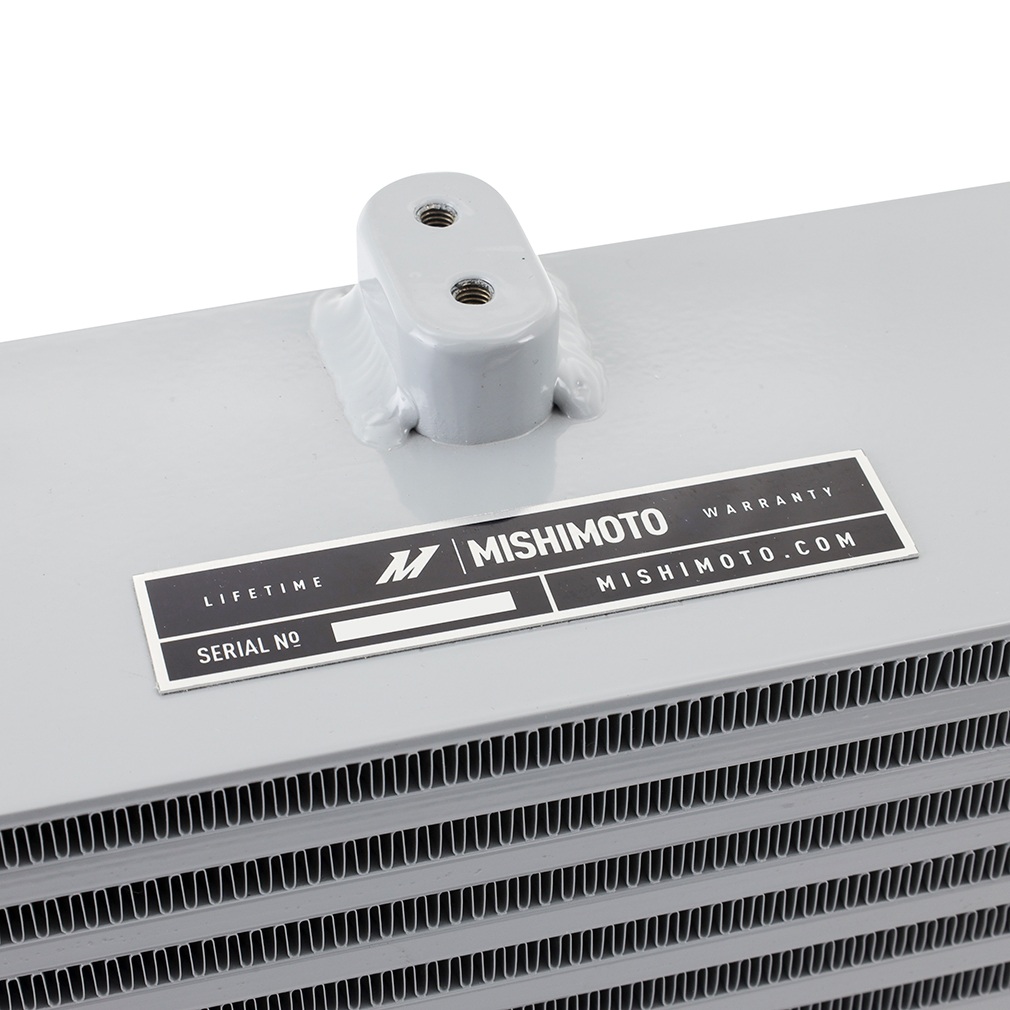

- Backed by Mishimoto’s Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Silver
- Core Height: 12.14 in
- Core Length: 26.57 in
- Core Thickness: 3.93 in
- Inlet Diameter: 2.4 in
- Outlet Diameter: 2.4 in
- Hot Side Pipe Inside Diameter: 2.4 in
- Cold Side Pipe Inside Diameter: 2.4 in
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Intercooler Type: Air-to-Air
- Maximum Boost Pressure: 60 PSI
- Maximum Horsepower: 1000 HP
- Overall Width (intercooler): 6 in
- Overall Height (intercooler): 12.89 in
- Overall Length (intercooler): 40.22 in
- Engine Code: FA24F
- Chassis Code: VB
- Application: Subaru WRX 2.4L H4 2022+
Frequently Asked Questions
Which Subaru WRX models fit the Mishimoto MMINT-WRX-22AISLBK intercooler kit?
This kit fits the Subaru WRX Base for 2022–2024, the WRX GT, Limited, Premium, Sport, and Sport-tech trims for 2022–2026, and the WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims for 2026. It is designed for the 2.4L H4 FA24F engine and VB chassis.
What performance gains does this intercooler kit provide?
On a stock tune, the Mishimoto Performance Front-Mount Intercooler Kit delivers gains of 12 hp and 11.8 lb-ft of torque.
Does installing this intercooler require cutting the bumper or body?
No. The kit includes everything needed for installation with no cutting of the bumper or body required, and it retains the factory side impact bars.

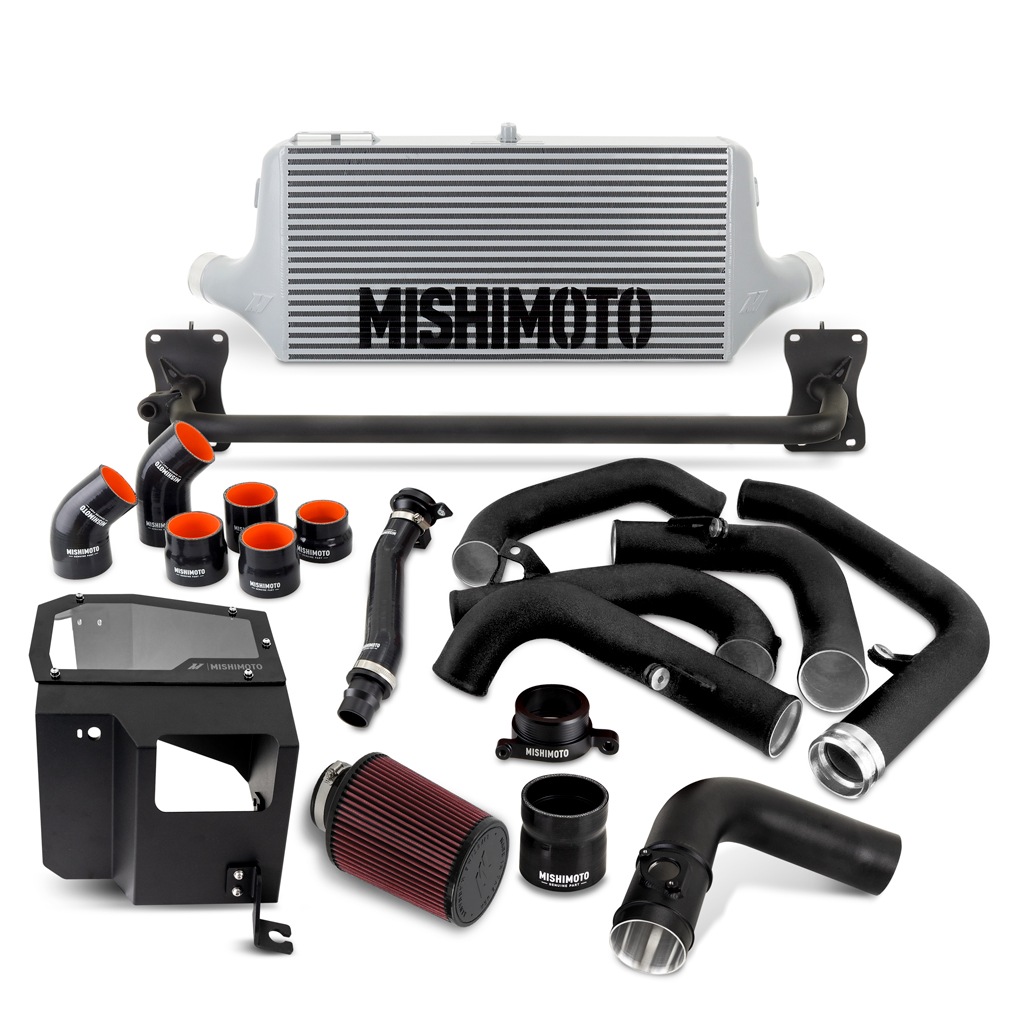

What is included in the Mishimoto intercooler kit?
The kit includes one front-mount intercooler, one pipe and boot kit with adaptors, one Mishimoto Performance intake kit, one bumper support bar, one washer fluid fill neck relocation kit, and Mishimoto’s Lifetime Warranty.
What is the maximum boost pressure and horsepower rating for this intercooler?
The intercooler is rated for a maximum boost pressure of 60 PSI and a maximum horsepower of 1000 HP.
What warranty comes with this Mishimoto intercooler kit?
This kit is backed by Mishimoto’s Lifetime Warranty.
