Description
The Mishimoto MMINT-F2D-03SL is a direct-fit performance intercooler engineered specifically for the 2003-2007 Ford 6.0L Powerstroke, replacing the restrictive factory unit with a heavy-duty cast aluminum end tank and bar-and-plate core assembly built to handle the demands of a hard-working diesel forced induction system. This is not a generic cooler adapted to fit — it is a Powerstroke-specific design with a core that measures 25.75 inches long and 21.54 inches high, giving it noticeably greater volume than the stock intercooler.

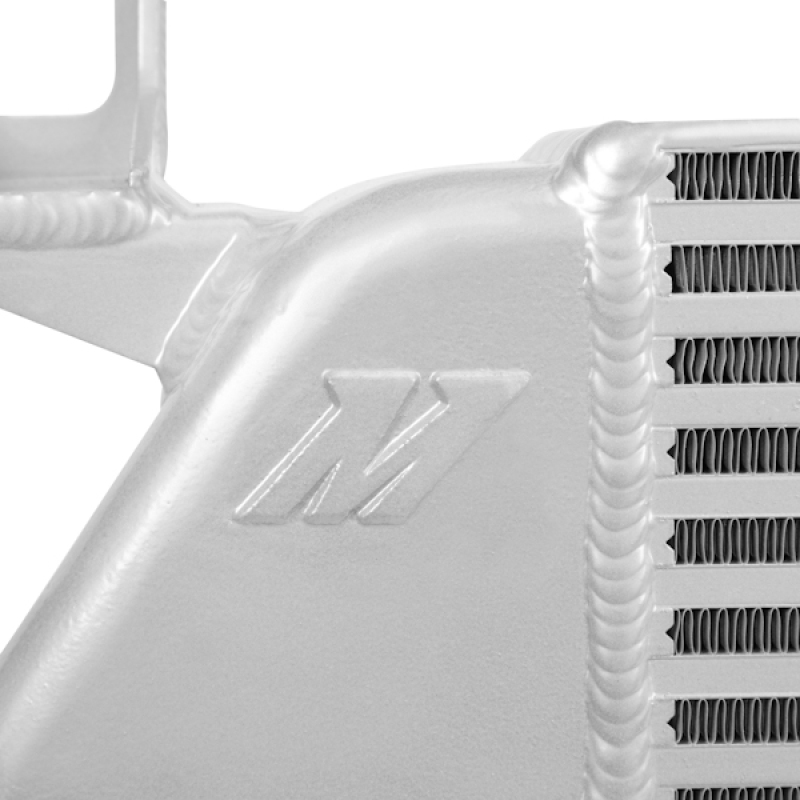

A high-output 6.0L Powerstroke needs an induction system component that can pull down intake air temperature while standing up to sustained boost pressure, and that is exactly the job this Mishimoto intercooler is built for. The bar-and-plate core is 33-percent thicker than the factory core and delivers a 32.5-percent increase in core volume, which lowers intake temperatures, improves airflow through the forced induction system, and reduces pressure drop. Because it reduces pressure drop, this performance induction upgrade also helps extend the life of the turbocharger and improves overall Powerstroke efficiency. The cast aluminum end tanks are strategically shaped for optimal airflow, and an air diverter built into the hot-side end tank reduces turbulence so air is distributed evenly across the entire core before it reaches the engine.
Vehicle Applications
This Mishimoto intercooler is a specific-fit part built for Ford Super Duty and Excursion models equipped with the 6.0L Powerstroke. Coverage includes the 2003-2007 Ford F-250 Super Duty in XL, XLT, and Lariat trims, plus the 2004-2007 Harley-Davidson Edition and King Ranch trims. The 2003-2007 Ford F-350 Super Duty is covered in XL, XLT, King Ranch, and Lariat trims, along with the 2004-2007 Harley-Davidson Edition. For the F-450 Super Duty, fitment covers the 2003-2004 Base trim as well as the 2003-2007 XL, XLT, and Lariat trims, while the F-550 Super Duty is covered across Base, XL, XLT, and Lariat trims from 2003-2007. On the Excursion side, the 2003-2005 Eddie Bauer, Limited, and XLT trims are covered, along with the 2004-2005 XLS trim.
Features
- Direct fit for the 2003-2007 Ford 6.0L Powerstroke
- 3.35-in bar-and-plate core is 33-percent thicker than the factory intercooler
- 32.5-percent increase in core volume over stock
- End tanks strategically designed for optimal airflow
- Air diverter in the hot-side end tank reduces turbulence and evenly distributes airflow across the core
- Reduces turbo stress and helps extend turbocharger life
- Provides improved airflow and lowers intake air temperatures
- Available in Sleek Silver and Stealth Black finishes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-F2D-03SL
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Overall Length: 38.5 in
- Overall Width: 7.5 in
- Overall Height: 25.2 in
- Core Length: 25.75 in
- Core Height: 21.54 in
- Inlet Outside Diameter: 3.25 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Includes: (1) Mishimoto Intercooler — Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F2D-03SL intercooler fit?
It is a specific fit for the 2003-2007 Ford F-250, F-350, F-450, and F-550 Super Duty trucks equipped with the 6.0L Powerstroke, as well as the 2003-2005 Ford Excursion with the 6.0L Powerstroke. Coverage varies slightly by trim, including XL, XLT, Lariat, King Ranch, Harley-Davidson Edition, Eddie Bauer, Limited, and XLS depending on year.
What core design does this intercooler use?
It uses a bar-and-plate core that is 33-percent thicker than the factory core and provides a 32.5-percent increase in core volume, made from aluminum with aluminum end tanks.
What color options are available for this intercooler?
This Mishimoto intercooler is available in Sleek Silver and Stealth Black finishes.
Does this intercooler help protect the turbocharger?
Yes, by reducing pressure drop and improving airflow, the intercooler reduces turbo stress and helps extend turbocharger life.
What is included with the purchase, and is there a warranty?
The package includes (1) Mishimoto Intercooler and is backed by the Mishimoto Lifetime Warranty.
What are the inlet and outlet fittings on this intercooler?
The intercooler has a 3.25-inch inlet outside diameter with male inlet and outlet fitting genders.
