Mishimoto Performance Intercooler – 2024+ Toyota Tacoma & Land Cruiser

Description

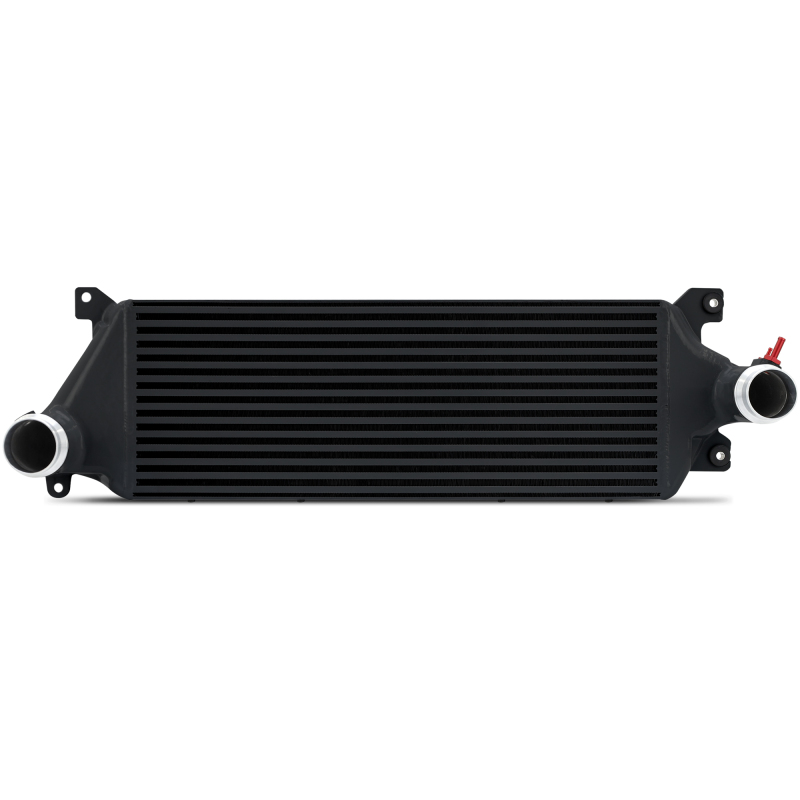

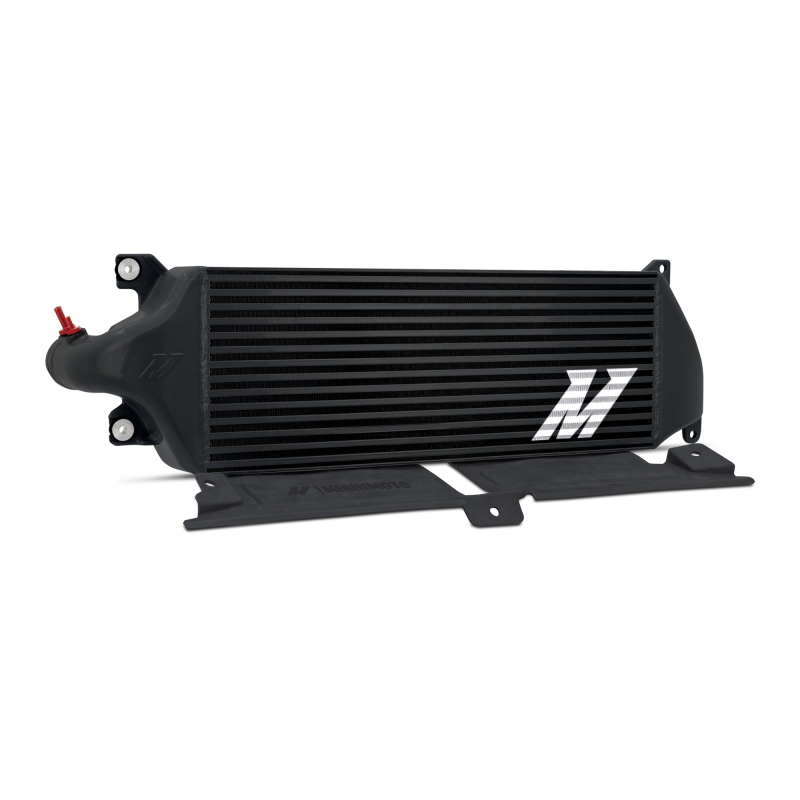

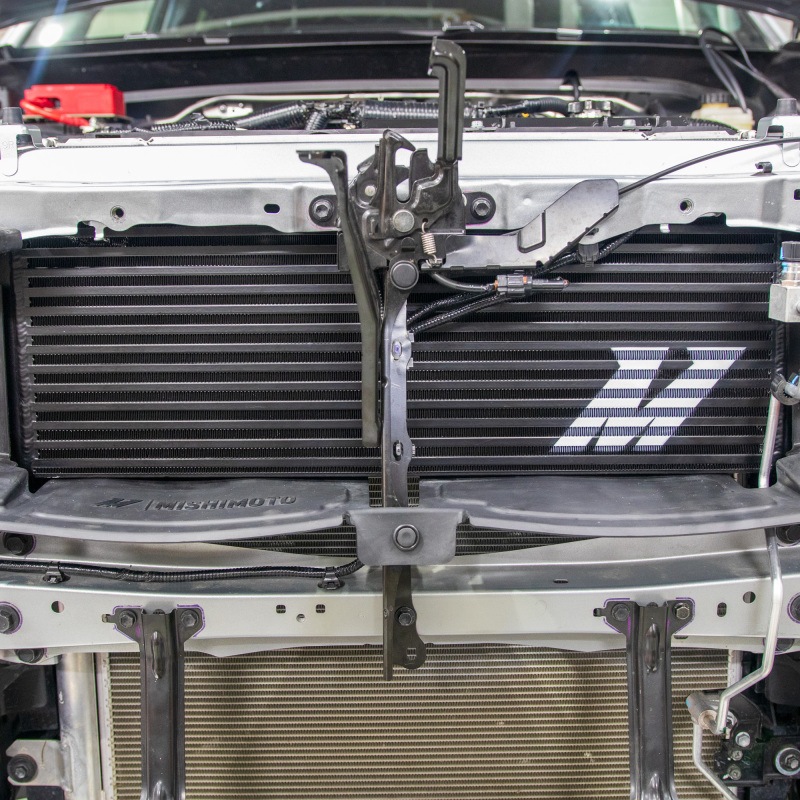

The Mishimoto Performance Intercooler (MMINT-TAC-24BK) is purpose-built for the 2024+ Toyota Tacoma’s turbocharged T24A-FTS engine, replacing the factory tube-and-fin cooler with a 55% larger bar-and-plate core designed to keep this forced induction platform running cool under sustained load. Finished in a stealth black powder coat, this specific-fit unit is engineered to hold charge air temperatures steady through repeated wide-open-throttle pulls, towing grades, and extended off-road runs where the stock intercooler falls behind.

As the turbocharger compresses intake air, heat builds quickly in the charge piping, and a factory forced induction system with limited core capacity can only dissipate so much of it before power starts to fade. Mishimoto’s performance induction upgrade addresses that heat soak directly: the bar-and-plate core cuts intake air temperatures by up to 36°F at wide-open throttle and produces 30% lower pressure drop than the OEM unit, easing strain on the turbocharger and helping the induction system maintain consistent boost efficiency run after run. Cast end tanks and billet aluminum ORB ports deliver leak-free sensor connections, while OEM-matched mounting bushings and an included crush washer keep the unit secure through vibration and trail abuse. The intercooler installs without sensor relocation and is compatible with both OEM and Mishimoto Performance Charge Pipes, supporting a phased upgrade or a complete cooling system build.

Vehicle Applications

This intercooler is a specific fit for the 2024–2026 Toyota Tacoma across Limited, SR, SR5, Trailhunter, TRD Off-Road, TRD PreRunner, TRD Pro, and TRD Sport trims, as well as the 2024 Tacoma HEV, 2024 Tacoma Sport, and 2025 Tacoma TRD Sport Premium — all built around the T24A-FTS engine (chassis code N400). Fitment also extends to the 2024–2026 Toyota Land Cruiser 1958 and Base trims and the 2024 Land Cruiser First Edition, which share the same 2.4L T24A-FTS engine. Installation on the Land Cruiser LC250 may require removal of a bracket on top of the AC condenser.

Features

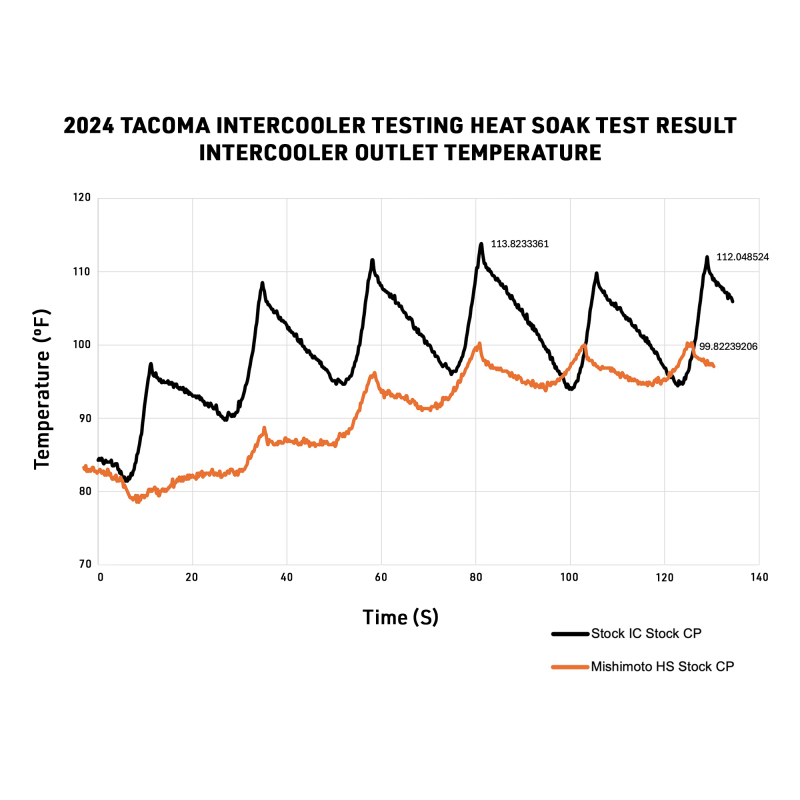

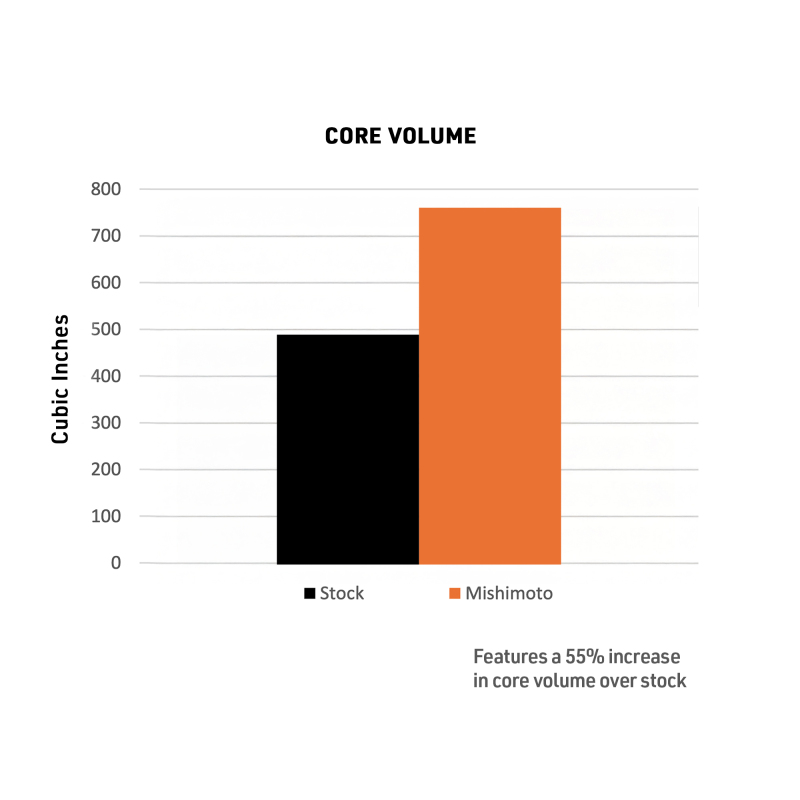

• 55% larger bar-and-plate core reduces intake air temps by up to 36°F at wide-open throttle
• 30% lower pressure drop than the factory intercooler, reducing turbocharger strain

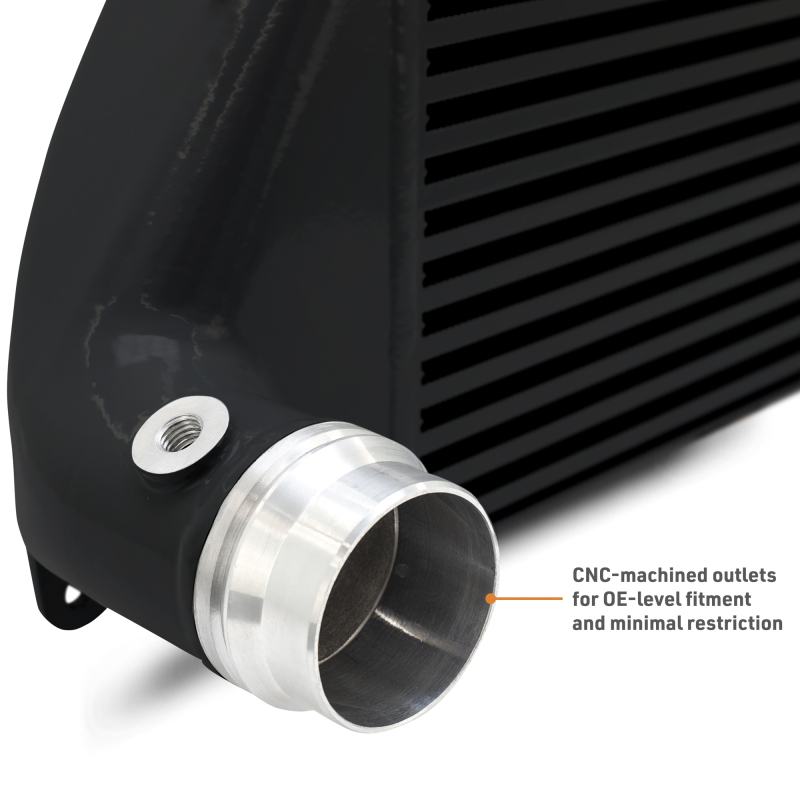

• Cast end tanks and billet aluminum ORB ports for durable, leak-free sensor connections

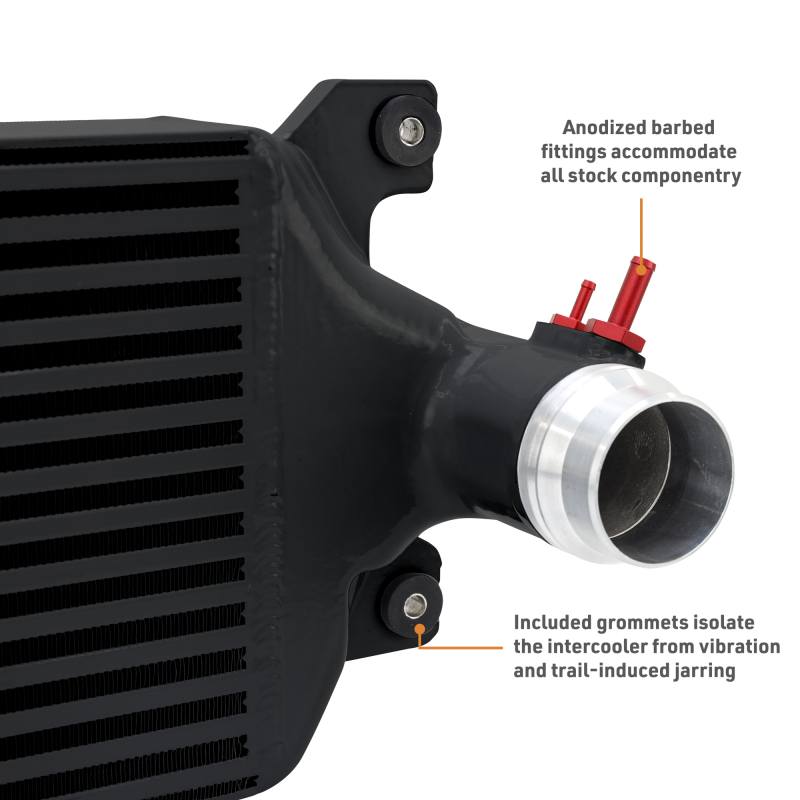

• OEM-matched mounting bushings and included crush washer for a secure, long-term install

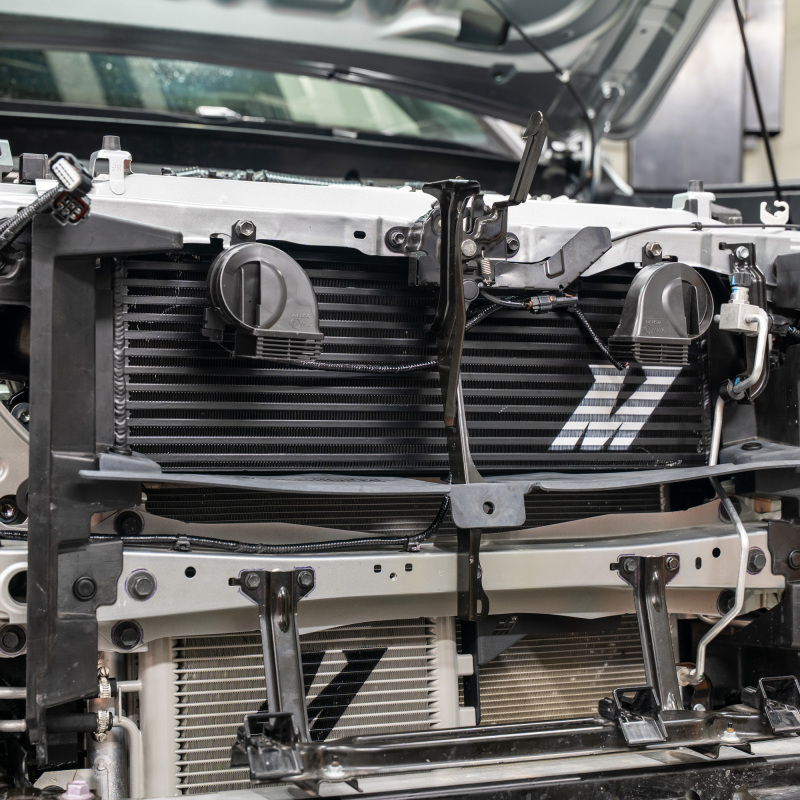

• Installs without sensor relocation and preserves Toyota’s factory adaptive cruise control
• Compatible with both OEM and Mishimoto Performance Charge Pipes
• Finished in stealth black powder coat (silver also available)
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Core Type: Bar-And-Plate
• Core Material: Aluminum
• Core Color: Black
• Core Height: 8.87 in
• Core Thickness: 3.5 in
• Core Length: 24.13 in
• Inlet Outside Diameter: 2.03 in
• Outlet Outside Diameter: 2.22 in
• Inlet/Outlet Fitting Gender: Male
• Grade Type: Performance
• Fit Type: Specific
• Engine Code: T24A-FTS
• Chassis Code: N400
• Applications: Toyota Tacoma 2.4L L4 2024+; Toyota Land Cruiser 2.4L L4 2024+
• Maximum Recommended Horsepower: 650
• Maximum Recommended Boost Pressure: 50 PSI

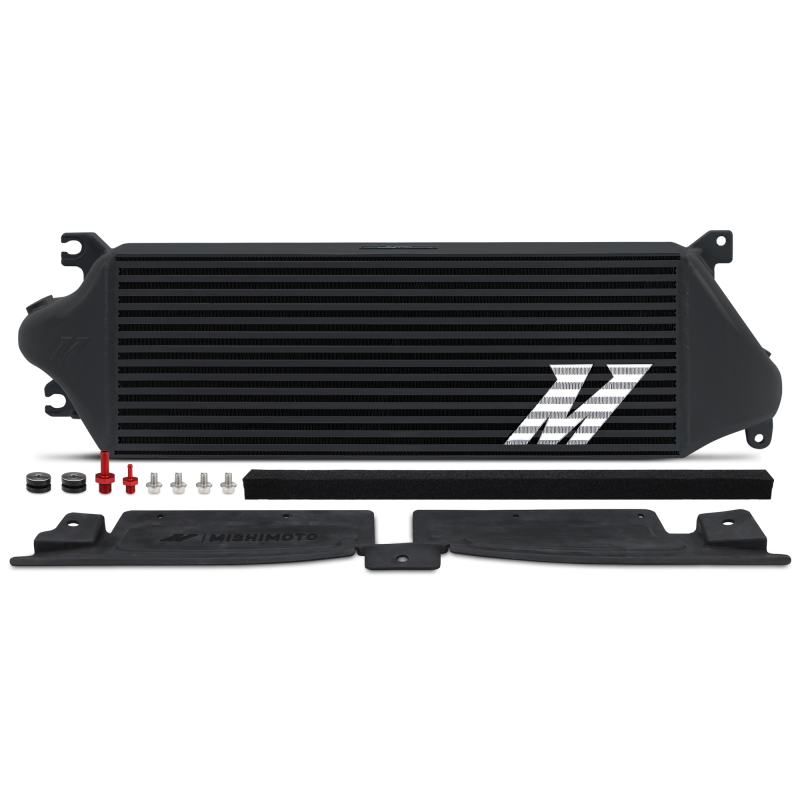

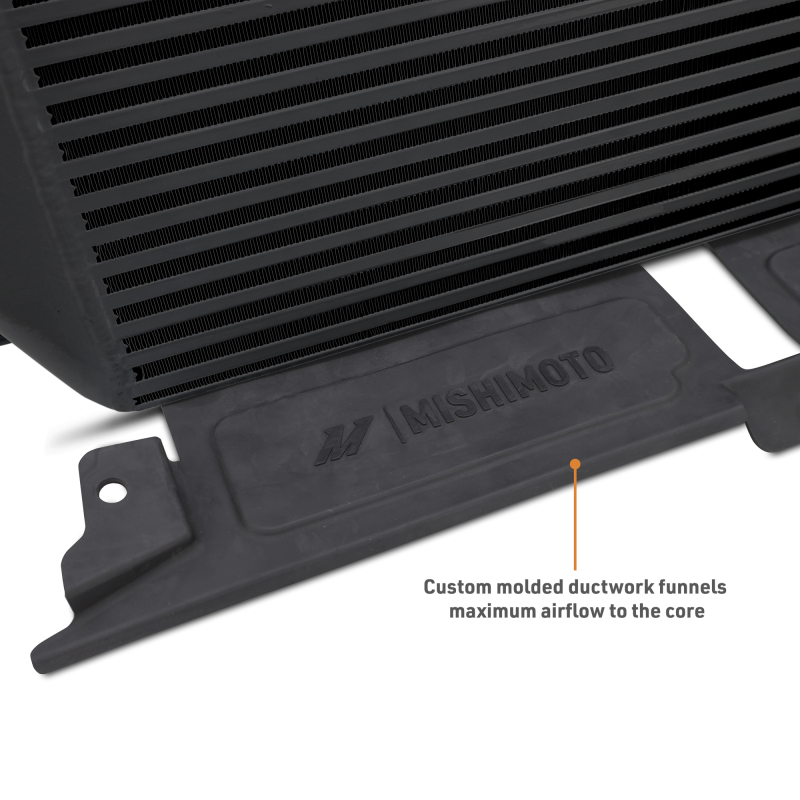

• Includes: (1) Performance Intercooler, (2) Vacuum Fittings, (1) Intercooler Duct, (1) Intercooler Duct Bracket, Mishimoto Lifetime Warranty
