Description

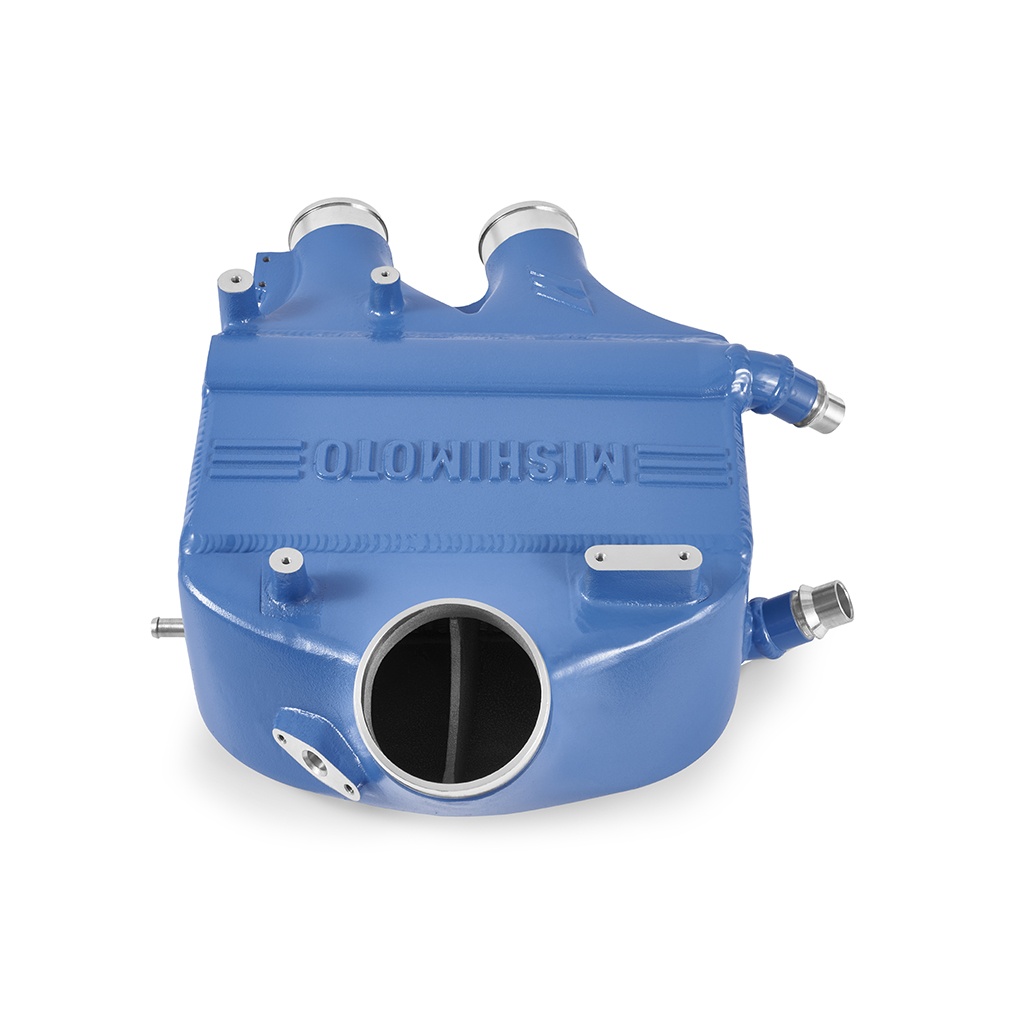

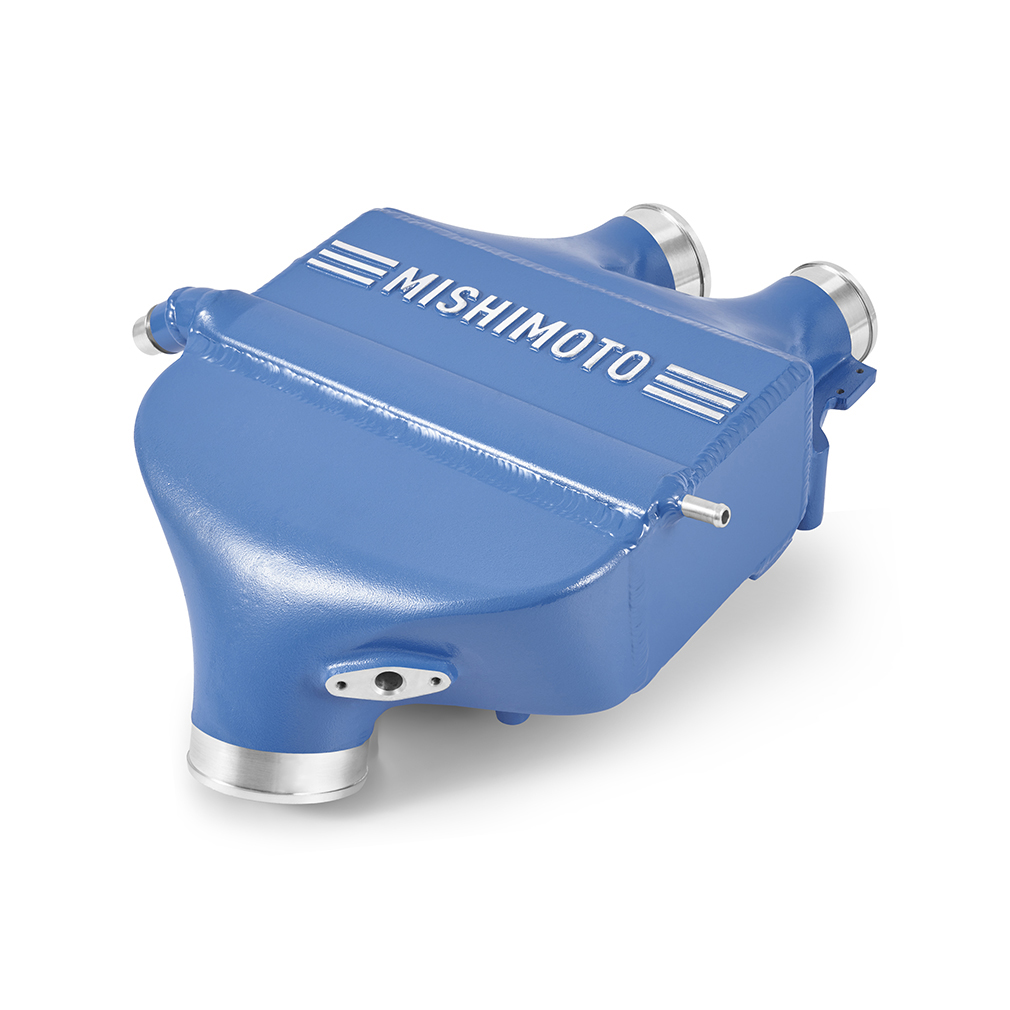

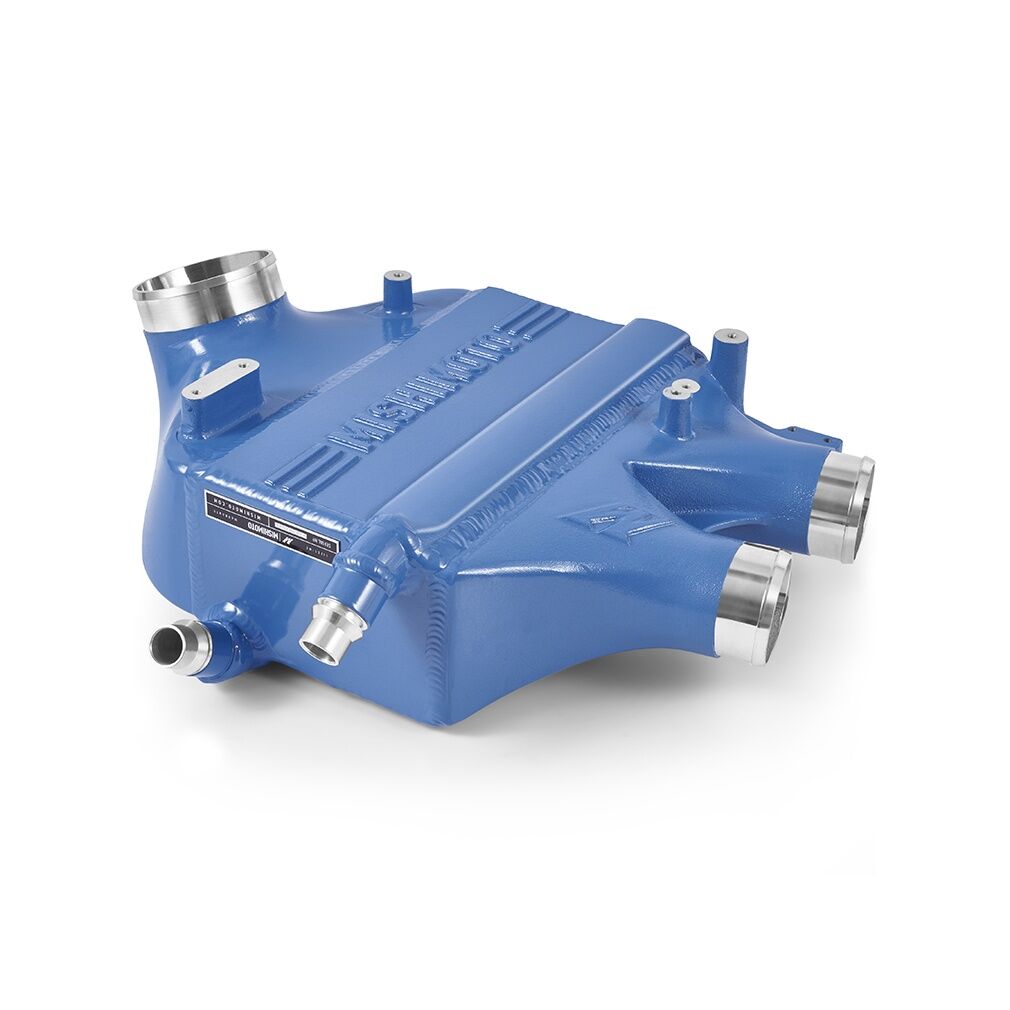

The Mishimoto MMINT-F80-15CYMB is a purpose-built performance air-to-water intercooler engineered specifically for the S55 engine found in the BMW F8X platform. Finished in color-matched Yas Marina Blue, this forced induction upgrade replaces the factory intercooler’s weak points with a cast aluminum, TIG-welded design built to handle increased boost while dressing up the engine bay to match your exterior paint.
As a dedicated forced induction component, this Mishimoto intercooler is engineered to move more charged air, more efficiently, through a larger core. Mishimoto expanded the core in every dimension for a 29% increase in core volume, then paired that larger core with cast aluminum end tanks featuring internal air diverters on both the inlet and outlet so charged air flows evenly across the entire core. A unique single-pass internal fin layout on the coolant side further improves heat transfer from the charged air to the coolant, giving this induction system a real edge over the stock setup without requiring any modifications for installation. In Mishimoto’s own testing, paired with the Mishimoto Performance Heat Exchanger, the improvements combined to deliver a 16% increase in flow through the core, a 12F drop in intake air temperatures, and an average gain of 11 whp and 8 wtq, with peak gains reaching up to 31 whp and 10 wtq.
Vehicle Applications
This Mishimoto Performance Intercooler is a specific fit for the S55-powered BMW F8X chassis, covering the 2015-2018 BMW M3, the 2015-2020 BMW M4 (including the 2018-2020 M4 CS and the 2016 M4 GTS), and the 2019-2020 BMW M2 Competition. It is designed around the F80, F82, F83, and F87 chassis codes and the S55 engine code used across these M models.
Features
- Full, cast aluminum end tanks TIG-welded to a bar-and-plate core for durability under increased boost
- Internal air diverters on both the inlet and outlet for even airflow through the core
- 29% increase in core volume with no installation modifications required
- Unique single-pass internal fin layout on the coolant passage for optimal heat transfer
- 16% increase in flow through the core versus the factory intercooler
- 12F drop in intake air temperatures when tested with the Mishimoto Performance Heat Exchanger
- Average gains of 11 whp and 8 wtq, with peak gains up to 31 whp and 10 wtq, recorded with the Mishimoto Performance Heat Exchanger
- Compatible with stock and Mishimoto charge pipes
- Finished in Yas Marina Blue automotive-grade, color-matched paint durable enough for life under the hood
- Backed by the Mishimoto Lifetime Warranty
- Includes CARB EO sticker and mounting hardware
Specifications
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core/Type: Bar-and-Plate
- Core Thickness: 3.7 in
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Core Color: Yas Marina Blue
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87
- Universal or Specific Fit: Specific
- CARB EO Number: D-759-13
- Includes: (1) Performance Intercooler, (1) CARB EO Sticker, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles is this Mishimoto intercooler designed to fit?
This Mishimoto Performance Intercooler is a specific fit for the 2015-2018 BMW M3, the 2015-2020 BMW M4 (including the 2018-2020 M4 CS and the 2016 M4 GTS), and the 2019-2020 BMW M2 Competition, all built around the S55 engine and F80/F82/F83/F87 chassis codes.
What color is this intercooler available in?
This specific version is finished in Yas Marina Blue, an automotive-grade, color-matched paint. Mishimoto notes that color-matched products may vary slightly from your vehicle’s color due to factors like heat, sun fade, and age.
Does installing this intercooler require any modifications?
No. Mishimoto expanded the core size for a 29% increase in core volume while abstaining from any modifications to the installation process.
What performance gains does this intercooler provide?
When tested with the Mishimoto Performance Heat Exchanger, this intercooler produced a 16% increase in flow through the core, a 12F drop in intake air temperatures, an average gain of 11 whp and 8 wtq, and peak gains of up to 31 whp and 10 wtq.
What is included with this intercooler?
The kit includes (1) Performance Intercooler, (1) CARB EO Sticker, mounting hardware, and the Mishimoto Lifetime Warranty.
Is this intercooler CARB legal?
This intercooler carries CARB EO Number D-759-13.
