Description

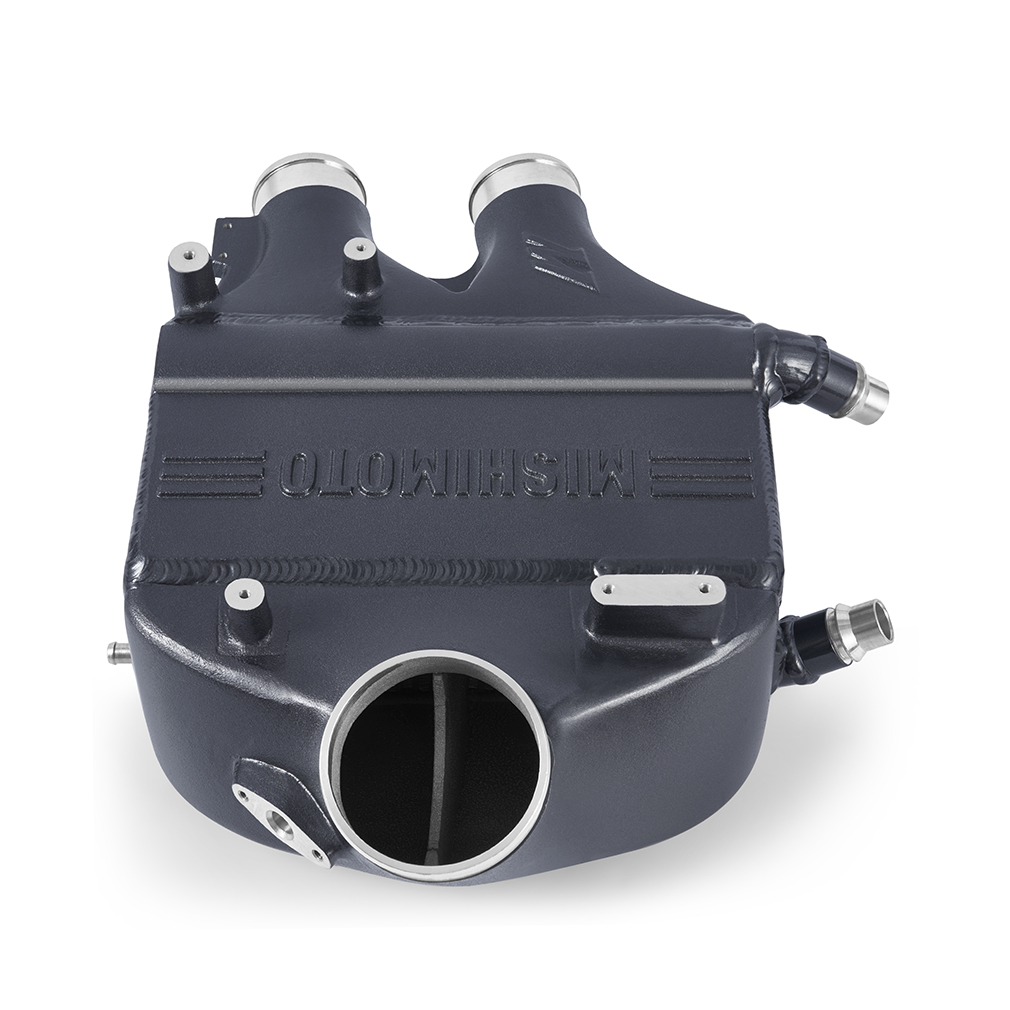

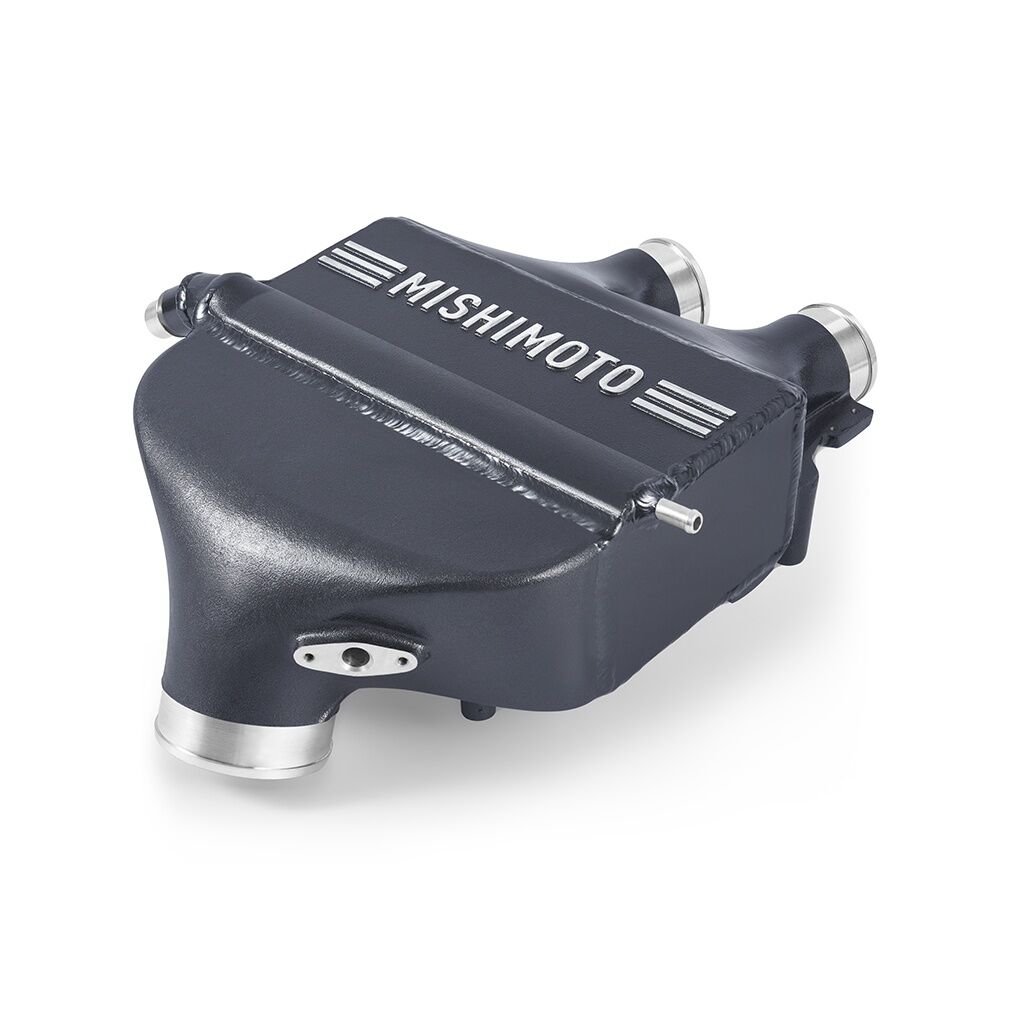

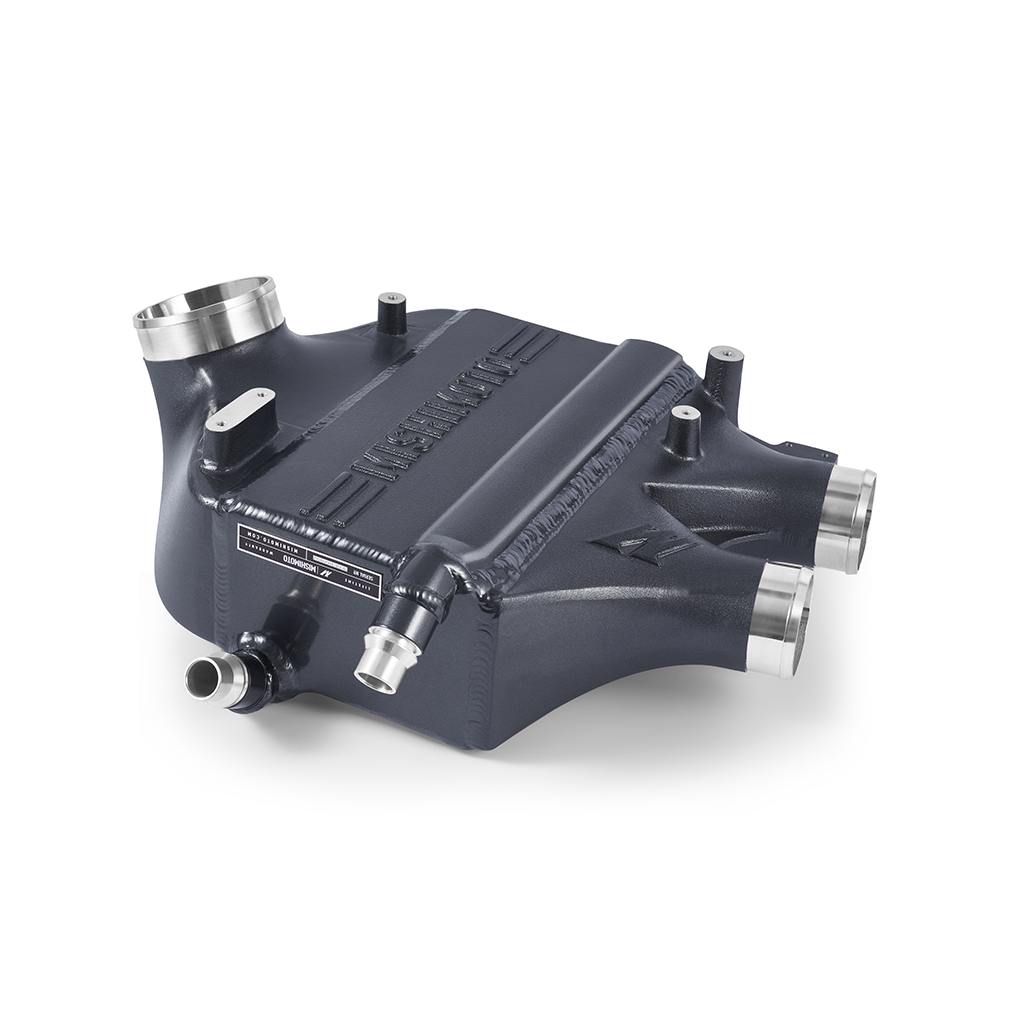

The Mishimoto Performance Air-to-Water Intercooler (MMINT-F80-15CMG) is a direct-fit forced induction upgrade engineered specifically for the S55-powered BMW F8X platform. Built with cast aluminum end tanks TIG-welded to a bar-and-plate core, this intercooler was developed after Mishimoto engineers identified performance limitations in BMW’s factory air-to-water intercooler and set out to correct them. In testing paired with the Mishimoto Performance Heat Exchanger, the upgrade delivered a 16% increase in core flow, a 12°F drop in intake air temperatures, and peak gains of up to 31 whp and 10 wtq.
This performance induction upgrade replaces the factory core with a redesigned unit that’s 29% larger in core volume across all dimensions, all while requiring no modification for installation. Internal air diverters built into both the inlet and outlet end tanks promote even airflow through the core, while a unique single-pass internal fin layout maximizes heat transfer from charged air to coolant. For BMW owners running a forced induction system pushed harder with additional boost, this intercooler is designed to help keep intake air temperatures in check and support consistent, repeatable performance. The core is finished in Mineral Gray, and Mishimoto also offers this intercooler color-matched to OEM colors or black so it complements the rest of your F80’s engine bay.
Vehicle Applications
This Mishimoto intercooler is a specific, direct-fit part engineered for the S55-powered BMW F8X chassis, which includes the F80, F82, F83, and F87. It is built for the 2015-2018 BMW M3, the 2015-2020 BMW M4, the 2016 BMW M4 GTS, the 2018-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition.
Features
- Cast aluminum end tanks TIG-welded to a bar-and-plate core for durability under increased boost
- Internal air diverters on inlet and outlet end tanks for even airflow through the core
- 29% increase in core volume with no installation modifications required
- Unique single-pass internal fin layout for improved heat transfer
- 16% increase in flow through the core versus stock
- 12°F drop in intake air temperatures when tested with the Mishimoto Performance Heat Exchanger
- Average gains of 11 whp and 8 wtq, with peak gains of up to 31 whp and 10 wtq during testing
- Compatible with stock and Mishimoto charge pipes
- Color-matched, automotive-grade paint options including a Mineral Gray core finish or black
- Backed by the Mishimoto Lifetime Warranty
- Includes a CARB EO sticker (D-759-13) and mounting hardware
Specifications
- Part Number: MMINT-F80-15CMG
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Type: Bar-and-Plate
- Core Thickness: 3.7 in
- Core Color: Mineral Gray
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Universal or Specific Fit: Specific
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13
- Includes: (1) Performance Intercooler, (1) CARB EO Sticker, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F80-15CMG intercooler fit?
It is a specific fit for the S55-powered BMW F8X chassis, covering the 2015-2018 BMW M3, 2015-2020 BMW M4, 2016 BMW M4 GTS, 2018-2020 BMW M4 CS, and 2019-2020 BMW M2 Competition.
How much does this intercooler improve intake air temperatures?
When tested with the Mishimoto Performance Heat Exchanger, this intercooler produced a 12°F drop in intake air temperatures.
What power gains can I expect from this intercooler?
Mishimoto testing recorded an average increase of 11 whp and 8 wtq, with peak gains of up to 31 whp and 10 wtq.
What is the core made of and how is it constructed?
The core is bar-and-plate aluminum construction with cast aluminum end tanks TIG-welded to the core, plus internal air diverters on the inlet and outlet for even airflow.
Does this intercooler require any modifications to install?
No. Despite a 29% increase in core volume, Mishimoto engineered the larger core to install without any modifications.
What’s included with this intercooler?
The kit includes one Performance Intercooler, one CARB EO sticker, mounting hardware, and the Mishimoto Lifetime Warranty.
