Description

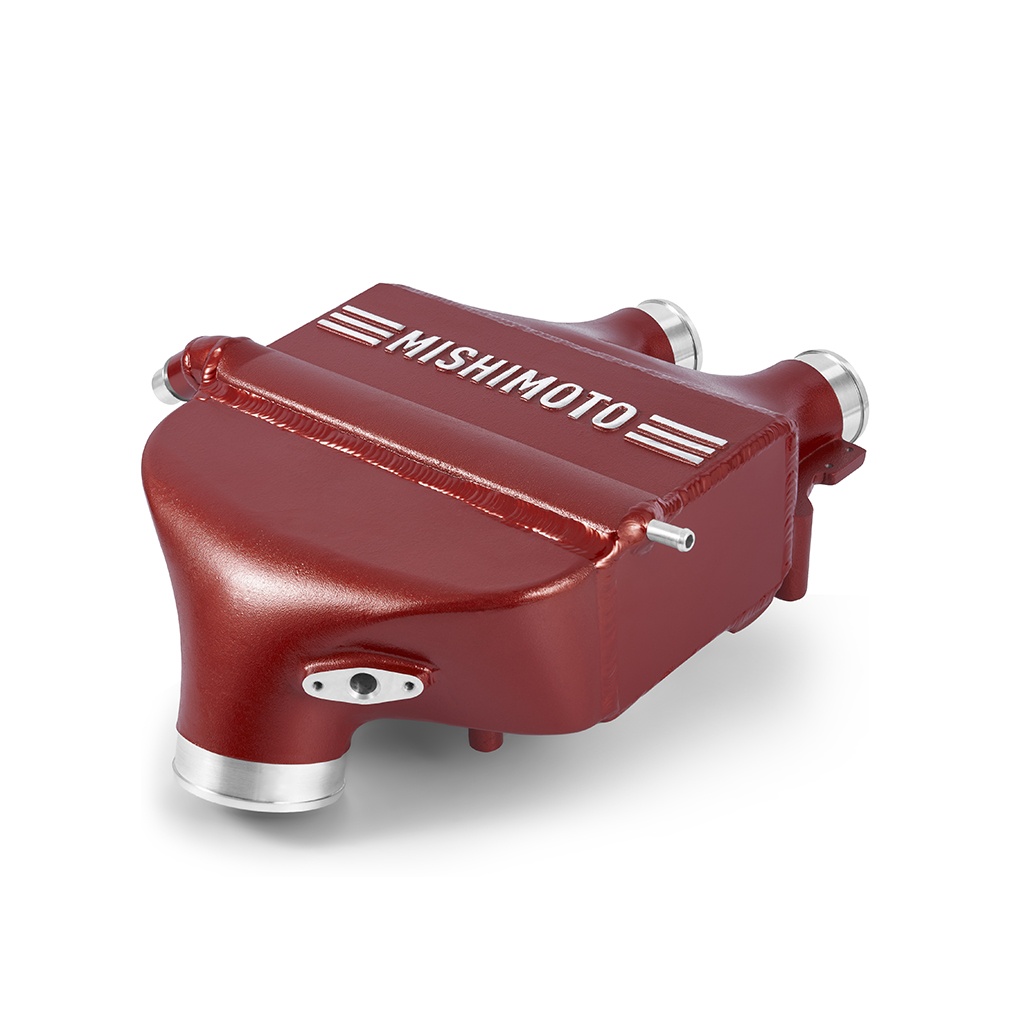

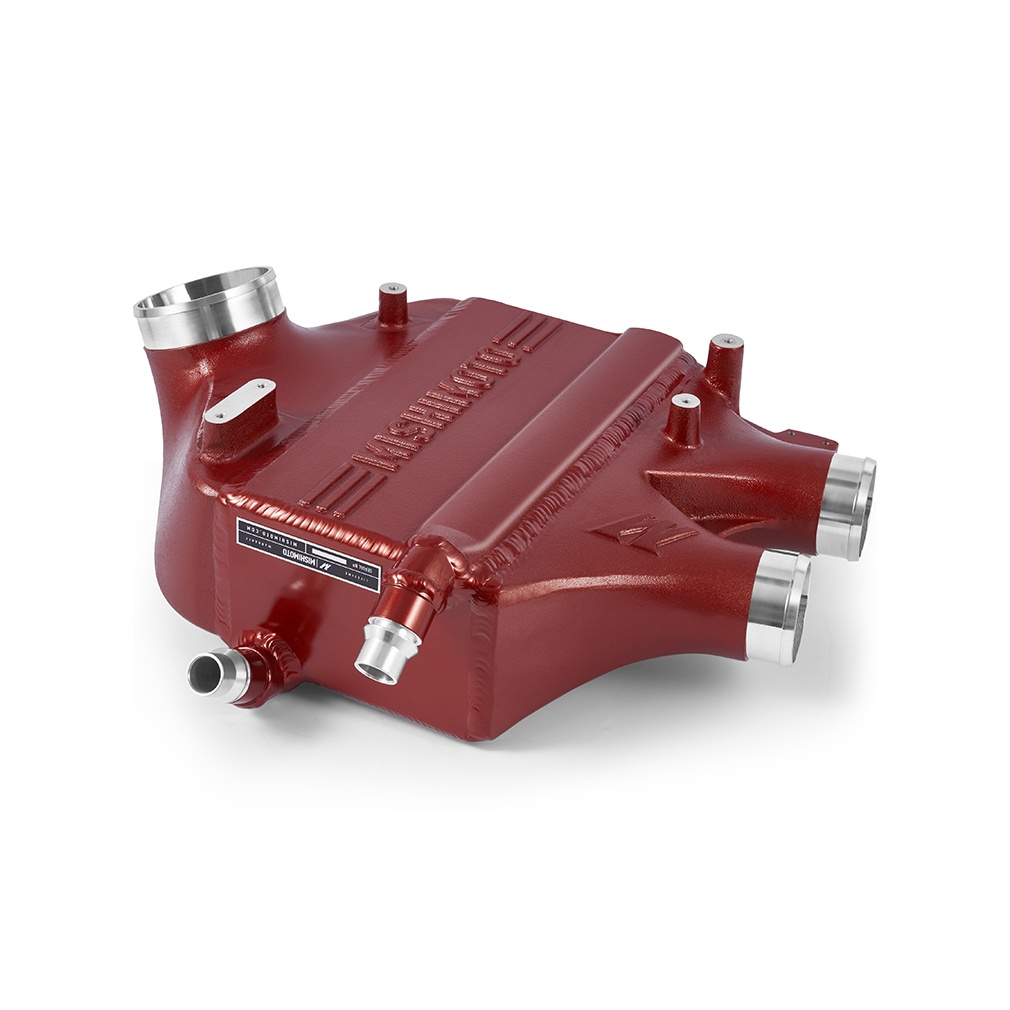

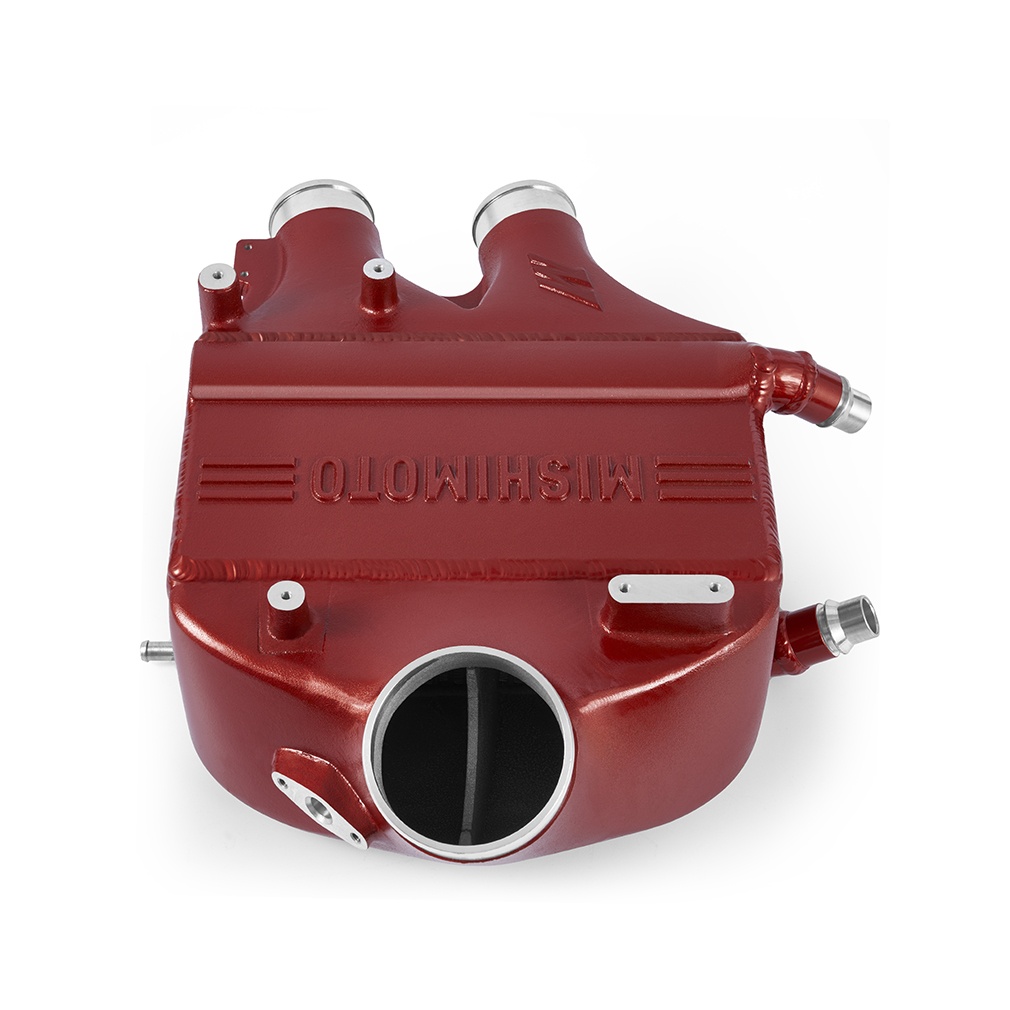

The Mishimoto MMINT-F80-15CSO is a purpose-built air-to-water performance intercooler engineered specifically for the S55 engine found in the 2015-2020 BMW F8X M3, M4, and M2 Competition. Unlike the factory unit, this intercooler pairs full cast aluminum end tanks with a significantly larger bar-and-plate core, giving S55 owners a direct-fit upgrade that addresses the weaknesses Mishimoto engineers identified in BMW’s original design.
At the heart of this forced induction system upgrade is a redesigned core that grows in every dimension for a 29-percent increase in core volume without requiring any modification to install. Cast aluminum end tanks are TIG-welded to the core and include internal air diverters on both the inlet and outlet, evening out airflow through the charge piping for a more efficient induction system overall. A unique single-pass internal fin layout in the coolant passage improves heat transfer from the charged air to the coolant, and when tested alongside the Mishimoto Performance Heat Exchanger, this performance induction upgrade delivered a 16-percent increase in flow through the core, a 12F drop in intake air temperatures, and an average of 11 whp and 8 wtq, with peak gains recorded up to 31 whp and 10 wtq.
Vehicle Applications
This intercooler is a specific fit for S55-powered BMW F-chassis M cars. That coverage includes the 2015-2018 BMW M3 Sedan, the 2015-2020 BMW M4 Coupe and Convertible, the 2016 BMW M4 GTS Coupe, the 2018-2020 BMW M4 CS Coupe, and the 2019-2020 BMW M2 Competition, spanning chassis codes F80, F82, F83, and F87.
Features
- Full cast aluminum end tanks TIG-welded to a bar-and-plate core for durability under increased boost
- Internal air diverters on the inlet and outlet tanks for even airflow through the core
- 29-percent increase in core volume over the factory intercooler with no installation modifications required
- Unique single-pass internal fin layout in the coolant passage for optimal heat transfer
- 16-percent increase in flow through the core versus the factory unit
- 12F drop in intake air temperatures and average gains of 11 whp/8 wtq when tested with the Mishimoto Performance Heat Exchanger
- Compatible with stock and Mishimoto charge pipes
- Color-matched Sakhir Orange finish; Mishimoto notes color-matched products may vary slightly from your vehicle’s paint due to heat, sun fade, and age
- Patent No. US D957,464 S
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Thickness: 3.7 in
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Core Color: Sakhir Orange
- Grade Type: Performance
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87
- Universal or Specific Fit: Specific
- CARB EO Number: D-759-13
- Includes: (1) Performance Intercooler, (1) CARB EO Sticker, Mounting Hardware, Mishimoto Lifetime Warranty
- Installation Torque: 27 in-lbs (3NM) recommended for T-bolt and constant-tension T-bolt clamps; operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
Which vehicles does the Mishimoto MMINT-F80-15CSO intercooler fit?
It is a specific fit for the 2015-2018 BMW M3 Sedan, 2015-2020 BMW M4 Coupe and Convertible, 2016 BMW M4 GTS Coupe, 2018-2020 BMW M4 CS Coupe, and 2019-2020 BMW M2 Competition, covering the F80, F82, F83, and F87 chassis with the S55 engine.
What performance gains can this intercooler provide?
When tested with the Mishimoto Performance Heat Exchanger, this intercooler increased flow through the core by 16 percent, dropped intake air temperatures by 12F, and produced average gains of 11 whp and 8 wtq, with peak gains recorded up to 31 whp and 10 wtq.
What is the core construction of this intercooler?
It uses a bar-and-plate core made of aluminum, paired with cast aluminum end tanks that are TIG-welded to the core and feature internal air diverters on the inlet and outlet.
Does the intercooler require modifications for installation?
No, despite a 29-percent increase in core volume over the factory unit, the design abstains from any modifications when it comes to installation.
What is included with this intercooler?
Included are (1) Performance Intercooler, (1) CARB EO Sticker, mounting hardware, and the Mishimoto Lifetime Warranty.
Is this intercooler compatible with charge pipes?
Yes, it is compatible with both stock and Mishimoto charge pipes.
