Description
The Mishimoto Performance Intercooler, MMINT-GRC-23SL, is a direct-fit forced induction upgrade engineered specifically for the 2023+ Toyota GR Corolla and its G16E-GTS 1.6L L3 engine. Finished in a durable silver powder coat, this intercooler swaps in a thick bar-and-plate core in place of the factory unit, giving the GR Corolla’s induction system real, measurable gains without a piecemeal approach.

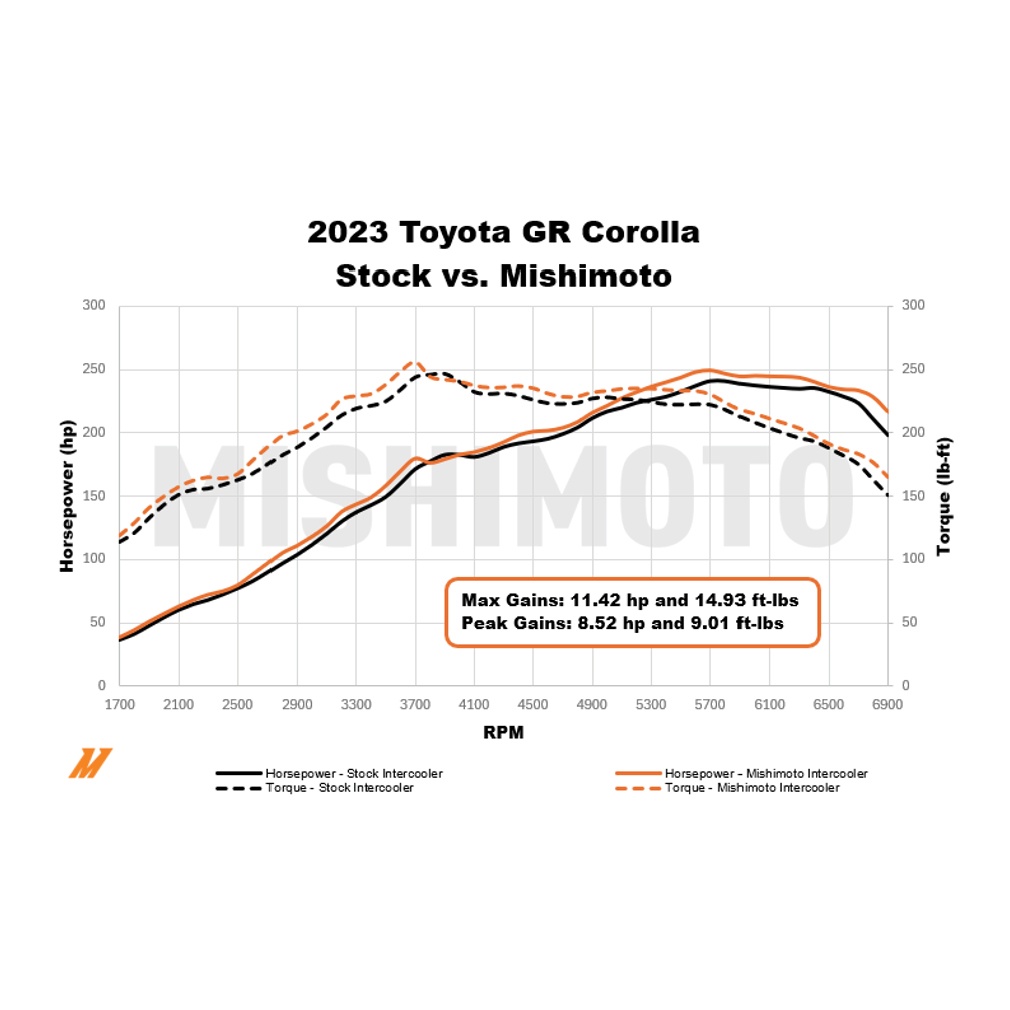

Built around a 4″ thick bar-and-plate core with cast-aluminum end tanks and a CNC-machined inlet and outlet, this Mishimoto intercooler is designed to move more air, more efficiently, through the entire forced induction system. Compared to the stock intercooler, it offers a 52% increase in core volume and a 10% reduction in airflow restriction, which combine to drop intercooler outlet temperatures by 38.5°F. That cooler, denser charge air translates into bolt-on power gains of 11.42 horsepower and 14.93 ft-lbs of torque, making this a straightforward way to improve both performance induction and everyday cooling consistency. Anodized aluminum ducting directs airflow through the external fins for additional cooling efficiency, and the whole assembly is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a specific-fit forced induction component built for the Toyota GR Corolla, chassis code GZEA14, powered by the G16E-GTS 1.6L L3 engine. Coverage spans the GR Corolla Core trim from 2023–2025, the Circuit Edition from 2023–2024, the Morizo Edition for the 2023 model year, the Premium trim for 2024–2025, and the Premium Plus trim for 2025. Note that this intercooler is not designed to fit the 8-speed GR-DAT automatic transmission.
Features
- Direct fit for the 2023+ Toyota GR Corolla

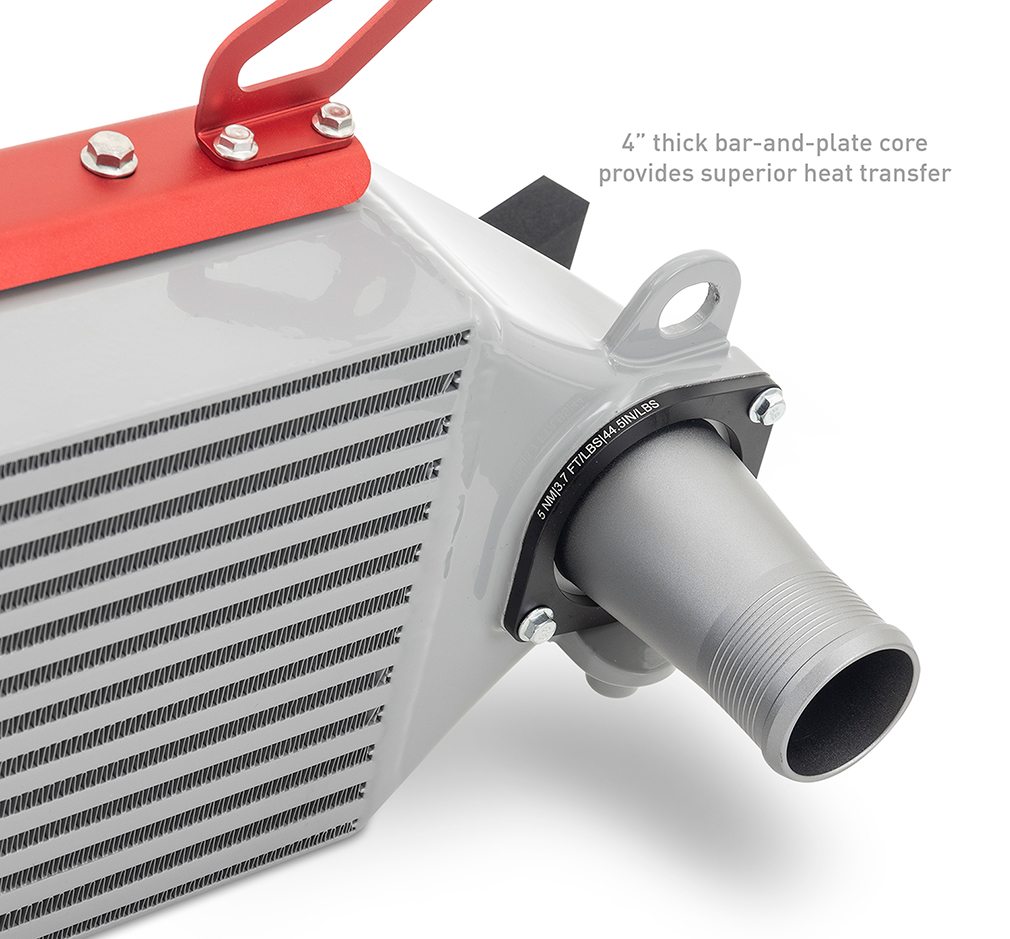

- Durable 4″ thick bar-and-plate aluminum core for superior heat transfer

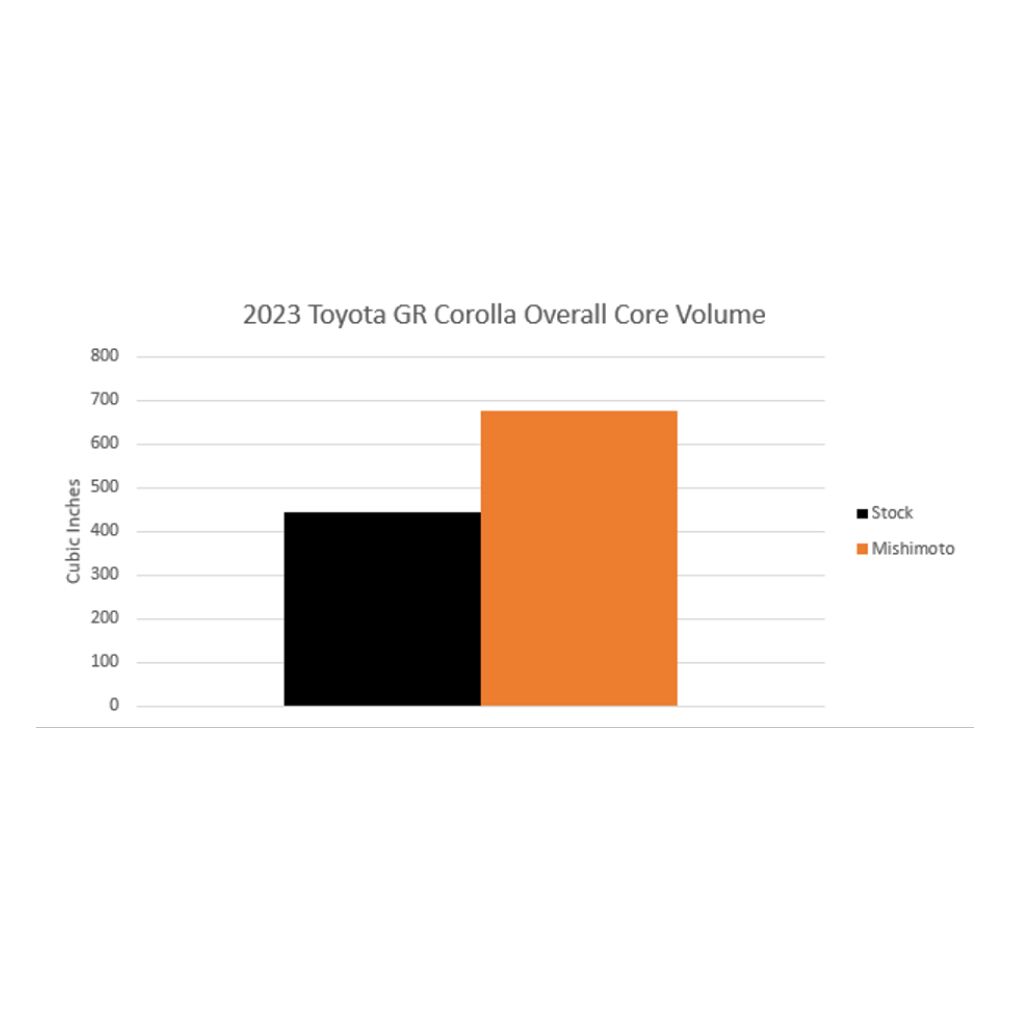

- 52% increase in core volume compared to the stock intercooler

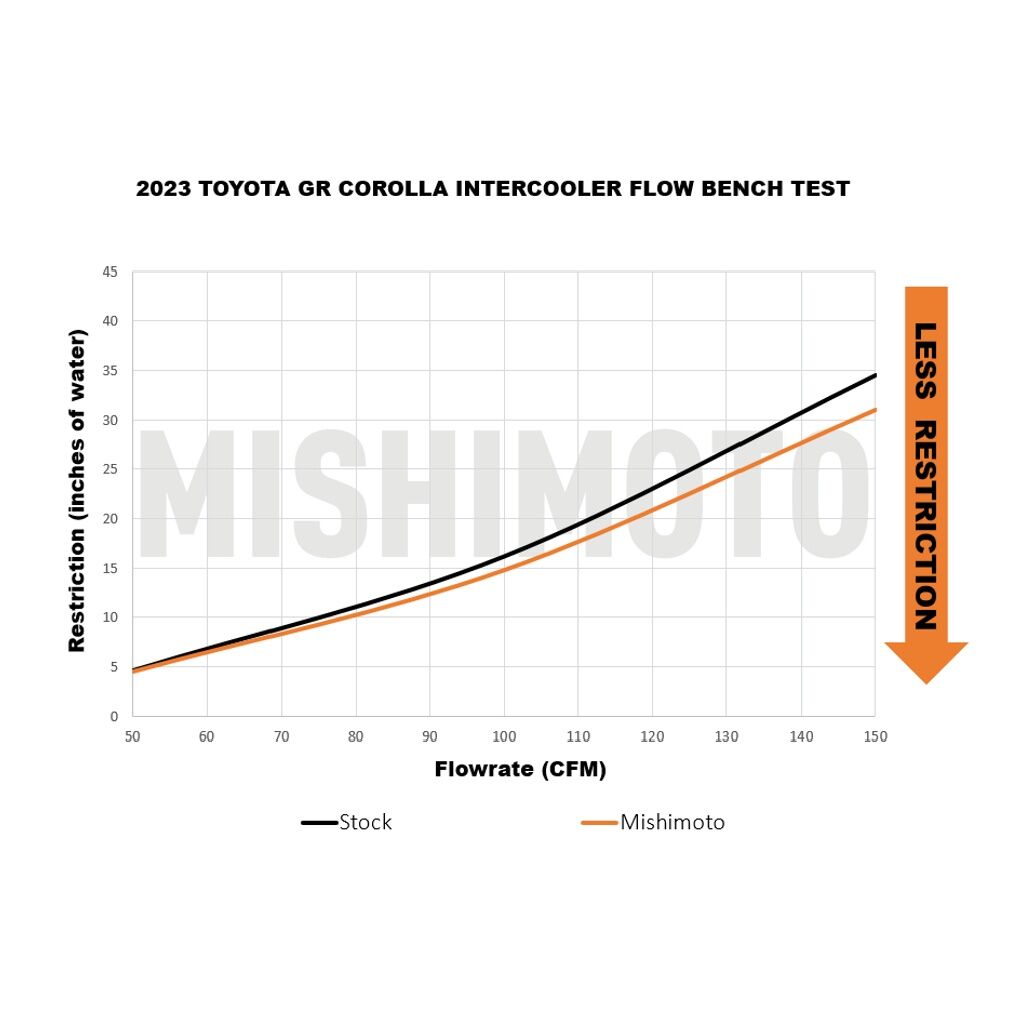

- 10% reduction in airflow restriction compared to stock
- Reduces intercooler outlet temperatures by 38.5°F over the stock intercooler

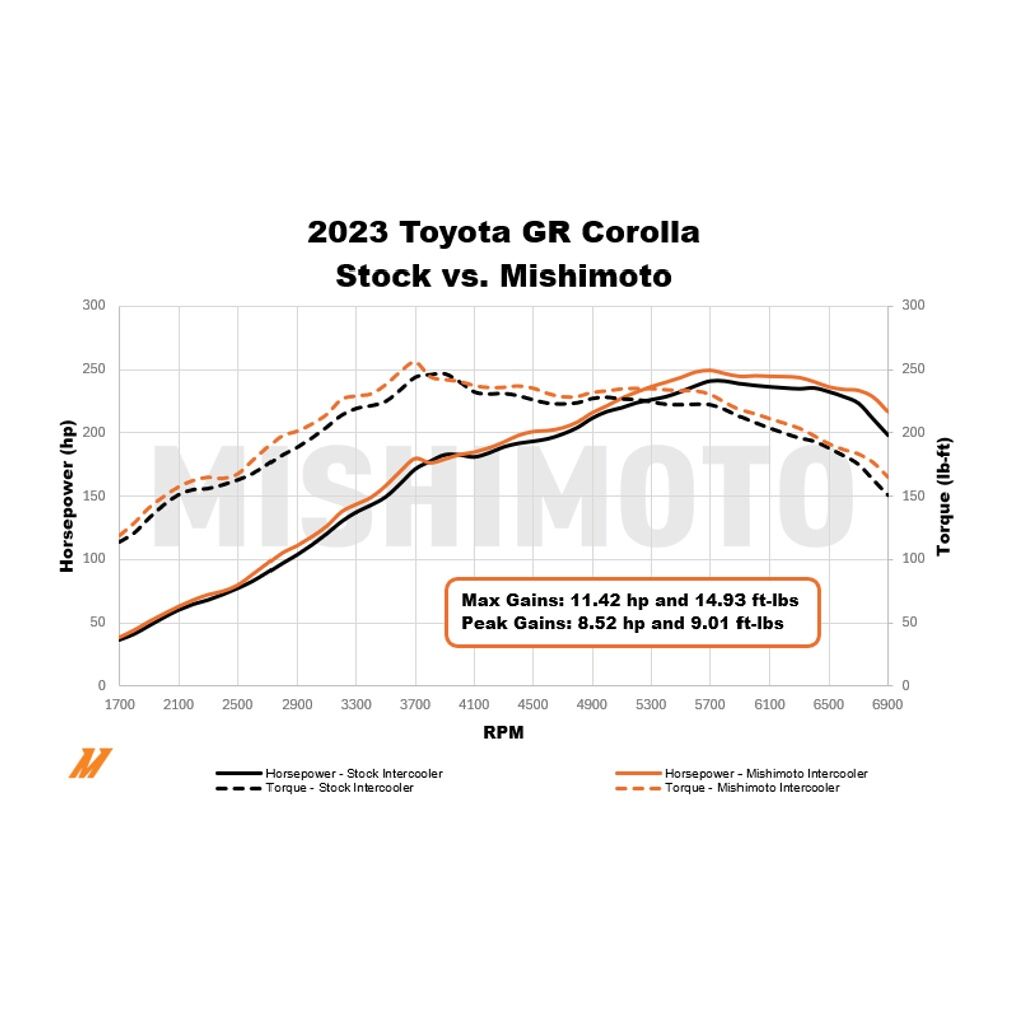

- Bolt-on power gains of 11.42hp and 14.93 ft-lbs of torque

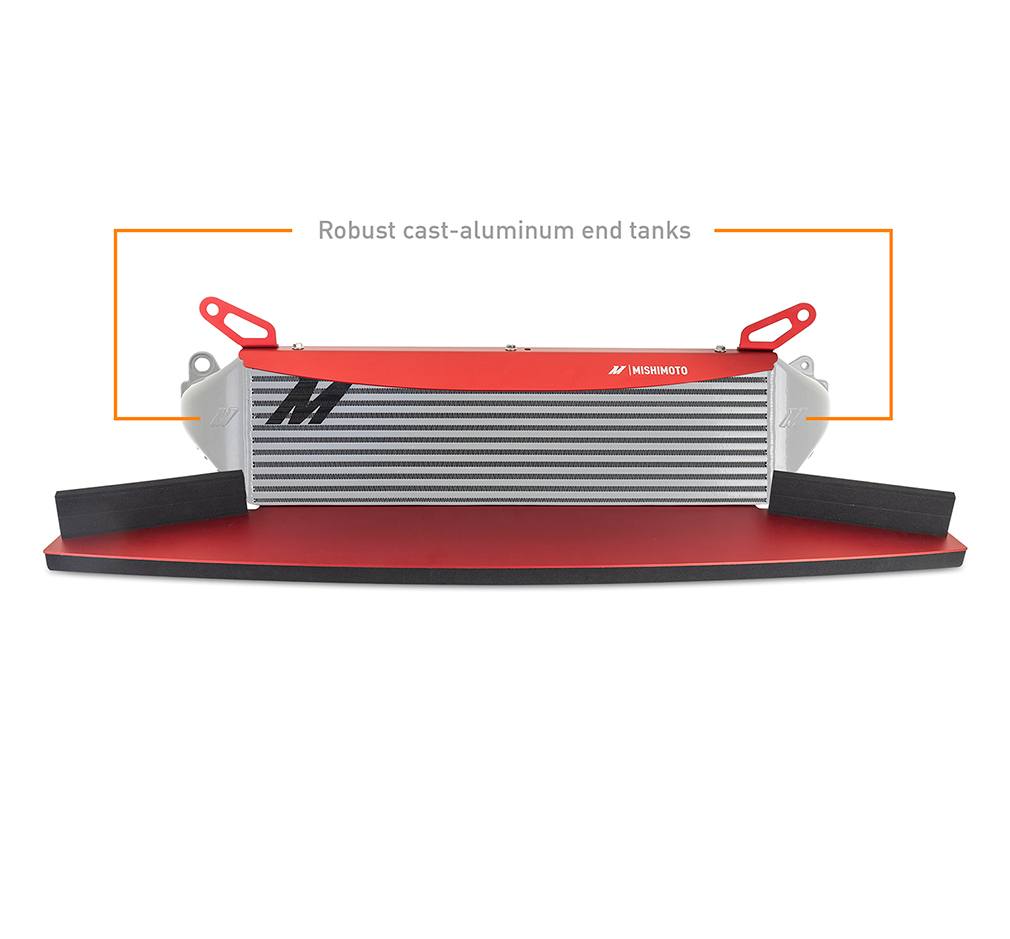

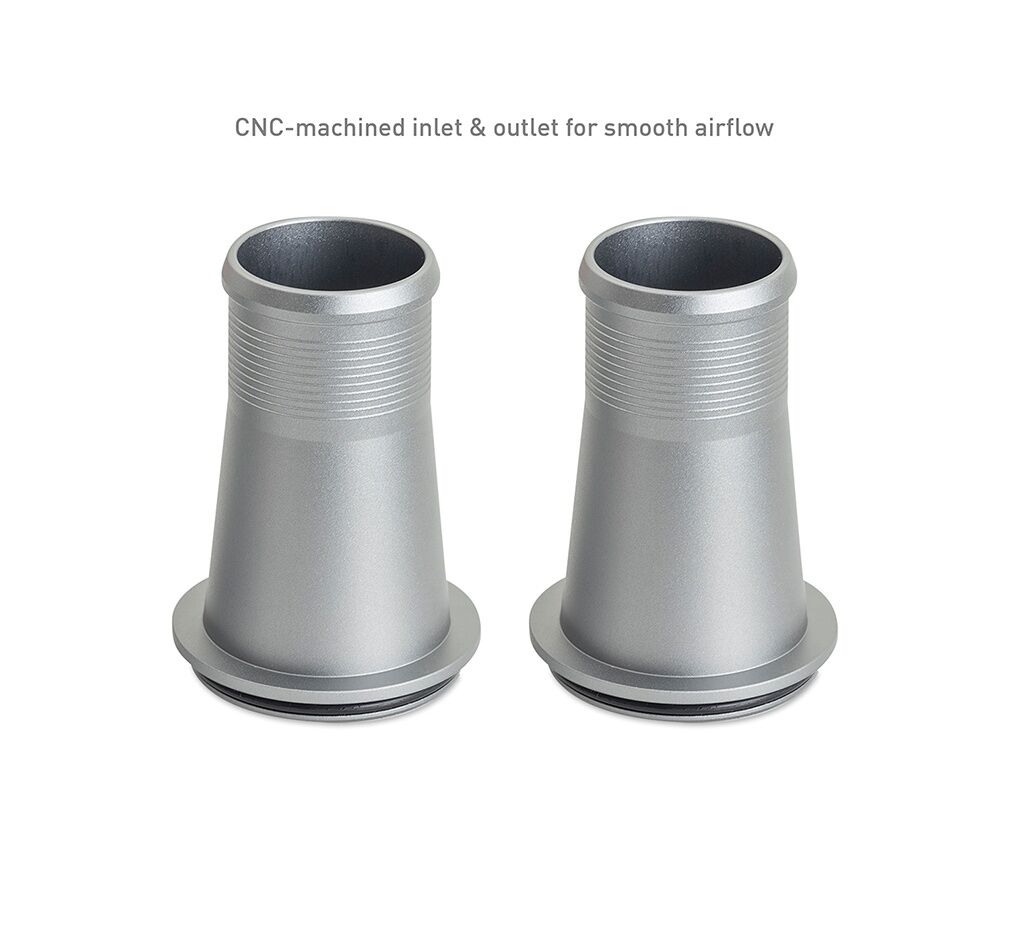

- Robust cast-aluminum end tanks with CNC-machined inlet/outlet for smooth airflow entry
- Durable powder-coated silver finish
- Anodized aluminum ducting for optimal airflow through the external fins
- Backed by the Mishimoto Lifetime Warranty

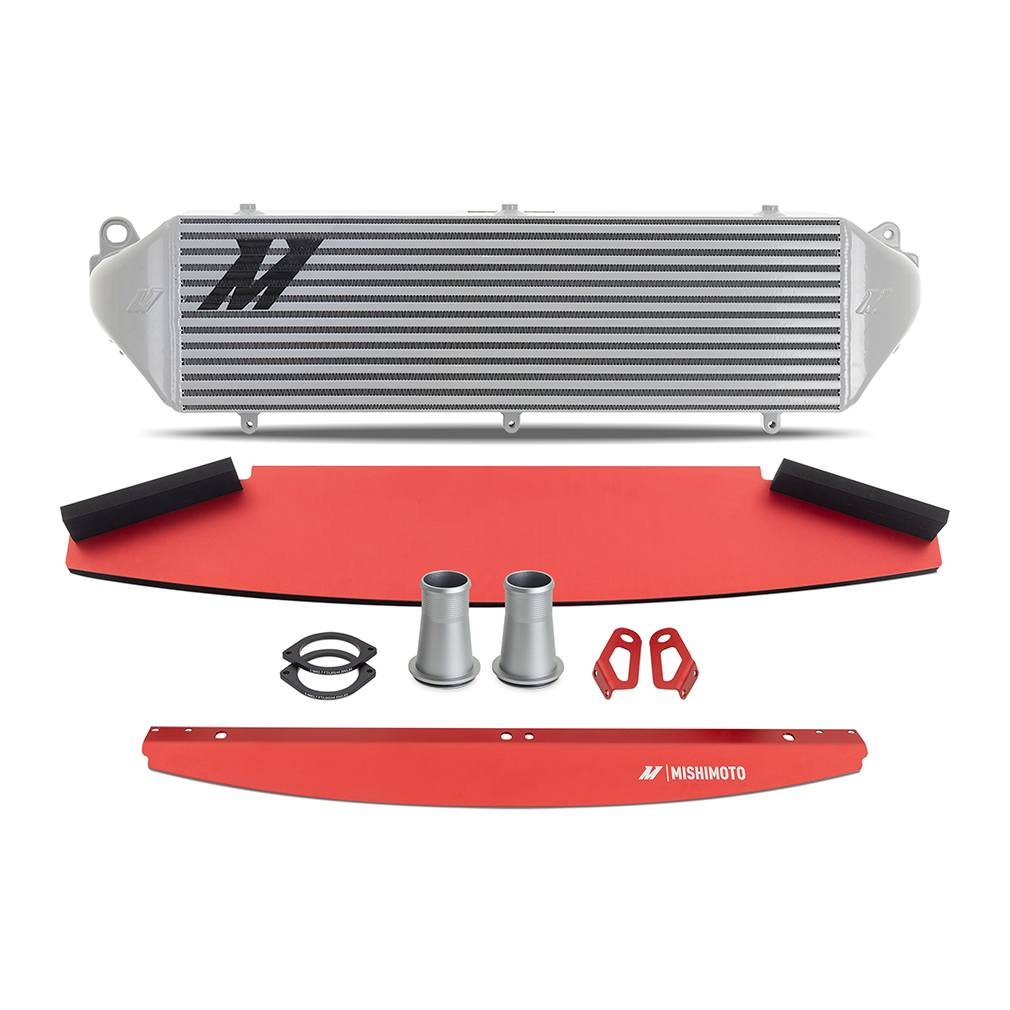

- Includes intercooler, intercooler adapter set, intercooler adapter retainer set, and intercooler ducting set
Specifications
- Brand: Mishimoto
- Part Number: MMINT-GRC-23SL
- Product Type: Forced Induction
- Core Type: Bar-And-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Overall Length: 32.85 in
- Overall Width: 7.67 in
- Overall Height: 8.19 in
- Core Height: 6.93 in
- Core Thickness: 3.94 in
- Core Length: 24.8 in
- Inlet Outside Diameter: 1.77 in (Male)
- Outlet Outside Diameter: 1.77 in (Male)
- Weight: 25 lbs
- Engine Code: G16E-GTS
- Chassis Code: GZEA14
- Application: Toyota GR Corolla 1.6L L3 2023+
- Maximum Recommended Horsepower: 400
- Maximum Recommended Boost Pressure: 50 PSI
- CARB EO Number: D-759-27
Frequently Asked Questions
How much more core volume does the Mishimoto intercooler offer compared to the stock GR Corolla intercooler?
The Mishimoto Performance Intercooler (MMINT-GRC-23SL) provides a 52% increase in core volume compared to the stock intercooler, along with a 10% reduction in airflow restriction.
What kind of temperature and power gains can I expect from this intercooler?
This intercooler reduces intercooler outlet temperatures by 38.5°F compared to the stock intercooler, resulting in bolt-on power gains of 11.42 horsepower and 14.93 ft-lbs of torque.
Which Toyota GR Corolla models does this intercooler fit?
It is a direct, specific fit for the GR Corolla Core (2023–2025), Circuit Edition (2023–2024), Morizo Edition (2023), Premium (2024–2025), and Premium Plus (2025), all equipped with the G16E-GTS 1.6L L3 engine and GZEA14 chassis.
Will this intercooler fit a GR Corolla with an automatic transmission?
No. This intercooler is not designed to fit the 8-speed GR-DAT automatic transmission.
What is included with the Mishimoto MMINT-GRC-23SL intercooler kit?
The kit includes one intercooler, one intercooler adapter set, one intercooler adapter retainer set, one intercooler ducting set, and the Mishimoto Lifetime Warranty.
What is the core construction of this Mishimoto intercooler?
It features a 4″ thick bar-and-plate aluminum core with cast-aluminum end tanks and a CNC-machined inlet and outlet, finished in a silver powder coat.
