Description

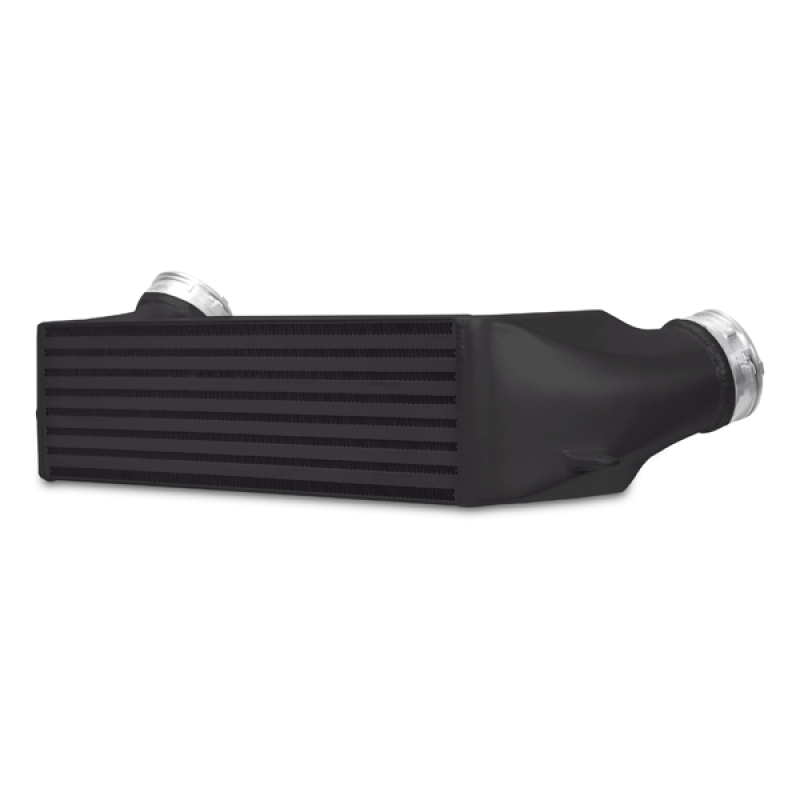

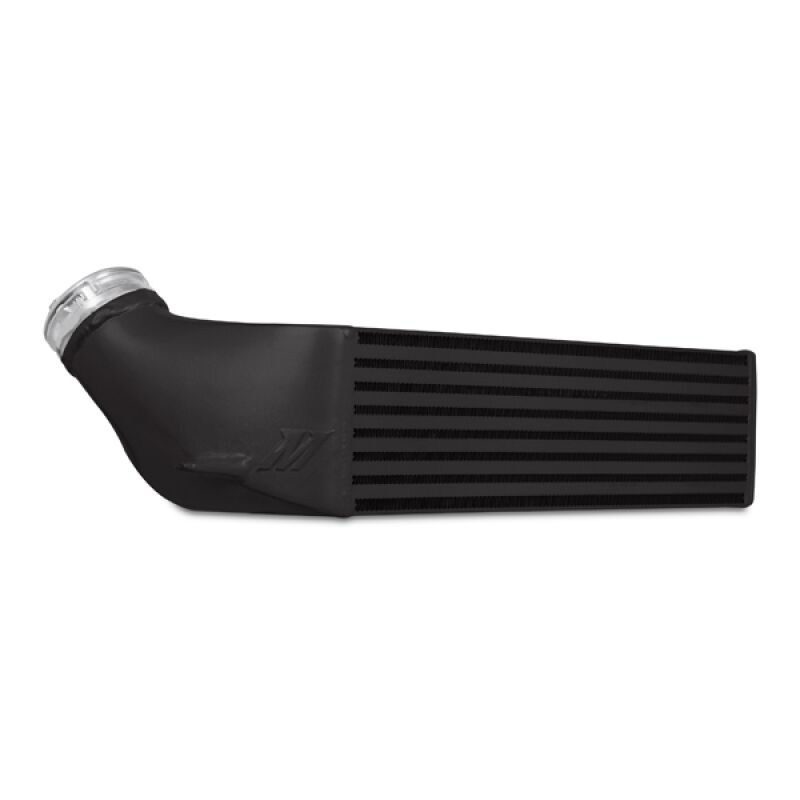

The Mishimoto MMINT-E90-07B is a direct-fit, bar-and-plate performance intercooler engineered specifically for the BMW E9X and E82 platforms running N54 or N55 turbocharged inline-six engines. Built with cast end tanks and precision CNC-machined aluminum quick-disconnect fittings that mate directly to the factory intercooler piping, this cooler bolts in without any vehicle modification. It replaces the factory tube-and-fin unit, which is prone to heat soak once you start pushing the stock forced induction system harder.
As a core piece of your car’s forced induction system, the intercooler is responsible for pulling heat out of compressed intake air before it reaches the engine, and a stronger induction system component here means more consistent power delivery. The Mishimoto core delivers a 22-percent increase in core volume over the factory piece, along with 100-percent aluminum, TIG-welded construction for durability. Mishimoto reports a 35 F reduction in intake air temperature and an increase of 20+ hp while retaining factory boost pressure across the core, making this a straightforward upgrade for anyone looking to get more consistent performance induction out of their charge-air system without chasing exotic modifications. The unit is available in silver or black finish and is backed by a Mishimoto Lifetime Warranty, with an install that Mishimoto notes typically takes under an hour.
Vehicle Applications
This intercooler is a specific fit for the E90/E92/E93 BMW 335i, including the 2007-2013 335i Base, 2012-2013 335i Exclusive/Luxury/Modern/Sport trims, 2008-2010 and 2012-2013 335i M Sport, 2009-2013 335i xDrive Base, 2011-2013 335is Base, and 2007-2008 335xi Base. It also fits the E82 BMW 1 Series, covering the 2008-2013 135i Base, 2012-2013 135i M Sport, 2013 135is Base, and the 2011 1 Series M Base. Additional confirmed applications include the 2009-2013 BMW Z4 sDrive35i, 2011-2013 Z4 sDrive35is, and the 2013 BMW X1 xDrive35i, with chassis codes E90, E92, E93, and E82 and N54/N55 engine codes all covered by this design.
Features
- Direct fit for the E9X chassis with N54/N55 engines
- Reported 20+ hp increase
- 35 F (19.45 C) reduction in intake air temperature
- 22-percent increase in core size over the factory intercooler

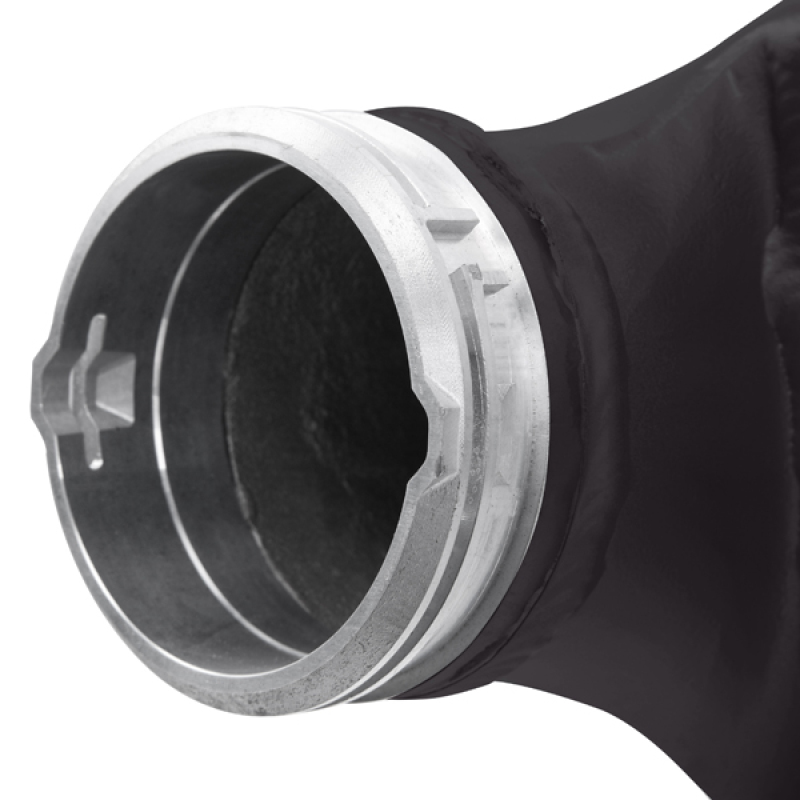

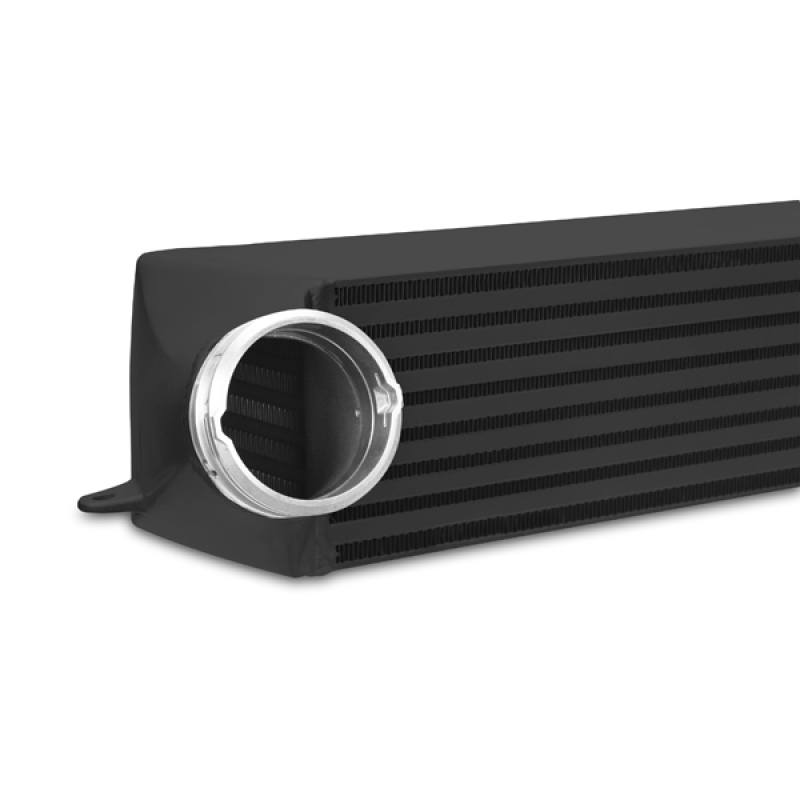

- CNC-machined quick-disconnect fittings to mate with OEM piping

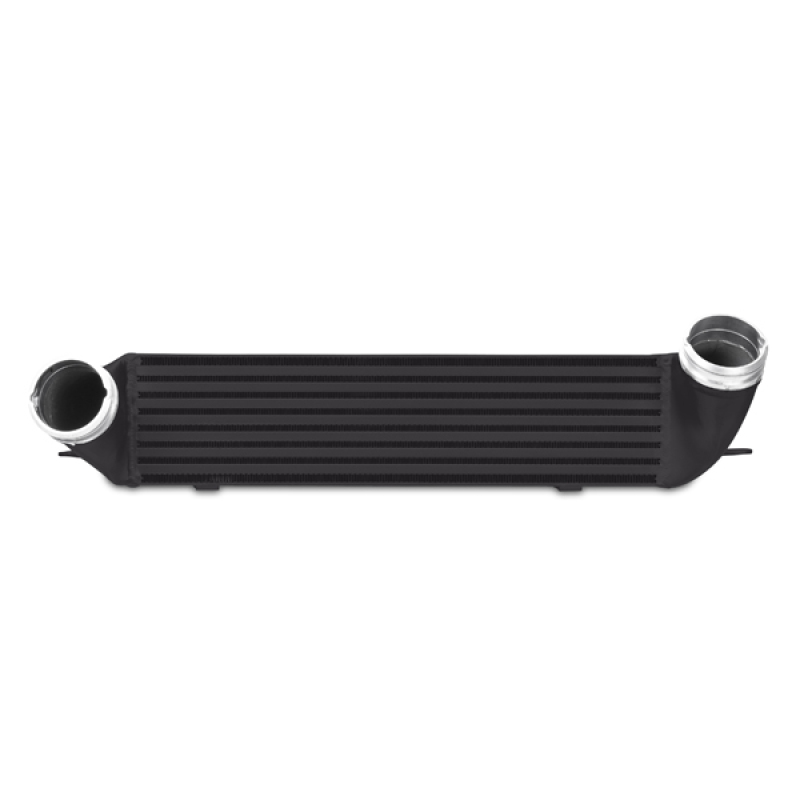

- Bar-and-plate core construction
- 100-percent aluminum, TIG-welded with cast end tanks
- Easy install, under an hour, with no vehicle modifications required
- CARB EO number: D-759

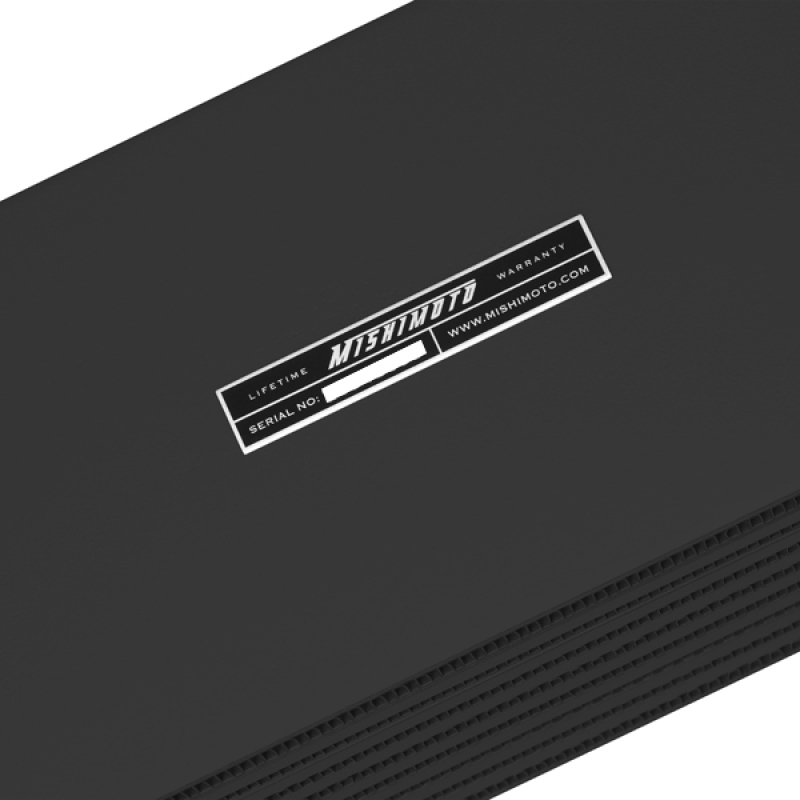

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-E90-07B
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Overall Length: 27.8 in
- Overall Width: 8.7 in
- Overall Height: 6.8 in
- Core Length: 20.47 in
- Core Height: 5.12 in
- Core Thickness: 5.12 in
- Weight: 15.8 lbs
- Maximum Recommended Boost Pressure: 40 PSI
- Engine Codes: N54, N55
- Chassis Codes: E90, E92, E93, E82
- CARB EO Number: D-759
- Includes: (1) Mishimoto Intercooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-E90-07B intercooler fit?
It is a specific fit for the BMW E90/E92/E93 335i, 335xi, and 335is (2007-2013 depending on trim), the E82 135i, 135is, and 1 Series M (2008-2013 depending on trim), the BMW Z4 sDrive35i/35is (2009-2013), and the 2013 BMW X1 xDrive35i, all equipped with N54 or N55 engines.
How much performance improvement does this intercooler provide?
Mishimoto reports a 35 F reduction in intake air temperature and an increase of 20+ hp while retaining factory boost pressure across the core.
What is the core construction of this intercooler?
It uses a bar-and-plate core design, built from 100-percent aluminum with TIG welding and cast end tanks, offering a 22-percent increase in core volume over the factory unit.
Does installation require cutting or modifying factory parts?
No. It is a direct-fit unit with CNC-machined aluminum quick-disconnect fittings that mate with the factory intercooler piping, and Mishimoto notes the install typically takes under an hour with no modifications required.
What warranty and finish options are available?
The intercooler is backed by the Mishimoto Lifetime Warranty and is available in silver or black finish; this listing’s core color is black.
Does this intercooler have a CARB EO number?
Yes, it carries CARB EO number D-759.
