Description

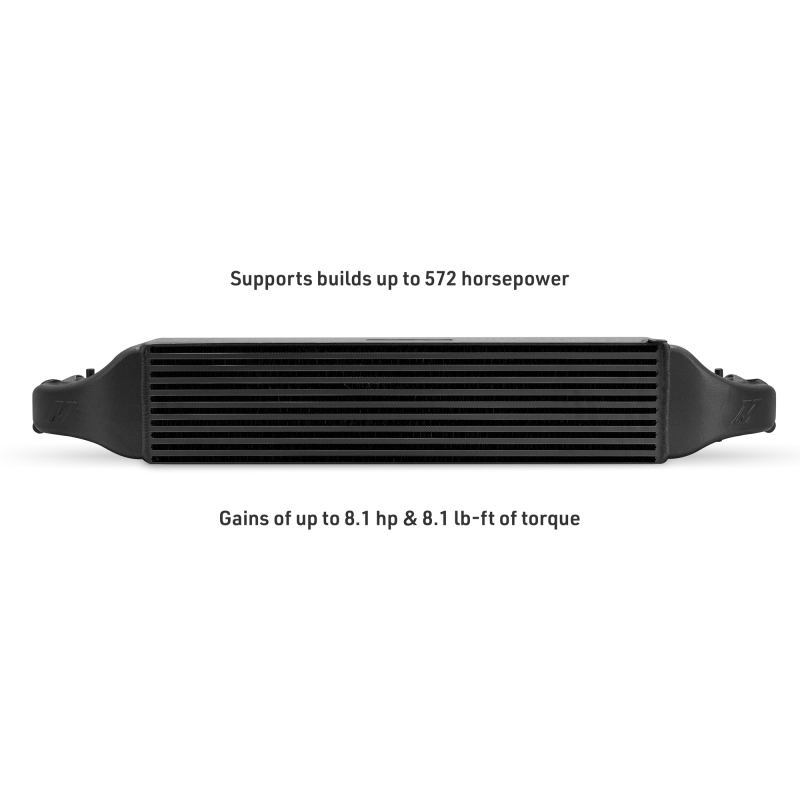

The Mishimoto Performance Intercooler Kit, part number MMINT-CIV-22KBKWBK, is a complete air-to-air forced induction upgrade purpose-built for the turbocharged 1.5-liter Honda Civic platform and its L15B7/L15CA-powered siblings. Built around a bar-and-plate core with cast aluminum end tanks and high-flow aluminum piping, this kit is designed to move more air, run cooler, and support serious forced induction builds up to 572 horsepower and 100 PSI of boost pressure.

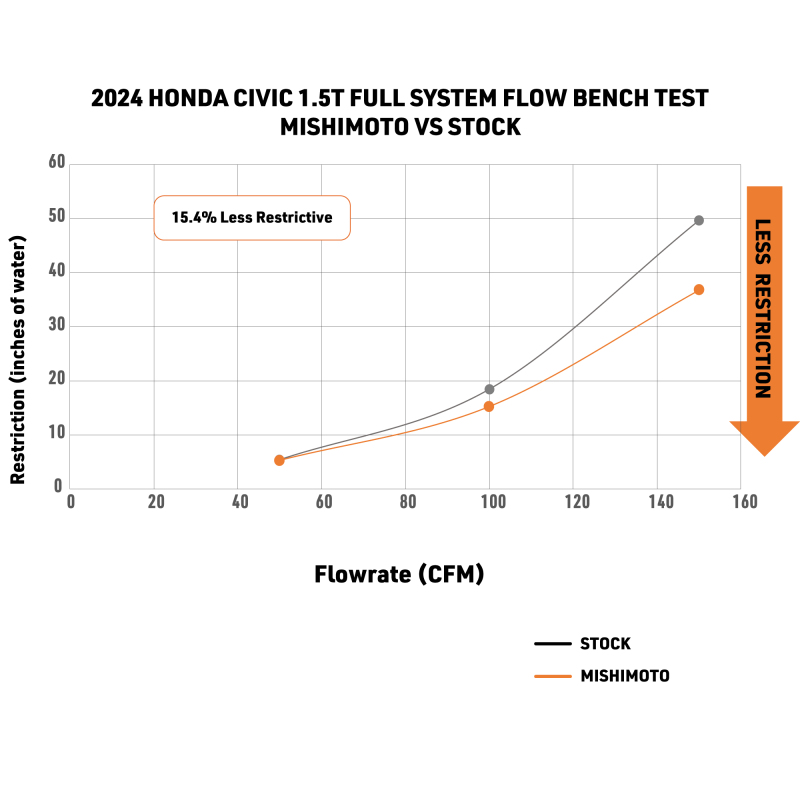

As a dedicated performance induction system, this kit delivers gains of up to 8.1 horsepower and 8.1 lb-ft of torque over the stock intercooler by increasing core volume by 146% for greater cooling capacity. The high-flow aluminum piping replaces the restrictive factory hot-side pipe with a design that boosts flow area by 103% and a cold-side pipe that adds 75% more flow, while removing the OEM resonator entirely for a sharper, more aggressive induction sound under boost. In testing, average outlet air temperatures dropped 18.1°F compared to stock, helping the forced induction system maintain consistent power and resist heat soak during hard driving, spirited back-road runs, or repeated track laps. Welded aluminum construction, cast end tanks, and wire-reinforced, 5-layer DuraCore™ silicone couplers are built to handle the heat and pressure that come with a serious induction force upgrade, and a pre-drilled 1/8-inch NPT sensor port on the cold-side pipe leaves room to add auxiliary sensors or gauges as your build evolves.
Vehicle Applications
This Mishimoto intercooler kit is a specific-fit forced induction system engineered for the Honda Civic EX, EX-L, Sport Touring, and Touring trims from 2022–2024, along with the Honda Civic Si covering 2022–2026. It also fits the Acura Integra A-Spec and Integra Base from 2023–2026, plus the Honda CR-V EX, EX-L, and LX trims from 2023–2026. Coverage centers on vehicles equipped with the L15B7/L15CA engine on the FE1 chassis platform.
Features
- Gains of up to 8.1 HP and 8.1 lb-ft of torque over stock
- Average outlet temperature 18.1°F cooler than stock for consistent performance and reduced heat soak
- Supports builds up to 572 horsepower and 100 PSI of maximum boost pressure
- 146% increase in core volume compared to stock for superior cooling capacity

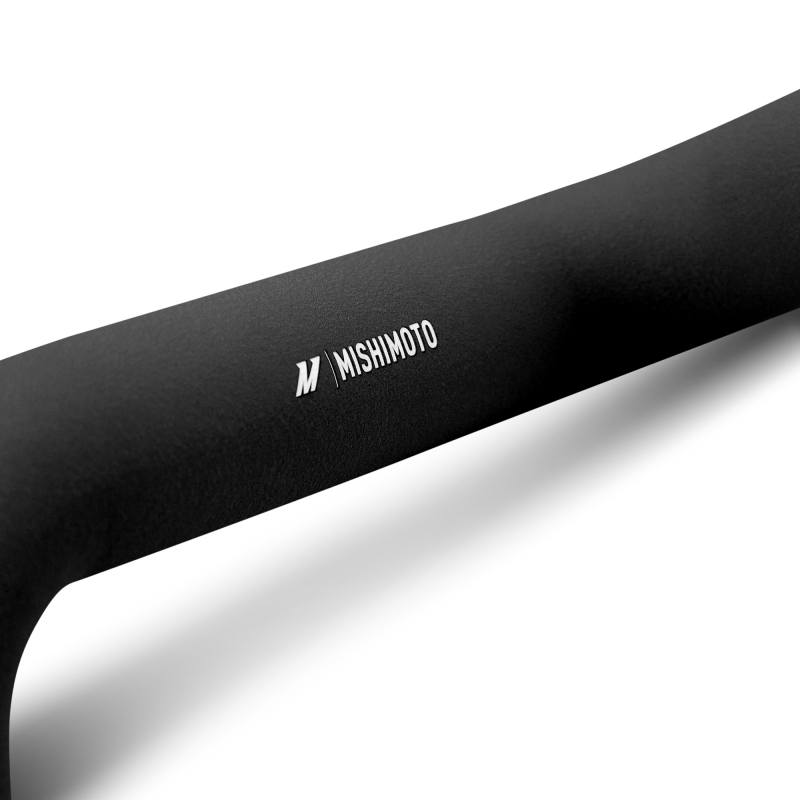

- High-flow aluminum piping increases flow by 103% on the hot side and 75% on the cold side
- Eliminates the OEM resonator for a sharper, more aggressive induction sound under boost
- Cast aluminum end tanks and welded aluminum construction paired with DuraCoreâ„¢ silicone couplers

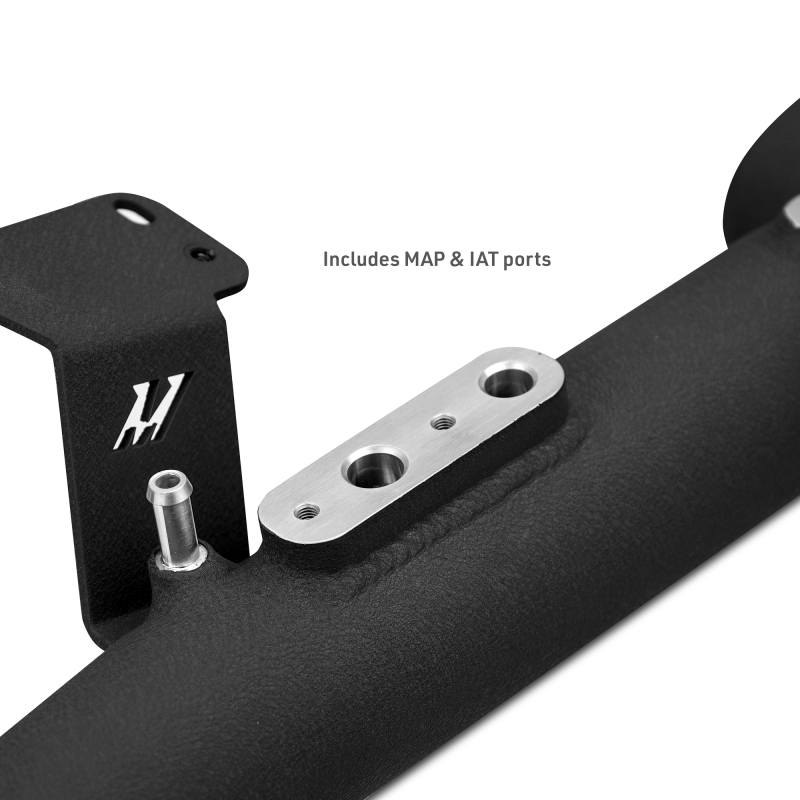

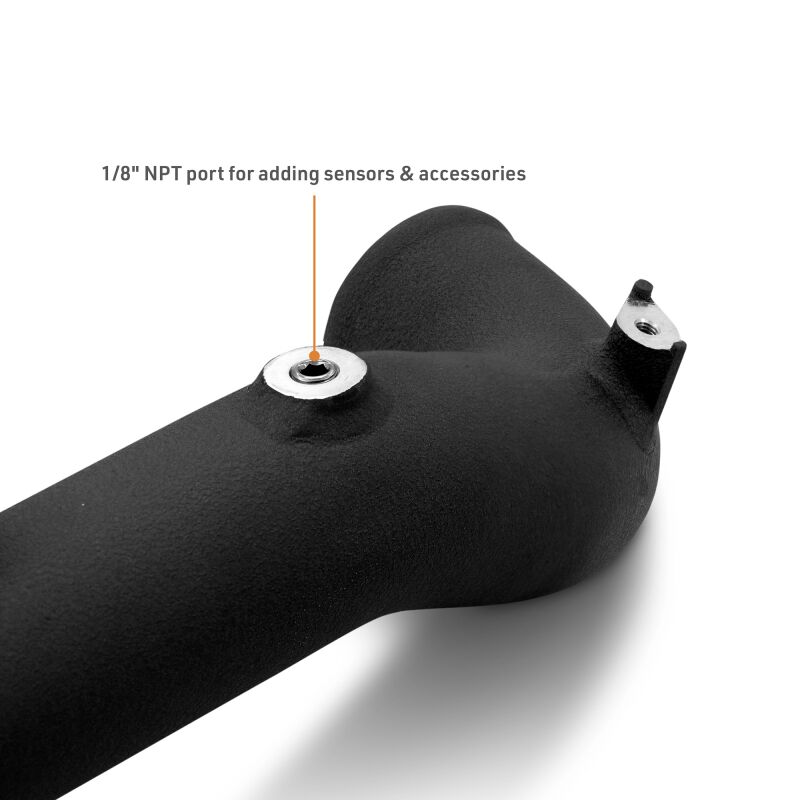

- Pre-drilled 1/8-inch NPT sensor port on the cold-side pipe for auxiliary sensors or gauges
- Plug-and-play installation with no cutting required and full compatibility with stock ducting
- Patent Pending design

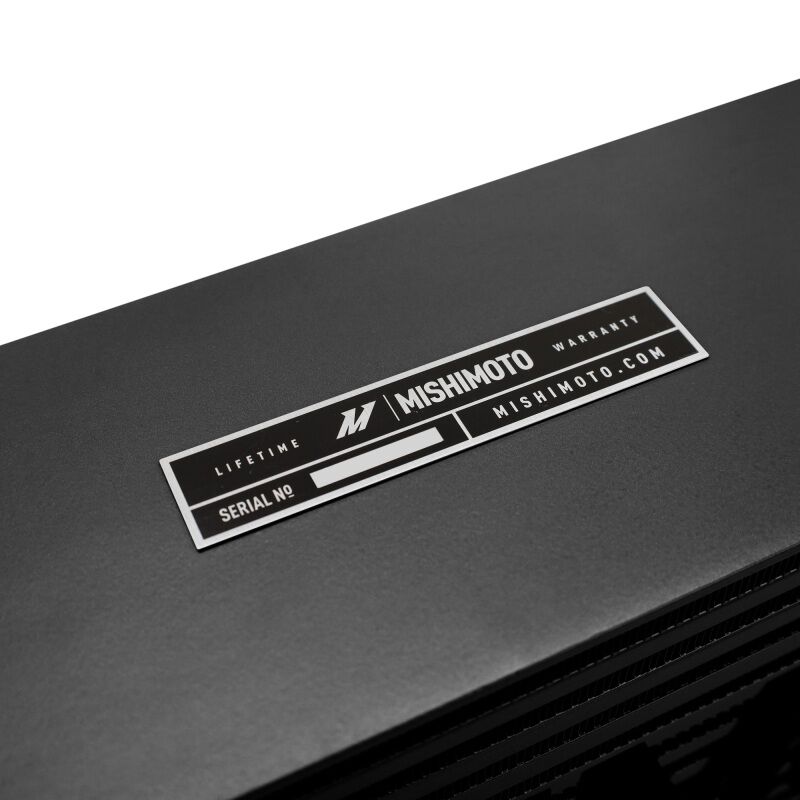

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Thickness: 4.5 in
- Core Length: 26 in
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Inlet Diameter: 2.1 in
- Outlet Diameter: 2.1 in
- Hot Side Pipe Inside Diameter: 2.1 in
- Cold Side Pipe Inside Diameter: 2.1 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 100 PSI
- Maximum Horsepower: 570
- Overall Width: 5.9 in
- Overall Height: 6.1 in
- Overall Length: 39.8 in
- Grade Type: Performance
- Fit Type: Specific
- Engine Codes: L15B7/L15CA
- Chassis Code: FE1

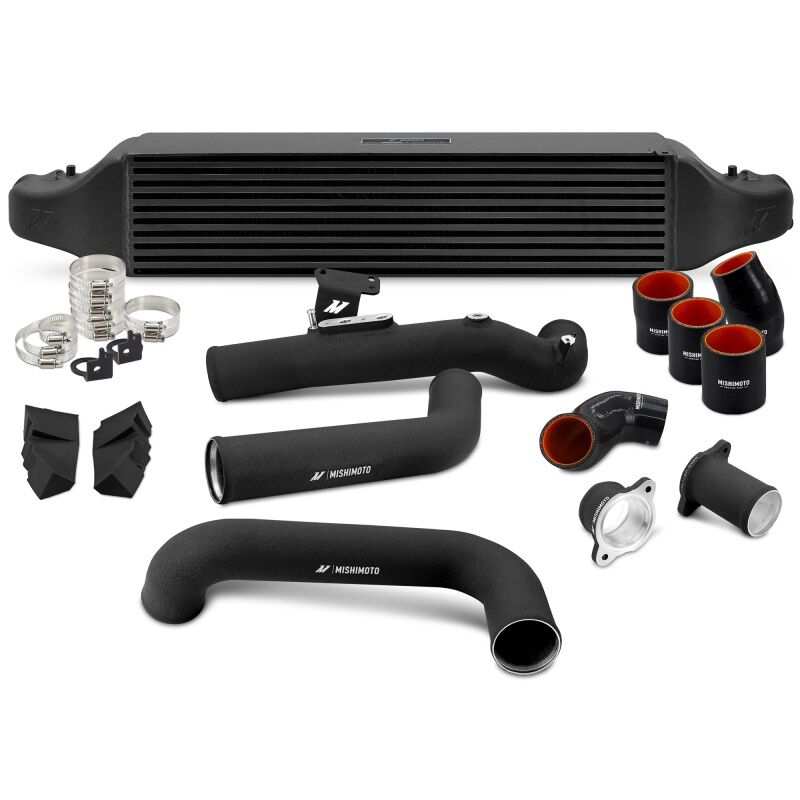

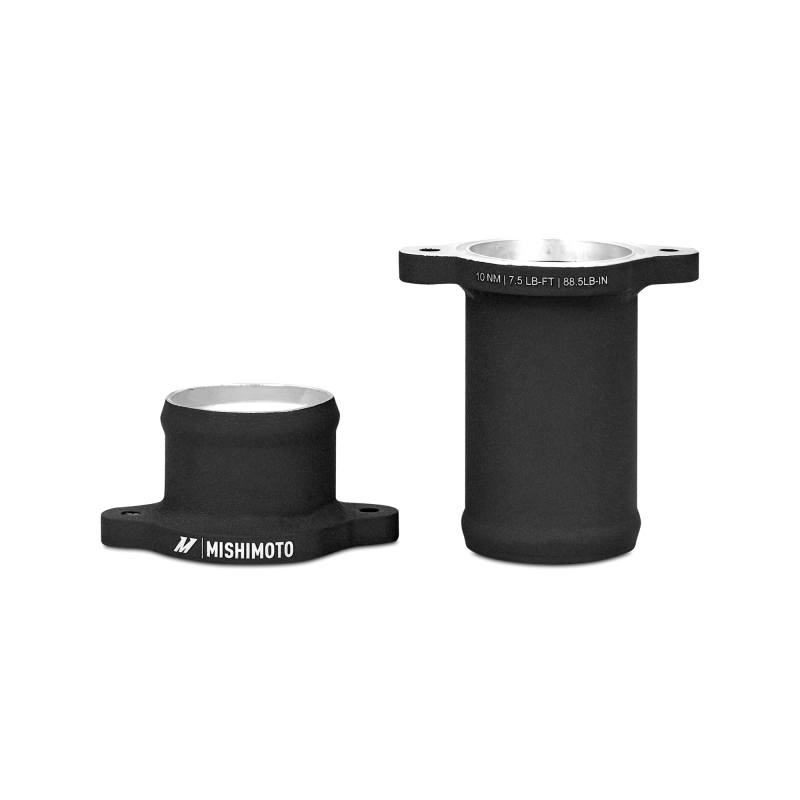

- Kit Includes: (1) Mishimoto Performance Intercooler, (2) Intercooler Adapters, (2) Mounting Brackets, Intercooler Ducting, Mishimoto Intercooler Piping, (5) Silicone Couplers, Mounting Hardware, Trim Removal Tool, Mishimoto Lifetime Warranty
Frequently Asked Questions
What performance gains does the Mishimoto Performance Intercooler Kit offer?
This forced induction kit delivers gains of up to 8.1 horsepower and 8.1 lb-ft of torque over the stock intercooler, along with average outlet temperatures 18.1°F cooler than stock.
Which vehicles fit the MMINT-CIV-22KBKWBK intercooler kit?
This kit fits the Honda Civic EX, EX-L, Sport Touring, and Touring (2022–2024), Honda Civic Si (2022–2026), Acura Integra A-Spec and Base (2023–2026), and Honda CR-V EX, EX-L, and LX (2023–2026), all equipped with the L15B7/L15CA engine on the FE1 chassis.
What is the maximum horsepower and boost this intercooler supports?
The kit is rated to support builds up to 572 horsepower and a maximum boost pressure of 100 PSI.
What is included in the Mishimoto Performance Intercooler Kit?
The kit includes (1) Mishimoto Performance Intercooler, (2) Intercooler Adapters, (2) Mounting Brackets, Intercooler Ducting, Mishimoto Intercooler Piping, (5) Silicone Couplers, Mounting Hardware, a Trim Removal Tool, and the Mishimoto Lifetime Warranty.
Does this kit change the sound of the vehicle under boost?
Yes, the kit removes the OEM resonator, which delivers a sharper, more aggressive induction sound under boost.
Is there a sensor port for adding gauges?
Yes, the cold-side pipe includes a pre-drilled 1/8-inch NPT sensor port for auxiliary sensors or gauges.
