Description
The Mishimoto Performance Intercooler Kit, part number MMINT-STNGR-18BK, is a complete turbo-to-throttle-body overhaul of the factory forced induction system on the Lambda II GDI 3.3T. Mishimoto tossed the stock tube-and-fin core and plastic end tanks in favor of a bar-and-plate core TIG-welded to cast aluminum end tanks, then reworked every pipe and coupler in between for a genuine performance induction upgrade rather than a cosmetic swap.
This kit exists because the factory intercooling system was identified as a bottleneck on an otherwise strong platform, so Mishimoto engineered a forced induction turbo cooling solution built around a 94-percent larger core volume and a 74-percent increase in external fin surface area. The aluminum piping keeps a factory-style look but grows to a 3-inch inner diameter for improved flow with minimal pressure drop, and the hot-side piping merger manifold was reworked with 2-inch inlets and a 3-inch outlet for a 51-percent increase in flow straight out of the turbos. On the dyno, that translated to a 29-degree F drop in intercooler outlet temperature and gains of 8 whp and 8 wtq on stock tuning, with a stage 1 map tune pushing the temperature drop to 41 degrees F and adding another 6 whp and 8 wtq on top of the tune. Every piping section is finished in a micro-wrinkle black powder coat and linked with 5-layer silicone couplers, and the whole induction system remains compatible with the stock recirculation valves.
Vehicle Applications
This is a specific-fit forced induction upgrade, not a universal part. It is designed for the 2018-2023 Kia Stinger GT, Kia Stinger GT Limited, and Kia Stinger GT2, as well as the 2018-2022 Kia Stinger GT1, the 2022-2023 Kia Stinger GT Elite, the 2019 Kia Stinger GTS, and the 2023 Kia Stinger Tribute Edition. It also fits the 2019-2025 Genesis G70, sharing the same Lambda II GDI 3.3T engine and CK chassis code as the Stinger GT. Installation requires permanent modification to the front air guide shrouding, part number 29135-J5000.
Features
- Direct fit for the Lambda II GDI 3.3T-powered Kia Stinger GT and Genesis G70 lineup

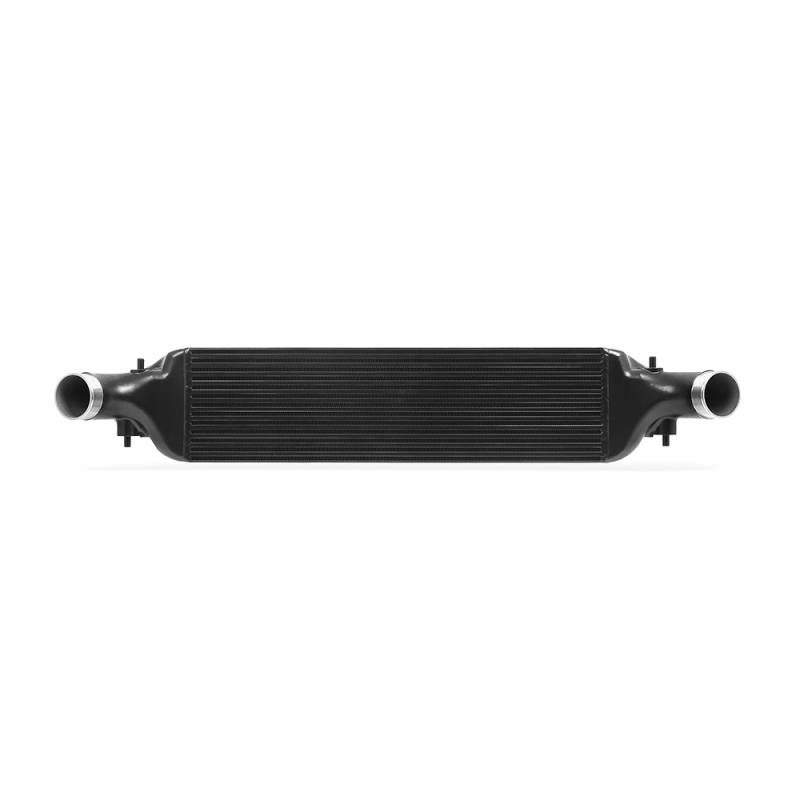

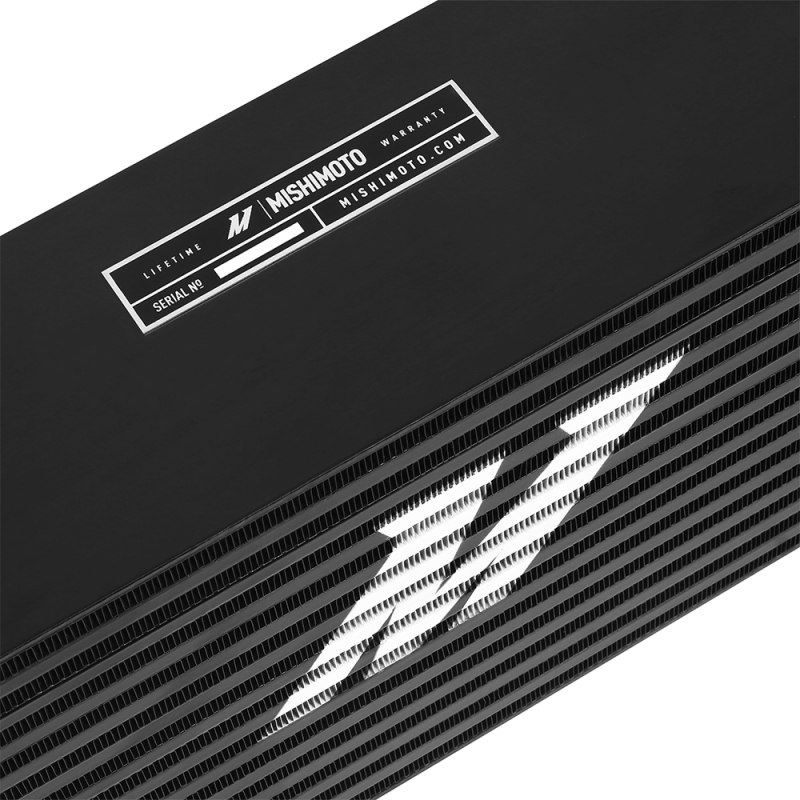

- Bar-and-plate intercooler core TIG-welded to cast aluminum end tanks for improved heat dissipation and flow
- 94-percent increase in intercooler core volume and 74-percent increase in external fin surface area

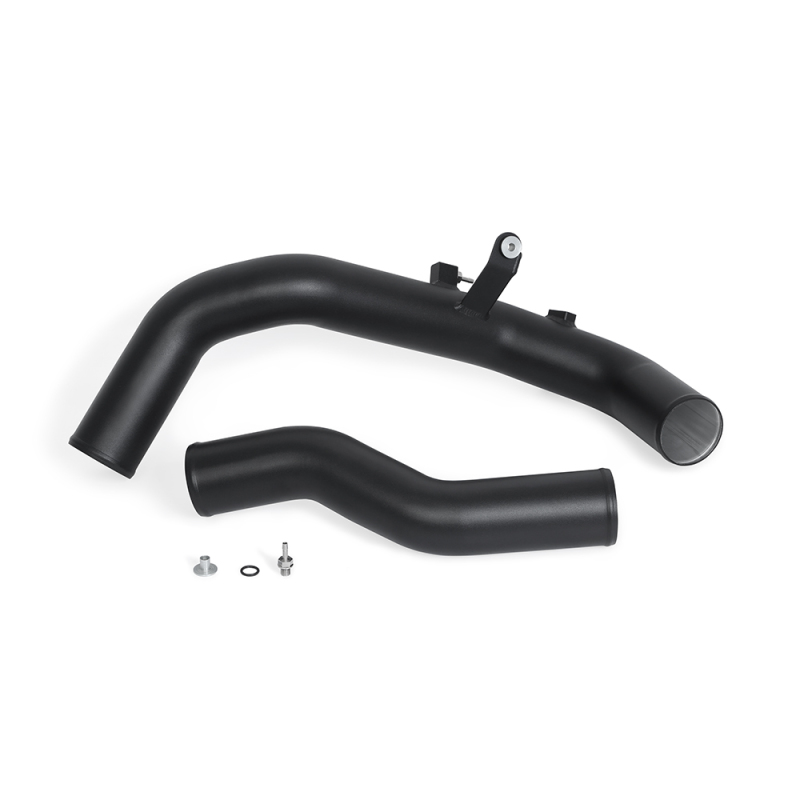

- 3-inch aluminum intercooler piping for increased flow with minimal pressure drop

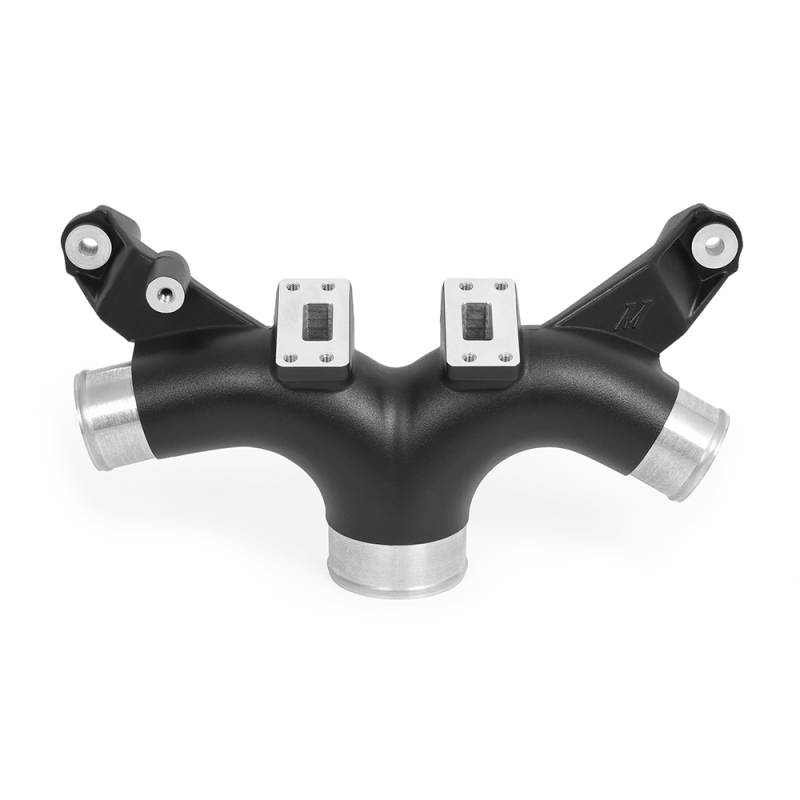

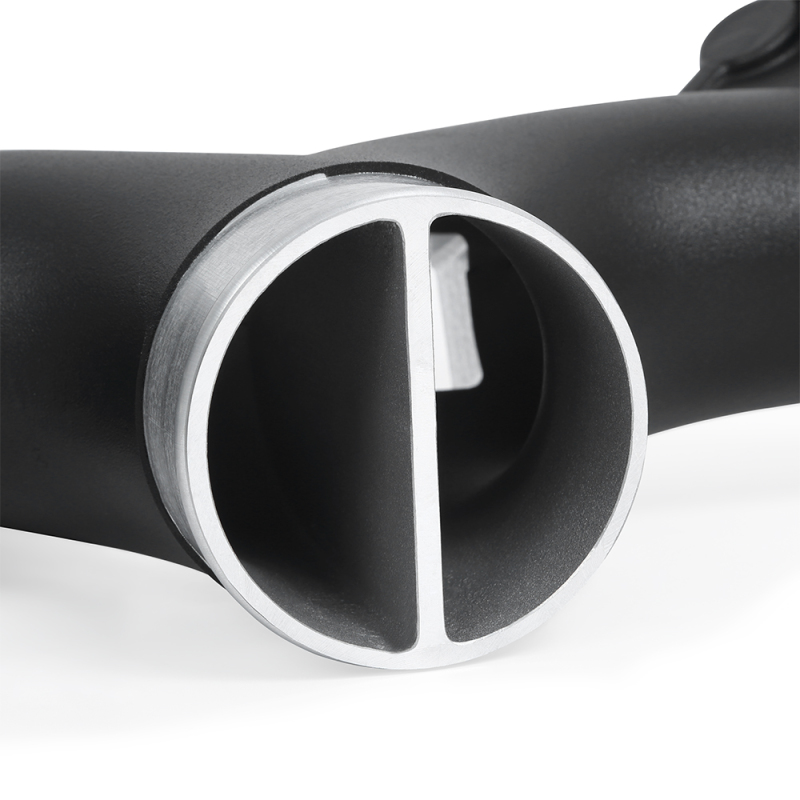

- Reworked hot-side piping merger manifold with inlets increased to 2 inches and outlet increased to 3 inches for a 51-percent flow boost
- Drops intercooler outlet temperature by 29 degrees F on stock tune and 41 degrees F on a stage 1 map tune
- Delivers 8 whp and 8 wtq on stock tuning, plus an additional 6 whp and 8 wtq on top of stage 1 tuning
- Additional bung on the cold-side intercooler pipe that can be drilled and tapped for methanol injection or sensors
- Compatible with the stock recirculation valves

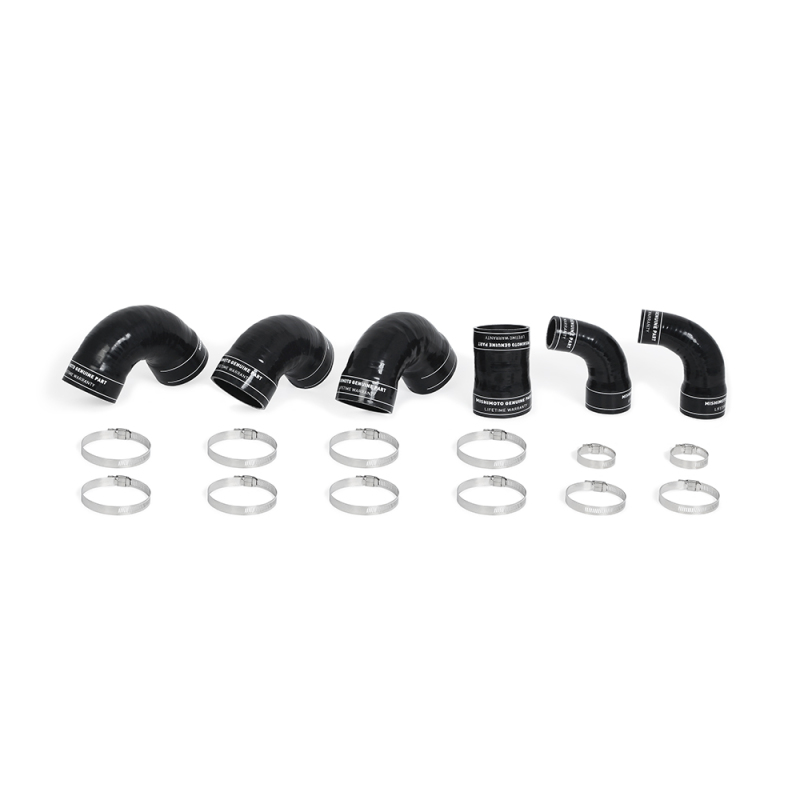

- Micro-wrinkle black powder coat piping finish with 5-layer silicone couplers
- Patent No. US D957,465 S
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-STNGR-18BK
- Product Type: Forced Induction / Performance Intercooler Kit
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Intercooler Type: Air-to-Air
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Overall Length: 38.7 in
- Overall Width: 8.1 in
- Overall Height: 7.9 in
- Weight: 31 lbs
- Engine Code: Lambda II GDI
- Chassis Code: CK
- CARB EO Number: #D-759-24

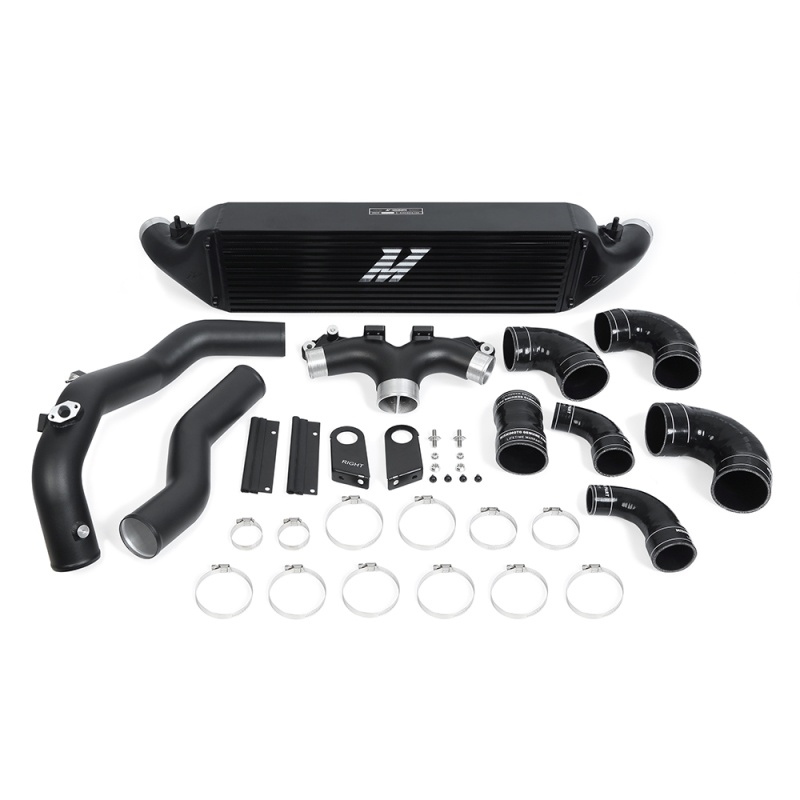

- Kit Includes: (1) Performance Intercooler, (1) Hot-Side Piping Merger Manifold, (1) Hot-Side Intercooler Pipe, (1) Cold-Side Intercooler Pipe, (6) Silicone Couplers, (2) Application-Specific Mounting Brackets, (2) Air Diverters, (4) Mounting Grommets, (8) Heavy-Duty Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto MMINT-STNGR-18BK intercooler kit fit?
It is a specific fit for the 2018-2023 Kia Stinger GT, Kia Stinger GT Limited, and Kia Stinger GT2, the 2018-2022 Kia Stinger GT1, the 2022-2023 Kia Stinger GT Elite, the 2019 Kia Stinger GTS, the 2023 Kia Stinger Tribute Edition, and the 2019-2025 Genesis G70, all equipped with the Lambda II GDI 3.3T engine.
How much does this kit lower intercooler outlet temperatures?
On the dyno it produced a 29-degree F drop in outlet temperature on stock tuning and a 41-degree F drop with a stage 1 map tune installed.
What power gains were recorded with this intercooler kit?
Mishimoto recorded gains of 8 whp and 8 wtq on stock tuning, with an additional 6 whp and 8 wtq gained on top of a stage 1 tune.
What is included with the Mishimoto Performance Intercooler Kit?
The kit includes one Performance Intercooler, one Hot-Side Piping Merger Manifold, one Hot-Side Intercooler Pipe, one Cold-Side Intercooler Pipe, six Silicone Couplers, two Application-Specific Mounting Brackets, two Air Diverters, four Mounting Grommets, eight Heavy-Duty Worm Gear Clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Does installation require any permanent modifications?
Yes, installation requires permanent modification to the front air guide shrouding, part number 29135-J5000.
Is this intercooler kit compatible with the factory recirculation valves?
Yes, the kit retains compatibility with the stock recirculation valves.
