Description
The Mishimoto Performance Intercooler Kit (MMINT-CIV-22KBKWRD) is a purpose-built forced induction upgrade engineered specifically for the 2022+ Honda Civic 1.5T and Si. Featuring a bar-and-plate core with cast aluminum end tanks and high-flow aluminum piping, this complete kit is rated to support builds up to 572 horsepower while delivering gains of up to 8.1 horsepower and 8.1 lb-ft of torque over the factory intercooler.
Built to elevate your induction system’s efficiency, this performance induction kit increases core volume by 146% over stock, giving the forced induction system more surface area to shed heat before charge air reaches the engine. The high-flow piping raises hot-side flow area by 103% and cold-side flow by 75%, cutting restriction throughout the induction engine’s charge path. Average outlet temperatures drop by 18.1°F compared to the factory setup, helping stave off heat soak during hard driving, spirited back-road runs, or repeated track sessions. Removing the OEM resonator also sharpens the induction sound under boost, giving the force induction setup a more aggressive character. Wire-reinforced, 5-layer DuraCoreâ„¢ silicone couplers and welded aluminum construction give this forced induction turbo-supporting kit the durability to handle sustained boost pressure, while a pre-drilled 1/8-inch NPT sensor port on the cold-side pipe lets you add auxiliary sensors or gauges as your build evolves.
Vehicle Applications
This specific-fit intercooler kit covers the 2022-2024 Honda Civic EX, EX-L, Sport Touring, and Touring trims, as well as the 2022-2026 Honda Civic Si, all built around the 1.5L L15B7/L15CA engine on the FE1 chassis. It also fits the 2023-2026 Acura Integra A-Spec and Base trims and the 2023-2026 Honda CR-V EX, EX-L, and LX trims, which share the same 1.5L turbocharged engine platform.
Features
- Gains of up to 8.1 HP and 8.1 lb-ft of torque over stock
- Average outlet temperature 18.1°F cooler than stock for consistent performance and reduced heat soak

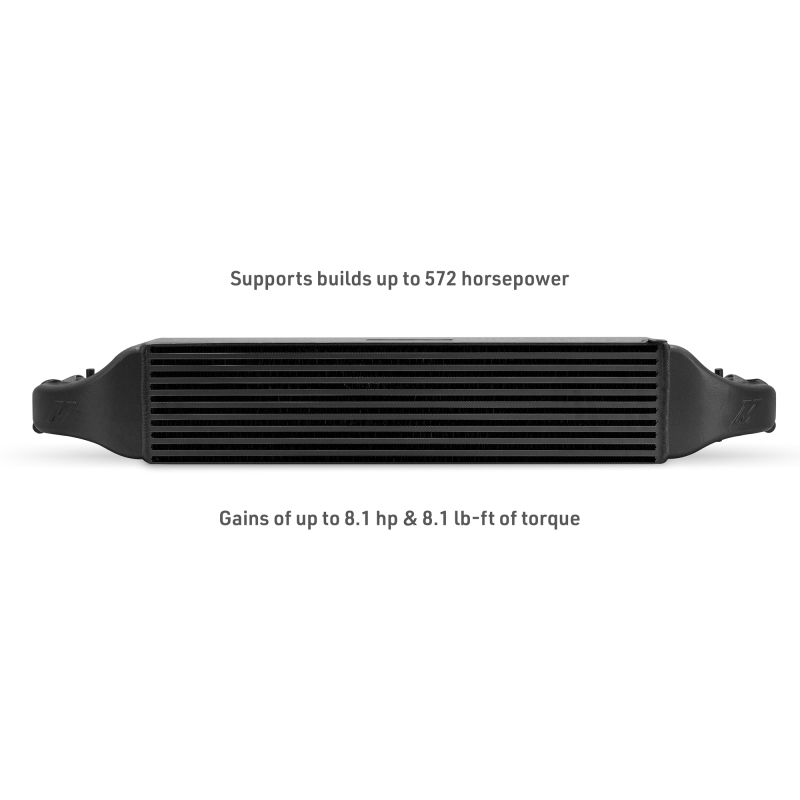

- Supports builds up to 572 horsepower
- 146% increase in core volume compared to stock for superior cooling capacity

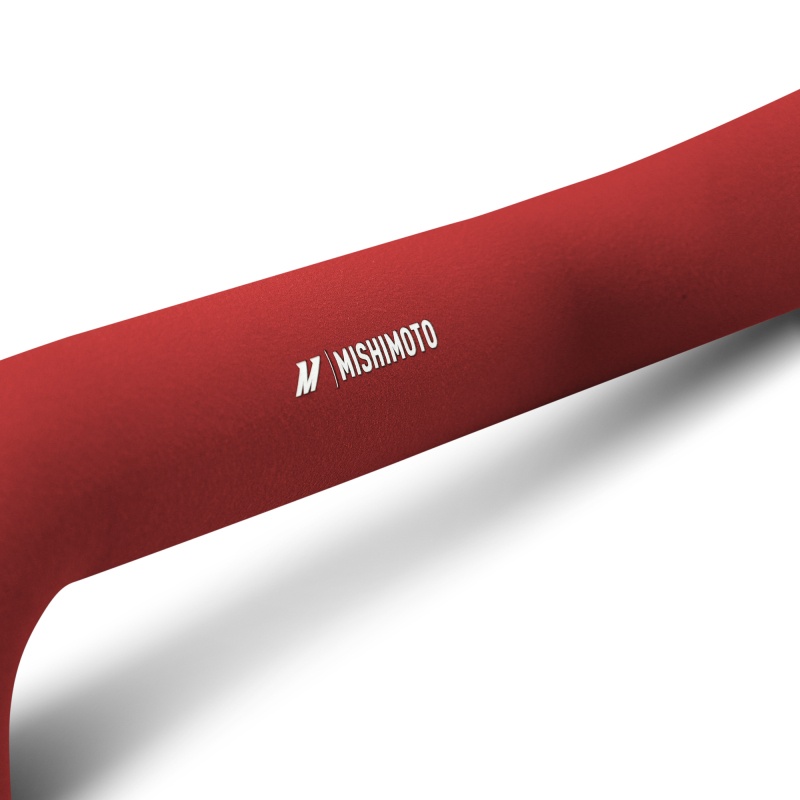

- High-flow aluminum piping increases flow by 103% on the hot side and 75% on the cold side
- Eliminates the OEM resonator for a sharper, more aggressive induction sound under boost
- Cast aluminum end tanks and welded aluminum construction paired with DuraCoreâ„¢ silicone couplers

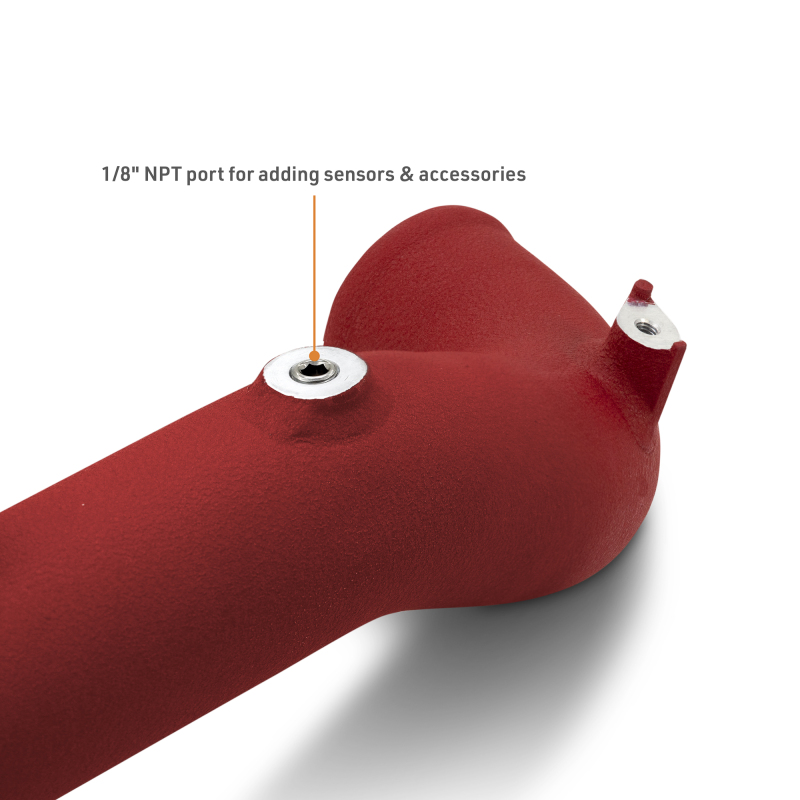

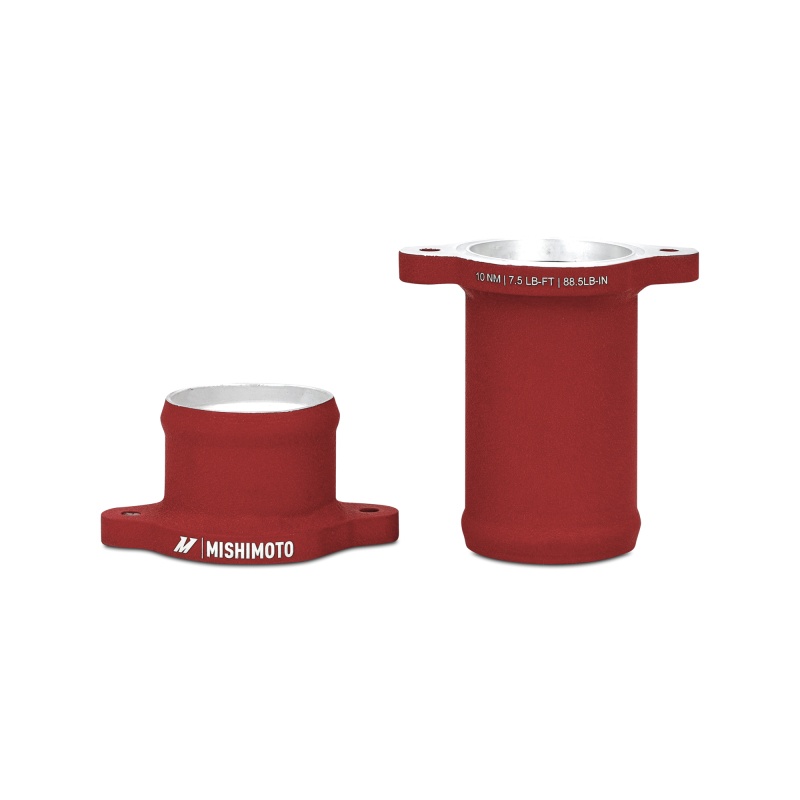

- Pre-drilled 1/8-inch NPT sensor port on the cold-side pipe for auxiliary sensors or gauges
- Plug-and-play installation with no cutting required and full compatibility with stock ducting
- Patent-pending design
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Thickness: 4.5 in
- Core Length: 26 in
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Pipe Material: Aluminum
- Pipe Color: Red
- Pipe Finish: Powder Coated
- Inlet Diameter: 2.1 in
- Outlet Diameter: 2.1 in
- Hot Side Pipe Inside Diameter: 2.1 in
- Cold Side Pipe Inside Diameter: 2.1 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 100 PSI
- Maximum Horsepower: 570
- Overall Width: 5.9 in
- Overall Height: 6.1 in
- Overall Length: 39.8 in
- Grade Type: Performance
- Fitment: Specific (Universal Or Specific Fit)
- Engine Codes: L15B7/L15CA
- Chassis Code: FE1

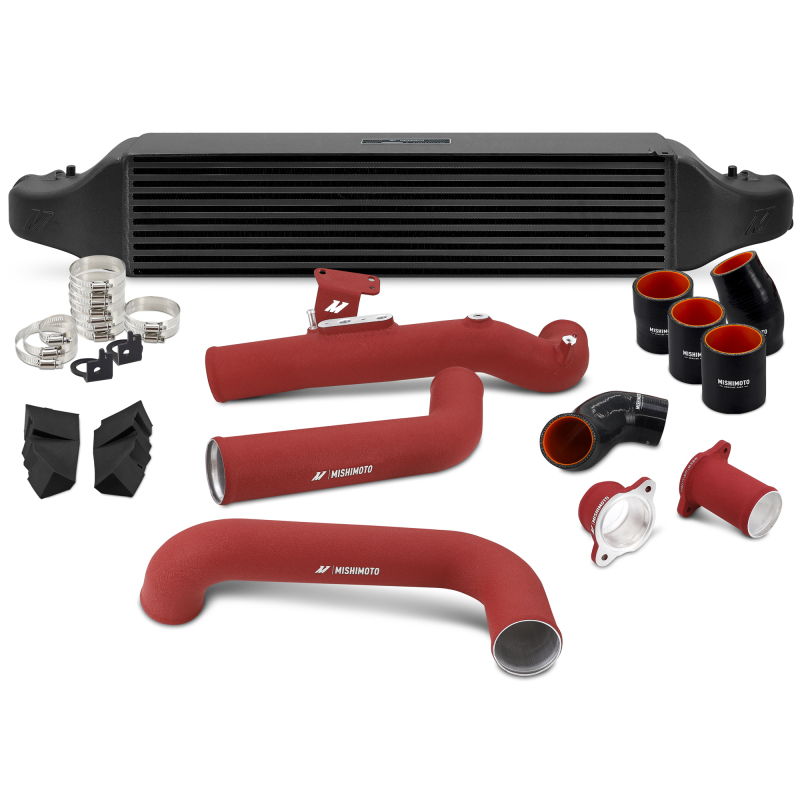

- Includes: (1) Mishimoto Performance Intercooler, (2) Intercooler Adapters, (2) Mounting Brackets, Intercooler Ducting, Mishimoto Intercooler Piping, (5) Silicone Couplers, Mounting Hardware, Trim Removal Tool, Mishimoto Lifetime Warranty
Frequently Asked Questions
How much power does the Mishimoto Performance Intercooler Kit add?
This kit delivers gains of up to 8.1 horsepower and 8.1 lb-ft of torque over the stock intercooler setup.
What horsepower level can this intercooler support?
The kit is rated to support forced induction builds up to 572 horsepower, with a maximum recommended boost pressure of 100 PSI.
Does this kit reduce intake air temperatures?
Yes, average outlet temperatures drop by 18.1°F compared to stock, which helps maintain consistent power and reduce heat soak during hard driving.
Which vehicles does this intercooler kit fit?
It fits the 2022-2024 Honda Civic EX, EX-L, Sport Touring, and Touring, the 2022-2026 Honda Civic Si, the 2023-2026 Acura Integra A-Spec and Base, and the 2023-2026 Honda CR-V EX, EX-L, and LX, all with the 1.5L L15B7/L15CA engine.
What is included with the Mishimoto Performance Intercooler Kit?
The kit includes the Mishimoto Performance Intercooler, two intercooler adapters, two mounting brackets, intercooler ducting, Mishimoto intercooler piping, five silicone couplers, mounting hardware, a trim removal tool, and the Mishimoto Lifetime Warranty.
Will this kit change the sound of my Civic under boost?
Yes, the kit removes the OEM resonator, which delivers a sharper, more aggressive induction sound under boost.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
