Description
The Mishimoto Performance Intercooler Pipe Kit (MMICP-CIV-16KWBK) is purpose-built for the L15B7-powered Honda Civic, replacing the factory piping with a mandrel-bent aluminum and silicone coupler system engineered specifically for the 2016-2021 Civic 1.5T and 2017-2020 Civic Si. Where the factory piping is restrictive, bend-heavy, and constructed from degradation-prone materials, this Mishimoto kit opens up the intercooling path for real gains.
Forced induction engines depend on efficient charge-air movement, and this pipe kit is engineered around that principle. Mishimoto increased the piping diameter from the stock 42mm to 55mm — a 30-percent jump in size — while also reducing bend angles to give charged air a more direct route through the induction system. The factory’s degradation-prone plastic cold-side pipe is replaced with mandrel-bent aluminum piping, and the stock rubber couplers are swapped for couplers built from 5 layers of durable silicone embedded with heat-resistant fibers, keeping engine heat out of the charged air. Paired with a Mishimoto Performance Intercooler, this pipe kit is rated for 4 whp and 8 wtq gains, with additional headroom for tuned applications looking for greater forced induction flow.
Vehicle Applications
This Mishimoto Performance Intercooler Pipe Kit is a direct fit for the L15B7-equipped Honda Civic 1.5T, covering DX (2016-2020), EX, EX-L, LX, and Touring (2016-2021), EX-T and LX-P (2016-2018), Turbo (2016-2017), and Turbo Plus (2017-2020), along with Sport and Sport Touring (2017-2021), Sport Plus (2019-2020), i-Style (2018-2021), and the Coupe and SE trims (2018). It also fits the 2017-2020 Honda Civic Si. Covered chassis codes include FC1, FC3, FK4, and FK7. Note that this pipe kit is only compatible with the Mishimoto Performance Intercooler and will not mount to the stock intercooler.
Features
- Direct fit for the Honda Civic 1.5T and Civic Si when paired with a Mishimoto Intercooler
- 30-percent increase in piping diameter over stock components, from 42mm to 55mm

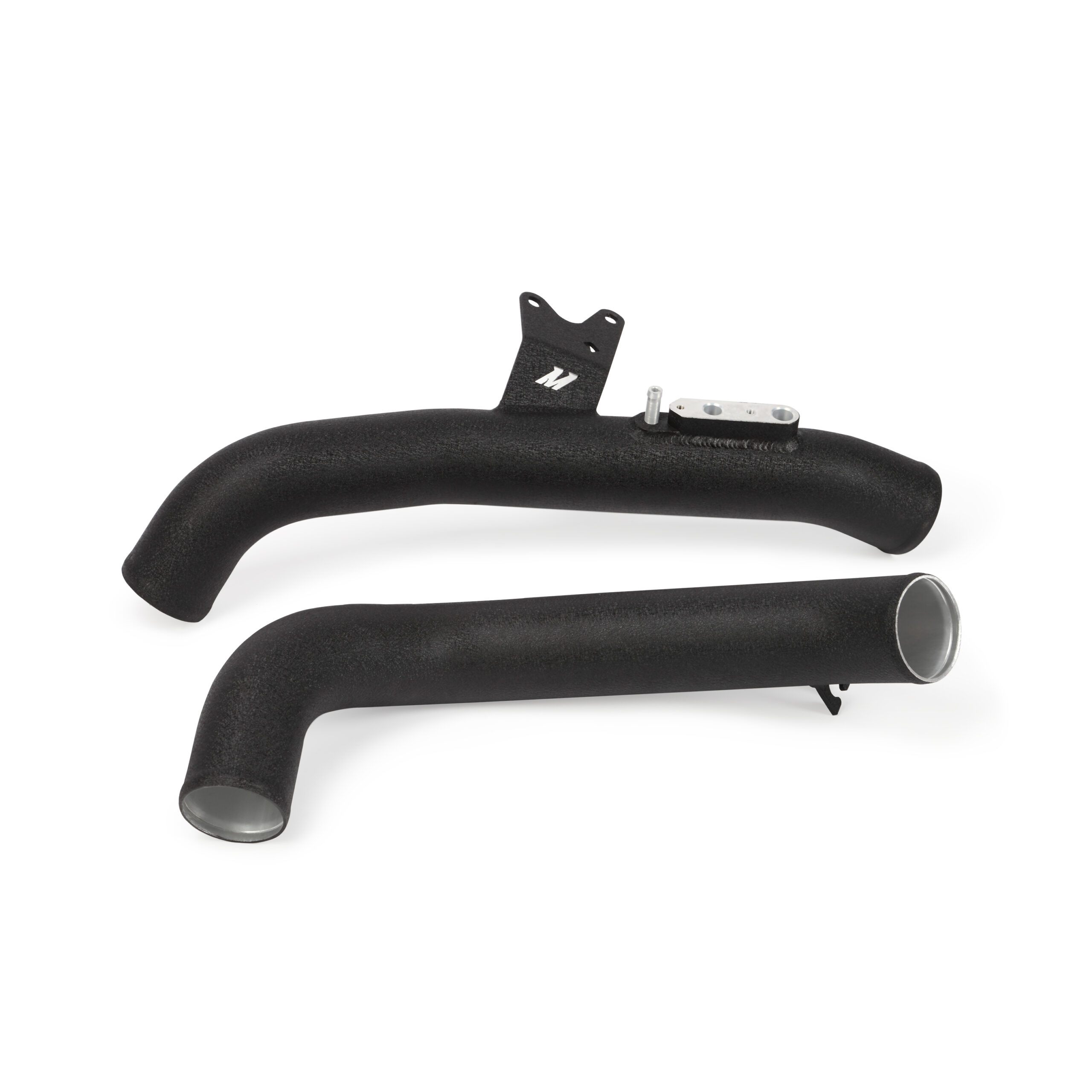

- Mandrel-bent aluminum piping replaces degradation-prone factory plastic

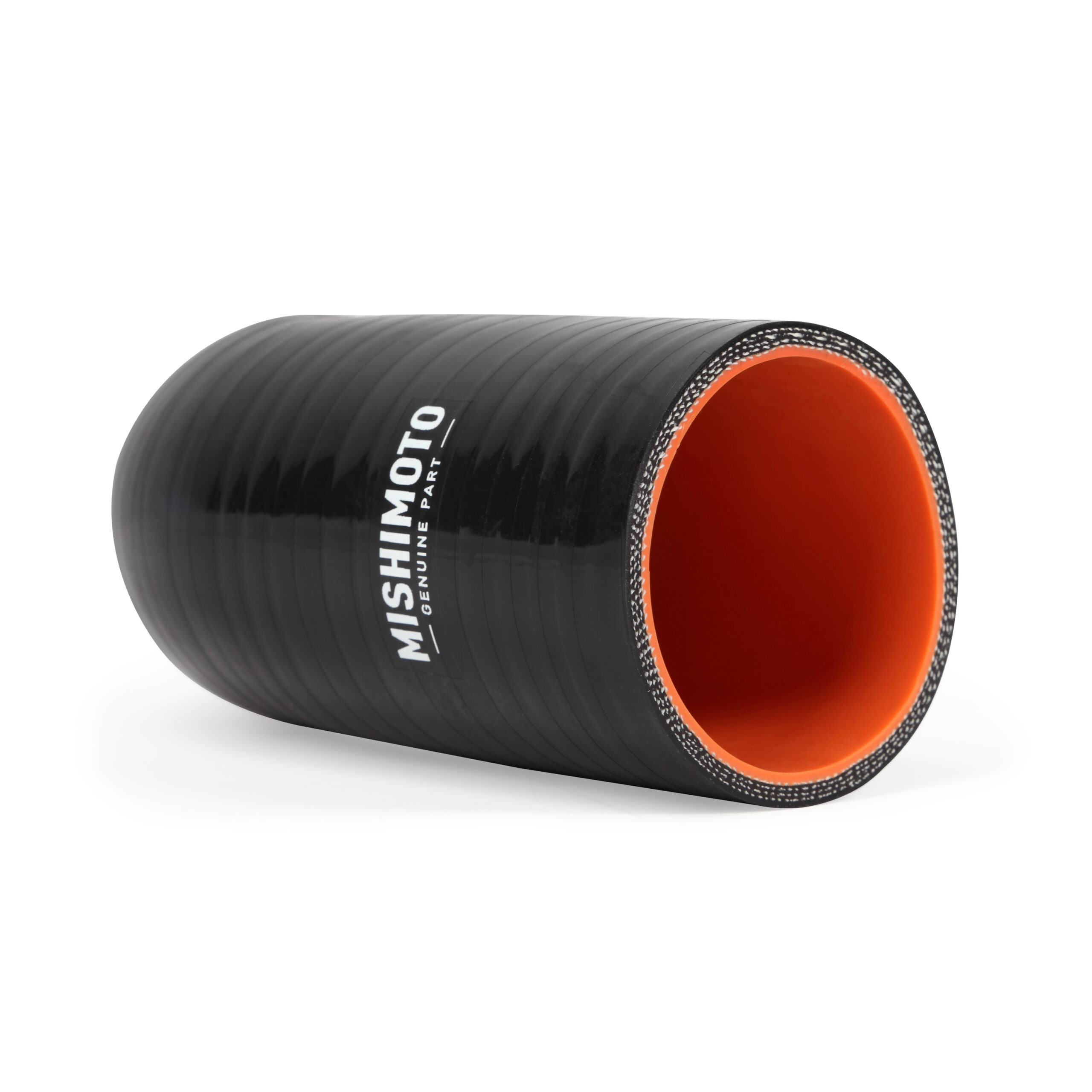

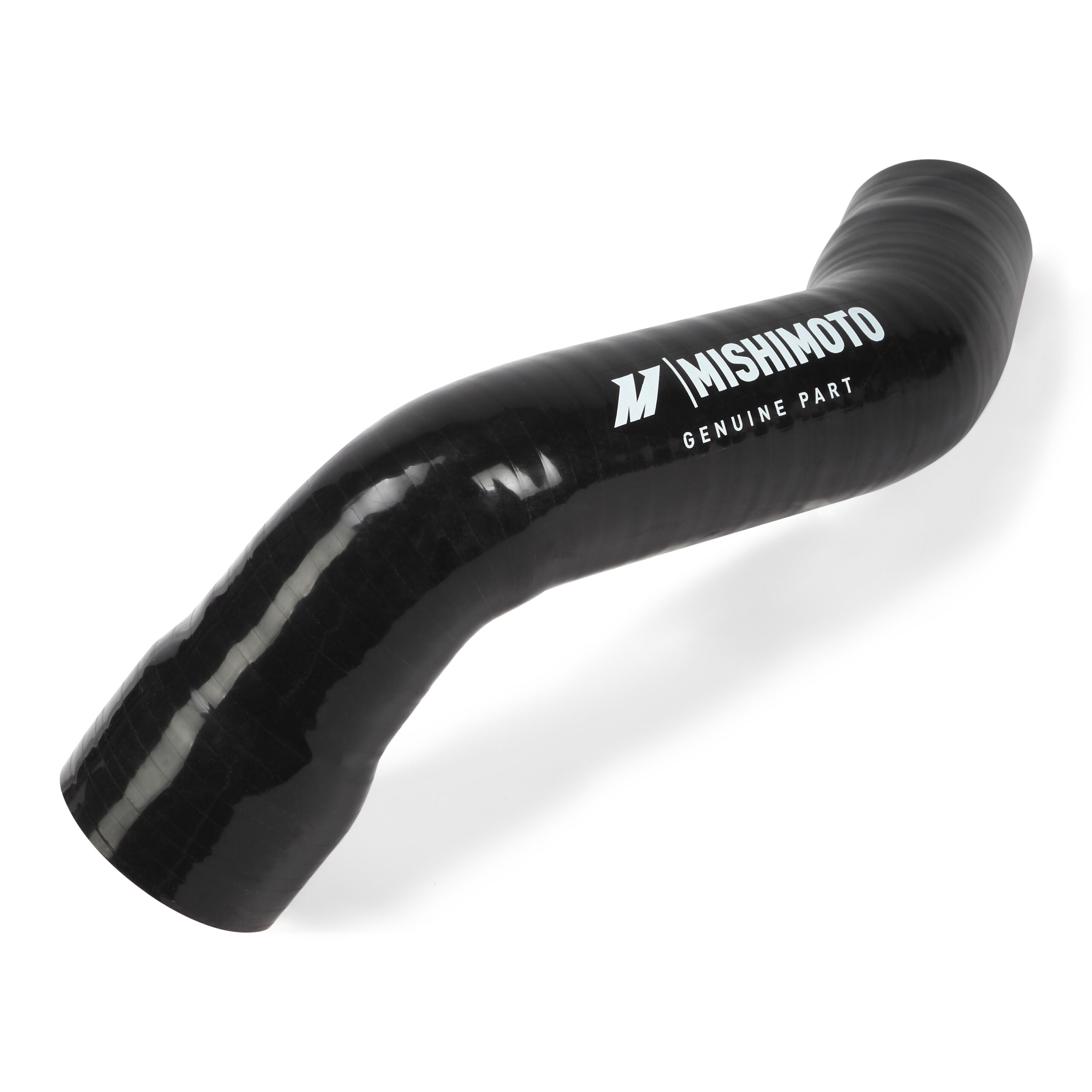

- Couplers built from 5 layers of durable silicone embedded with heat-resistant fibers
- Reduced bend angles for more direct airflow through the intercooling system
- Increased flow capacity ideal for tuned applications
- Available in wrinkle black or Rallye Red finishes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-CIV-16KWBK
- Pipe Material: Aluminum
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- CARB EO Number: D-759-12
- Engine Code: L15B7
- Chassis Codes: FC1, FC3, FK4, FK7

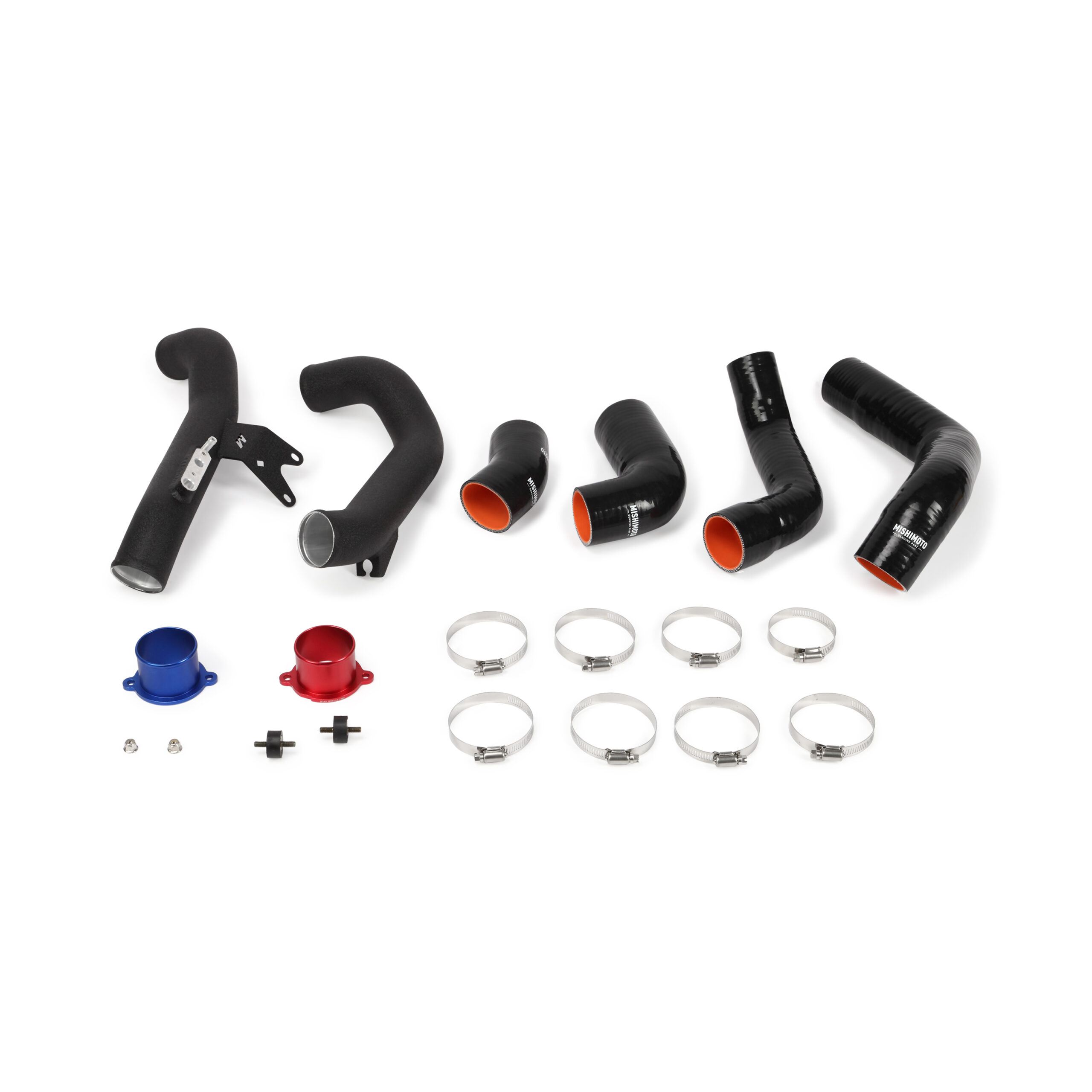

- Includes: (2) Aluminum Pipes, (4) Silicone Couplers, (2) CNC-Machined Aluminum Adapters, (7) 3-in High-Torque Worm Gear Clamps, (1) 2.5-in High-Torque Worm Gear Clamp, (1) CARB EO Sticker, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto Performance Intercooler Pipe Kit fit?
It fits the 2016-2021 Honda Civic 1.5T (DX 2016-2020, EX/EX-L/LX/Touring 2016-2021, EX-T/LX-P 2016-2018, Turbo 2016-2017, Turbo Plus 2017-2020, Sport/Sport Touring 2017-2021, Sport Plus 2019-2020, i-Style 2018-2021, Coupe/SE 2018) and the 2017-2020 Honda Civic Si. Covered chassis codes include FC1, FC3, FK4, and FK7, and the engine code is L15B7.
Will this pipe kit work with my factory intercooler?
No. This pipe kit is only compatible with the Mishimoto Performance Intercooler and will not mount to the stock intercooler.
What color options are available for this kit?
The Mishimoto Performance Intercooler Pipe Kit is available in wrinkle black and Rallye Red.
What performance gains can I expect from this kit?
When combined with the Mishimoto Performance Intercooler, this pipe kit is rated for 4 whp and 8 wtq gains, with additional potential for tuned applications.
What is included with the Mishimoto Intercooler Pipe Kit?
The kit includes (2) Aluminum Pipes, (4) Silicone Couplers, (2) CNC-Machined Aluminum Adapters, (7) 3-in High-Torque Worm Gear Clamps, (1) 2.5-in High-Torque Worm Gear Clamp, (1) CARB EO Sticker, Mounting Hardware, and the Mishimoto Lifetime Warranty.
Does this kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
