Description
The Mishimoto MMOC-GRC-23TSL is a purpose-built performance oil cooler kit engineered specifically for the 2023+ Toyota GR Corolla’s turbocharged 1.6L G16E-GTS engine. With its 300-horsepower, 3-cylinder powerplant and 10.5:1 compression ratio pushing the oiling system hard, some GR Corollas see oil temperatures soar past 260 degrees — this kit was developed to bring those numbers back down to earth with a dyno-proven, 13-degree average reduction.
At the heart of this Mishimoto oil cooler kit is a 14-row, dual-pass bar-and-plate oil cooler that mounts in the upper grille using direct-fit brackets for maximum airflow without drilling into the body. The kit also adds 0.76 quarts of oil to the system, increasing overall cooling capacity so you can stay on the throttle longer without watching the gauges climb. Pre-assembled black nylon-sheathed -10AN braided stainless-steel lines deliver ample oil flow at high RPM while standing up to street and track abuse alike, making this Mishimoto cooling upgrade equally at home on a daily driver or a dedicated race car.
Vehicle Applications
This oil cooler kit is a direct fit for the 2023–2025 Toyota GR Corolla (chassis code GZEA14) equipped with the G16E-GTS 1.6L turbocharged inline-3 engine. No other vehicles are covered by this application.
Features
- Direct fit for 2023+ Toyota GR Corolla
- Reduces oil temperatures by an average of 13 degrees
- Adds 0.76 qts of oil to the system for increased cooling efficiency

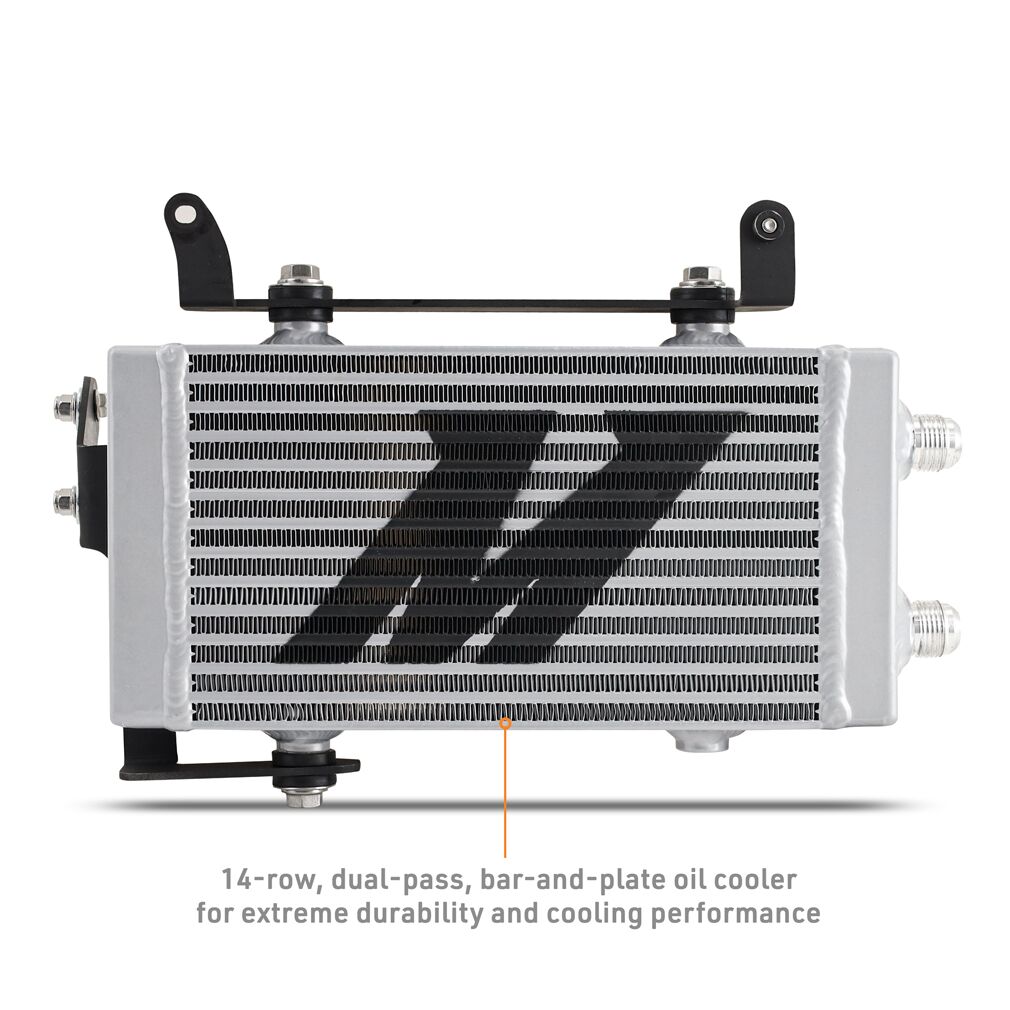

- Dual-pass 14-row bar-and-plate oil cooler adds significant cooling capability
- Pre-assembled -10AN lines and fittings ensure ample flow at high RPM

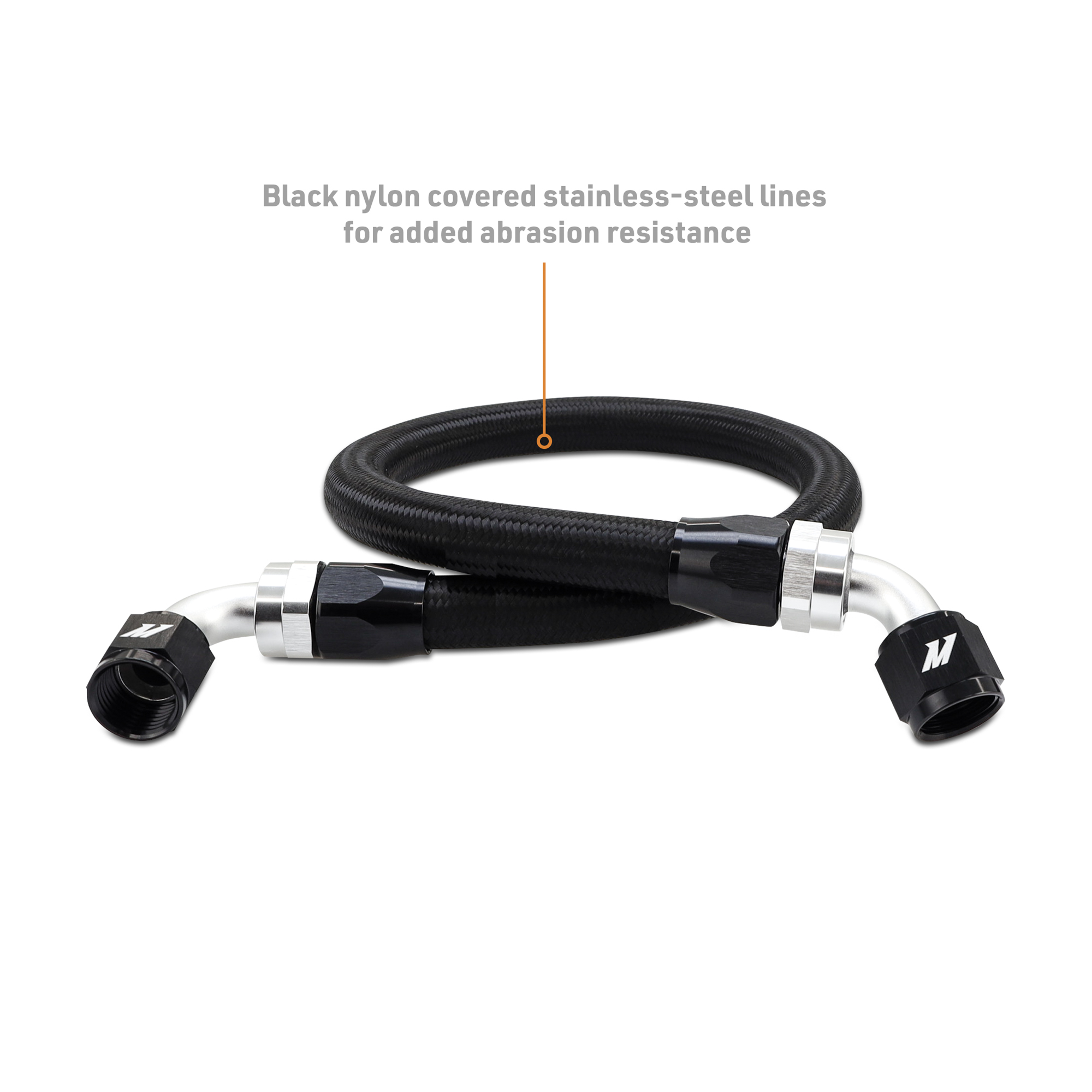

- Nylon-sheathed stainless-steel braided lines provide high pressure tolerance and durability
- Bar-and-plate cooler construction is strong and durable enough for street or track use

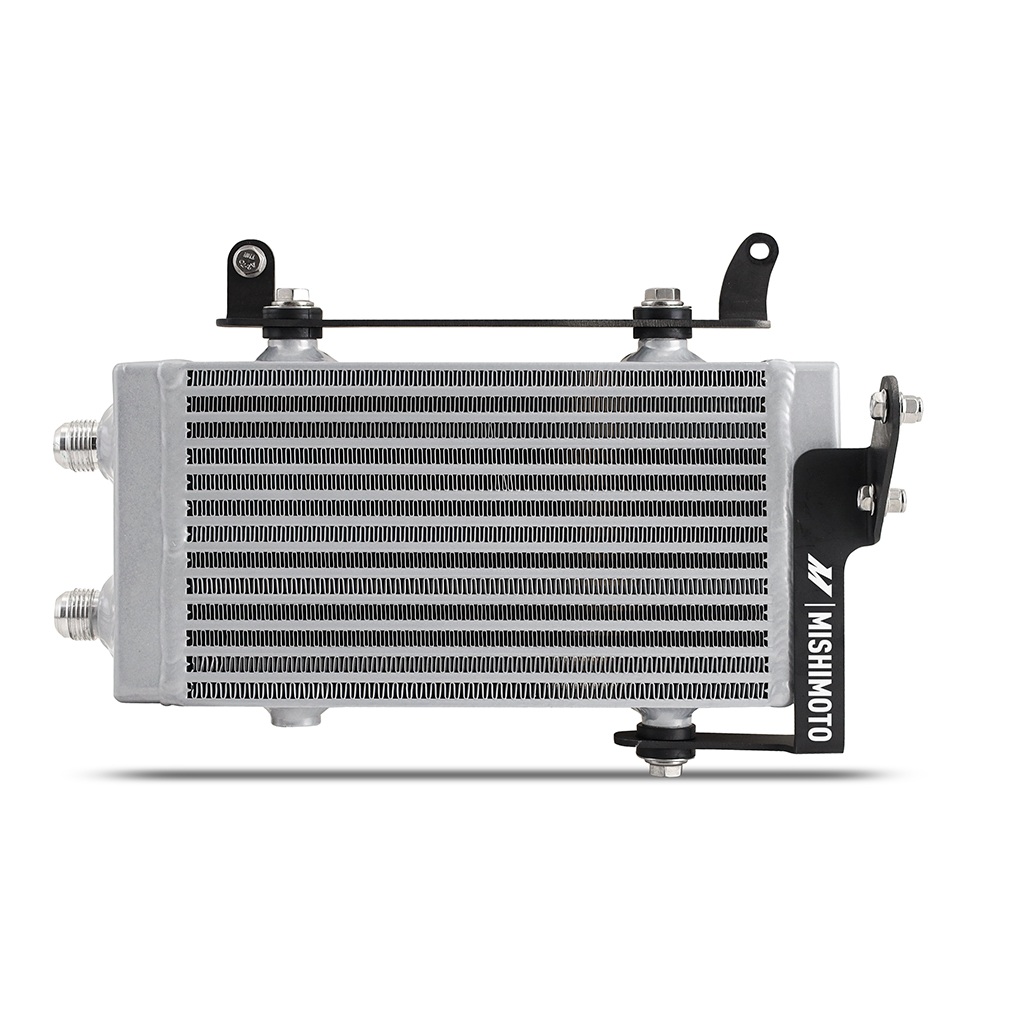

- Direct-fit mounting brackets make installation easy without drilling into the body

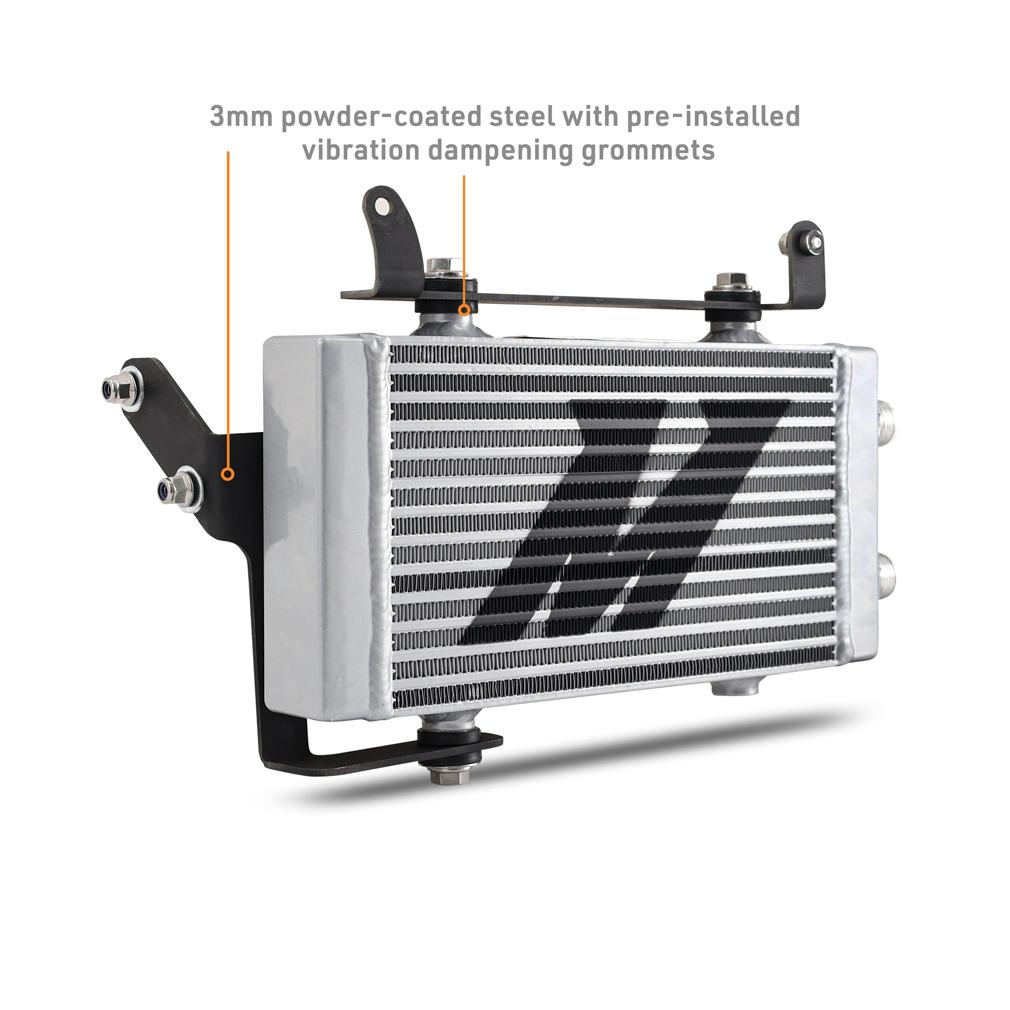

- Anti-vibration mounting grommets protect the oil cooler over harsh road conditions

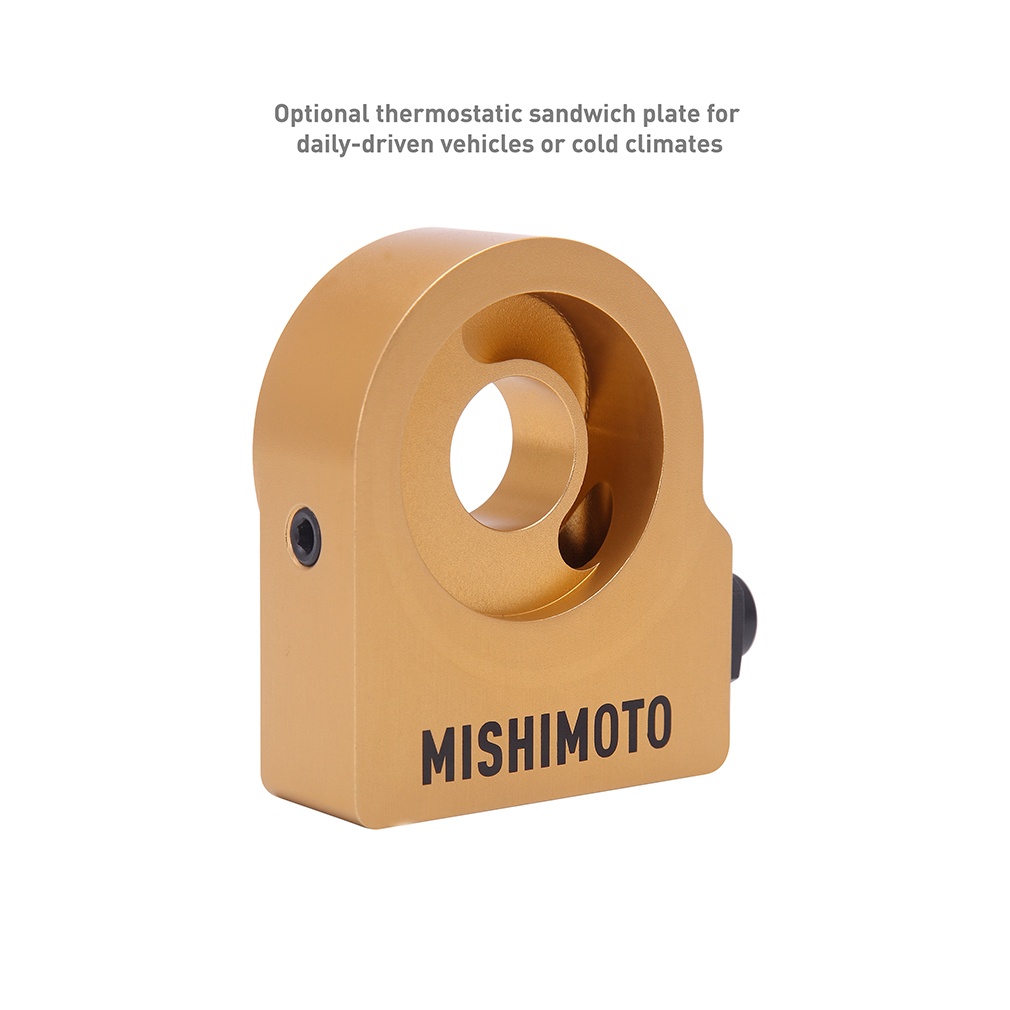

- Available with a thermostatic sandwich plate for daily drivers/cold climates or a non-thermostatic sandwich plate for dedicated track cars or hot environments
- Includes everything needed for installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-GRC-23TSL
- Color/Finish: Silver, Anodized
- Core Type: Bar-and-Plate
- Core Row Quantity: 14
- Core Height: 6.3 in
- Core Thickness: 1.57 in
- Core Width/Length: 12.48 in
- Cooler Fluid Capacity: 0.8 qt
- Inlet/Outlet Fitting Type: AN Flare, Male
- Inlet/Outlet Fitting Size: 10AN
- Inlet/Outlet Outside Diameter: 0.625 in
- Grade Type: Performance
- Engine Code: G16E-GTS
- Chassis Code: GZEA14
- Installation Note: Minor modification of the radiator shroud is required

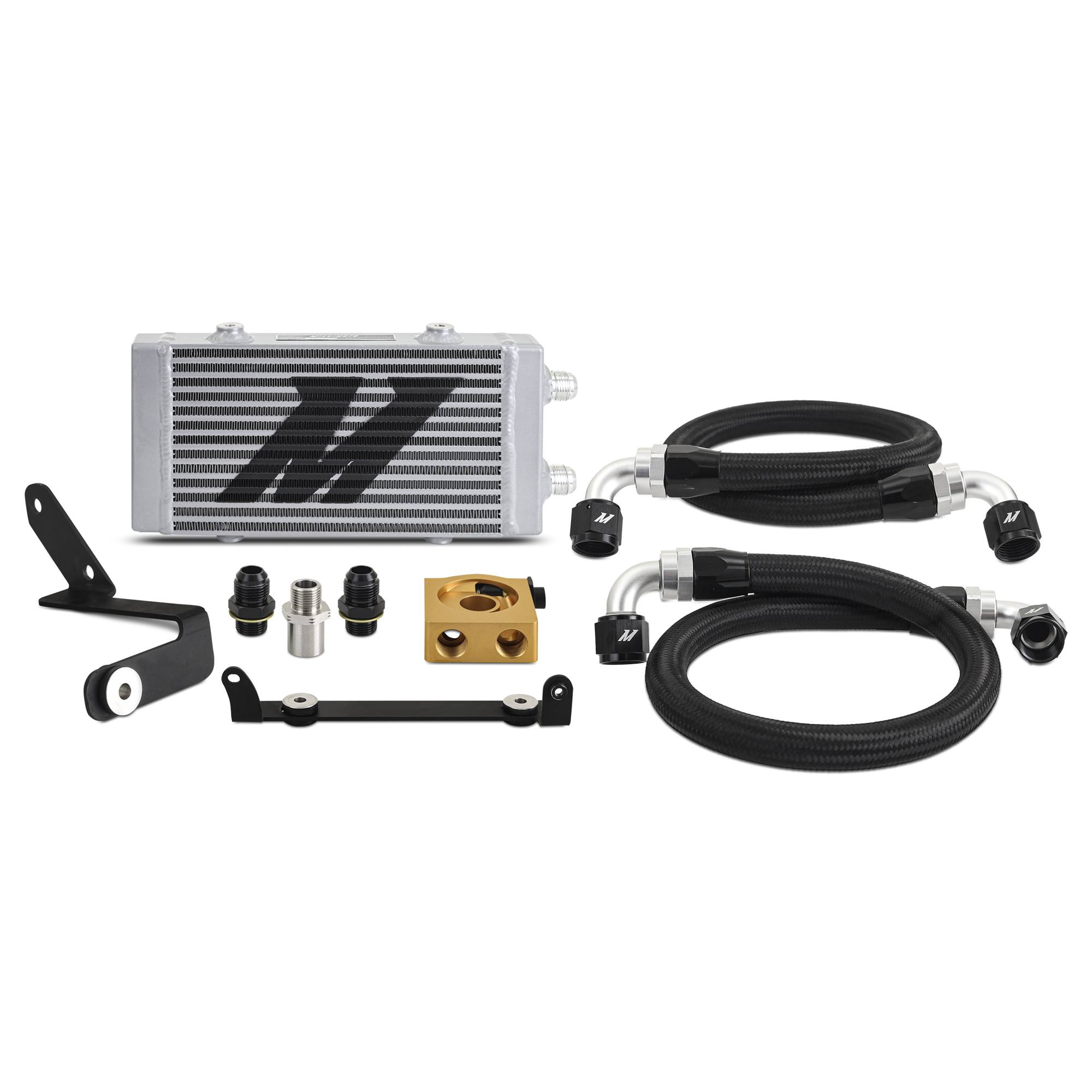

- Includes: Mishimoto Dual-Pass Oil Cooler, (2) -10AN Nylon-Sheathed Braided Stainless-Steel Lines, (2) Mounting Brackets, Mishimoto Oil Filter Sandwich Plate, (2) Sandwich Plate Fittings, Sandwich Plate Center Bolt, Mounting Hardware, 2″x12″ Heat Protection Wrap
Frequently Asked Questions
What does the Mishimoto MMOC-GRC-23TSL oil cooler kit fit?
This kit is a direct fit for the 2023–2025 Toyota GR Corolla with the G16E-GTS 1.6L turbocharged engine and GZEA14 chassis code.
How much does this oil cooler reduce oil temperatures?
Mishimoto’s dyno testing showed a dyno-proven average reduction of 13 degrees in oil temperature with this kit installed.
Does this kit require any modifications for installation?
Yes, minor modification of the radiator shroud is required. See the installation instructions for more details.
What’s the difference between the thermostatic and non-thermostatic versions?
The thermostatic sandwich plate option is recommended for daily drivers or cold climates, while the non-thermostatic sandwich plate is intended for dedicated track cars or hot environments.
How much oil capacity does this kit add?
The kit adds 0.76 quarts of oil to the system, increasing overall cooling efficiency.
What is included in the Mishimoto GR Corolla oil cooler kit?
The kit includes a Mishimoto dual-pass oil cooler, two -10AN nylon-sheathed braided stainless-steel lines, two mounting brackets, a Mishimoto oil filter sandwich plate, two sandwich plate fittings, a sandwich plate center bolt, mounting hardware, a 2″x12″ heat protection wrap, and the Mishimoto Lifetime Warranty.
