Description

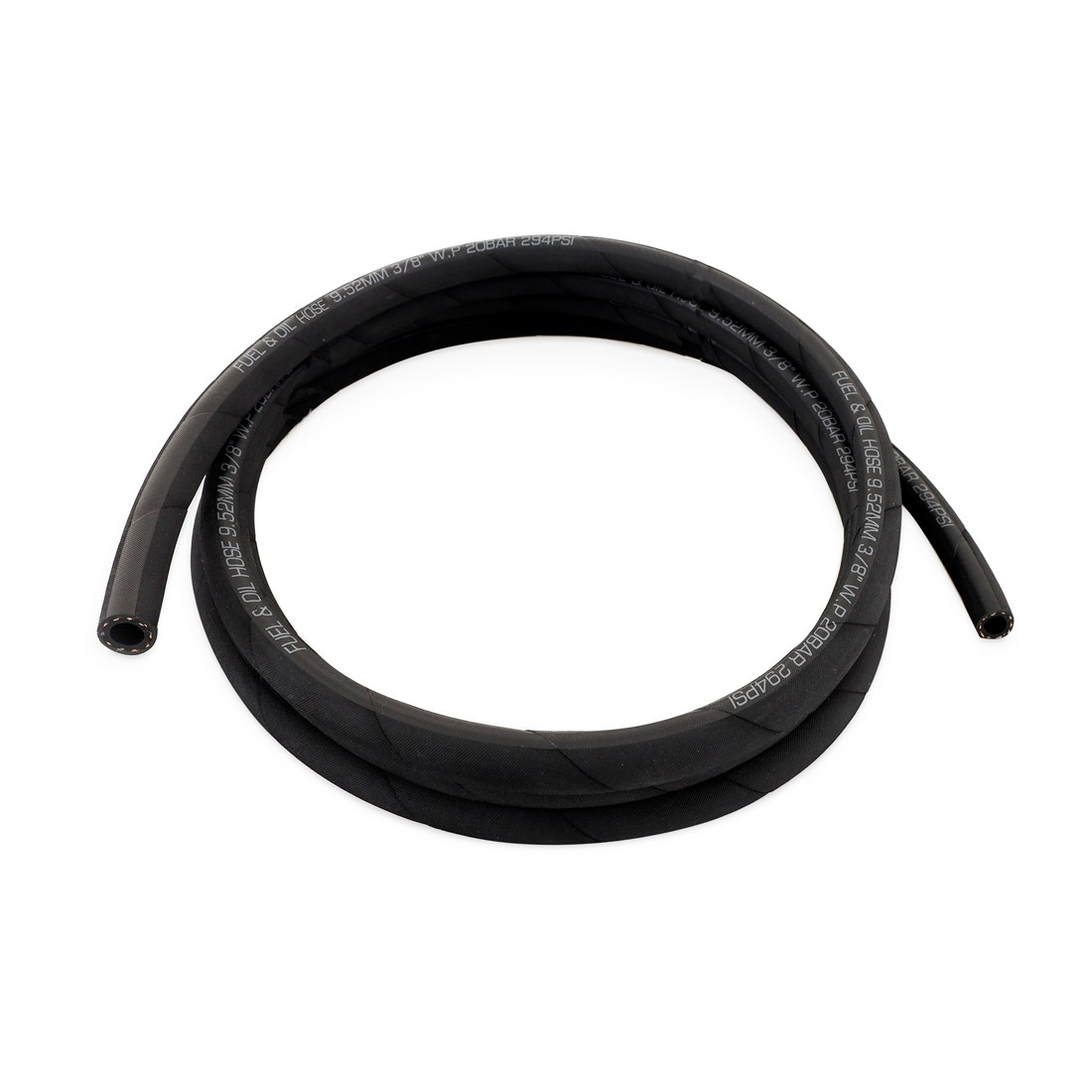

The Mishimoto Push-Lock Hose, part number MMHOSE-PL-06-120, is a fabrication-grade line built from chemical-resistant nitrile and CPE so you can plumb a custom system without clamps or special tools in low-pressure, low-temperature service. This entry is offered in the 10 ft length option, giving builders a ready supply of hose for creating multiple custom-length lines from a single roll.
Designed for hands-on fabrication work, this Mishimoto push-lock hose is built to handle a wide variety of fluids and gases, including petroleum fuels, ethanol, oil, coolant, or air. The push-lock construction means you can slide the hose directly onto a barbed fitting for a quick, reliable seal in low-temp/low-pressure applications, cutting down on installation time and the tools required. With a maximum operating pressure of 290 PSI and a temperature range of -40F to 257F (-40C to 125C), it’s engineered to hold up across a broad range of fabrication projects, from fuel and oil lines to coolant and air routing.
Vehicle Applications
As a fabrication product, this Mishimoto push-lock hose is not tied to a specific make, model, or year — it’s designed to be cut and configured to fit whatever custom build or repair you’re working on, whether that’s a fuel system, oil line, coolant circuit, or air line. Because it pairs with Mishimoto Push-Lock Fittings and is available across a size range from -4AN to -12AN, it can be adapted to a wide variety of vehicles and equipment where a custom hose line is needed.
Features

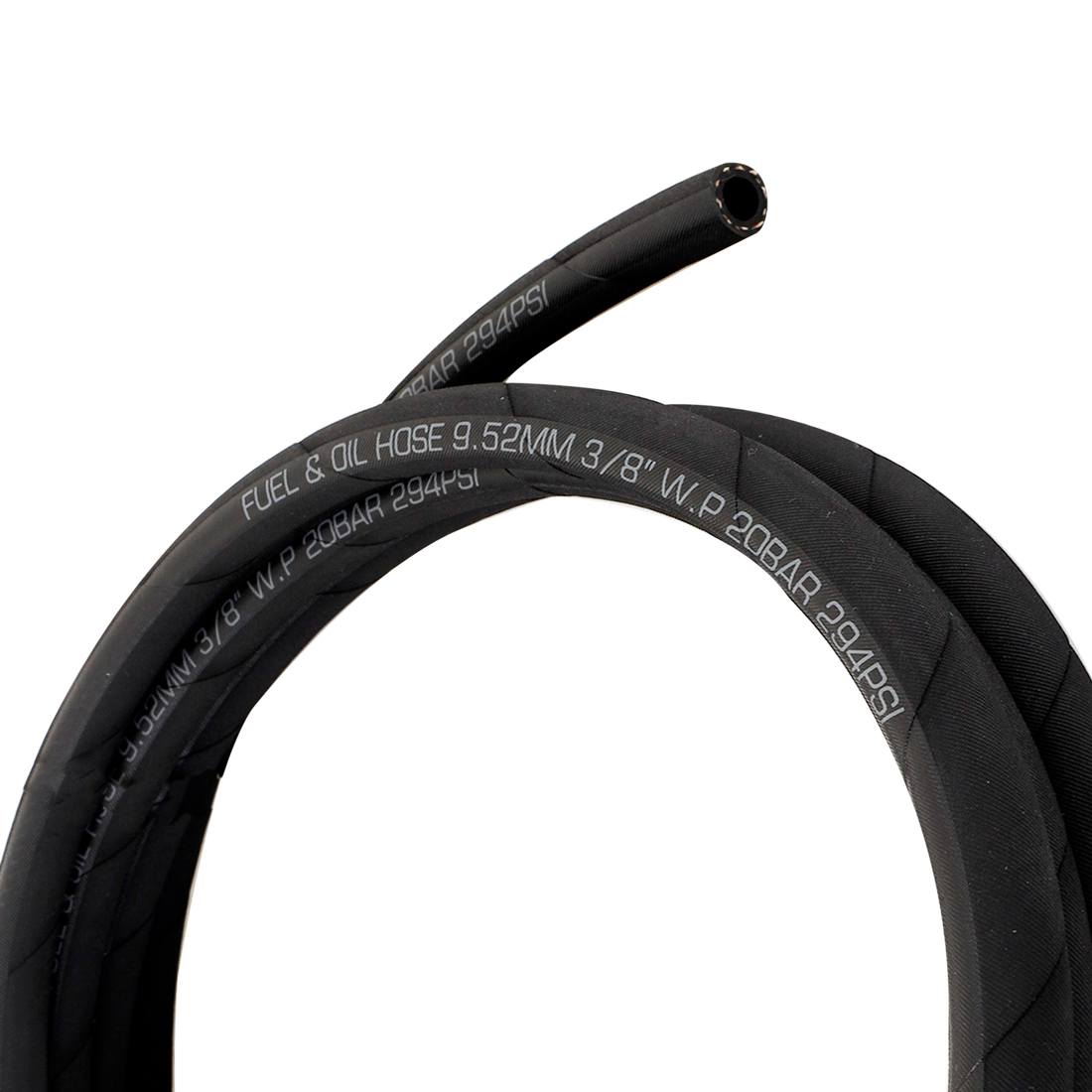

- Constructed from chemical-resistant nitrile and CPE for durability across multiple fluid types
- Compatible with gasoline, E85, lubricants, oil, coolant, or air
- Push-lock design allows for simple installation with minimal tools
- No clamping required in low-temperature/low-pressure applications
- Rated for pressures up to 290 PSI and temperatures from -40F to 257F (-40C to 125C)
- Available in sizes from -4AN to -12AN and in 10 ft or 20 ft lengths

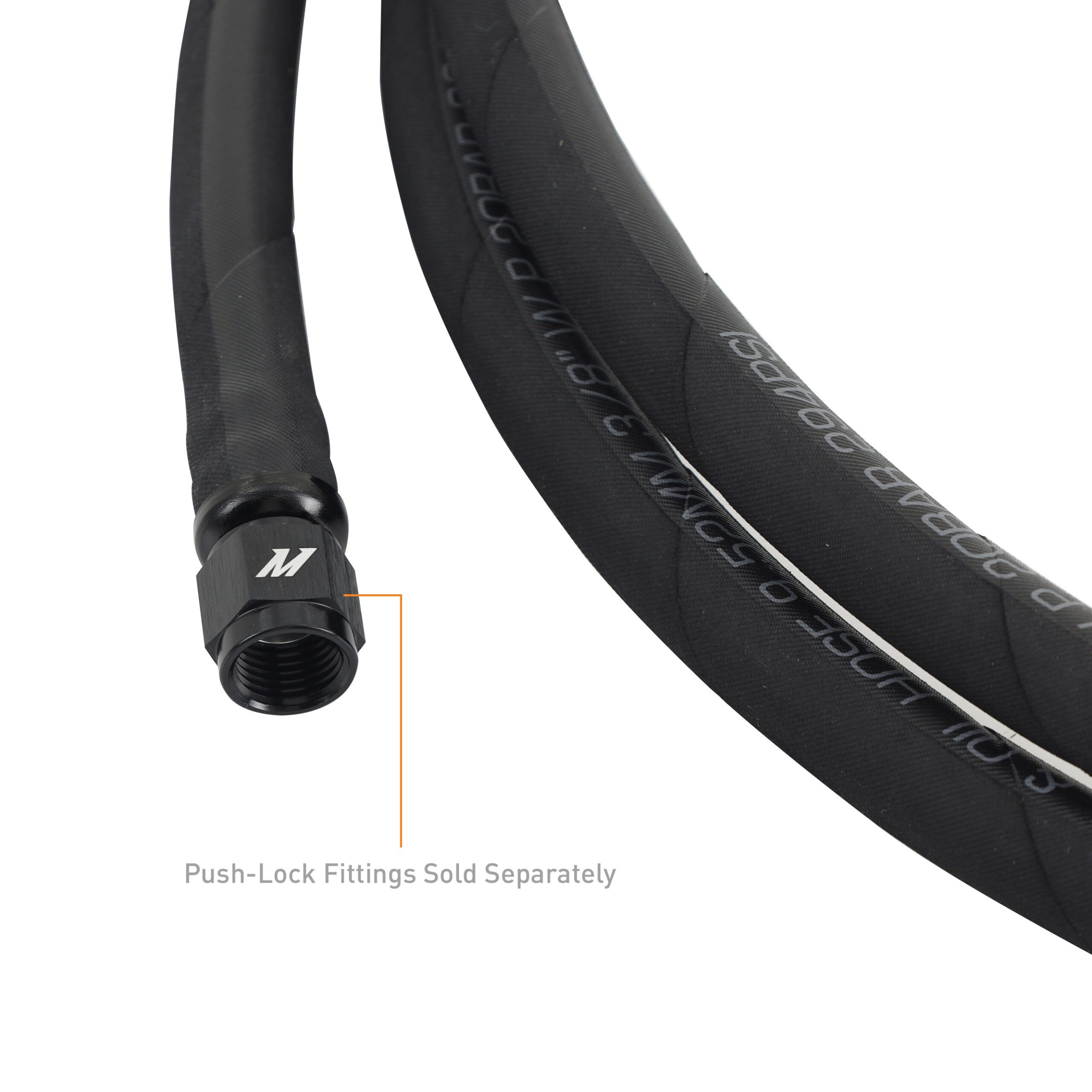

- Compatible with Mishimoto Push-Lock Fittings
- Clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI; 1/2″ to 9/16″ ear clamps are recommended in those cases
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-PL-06-120
- Product Type: Fabrication
- Length Option: 10 ft
- Inlet Diameter: 9.53mm
- Outlet Diameter: 9.53mm
- Max Fluid Pressure: 290 PSI
- Max Fluid Temperature: 257F
- Operating Temperature Range: -40F to 257F (-40C to 125C)
- Compatible Fluids: Gasoline, E85, Lubricants, Oil, Coolant, Air
- Purchase Includes: (1) Push Lock Hose – Mishimoto Lifetime Warranty
Frequently Asked Questions
What sizes and lengths does the Mishimoto push-lock hose come in?
Mishimoto push-lock hose is available in sizes ranging from -4AN to -12AN, in 10 ft or 20 ft lengths. This listing (MMHOSE-PL-06-120) is the 10 ft length option.
Do I need clamps to install this push-lock hose?
No clamps are required for low-temperature/low-pressure applications. However, clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI, with 1/2″ to 9/16″ ear clamps recommended.
What fluids is this hose compatible with?
This Mishimoto push-lock hose is compatible with gasoline, E85, lubricants, oil, coolant, or air.
What are the pressure and temperature ratings?
The hose is rated for pressures up to 290 PSI and temperatures between -40F and 257F (-40C to 125C).
Is this hose covered by a warranty?
Yes, Mishimoto push-lock hoses are backed by the Mishimoto Lifetime Warranty.
What is included with this purchase?
The purchase includes (1) Push Lock Hose, covered by the Mishimoto Lifetime Warranty.
