Description

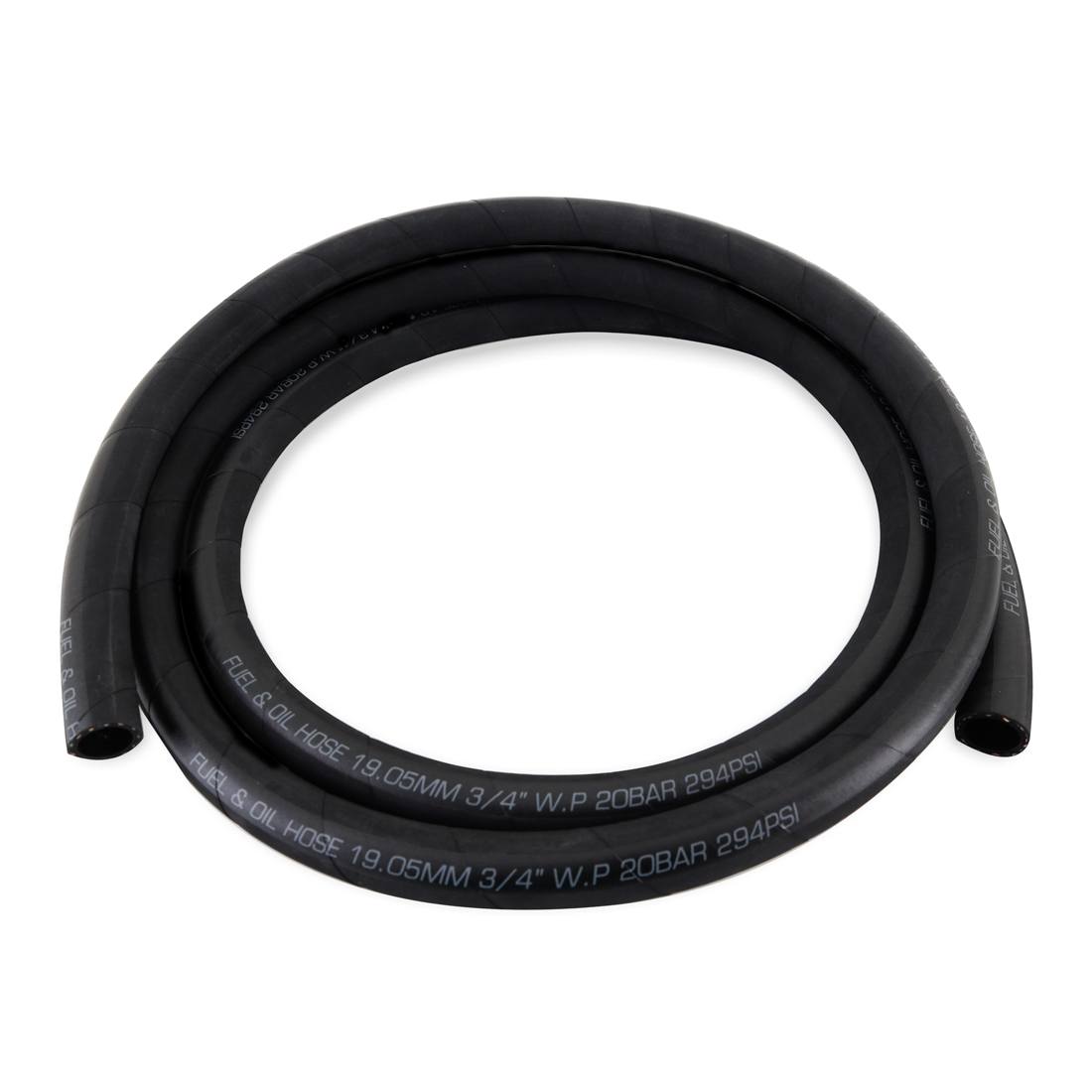

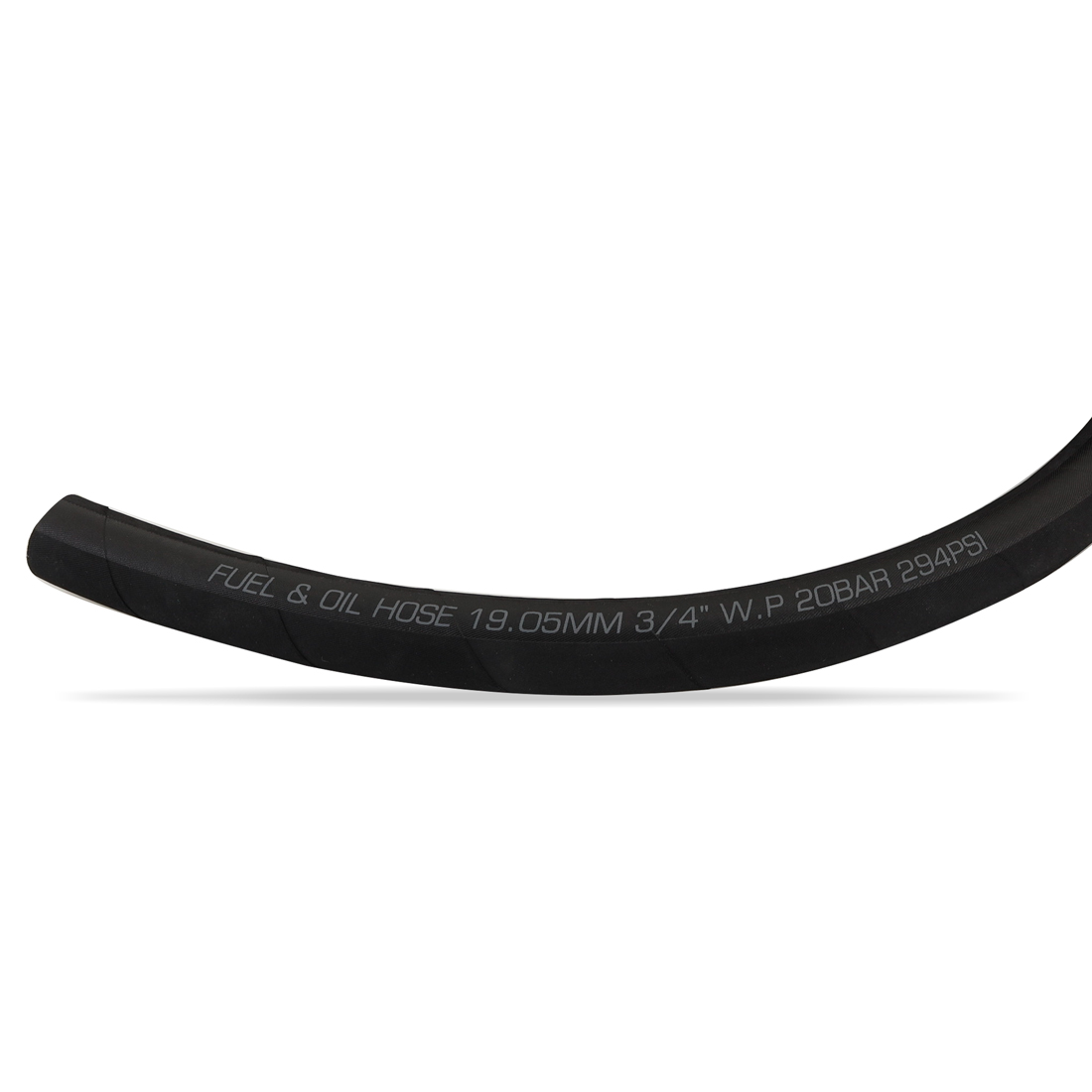

The Mishimoto Push-Lock Hose, MPN MMHOSE-PL-12-120, is a -12AN sized length of push-lock hose measuring 10 ft, built for anyone assembling a custom fabrication project that needs a reliable, clamp-free line. Constructed from chemical-resistant nitrile and CPE, this hose is designed to handle petroleum fuels, ethanol, oil, coolant, or air without breaking down over time.
As part of the Mishimoto Fabrication lineup, this push-lock hose gives builders a fast, straightforward way to create custom lines with minimal tooling. The push-lock design allows installation without clamps in low-temperature, low-pressure applications, saving time on the bench or under the hood. With a maximum operating pressure of 290 PSI and a temperature range of -40F to 257F (-40C to 125C), it’s suited to a wide range of systems and locations where a dependable fuel, oil, coolant, or air line is needed. It’s also compatible with Mishimoto Push-Lock Fittings, making it easy to complete a full custom line setup, and the -12AN size sold here fits inline where a 19.05mm inlet/outlet diameter is required.
Vehicle Applications
Mishimoto Push-Lock Hose MMHOSE-PL-12-120 is a universal fabrication component rather than a vehicle-specific part, making it suitable for custom fuel, oil, coolant, or air line builds across a wide range of vehicles and systems where a -12AN, 10 ft push-lock hose is needed.
Features
- Push-lock hose allows you to create custom lines with minimal tooling
- Maximum operating pressure of 290 PSI
- Operating temperature range of -40F to 257F (-40C to 125C)
- Compatible with petroleum fuels, ethanol, oil, coolant, or air
- Push-lock design does not require clamps in low-pressure/low-temp applications

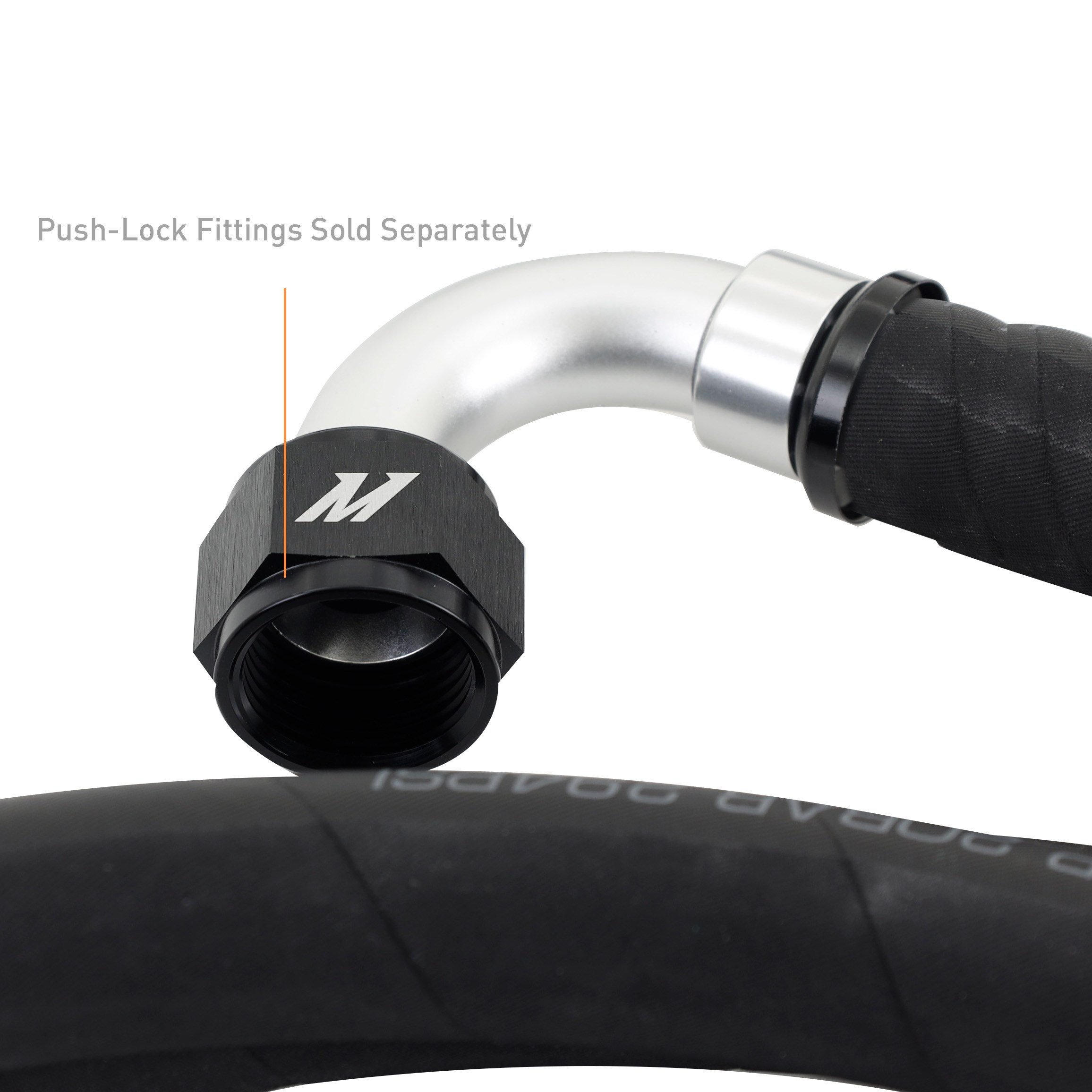

- Compatible with Mishimoto Push-Lock Fittings
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-PL-12-120
- Product Type: Fabrication
- Size: -12AN (10 ft length)
- Inlet/Outlet Diameter: 19.05mm
- Max Fluid Pressure: 290 PSI
- Max Fluid Temperature: 257F
- Operating Temperature Range: -40F to 257F (-40C to 125C)
- Compatible Fluids: Gasoline, E85, Lubricants, Oil, Coolant, Air
- Includes: (1) Push Lock Hose
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What size and length is this Mishimoto push-lock hose?
This listing (MMHOSE-PL-12-120) is a -12AN push-lock hose in a 10 ft length, with a 19.05mm inlet/outlet diameter.
What is the maximum pressure and temperature rating?
Mishimoto push-lock hoses are rated for pressures up to 290 PSI and temperatures between -40F and 257F (-40C to 125C).
What fluids is this hose compatible with?
It is compatible with gasoline, E85, lubricants, oil, coolant, and air.
Do I need to use clamps with this push-lock hose?
The push-lock design does not require clamps in low-pressure/low-temperature applications. However, clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI, with 7/8″ to 1″ ear clamps recommended.
What is included with this hose?
The purchase includes (1) Push Lock Hose, backed by the Mishimoto Lifetime Warranty.
Is this push-lock hose compatible with Mishimoto fittings?
Yes, Mishimoto push-lock hoses are compatible with Mishimoto Push-Lock Fittings.
