Description

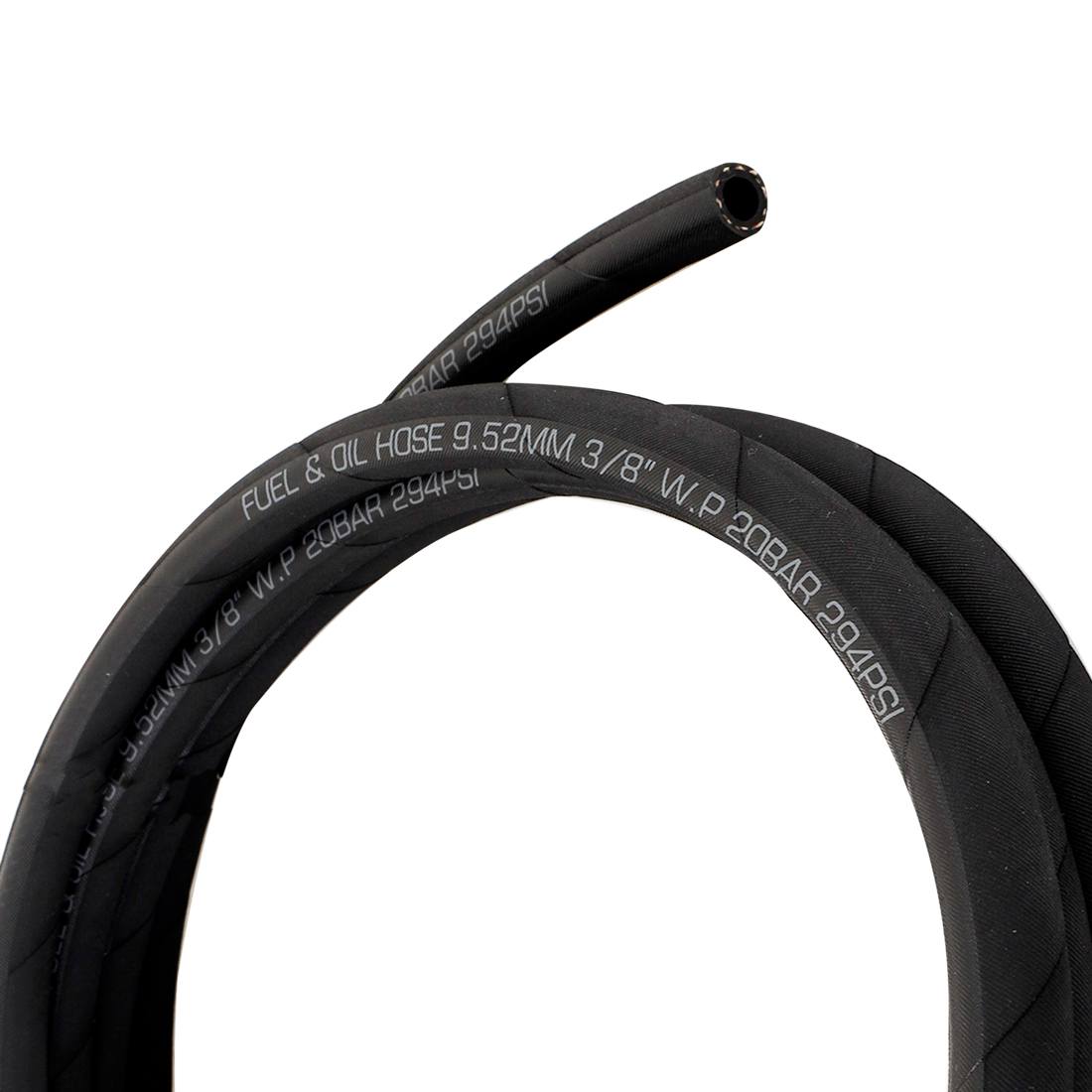

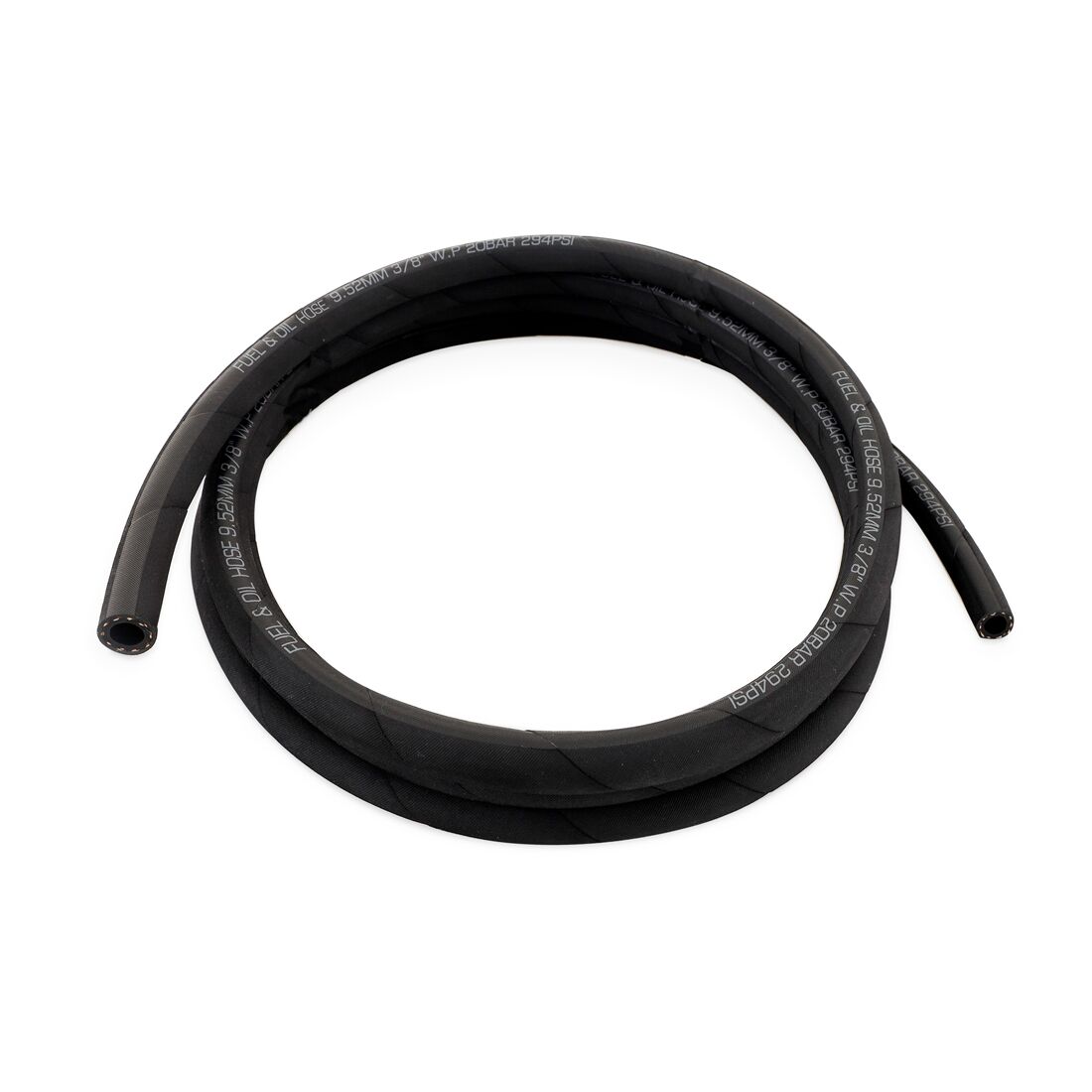

The Mishimoto MMHOSE-PL-06-240 is a 20 ft push-lock hose built for custom fluid and air routing in fabrication projects. Constructed from chemical-resistant nitrile and CPE, it’s engineered to handle petroleum fuels, ethanol, oil, coolant, or air without demanding a full clamp-and-fitting setup for every install. With an inlet and outlet diameter of 9.53mm and a pressure rating up to 290 PSI, this Mishimoto push-lock hose is a serious option for fabricators who need a dependable, flexible line for a custom build.
As part of Mishimoto’s Fabrication lineup, this push-lock hose simplifies custom line building for fuel systems, oil lines, coolant routing, and air lines alike. Because it uses a push-lock design, builders can create finished lines with minimal tooling, skipping traditional clamping in low-temperature, low-pressure applications and speeding up the fabrication process. Rated for temperatures between -40F and 257F (-40C to 125C) and pressures up to 290 PSI, the hose is compatible with Mishimoto Push-Lock Fittings, letting you assemble a complete Mishimoto line from end to end. It’s designed to work across a wide range of systems, vehicles, and locations, so whether you’re plumbing a custom fuel line, an oil feed, a coolant crossover, or an air line, this Mishimoto Fabrication hose is built to handle it.
Vehicle Applications
Because Mishimoto push-lock hose is a fabrication component rather than a vehicle-specific part, it is intended for use across a wide range of systems, vehicles, and locations rather than being tied to a single make or model. This 20 ft length of MMHOSE-PL-06-240 gives builders enough material to route custom fuel, oil, coolant, or air lines in an engine bay or fabrication project wherever petroleum fuels, ethanol, oil, coolant, or air need to be moved reliably.
Features
- Push-lock hose allows you to create custom lines with minimal tooling
- Maximum operating pressure of 290 PSI
- Operating temperature range of -40F to 257F (-40C to 125C)
- Compatible with petroleum fuels, ethanol, oil, coolant, or air
- Push-lock design does not require clamps in low-pressure/low-temp applications
- Available in sizes from -4AN to -12AN and 10 ft or 20 ft lengths
- Compatible with Mishimoto Push-Lock Fittings
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMHOSE-PL-06-240
- Length Option: 20 ft

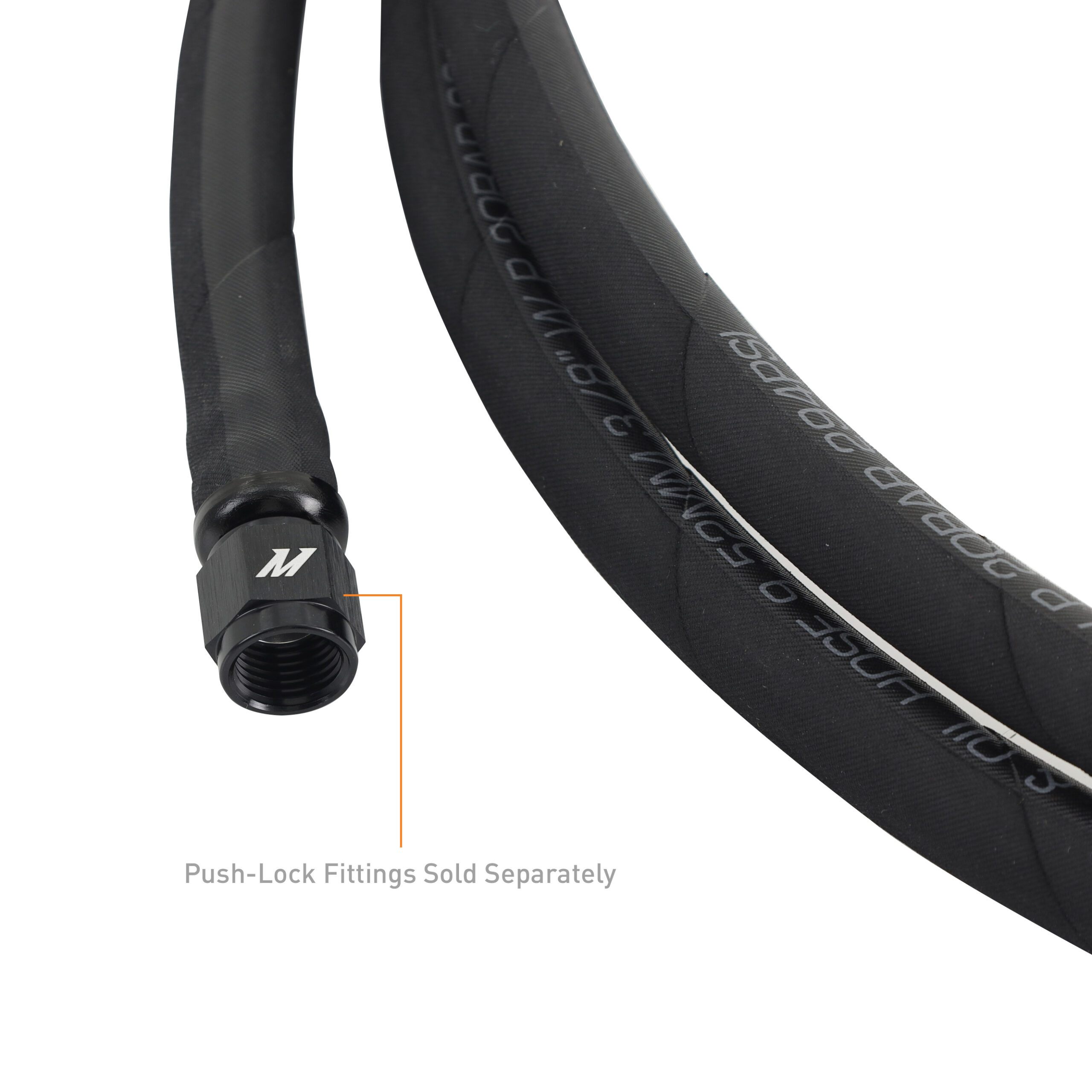

- Inlet Diameter: 9.53mm
- Outlet Diameter: 9.53mm
- Max Fluid Temperature: 257F
- Operating Temperature Range: -40F to 257F (-40C to 125C)
- Max Fluid Pressure: 290 PSI
- Compatible Fluids: Gasoline, E85, Lubricants, Oil, Coolant, Air
- Includes: (1) Push Lock Hose, Mishimoto Lifetime Warranty
- Installation Note: Clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI; 1/2″ to 9/16″ ear clamps recommended
Frequently Asked Questions
What sizes and lengths does the Mishimoto push-lock hose come in?
Mishimoto push-lock hose is available in sizes ranging from -4AN to -12AN, in 10 ft or 20 ft lengths; this listing, MMHOSE-PL-06-240, is the 20 ft option.
What fluids is this hose compatible with?
It is compatible with petroleum fuels, ethanol, oil, coolant, or air, and is specifically listed for gasoline, E85, lubricants, oil, coolant, and air.
What are the pressure and temperature ratings for this hose?
The hose is rated for pressures up to 290 PSI and temperatures between -40F and 257F (-40C to 125C).
Do I need clamps to install this push-lock hose?
In low-temperature, low-pressure applications the push-lock design does not require clamps. However, clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI, and 1/2″ to 9/16″ ear clamps are recommended.
What is included with this product and what warranty applies?
Each purchase includes (1) Push Lock Hose, backed by the Mishimoto Lifetime Warranty.
Is this hose compatible with Mishimoto fittings?
Yes, it is compatible with Mishimoto Push-Lock Fittings.
