Description

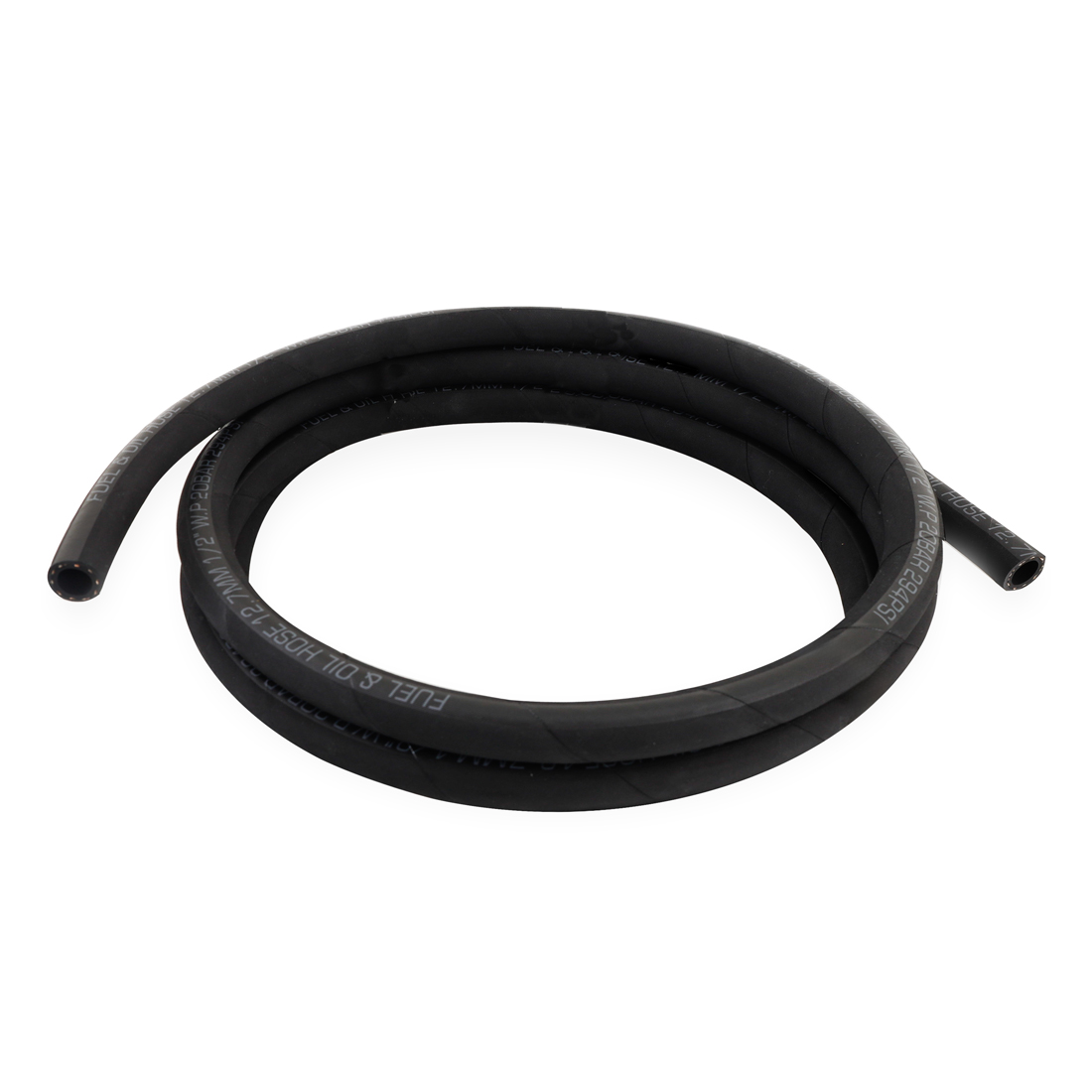

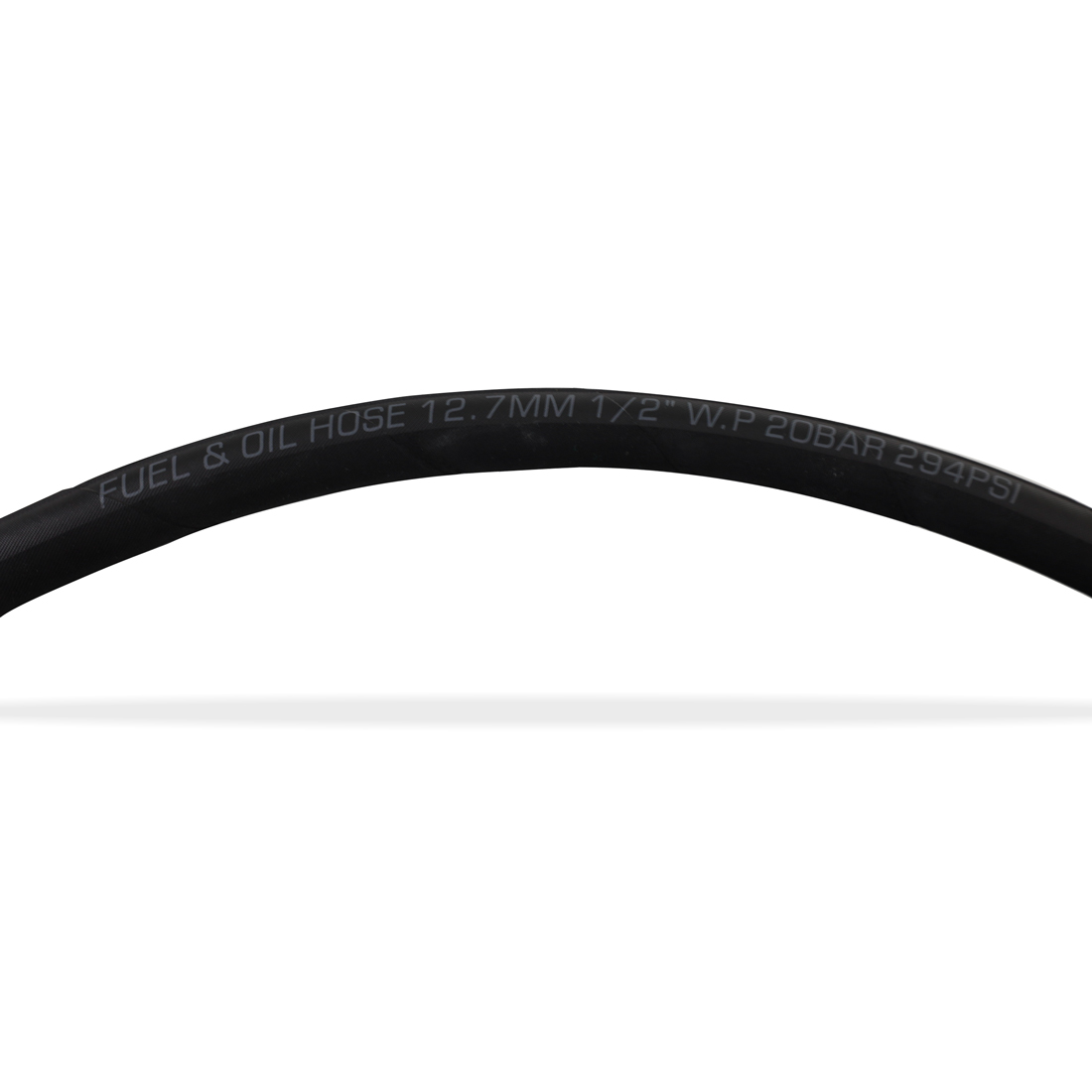

The Mishimoto Push-Lock Hose, part number MMHOSE-PL-08-240, is a 20 ft length of push-lock hose built for shops and DIYers who need to build custom fuel, oil, coolant, or air lines without a fitting press or crimper. Constructed from chemical-resistant nitrile and CPE, this Mishimoto Fabrication product is engineered to slip directly onto Mishimoto Push-Lock Fittings for a fast, clamp-free connection in low-pressure and low-temperature applications.
Because it is made from chemical-resistant nitrile and CPE, this push-lock hose is compatible with gasoline, E85, lubricants, oil, coolant, and air, giving fabricators one hose that can cover multiple systems on a custom build. It is rated for a maximum fluid pressure of 290 PSI and an operating temperature range of -40F to 257F (-40C to 125C), and its push-lock design lets it be installed with minimal tooling and without clamps in low-pressure, low-temperature applications. For jobs that see higher heat or pressure, Mishimoto notes that clamps are required for applications exposed to temperatures over 140F or pressures over 60 PSI, with 5/8″ to 11/16″ ear clamps recommended.
Vehicle Applications
As a Mishimoto Fabrication component, this push-lock hose is designed as a universal building block rather than a vehicle-specific part, making it suitable for custom fuel, oil, coolant, and air line construction across a wide range of vehicles and applications. Mishimoto offers this push-lock hose across sizes from -4AN to -12AN and in 10 ft or 20 ft lengths, so builders can select the configuration that matches their specific line-routing needs; this listing is the 20 ft option with a 12.70mm inlet and 12.70mm outlet.
Features
- Push-lock hose allows you to create custom lines with minimal tooling
- Constructed from chemical-resistant nitrile and CPE
- Compatible with petroleum fuels, ethanol, oil, coolant, or air
- Maximum operating pressure of 290 PSI
- Operating temperature range of -40F to 257F (-40C to 125C)
- Push-lock design does not require clamps in low-pressure/low-temperature applications
- Available in sizes from -4AN to -12AN and 10 ft or 20 ft lengths
- Compatible with Mishimoto Push-Lock Fittings
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-PL-08-240
- Product Type: Fabrication
- Length Option: 20 ft
- Inlet: 12.70mm
- Outlet: 12.70mm
- Max Fluid Pressure: 290 PSI
- Max Fluid Temperature: 257F
- Operating Temperature Range: -40F to 257F (-40C to 125C)
- Compatible Fluids: Gasoline, E85, Lubricants, Oil, Coolant, Air
- Tech Note: Clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI–5/8″ to 11/16″ ear clamps recommended
- Includes: (1) Push Lock Hose–Mishimoto Lifetime Warranty
Frequently Asked Questions
What fluids can I run through this Mishimoto push-lock hose?
It is compatible with gasoline, E85, lubricants, oil, coolant, and air.
What is the maximum pressure and temperature rating?
This hose is rated for a maximum fluid pressure of 290 PSI and an operating temperature range of -40F to 257F (-40C to 125C).
Do I need clamps to install this hose?
No clamps are required for low-pressure/low-temperature applications thanks to the push-lock design, but clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI, with 5/8″ to 11/16″ ear clamps recommended.
What sizes and lengths are available for this Mishimoto push-lock hose?
Mishimoto push-lock hose is available in sizes from -4AN to -12AN and in 10 ft or 20 ft lengths; this listing (MMHOSE-PL-08-240) is the 20 ft option with a 12.70mm inlet and outlet.

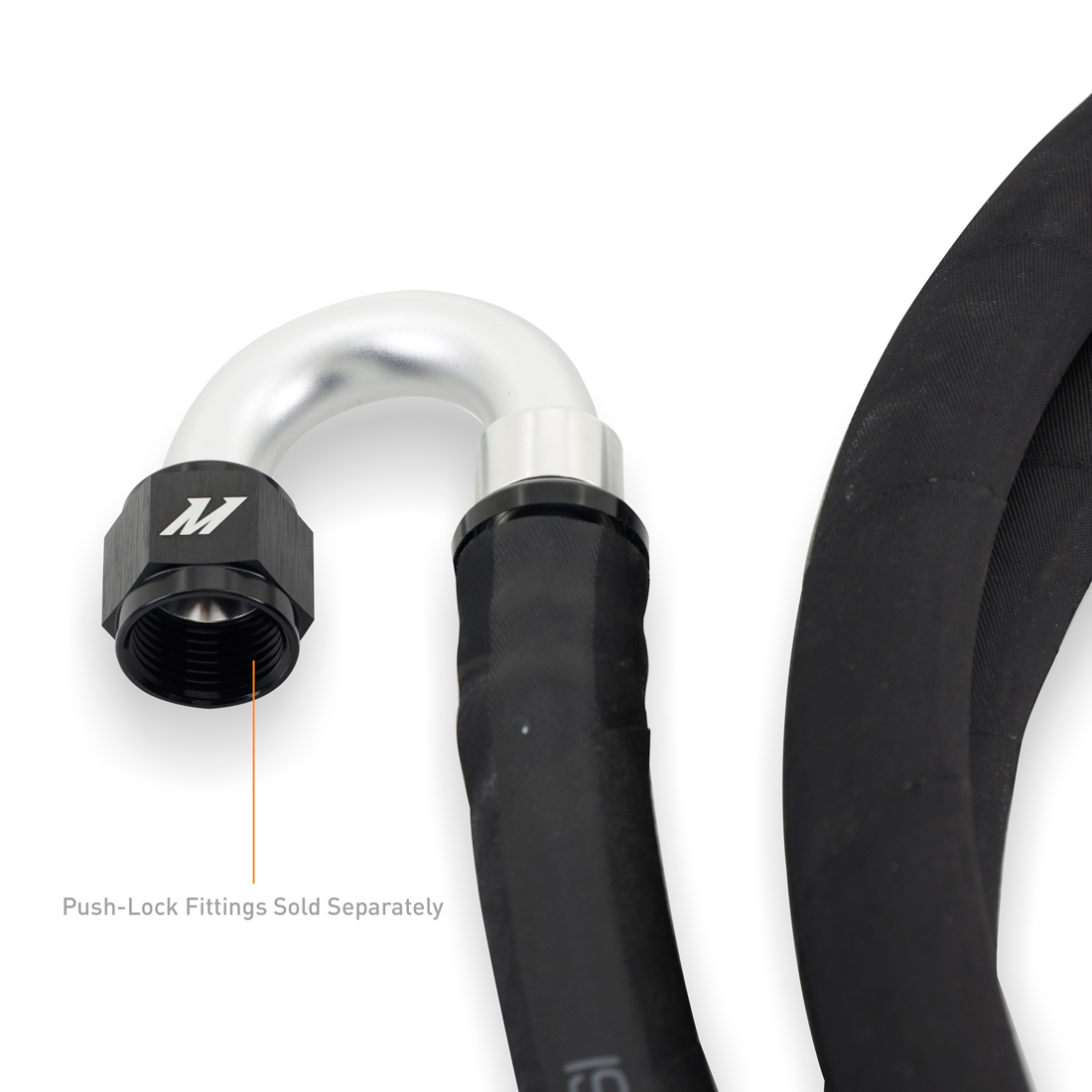

What fittings work with this hose?
This push-lock hose is compatible with Mishimoto Push-Lock Fittings.
What is included and what warranty does it carry?
Each purchase includes (1) Push Lock Hose and is backed by the Mishimoto Lifetime Warranty.
