Description

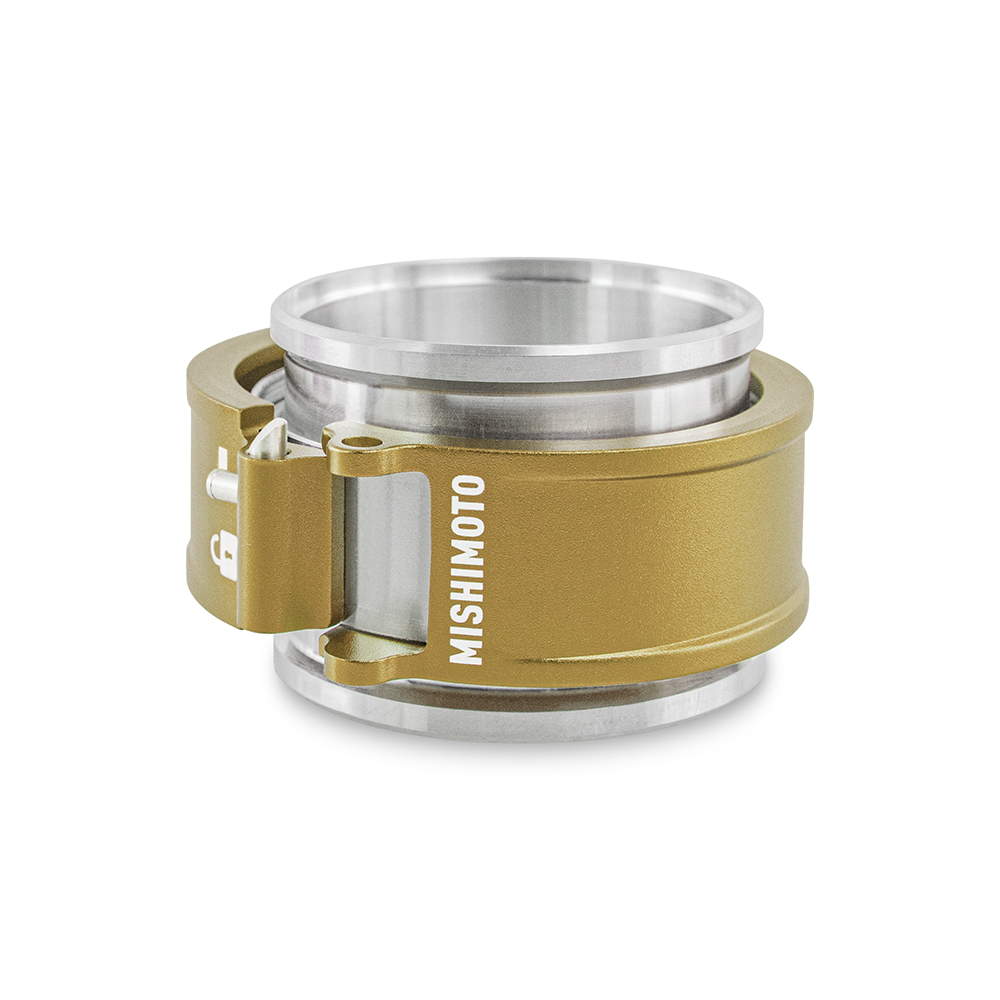

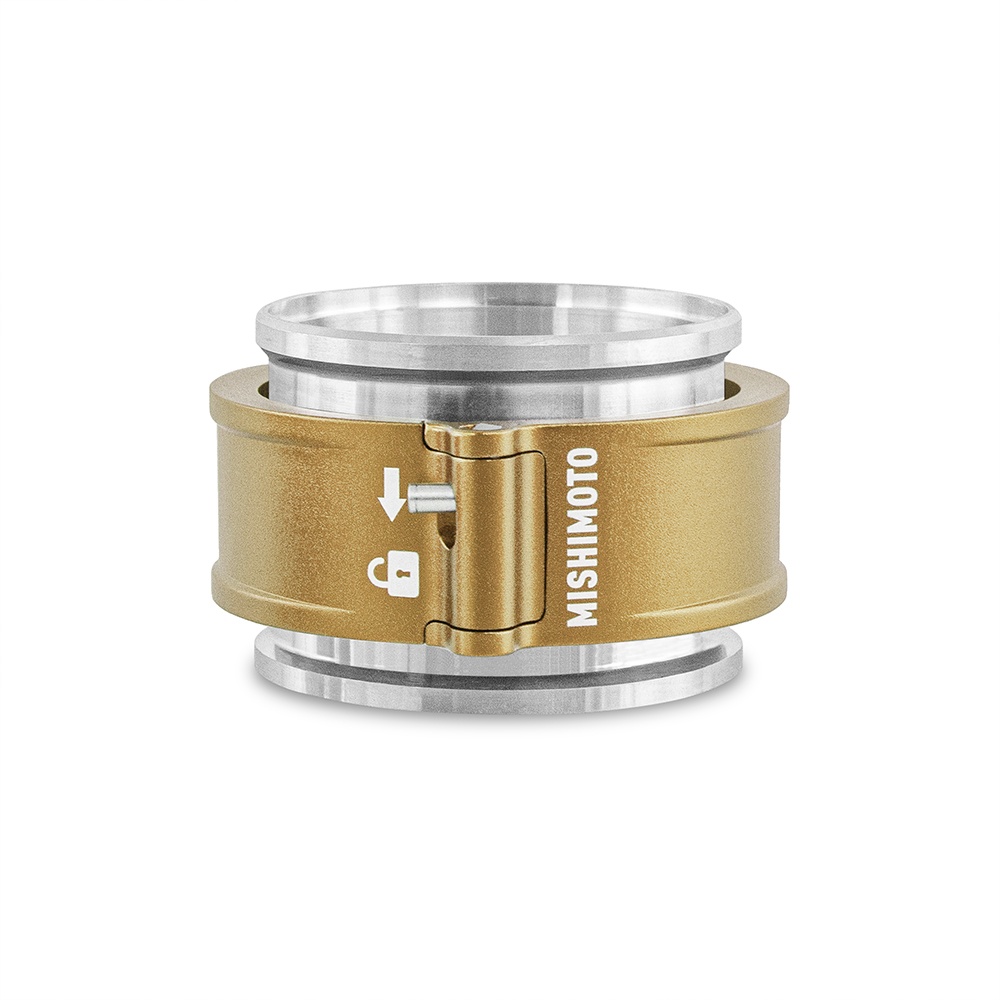

The Mishimoto Quick Release Clamp Assembly (MMCLAMP-QD-25GD) is a 2.5″ gold anodized clamp machined from 6061-T6 billet aluminum, built around a unique locking system that lets you disconnect and reconnect piping without tearing your build apart. This isn’t a generic hose clamp — it’s a full quick-disconnect assembly with weld ferrules, Viton O-rings, and a union sleeve engineered to work as a system.
As a Mishimoto Fabrication component, this clamp assembly is designed for builders who want both function and style in their engine bay. The billet aluminum clamp band and locking pin create a secure, trustworthy connection to your piping, while the CNC-machined 6061 aluminum weld ferrules arrive ready for fabrication so you can integrate the assembly directly into your custom setup. Because the connection is conveniently removable, servicing your system or making quick adjustments to your build no longer means cutting and rewelding pipe. Viton O-rings allow the joint to accommodate angular, axial, and radial movement while remaining sealed, and the gold anodized finish adds a distinct pop of color to the engine bay for a serious upgrade to the overall aesthetic.
Vehicle Applications
As a Fabrication-category part, the Mishimoto Quick Release Clamp Assembly is not tied to a specific make or model — it’s built to work with 2.5″ diameter piping in custom builds across virtually any platform. Whether you’re fabricating a piping system from scratch or upgrading an existing setup, this clamp is intended to give any project a quick-disconnect point that’s both functional and visually distinctive.
Features
- Unique locking system for a trustworthy connection to your piping
- Withstands up to 400F and 110PSI operating pressure range
- Allows for angular, axial, and radial movement while remaining sealed with Viton O-rings
- CNC-machined 6061 aluminum weld ferrules arrive ready for fabrication
- All-aluminum construction ensures a sturdy and stylish addition to your project
- Conveniently removable, allowing for simple servicing or adjustments to your build
- Anodized finish available in various colors to suit any build
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-QD-25GD
- Product Type: Fabrication
- Material: 6061-T6 Billet Aluminum
- Finish: Anodized
- Color: Gold
- Clamp Style: Quick-Disconnect
- Maximum Clamp Diameter: 2.5 in
- Minimum Clamp Diameter: 2.5 in
- Band Width: 1.17 in
- Burst Pressure: 110 PSI
- Maximum Temperature Rating: 400F
- Includes: (1) Billet Aluminum Clamp Band w/ Locking Pin, (2) 6061 Aluminum Weld Ferrules, (2) Viton O-rings, (1) Union Sleeve, (1) Reusable Cloth Pouch, Mishimoto Lifetime Warranty
Frequently Asked Questions
What sizes does the Mishimoto Quick Release Clamp Assembly come in?
The Mishimoto Quick Release Clamp Assembly is available in 2.5″ and 3″ variants. This listing (MMCLAMP-QD-25GD) is the 2.5″ gold anodized version.
What material is the Mishimoto clamp assembly made from?
It is made from 6061-T6 billet aluminum with an anodized finish, offered in a gold color for this version.
What comes included with the clamp assembly?
Each assembly includes one billet aluminum clamp band with locking pin, two 6061 aluminum weld ferrules, two Viton O-rings, one union sleeve, one reusable cloth pouch, and the Mishimoto Lifetime Warranty.
What operating conditions can this clamp handle?
The clamp is rated to withstand up to 400F and a 110 PSI operating pressure range.
Can the clamp move once installed?
Yes, the design allows for angular, axial, and radial movement while remaining sealed thanks to the Viton O-rings.
Is the Mishimoto Quick Release Clamp Assembly covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
