Description

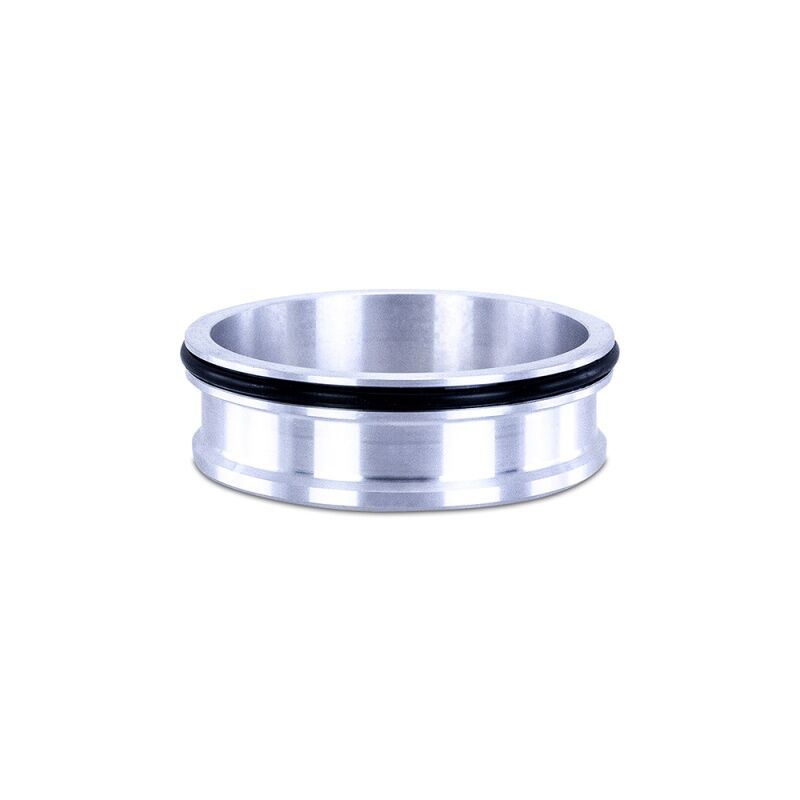

The Mishimoto Quick Release Clamp Weld Ferrule (MMCLAMP-QDF-30) is a CNC-machined 6061 aluminum fabrication component built for custom piping systems that use quick release clamps. Arriving with a Viton O-ring already installed, this ferrule is ready to weld into place the moment it reaches your shop, giving fabricators a durable starting point for building or repairing quick-disconnect piping setups.
Designed for fabricators who need a reliable, ready-to-weld piece for their quick release clamp system, this Mishimoto Fabrication component combines a CNC-machined 6061-T6 billet aluminum body with an anodized silver finish for long-term durability. Because it ships with the Viton O-ring already seated, there’s no need to source a separate seal before you start cutting and welding, saving time on custom piping projects that call for a quick-disconnect connection. Backed by the Mishimoto Lifetime Warranty, this weld ferrule is built to be a lasting part of whatever fabrication project it’s welded into.
Vehicle Applications

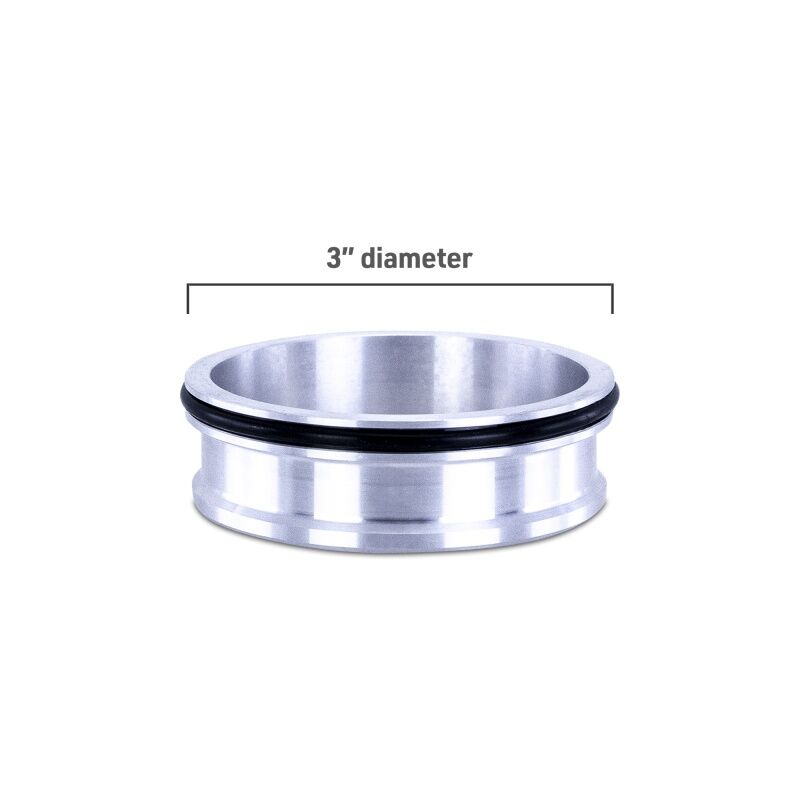

As a Fabrication-category component, the Mishimoto Quick Release Clamp Weld Ferrule is not tied to a specific vehicle make, model, or year — it is designed to be welded into custom piping wherever a quick release clamp connection is needed. It offers a direct fit with the 3-in Quick Release Clamp Assembly, making it a straightforward addition to any 3-inch quick-disconnect piping build, and is also offered in a 2.5-inch diameter option for smaller piping runs.
Features
- CNC-machined 6061-T6 billet aluminum construction with an anodized silver finish
- Arrives with a Viton O-ring installed and ready for fabrication
- Withstands up to 400°F and 110 PSI operating pressure range
- Available in 2.5-inch or 3-inch diameter options
- Direct fit with the 3-in Quick Release Clamp Assembly
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Material: 6061-T6 Billet Aluminum
- Color: Silver
- Finish: Anodized
- Burst Pressure: 110 PSI
- Maximum Temperature Rating: 400°F
- Clamp Style: Quick-Disconnect
- Includes: (1) Weld Ferrule, (1) Viton O-Ring, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the Mishimoto Quick Release Clamp Weld Ferrule made of?
It is constructed from 6061-T6 billet aluminum with a CNC-machined, anodized silver finish.
What sizes are available?
It is available in 2.5-inch or 3-inch diameter options.
Does it come with an O-ring?
Yes, each ferrule arrives with a Viton O-ring installed and ready for fabrication.
What pressure and temperature can it withstand?
It withstands up to 400°F and 110 PSI operating pressure range.
Is it compatible with quick release clamp assemblies?
Yes, it offers direct fit with the 3-in Quick Release Clamp Assembly.
What warranty is included?
It includes the Mishimoto Lifetime Warranty.
