Description
The Mishimoto Remote Oil Filter Mount, part number MMOC-RFH-M20BK, is the core component for relocating a confined or hard-to-reach oil filter to a more accessible position. Machined from billet 6061 T-6 aluminum and finished in a durable black anodized coating, this M20 x 1.5 thread option pairs a CNC-machined housing with a stainless-steel filter adapter designed to fit common filter sizes. As part of the Mishimoto Fabrication lineup, it’s built to give installers real flexibility rather than a one-size-fits-all solution.
Relocating your oil filter can solve a lot of headaches: it can improve ground clearance, allow an upgrade to a large-format spin-on filter, and simply make oil changes easier when the stock filter location is buried in the engine bay. This Fabrication-grade mount features four M22 X 1.5 ports that provide provisions for oil cooler lines, oil pressure feeds, or oil sensors, and because inlets and outlets are available on each side, you can orient feed and return lines however keeps your engine bay tidy. Dowty seal connections at each port are used to keep the system leak-free, and two included M22 X 1.5 plugs let you cap off any ports you don’t use. A 4mm-thick steel mounting bracket with an adjustable mounting surface adds further versatility, letting the housing be positioned to suit the vehicle and installation.
Vehicle Applications
The Mishimoto Remote Oil Filter Mount is a universal fabrication component intended for vehicles where the factory oil filter location is confined, hard to service, or mounted low enough to be vulnerable to debris on the track or trail. Its stainless-steel filter adapter accommodates oil filters with a minimum diameter of 2.25 in up to a maximum diameter of 3.5 in, and this particular option is configured with an M20 x 1.5 filter thread. Because it’s a standalone mounting solution rather than a vehicle-specific kit, it’s built to be paired with the correct take-off plate, fittings, and lines for your specific application.
Features
- Allows for relocation of oil filter to a more accessible location
- Robust CNC-machined billet 6061 T-6 aluminum construction
- M22 X 1.5 ports provide provisions for oil cooler lines, oil pressure feeds, sensors, etc.

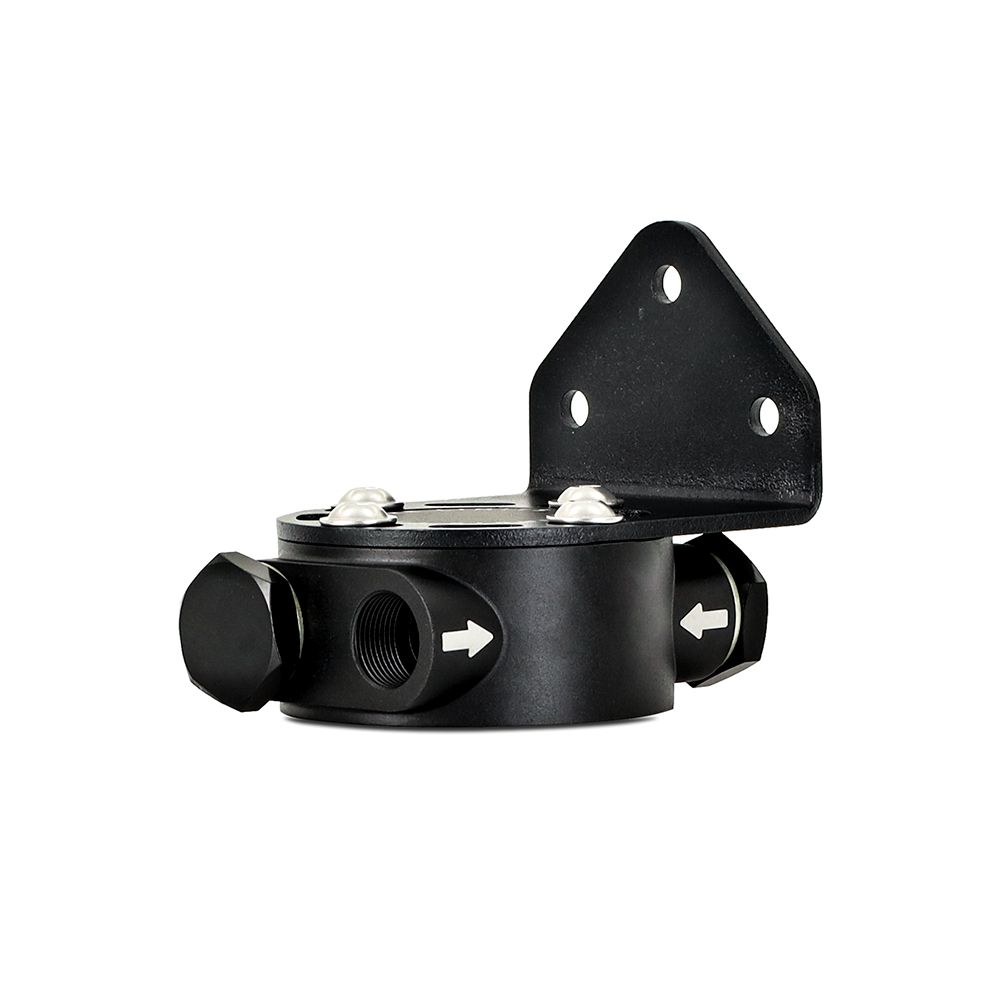

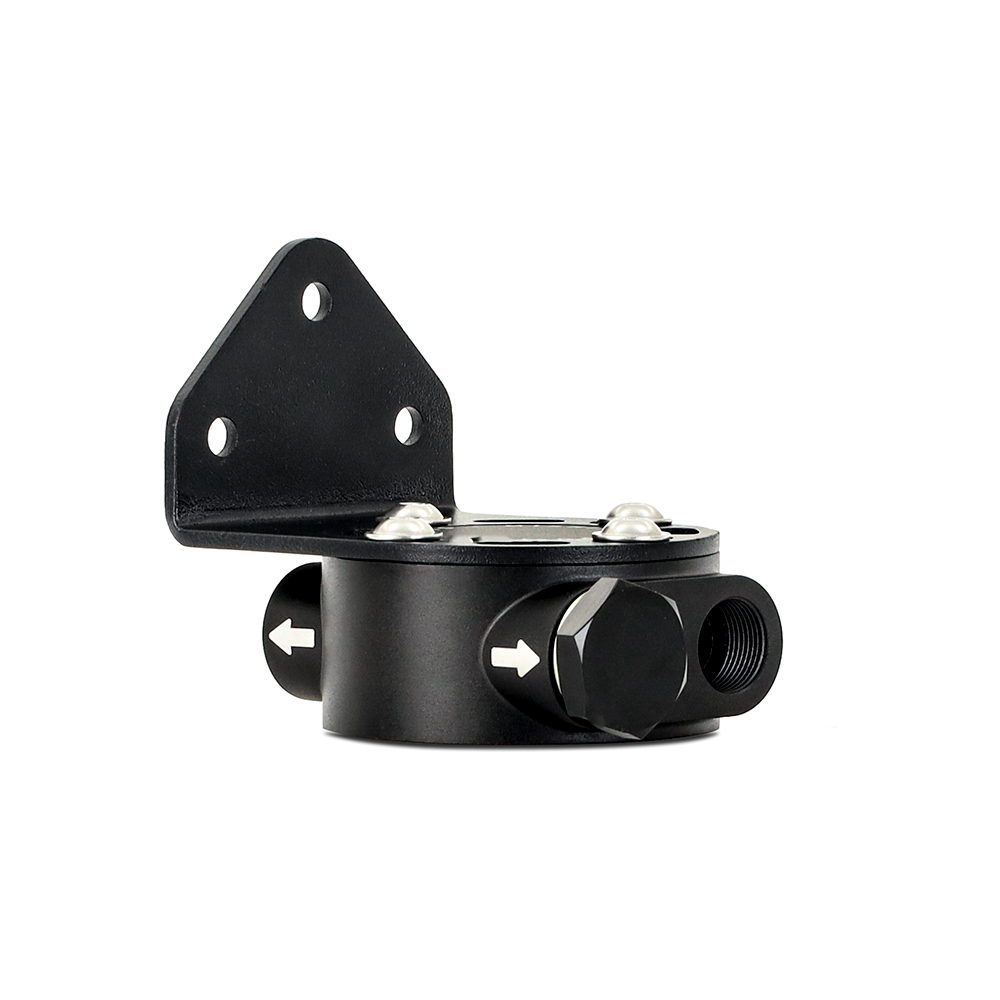

- Inlet and outlet on each side allow for multiple plumbing orientations and easy installation
- Ideal for vehicles with low-mount oil filters that may be vulnerable to debris on the track or trail
- Dowty seal connections ensure reliable leak-free operation
- High-quality stainless-steel filter adapter available in multiple thread sizes
- Includes two M22 X 1.5 plugs for capping unused ports

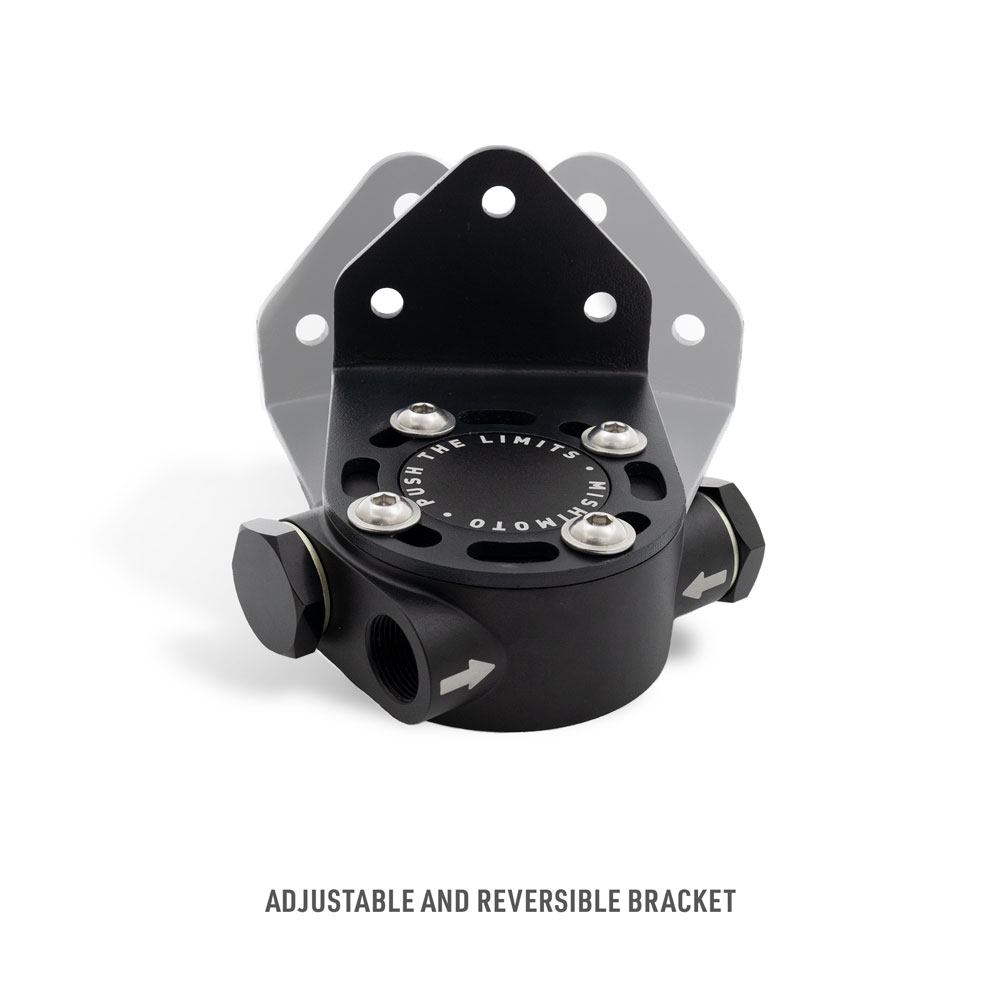

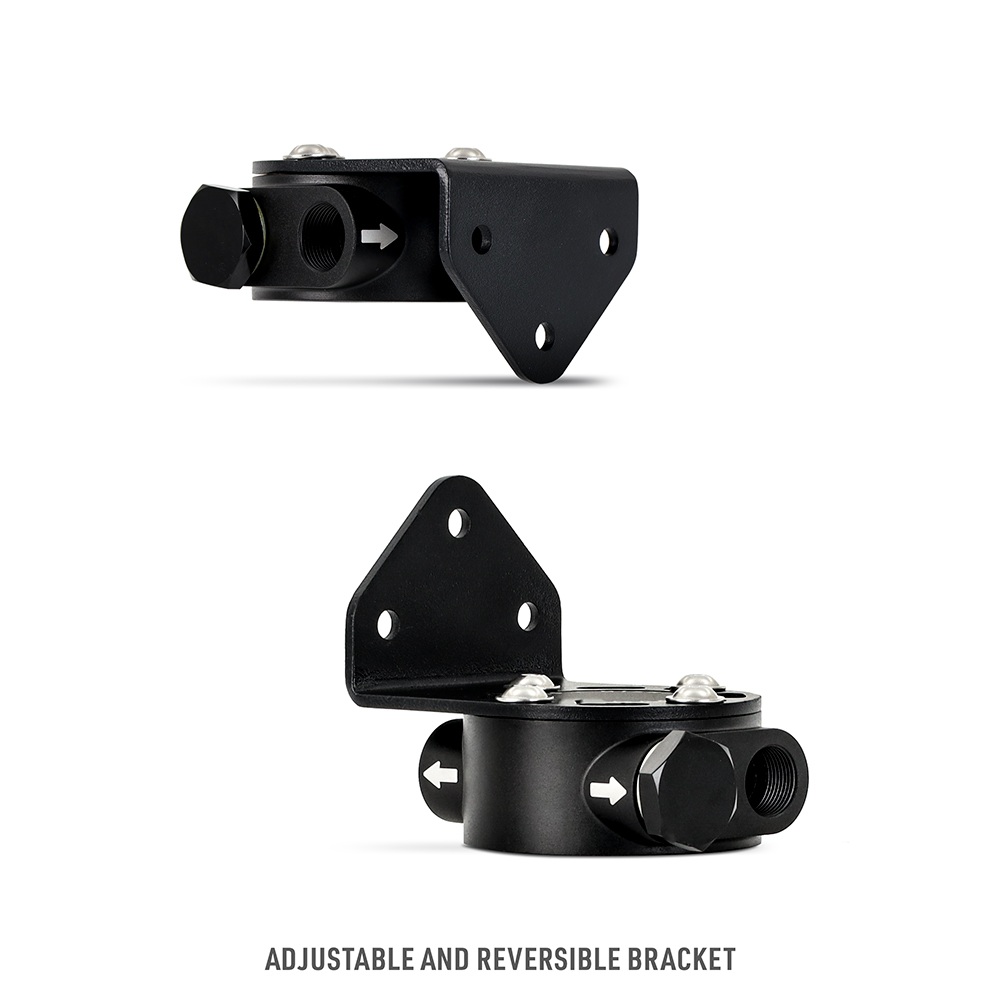

- Robust 4mm thick steel mounting bracket can be rotated
- Designed for large-format spin-on filters
- Durable anodized finish prevents corrosion
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-RFH-M20BK
- Product Type: Fabrication
- Color: Black
- Finish: Anodized
- Filter Thread Option: M20 x 1.5
- Minimum oil filter diameter: 2.25 in
- Maximum oil filter diameter: 3.5 in
- Housing Construction: CNC-machined billet 6061 T-6 aluminum

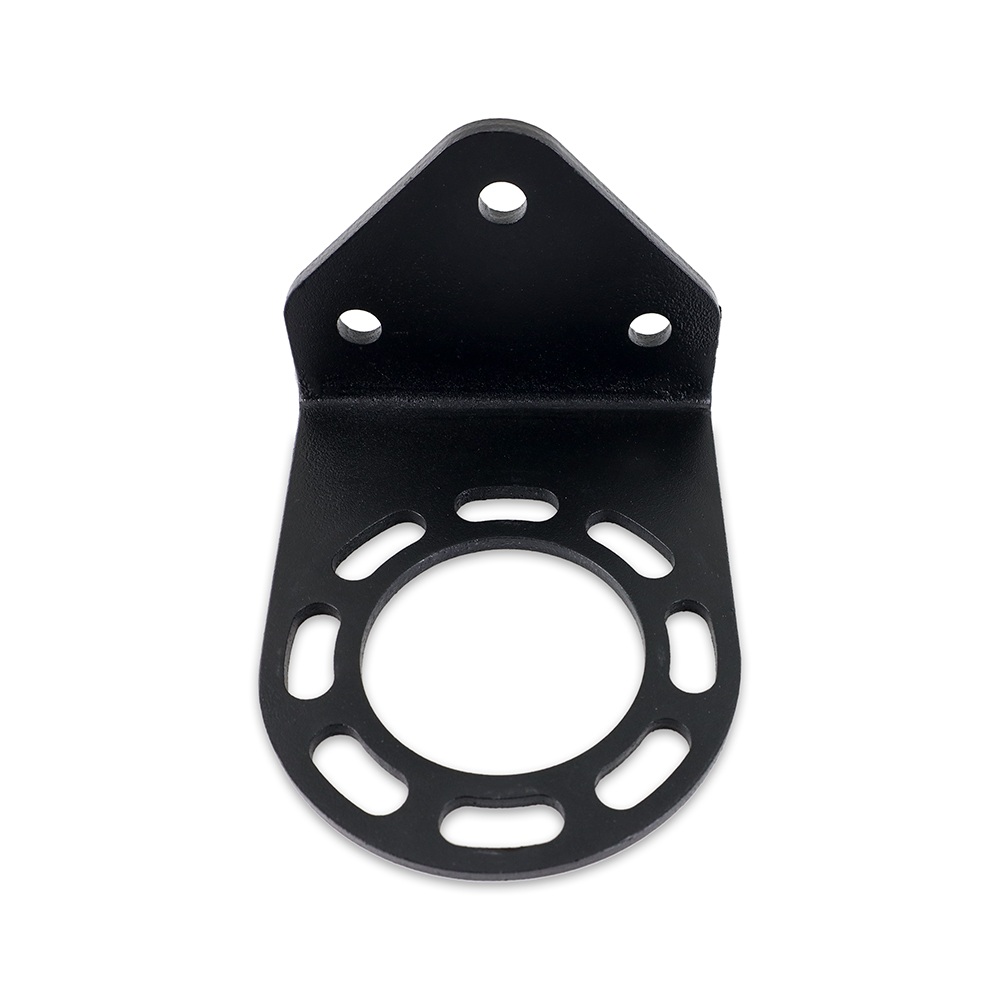

- Mounting Bracket: 4mm thick steel, adjustable
- Ports: Four M22 x 1.5

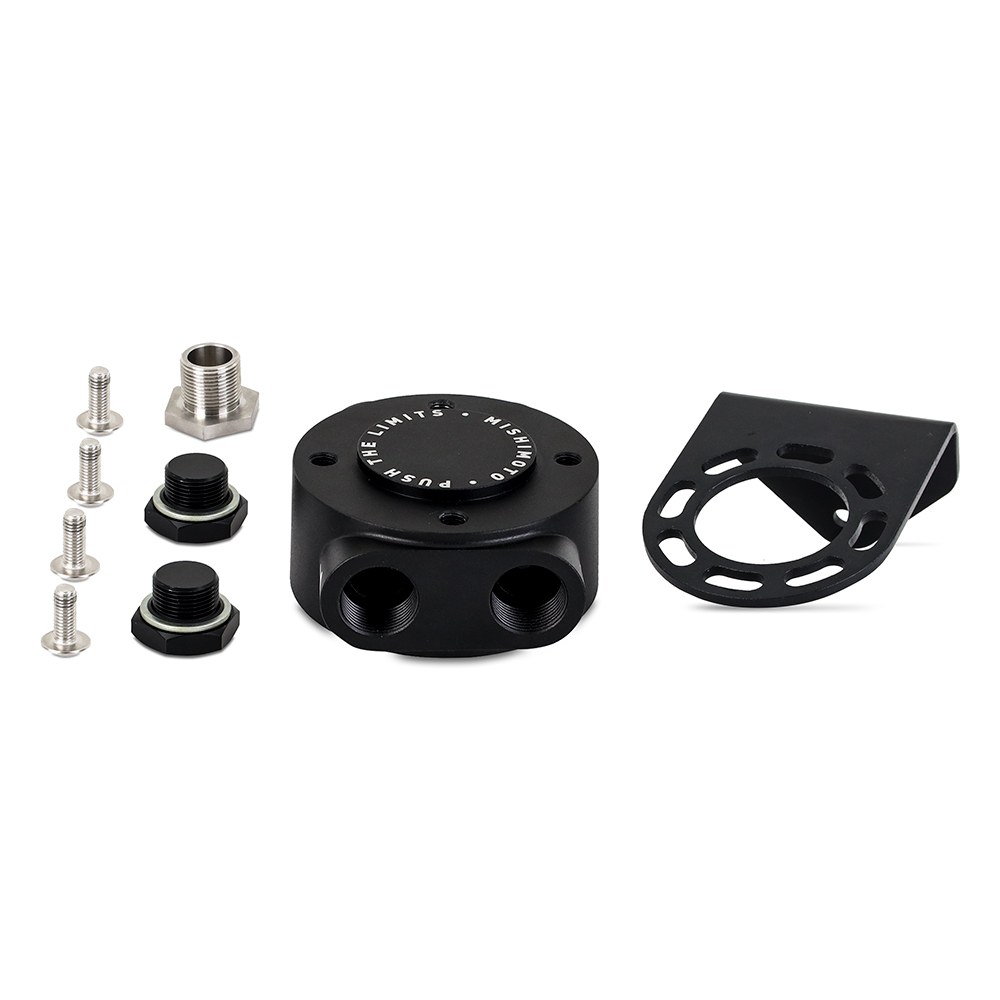

- Includes: Remote Oil Filter Housing, Mounting Bracket, Center Adapter, Center Adapter Locking Ring, M22 X 1.5 Dowty Seal Plugs, M8 X 1.25 Button Head Bolts, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is included with the Mishimoto Remote Oil Filter Mount?
It includes the Remote Oil Filter Housing, Mounting Bracket, Center Adapter, Center Adapter Locking Ring, M22 X 1.5 Dowty Seal Plugs, M8 X 1.25 Button Head Bolts, and the Mishimoto Lifetime Warranty.
What oil filter sizes does this mount support?
The stainless-steel filter adapter supports a minimum oil filter diameter of 2.25 in and a maximum oil filter diameter of 3.5 in. This option is configured with an M20 x 1.5 filter thread.
What is the mount made from?
The mount uses a robust CNC-machined billet 6061 T-6 aluminum housing with a durable anodized black finish, along with a high-quality stainless-steel filter adapter.
Do I need any additional parts to complete an oil filter relocation?
Yes. Additional components are necessary to install a remote oil filter system, including a Mishimoto Remote Oil Filter Take-Off Plate, Mishimoto Remote Oil Filter Fittings, and Mishimoto Braided Oil Lines.
How many ports does the mount have and what are they used for?
The mount features four M22 X 1.5 ports that provide provisions for oil cooler lines, oil pressure feeds, or oil sensors, plus two included M22 X 1.5 plugs for capping any unused ports.
Does the Mishimoto Remote Oil Filter Mount come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
