Description

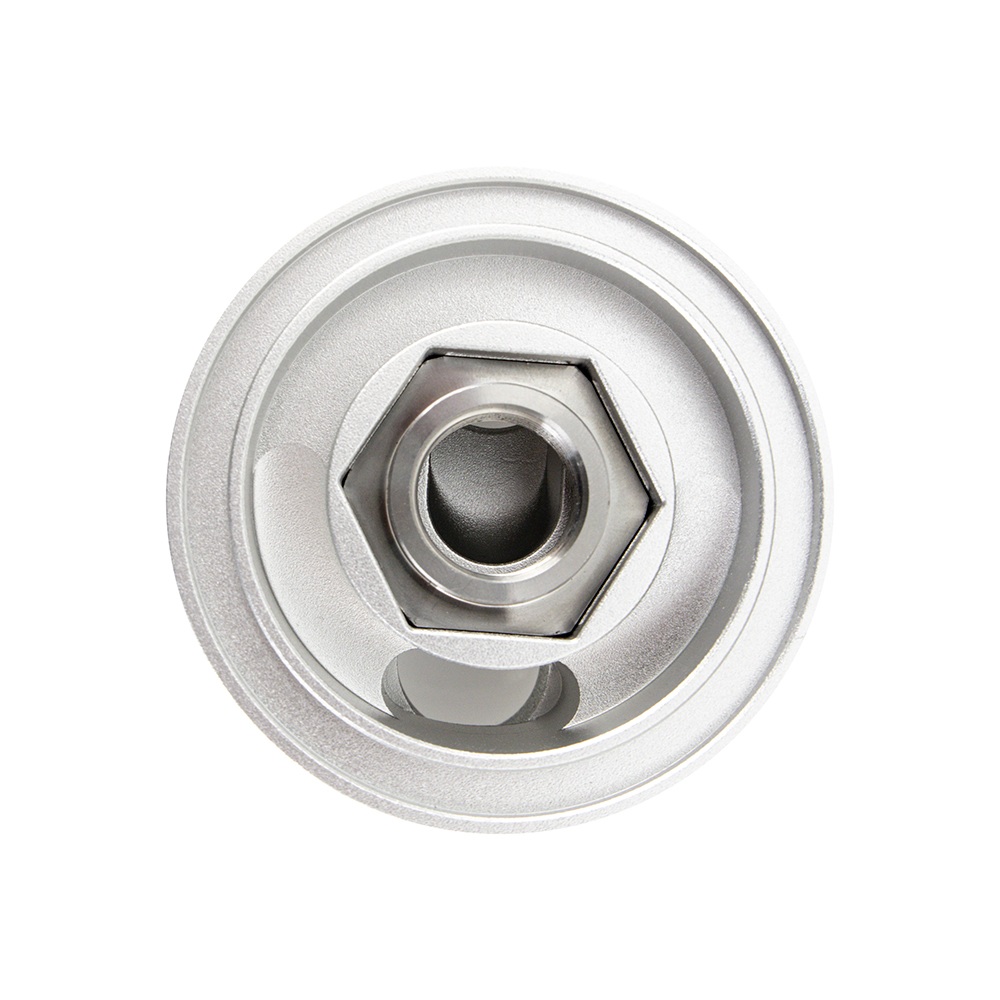

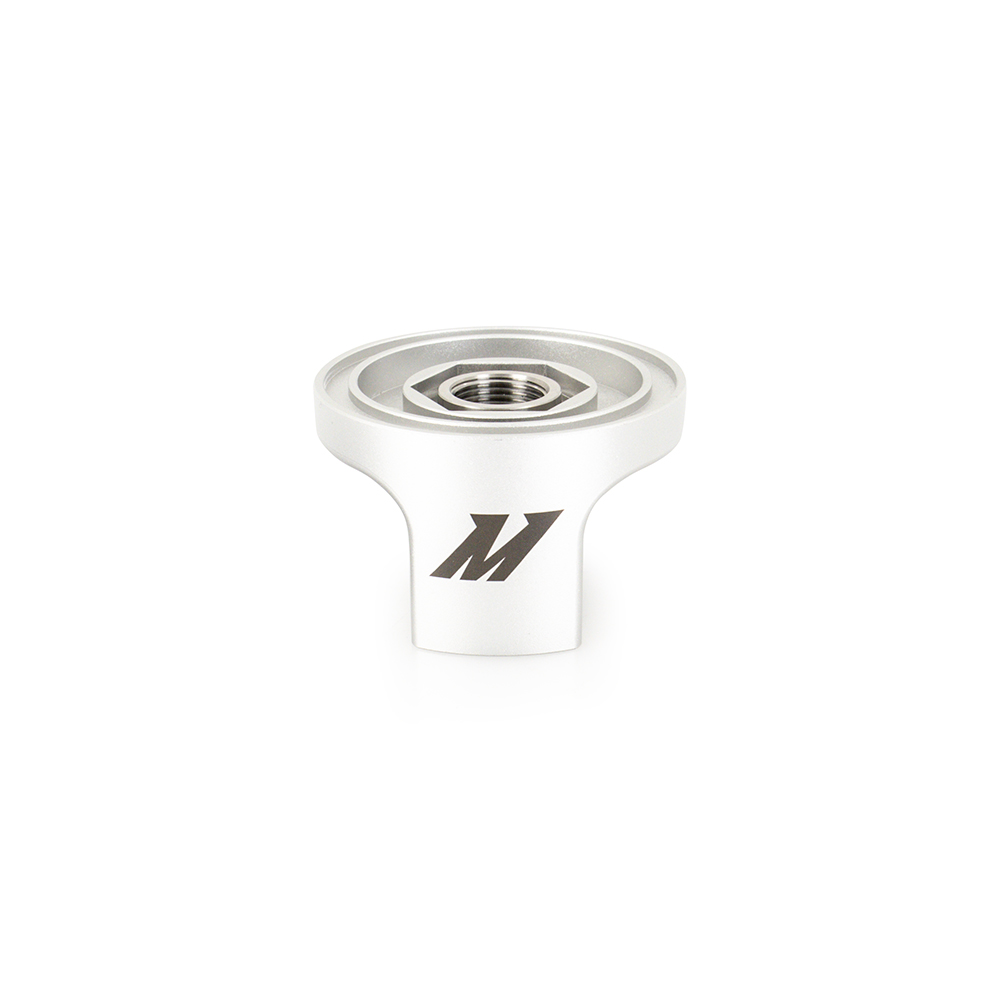

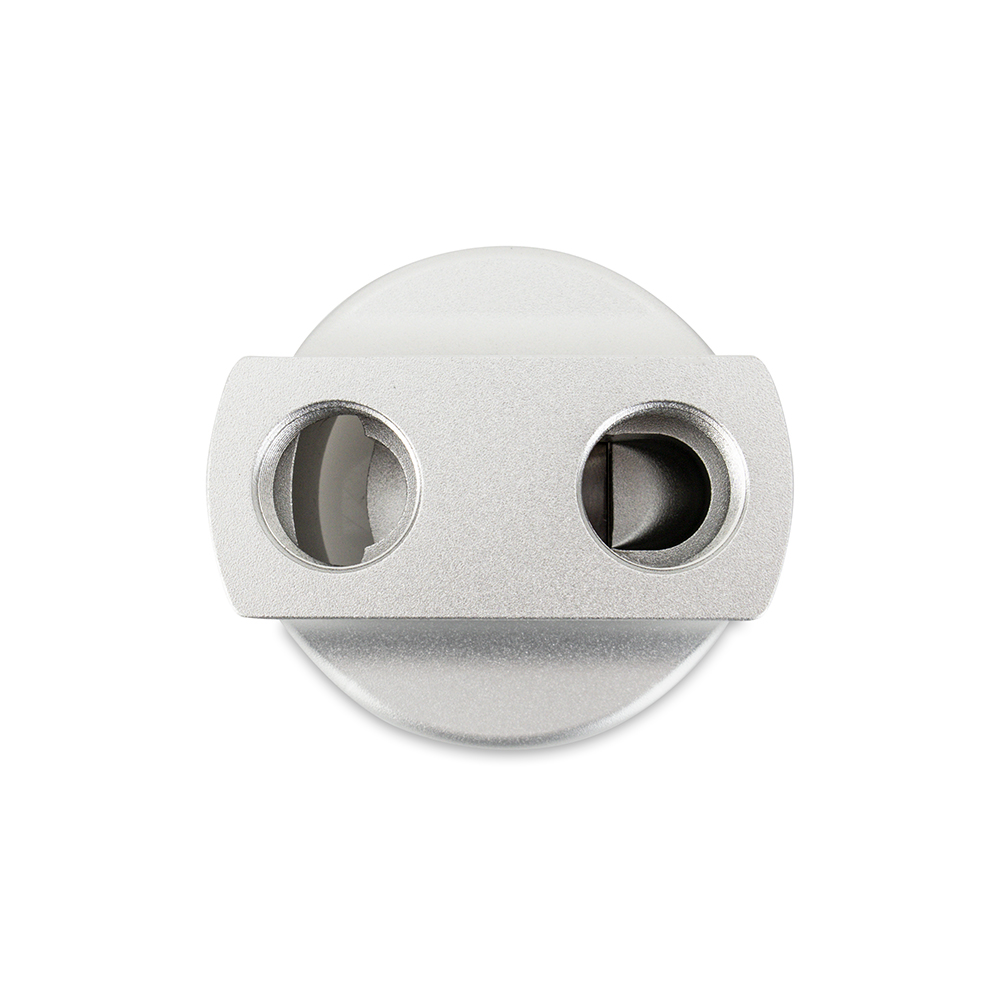

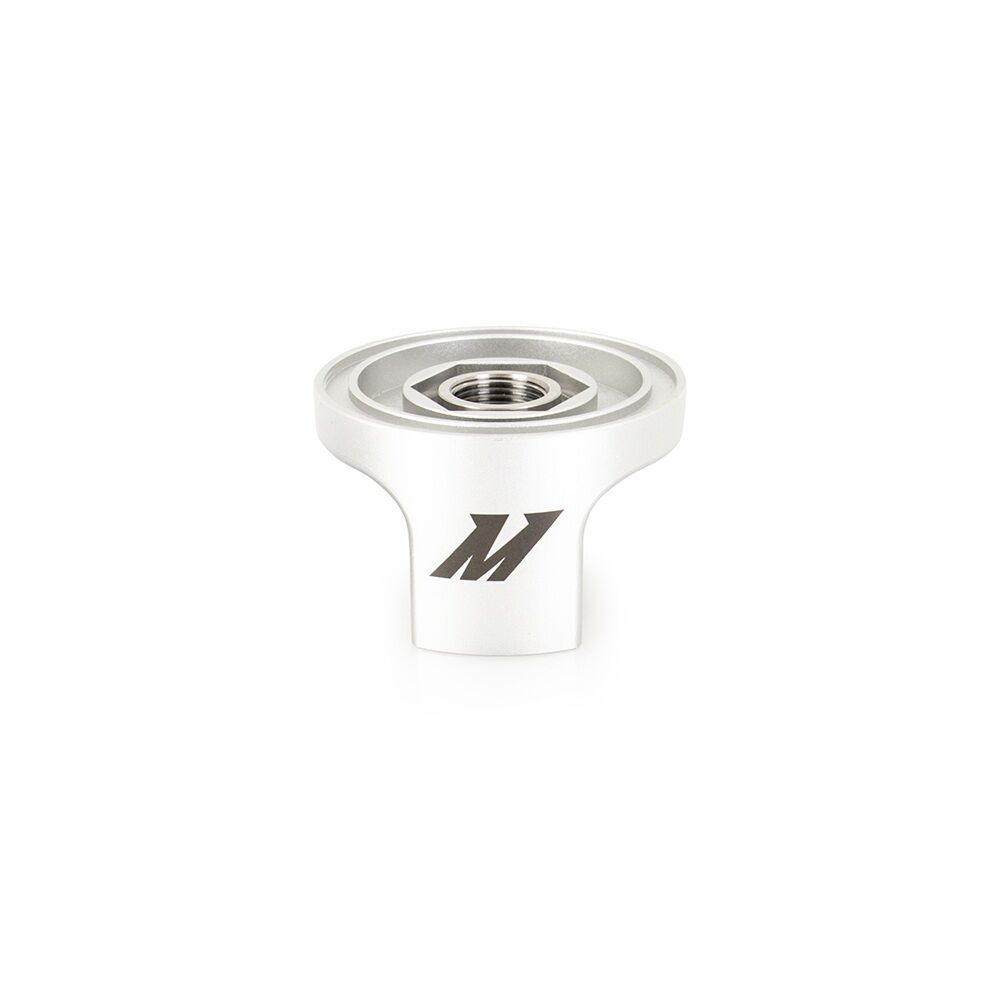

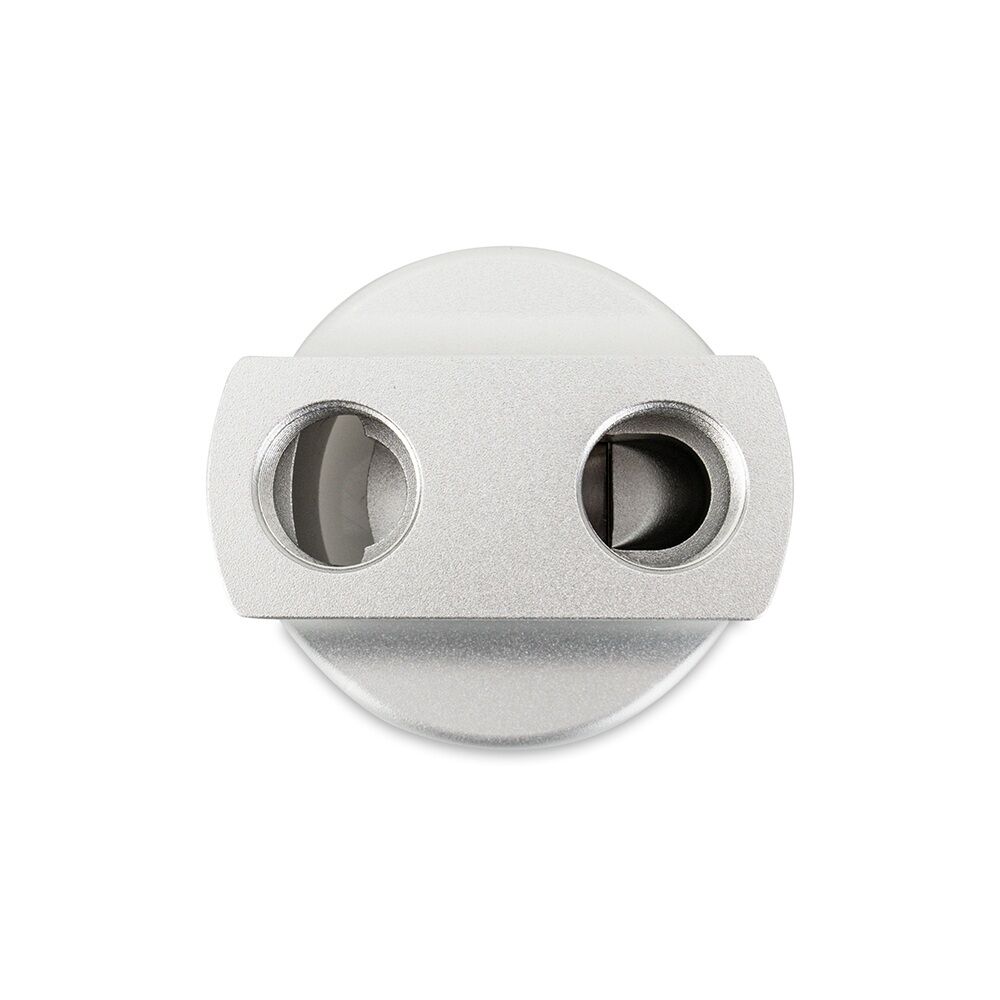

The Mishimoto Remote Oil Filter Take-Off Plate (MMOC-FTO-M22) is the essential first component for relocating your oil filter away from a cramped engine bay. Precision CNC-machined from a billet of 6061 aluminum and designed using the latest in 3D printing technology and CAD modeling, this take-off plate replaces your existing oil filter with a housing fitted with M22 X 1.5 ORB inlet and outlet ports, ready to connect to the Mishimoto Remote Oil Filter Fittings.
Anyone who has struggled to reach a hard-to-access oil filter buried inside a modern car engine knows how tedious oil changes can become. By rerouting oil flow to a remote-mounted filter, this take-off plate helps improve ground clearance, opens up room for a larger-format filter, and makes servicing your car engine parts far more manageable. The oil filter mount is one of the core components of an automobile engine’s lubrication circuit, and Mishimoto engineered this plate to keep that connection dependable through the M22 X 1.5 ORB ports, which rely on a robust O-ring seal to stay leak-free. A durable anodized finish helps the plate resist corrosion in demanding underhood conditions, and because this take-off plate is also available in most standard oil filter thread sizes, it can be matched to a wide range of engine parts for car and truck applications that use a spin-on-style filter.
Vehicle Applications
This Oil Filter Take-Off Plate isn’t limited to a single make or model. Mishimoto offers it in most standard oil filter thread sizes so it can be adapted to the take-off point on many different engines, and this particular option is threaded M22 X 1.5 for use with Mishimoto’s remote oil filter fittings. As a core piece of a larger remote oil filter relocation system, it is intended for use on engines where the factory oil filter housing accepts a threaded take-off plate, giving builders working on a variety of car engines a way to solve clearance issues around the stock filter location.
Features
- Replaces the engine oil filter and provides ports for adding a remote oil filter system
- CNC-machined from billet 6061 aluminum
- M22 X 1.5 inlet/outlet ports for use with Mishimoto Remote Oil Filter Fittings
- Features a robust O-ring for leak-free operation
- Available with multiple center adapter threads to fit most oil filter housings
- Designed using the latest in 3D printing and CAD modeling software
- Anodized finish helps resist corrosion
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-FTO-M22
- Material: Billet 6061 aluminum, CNC-machined
- Finish: Anodized
- Grade Type: Performance
- Inlet/Outlet Thread: M22 X 1.5
- Overall Height: 1.75 in

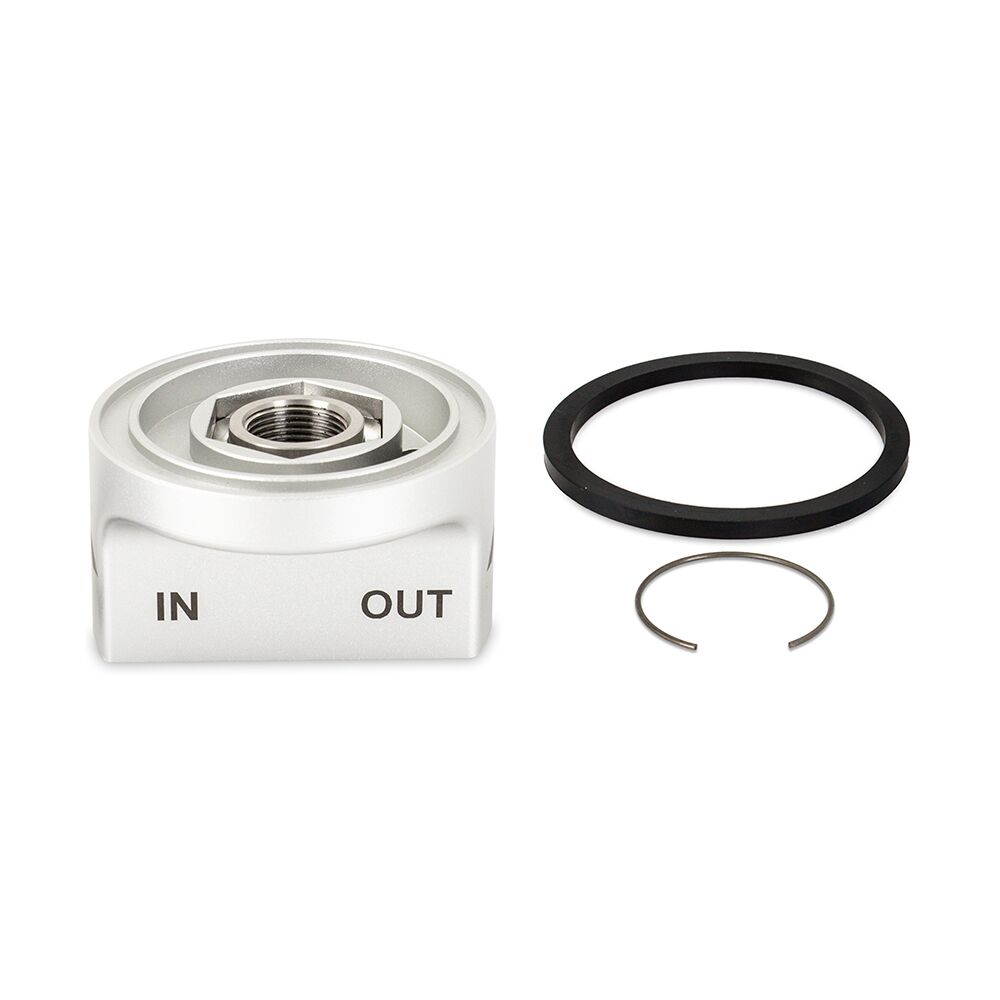

- Includes: Oil Filter Take-Off Plate, Pedestal O-ring, Center Adapter, Center Adapter Locking Ring, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is included with the Mishimoto Oil Filter Take-Off Plate?
It includes the Oil Filter Take-Off Plate, a Pedestal O-ring, a Center Adapter, a Center Adapter Locking Ring, and the Mishimoto Lifetime Warranty.
What thread size is the MMOC-FTO-M22 version?
This version features M22 X 1.5 inlet/outlet ports designed for use with Mishimoto Remote Oil Filter Fittings.
What is the take-off plate made from?
It is precision CNC-machined from a billet of 6061 aluminum.
Do I need other parts to complete a remote oil filter relocation?
Yes. Additional components are necessary, including a Mishimoto Remote Oil Filter Mount, Mishimoto Remote Oil Filter Fittings, and Mishimoto Braided Oil Lines.
What warranty comes with this product?
This take-off plate is backed by the Mishimoto Lifetime Warranty.
Are there any installation precautions?
Yes. It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle, and Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.
