Description

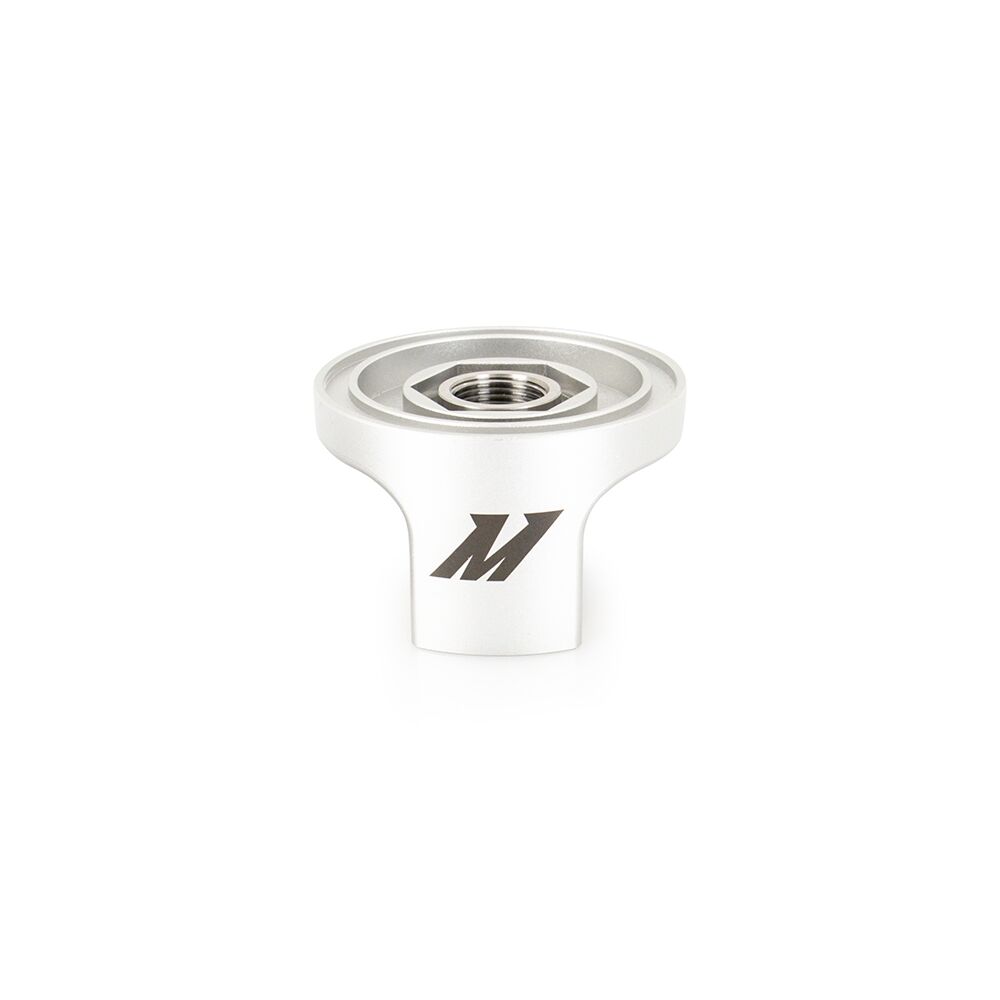

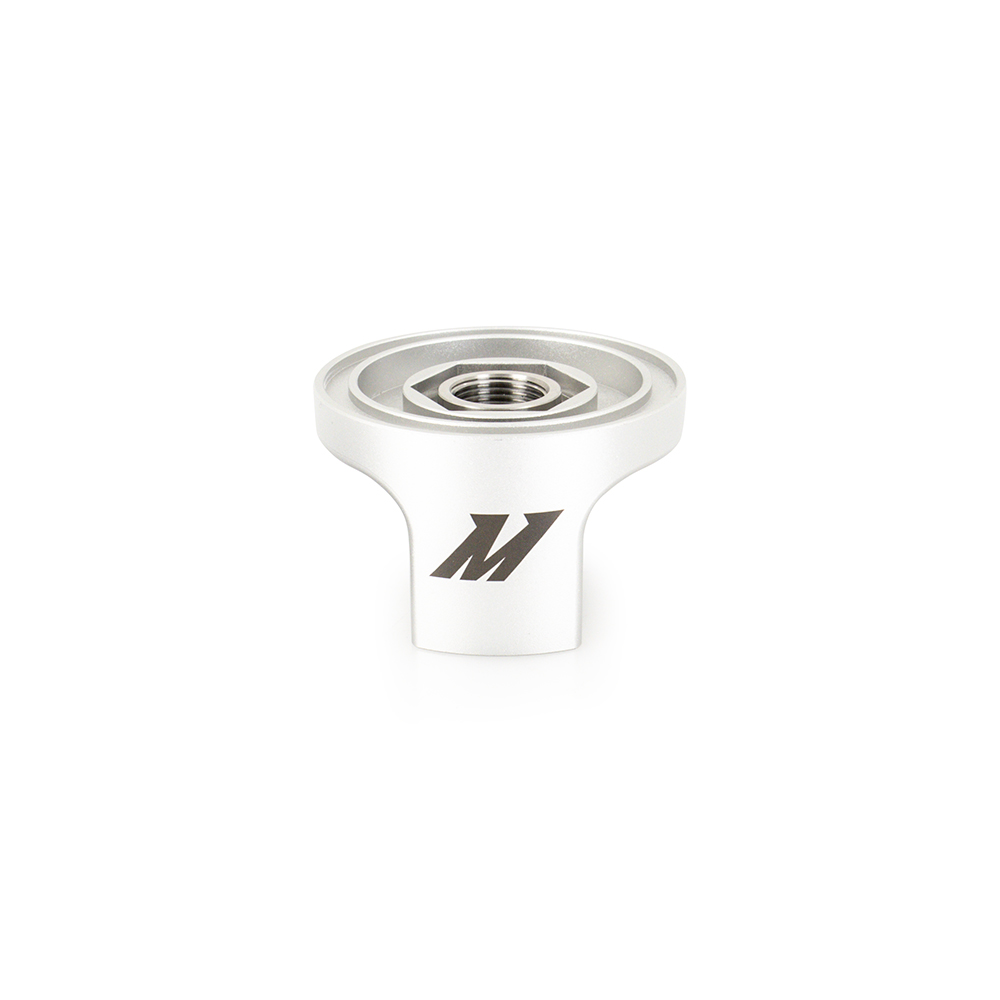

The Mishimoto Oil Filter Take-Off Plate, part number MMOC-FTO-34IN, is a purpose-built housing that replaces your engine’s factory oil filter to enable a full remote oil filter relocation. Machined from a solid billet of 6061 aluminum using a design refined through 3D printing and CAD modeling, this take-off plate is the core engine component that lets you reroute oil away from a cramped engine bay to a new filter location. This particular version is built with a 3/4-16 center adapter thread, matching a wide range of standard oil filter housings found among car engine parts.
Relocating an oil filter is a proven way to gain ground clearance, upgrade to a large-format filter, or simply make oil changes easier to reach — and this take-off plate is the piece that makes it possible. It replaces the stock oil filter and adds oil line ports so oil can be rerouted to a remotely mounted filter, effectively turning one of the more overlooked components of an automobile engine into an accessible, serviceable part of your build. The plate uses female M22 X 1.5 inlet and outlet ports designed to pair with Mishimoto Remote Oil Filter Fittings, sealed with a robust nitrile O-ring for a leak-free connection between engine parts and lines. Whether you’re dealing with tight engine bay clearance or simply want easier access to a key part of a car engine, this take-off plate is engineered to handle the job as one of the more versatile parts of a car engine’s oiling system.
Vehicle Applications
Mishimoto designed this Oil Filter Take-Off Plate as a universal engine component rather than a vehicle-specific part — it is available in multiple center adapter thread sizes to fit most standard oil filter housings, with this MMOC-FTO-34IN version featuring a 3/4-16 thread. Because it mounts to the oil filter housing itself rather than to vehicle-specific mounting points, it can be adapted across a wide range of car engines that use a compatible thread size. Completing a full remote oil filter relocation on any engine also requires a Mishimoto Remote Oil Filter Mount, Mishimoto Remote Oil Filter Fittings, and Mishimoto Braided Oil Lines, all sold separately.
Features
- Replaces the engine oil filter and provides ports for adding a remote oil filter system
- CNC-machined from billet 6061 aluminum, designed using 3D printing and CAD modeling software

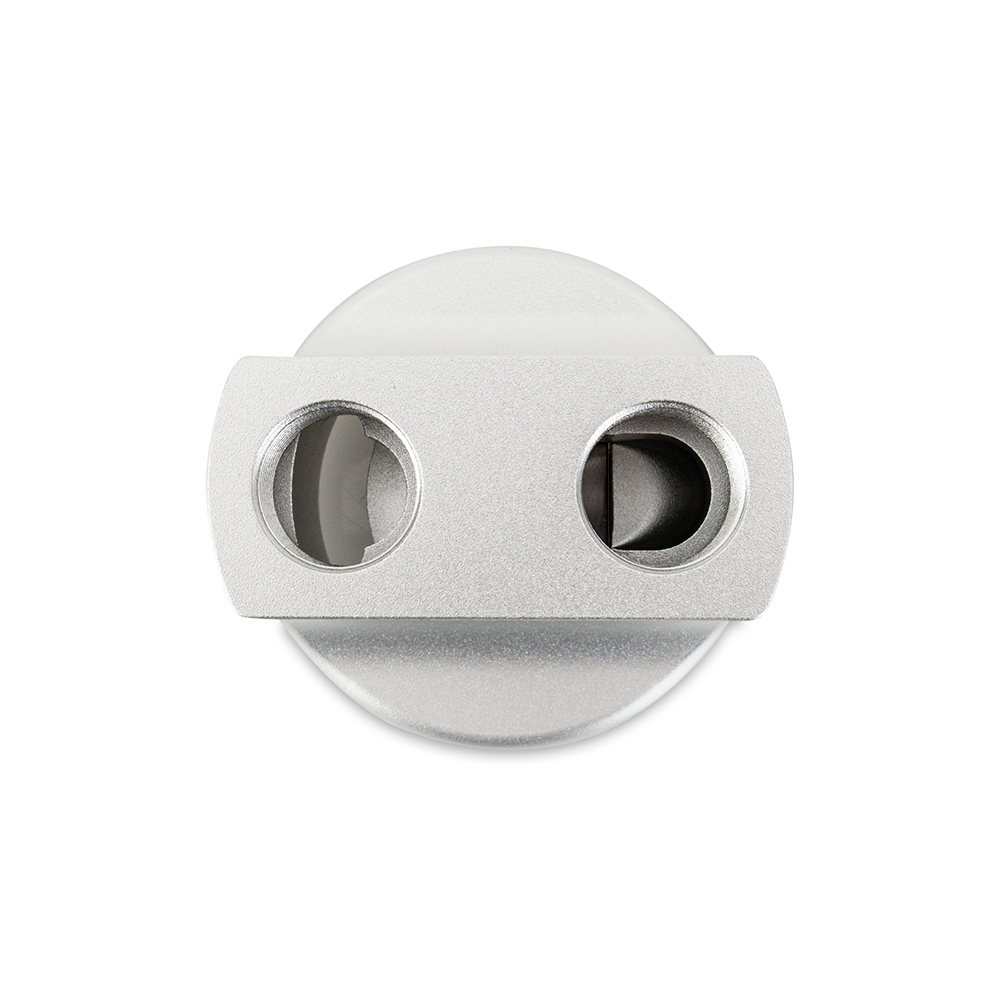

- Female M22 X 1.5 inlet/outlet ports for use with Mishimoto Remote Oil Filter Fittings
- Robust nitrile O-ring for leak-free operation
- Available with multiple center adapter threads to fit most oil filter housings; this unit uses a 3/4-16 thread
- Silver anodized finish helps prevent corrosion
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-FTO-34IN

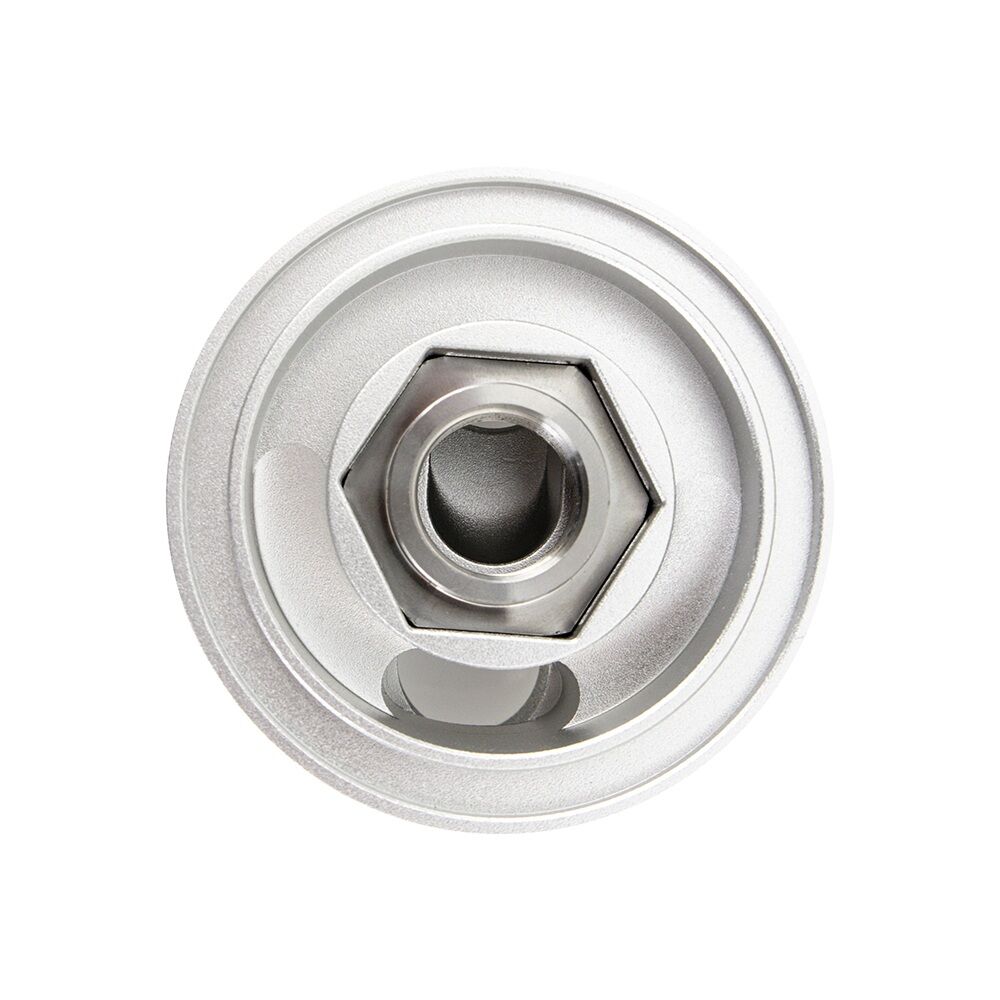

- Center Adapter Thread: 3/4-16
- Inlet/Outlet Port Thread: M22 X 1.5
- Material: 6061 aluminum, CNC-machined billet
- Finish: Silver anodized
- Overall Height: 1.75 in

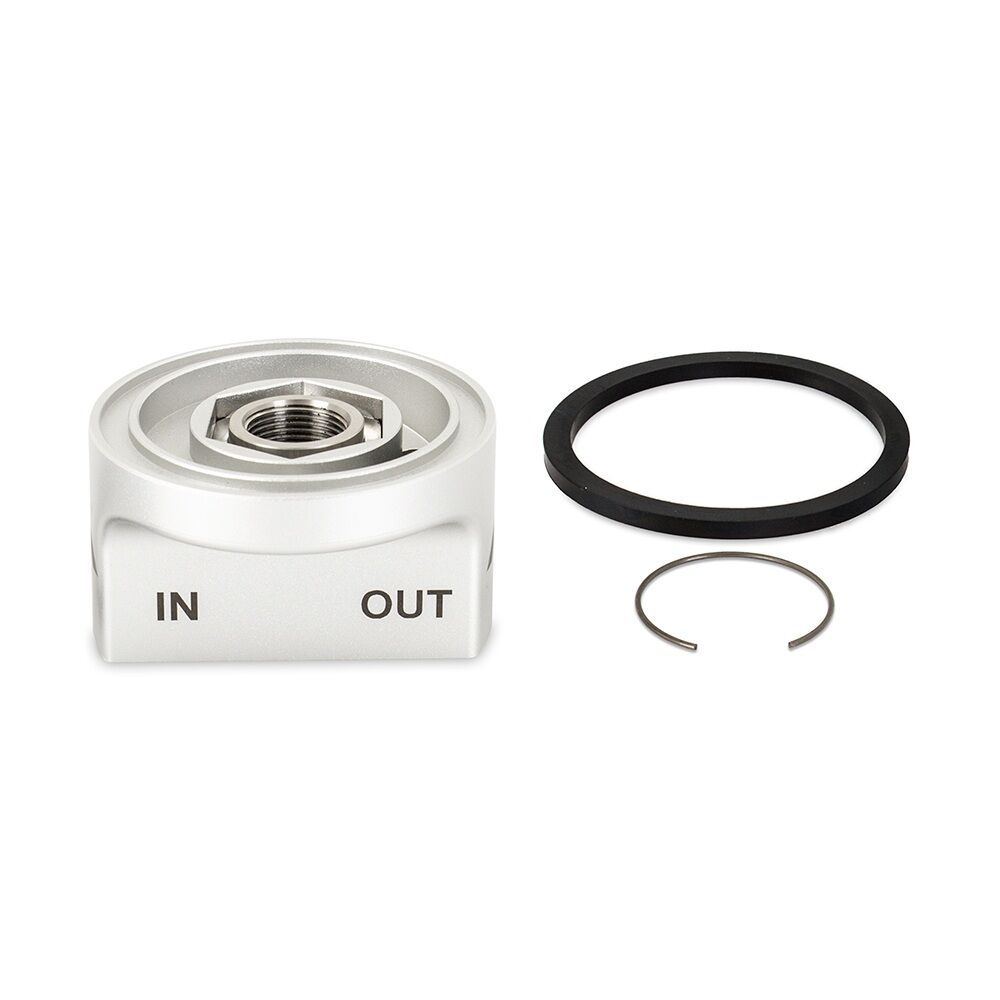

- Includes: Oil Filter Take-Off Plate, Pedestal O-ring, Center Adapter, Center Adapter Locking Ring, Mishimoto Lifetime Warranty
Installation note: it is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.
Frequently Asked Questions
What is the Mishimoto Oil Filter Take-Off Plate used for?
It replaces your engine’s oil filter with a housing that incorporates oil line ports, allowing you to reroute oil to a relocated remote oil filter.
What port size does this take-off plate use?
It features female M22 X 1.5 inlet/outlet ports designed for use with Mishimoto Remote Oil Filter Fittings.
What material is the take-off plate made from?
It is CNC-machined from a billet of 6061 aluminum.
Does this include other parts needed for relocation?
This kit includes the Oil Filter Take-Off Plate, Pedestal O-ring, Center Adapter, and Center Adapter Locking Ring; a Remote Oil Filter Mount, Remote Oil Filter Fittings, and Braided Oil Lines are additional components necessary to complete a remote oil filter system.
What finish does it have?
It features a silver anodized finish that helps prevent corrosion.
Is this covered under warranty?
Yes, it includes the Mishimoto Lifetime Warranty.
