Description

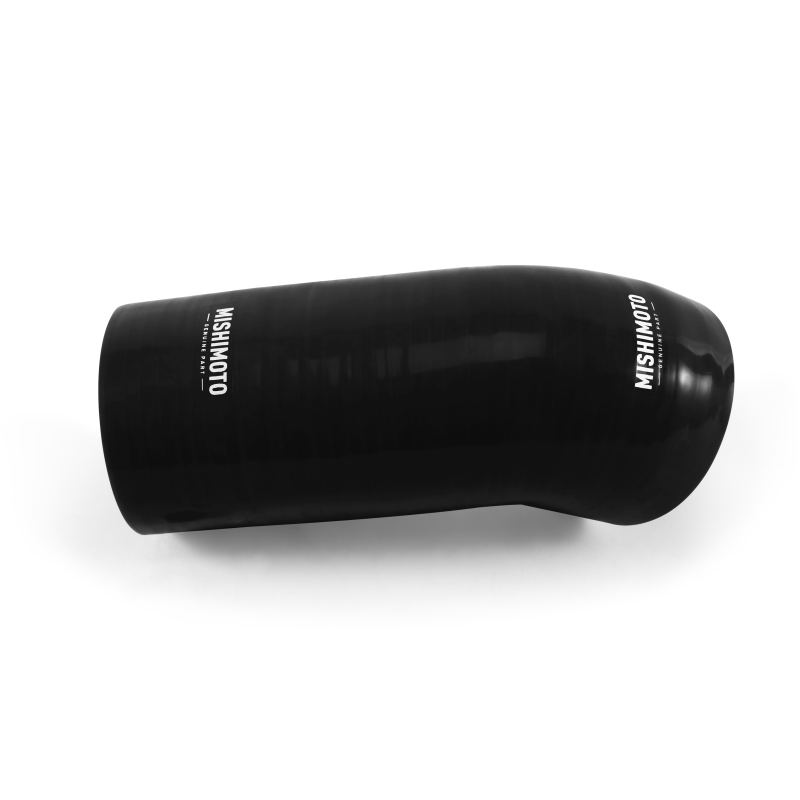

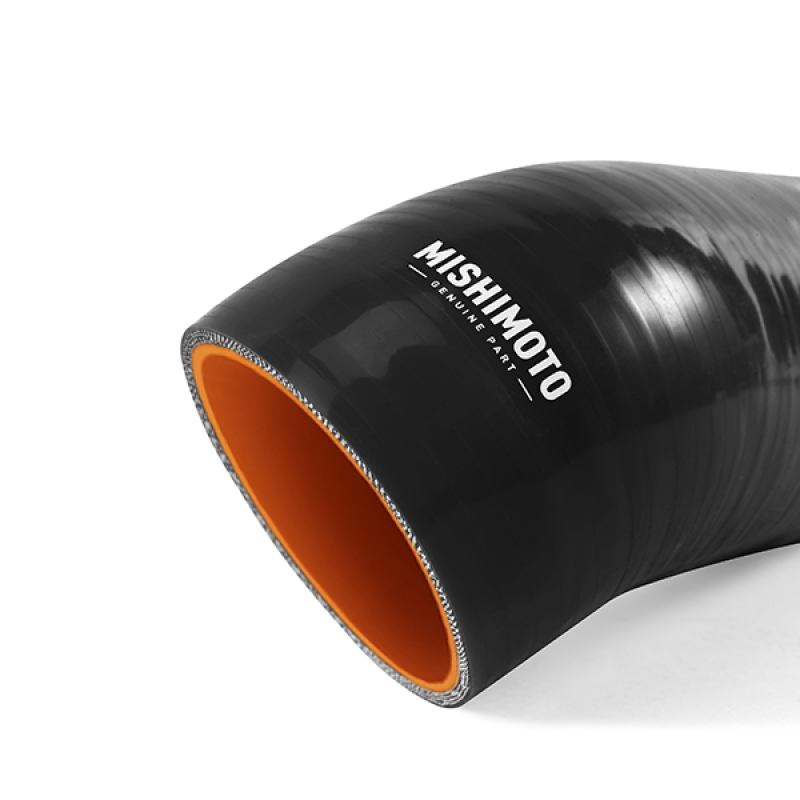

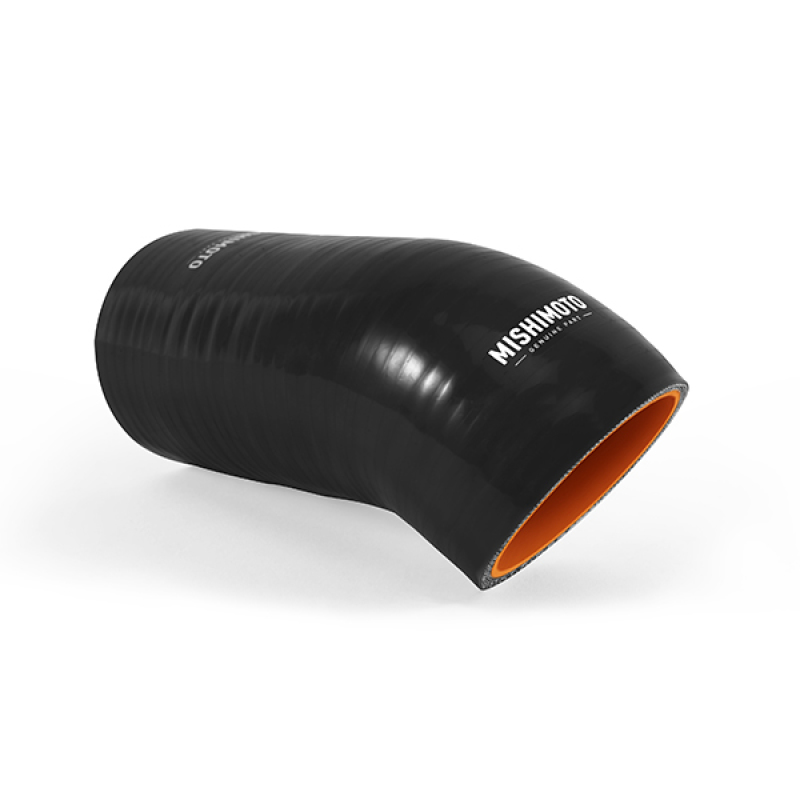

The Mishimoto N52 Silicone Intake Boot (MMHOSE-E90-06IHBK) is a direct-replacement air intake boot engineered specifically for BMW models powered by the N52 engine. Built with steel reinforcement rings molded into the silicone body, it resists collapsing under load so your engine keeps receiving the airflow it needs. Unlike the factory hose, this Mishimoto boot ditches the stock resonator BMW used to quiet the N52, delivering a noticeably sharper intake and engine tone.
As a purpose-built piece of your vehicle’s air intake system, this boot connects into the factory airbox and works with either the single stage or 3-stage intake manifold setups found on N52-equipped BMWs. Understanding what does a cold air intake system do helps explain the value here: the intake tract routes air from the airbox to the throttle body, and a boot that flexes, cracks, or collapses under vacuum can restrict that path. Mishimoto’s silicone construction is built for durability and a long service life, and the included stainless steel worm gear clamps make for a straightforward swap that most installers can complete in under an hour. It’s backed by the Mishimoto Lifetime Warranty for lasting peace of mind.
Vehicle Applications
This intake boot is a specific fit for the BMW 325Ci, 325i, 325xi, 330i, and 330xi, all model year 2006, as well as the BMW 328i from 2007 through 2013. It also fits the BMW 328i xDrive from 2009 through 2013 and the BMW 328xi for the 2007 and 2008 model years. All applications share the N52 engine platform and are compatible with the stock airbox and either single stage or 3-stage intake manifolds.
Features
- Direct fit for BMW E90/E92 and E82/E88 vehicles with the N52 engine
- Removes the resonator found in the stock intake boot, providing a slight increase in engine tone
- Made with molded steel rings for added reinforcement and resistance to collapsing under load
- Installs in under 1 hour
- Silicone construction for added durability and long service life
- Replaces your worn out or cracked intake boot
- Fits with single stage or 3-stage intake manifolds
- Fits with the stock airbox
- Replacement worm gear clamps are provided for a quick and easy installation
- Available in black, blue, or red
- Backed by the Mishimoto lifetime warranty
Specifications
- Material: Silicone (Rubber)
- Color: Black
- Shape/Configuration: Molded, One-Piece Assembly
- Clamps Included: Yes
- Clamp Material: Stainless Steel
- Universal or Specific Fit: Specific

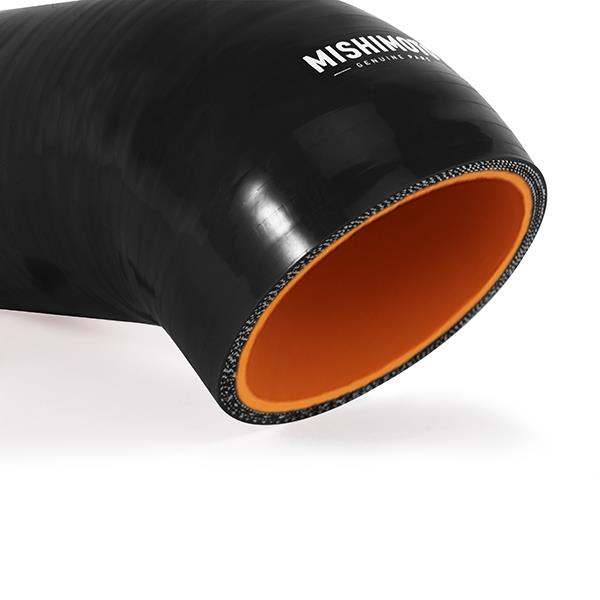

- End 1 Shape: Round
- End 2 Shape: Round
- Grade Type: Performance
- Maximum Temperature Rating: 330°F
- Mass Air Flow Sensor Mounting Provision: No
- Purchase Includes: (1) Silicone Intake Hose, (2) Worm Gear Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMHOSE-E90-06IHBK intake boot fit?
It is a specific fit for the BMW 325Ci, 325i, 325xi, 330i, and 330xi (2006), the BMW 328i (2007–2013), the BMW 328i xDrive (2009–2013), and the BMW 328xi (2007–2008).
Does this intake boot work with the factory airbox and intake manifold?
Yes, it fits with the stock airbox and works with either the single stage or 3-stage intake manifolds used on N52-equipped BMWs.
What is this intake boot made of?
It is constructed of silicone with molded steel reinforcement rings that help resist collapsing under load, and it carries a maximum temperature rating of 330°F.
Does the Mishimoto intake boot include installation hardware?
Yes, purchase includes the silicone intake hose along with two worm gear clamps made of stainless steel.
Will removing the stock resonator change the sound of my BMW N52?
Yes, this intake boot removes the resonator found in the factory hose, providing a slight increase in engine and intake tone.
What does a cold air intake system do?
An air intake system routes air from the airbox to the engine; this Mishimoto intake boot is designed to keep that airflow path from collapsing under load so the engine is supplied with adequate airflow.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
