Description

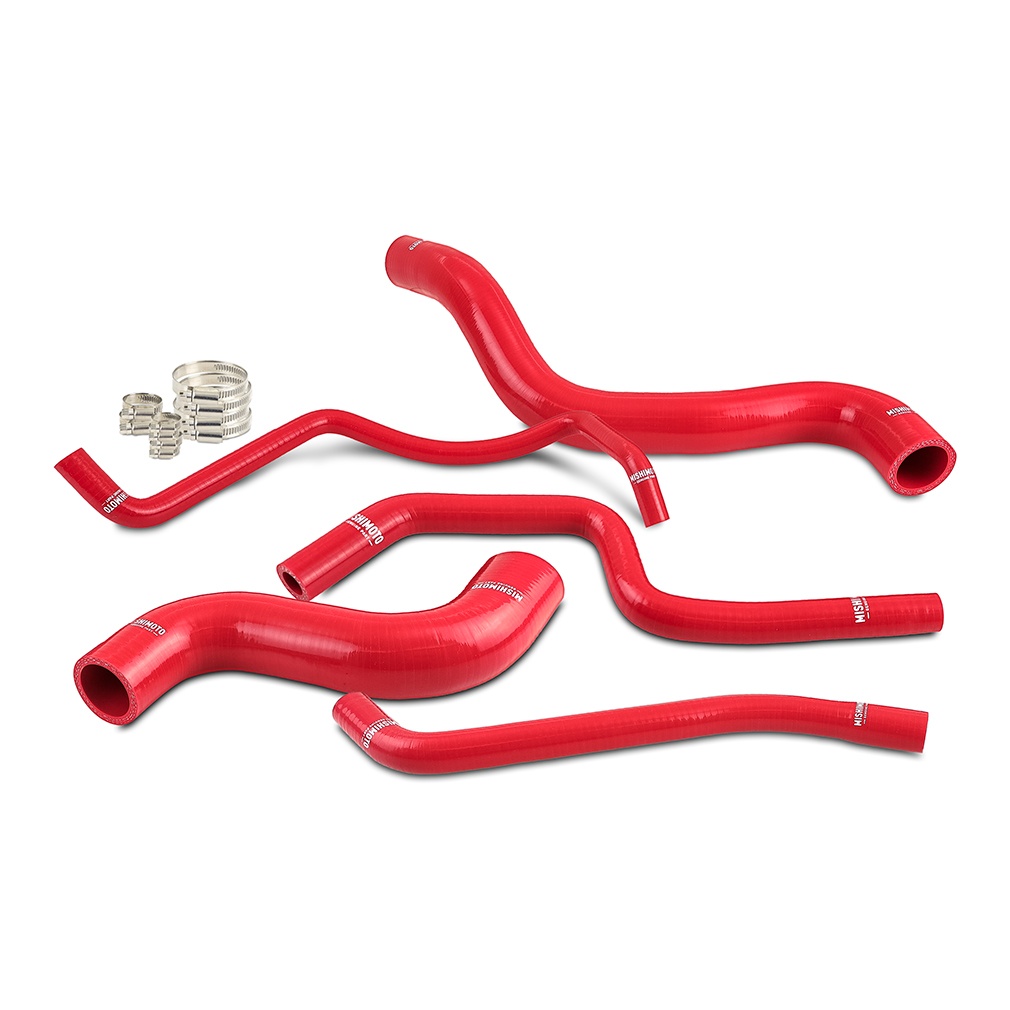

The Mishimoto MMHOSE-GRC-23RD is a direct-fit silicone radiator hose kit built specifically for the 2023+ Toyota GR Corolla, finished in a bold red for owners who want their engine bay to look as sharp as their car performs. Unlike the factory rubber hoses, which can dry out, crack, and fail over time, this kit is constructed from five layers of silicone with heat-resistant embedded fibers, giving it a Maximum Temperature Rating of 330°F and Performance-grade construction rated for Specific fitment rather than a universal application.
This Mishimoto Cooling system upgrade is designed to eliminate the leak and tear risk associated with aging rubber hoses while improving heat and pressure tolerance under the hood of your GR Corolla. The kit includes both the upper and lower radiator hoses along with the expansion tank hoses and an ancillary hose, so your entire coolant hose circuit gets refreshed in one shot rather than piecemeal. Ten stainless-steel worm gear clamps are included for a hassle-free, hardware-complete installation, and the red silicone hoses let you personalize the look of your engine bay in addition to boosting durability and reliability over the stock setup.
Vehicle Applications
This silicone radiator hose kit is a Specific fit for the Toyota GR Corolla equipped with the 1.6L I3 G16E-GTS engine on the GZEA14 chassis. Coverage includes the GR Corolla Circuit Edition for model years 2023–2024, the GR Corolla Core for 2023–2025, the GR Corolla Morizo Edition for 2023, and the GR Corolla Base, Premium, and Premium Plus trims for the 2026 model year.
Features
- Direct fit for the 2023+ Toyota GR Corolla
- Constructed from five layers of silicone with heat-resistant embedded fibers
- Improves heat and pressure tolerance over stock rubber hoses
- Complete kit includes both radiator hoses, expansion tank hoses, and ancillary hose for a fully refreshed engine bay
- Includes high-quality stainless-steel worm gear clamps for ease of installation
- Available in black, blue, or red
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMHOSE-GRC-23RD
- Hose Material: Silicone
- Hose Color: Red
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Maximum Temperature Rating: 330°F
- Clamps Included: Yes
- Clamp Quantity: 10
- Kit Includes: (1) Upper Radiator Hose, (1) Lower Radiator Hose, (2) Expansion Tank Hoses, (1) Ancillary Hose, (10) Worm Gear Clamps, Mishimoto Lifetime Warranty
- Engine Code: G16E-GTS
- Chassis Code: GZEA14
- Applications: Toyota GR Corolla I3 1.6L 2023+
Frequently Asked Questions
What color is this Mishimoto radiator hose kit?
This specific kit (MMHOSE-GRC-23RD) comes in red. Mishimoto also offers this hose kit in black or blue.
What vehicles does this hose kit fit?
It is a Specific fit for the Toyota GR Corolla with the 1.6L I3 G16E-GTS engine on the GZEA14 chassis, covering the Circuit Edition (2023–2024), Core (2023–2025), Morizo Edition (2023), and Base, Premium, and Premium Plus trims (2026).
What is included in the kit?
The kit includes one upper radiator hose, one lower radiator hose, two expansion tank hoses, one ancillary hose, and ten worm gear clamps.
What material are the hoses made from and what temperature do they handle?
The hoses are made from silicone and carry a Maximum Temperature Rating of 330°F.
Are clamps included for installation?
Yes, clamps are included — the kit comes with 10 stainless-steel worm gear clamps.
Is this hose kit backed by a warranty?
Yes, this Mishimoto silicone radiator hose kit is backed by the Mishimoto Lifetime Warranty.
