Description

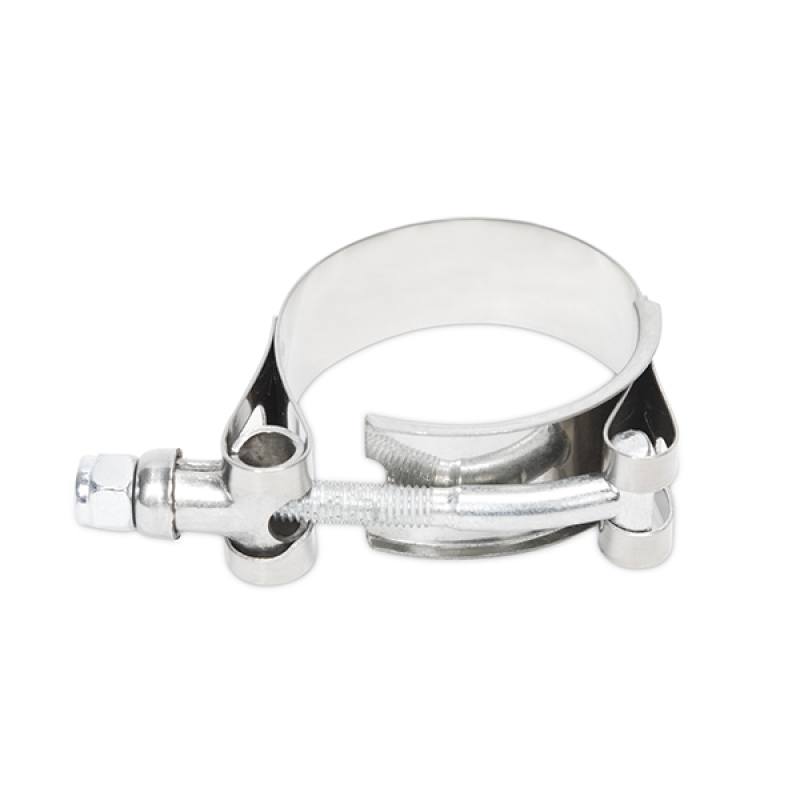

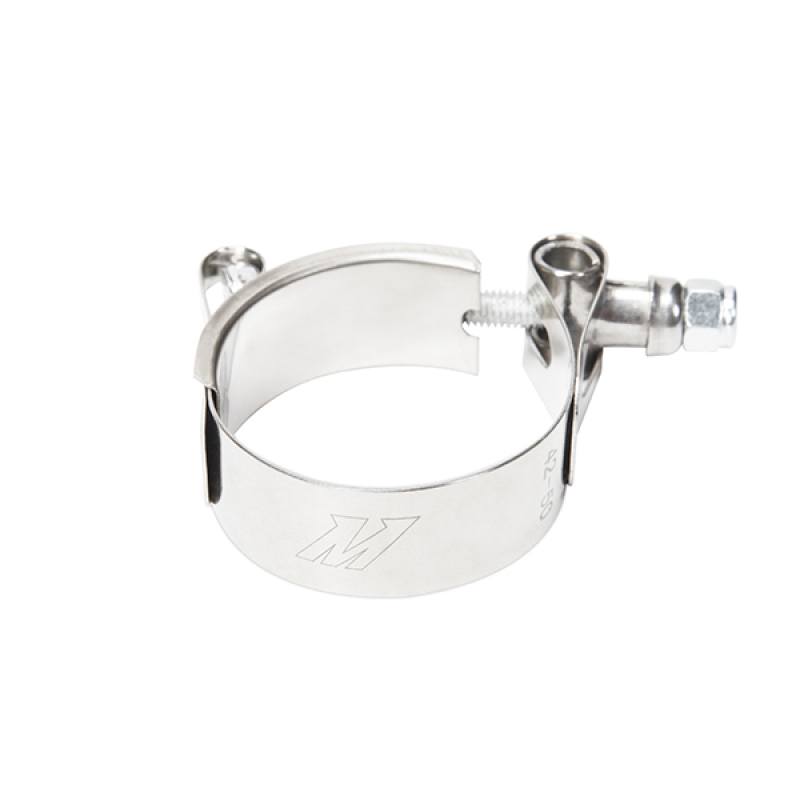

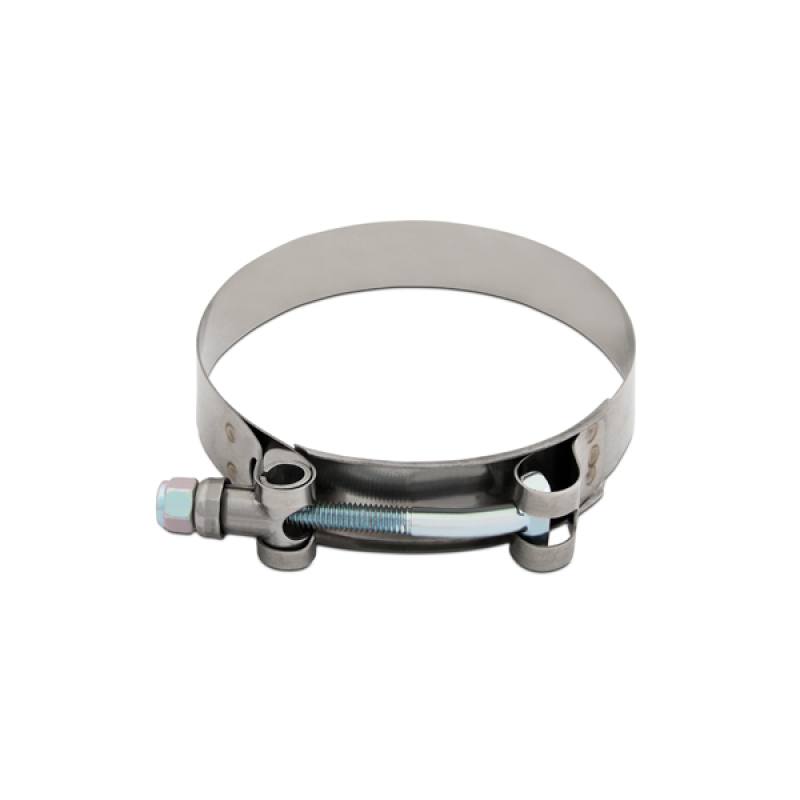

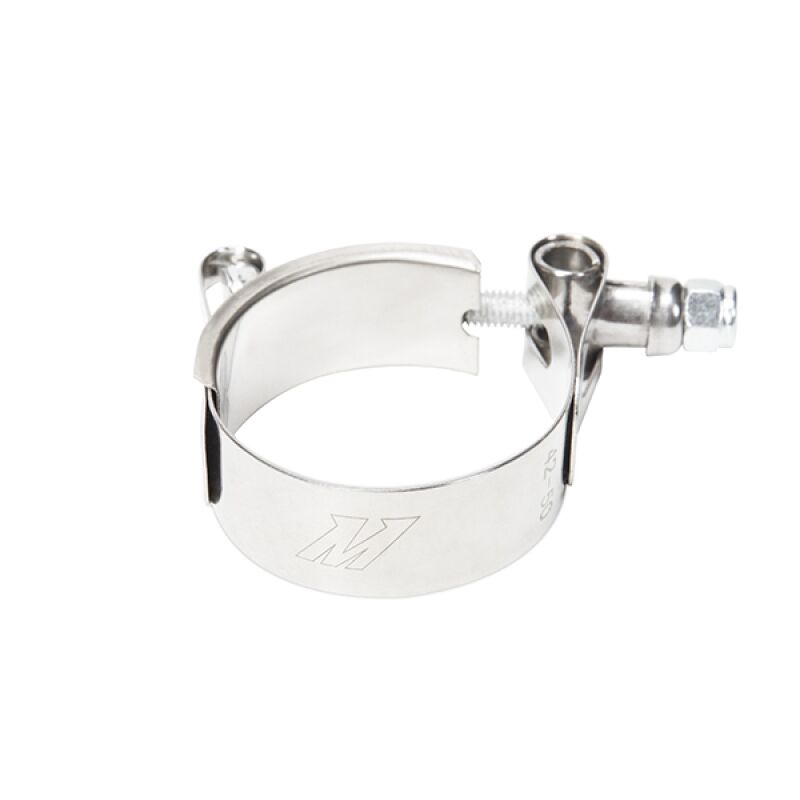

The Mishimoto MMCLAMP-175 is a stainless steel T-bolt clamp engineered for fabrication projects that demand more holding power than a standard worm gear clamp can deliver. Sized to secure diameters from 1.65″ to 1.96″, this premium-grade clamp pairs a T-bolt design with a self-locking nut for a grip that stays tight even under vibration. Built from the same stainless steel used across the Mishimoto clamp lineup, it’s a purpose-built solution for demanding piping, hose, and coupler connections.
Mishimoto Fabrication components are built to solve real installation problems, and this T-bolt clamp is no exception. Where a traditional worm gear clamp can loosen or slip under load, the T-bolt design of this clamp distributes clamping force more evenly around the band, while the included locking nut resists loosening from movement and vibration. The stainless steel construction is intended to resist corrosion longer than zinc-plated alternatives, making it a durable choice for fabrication work where a dependable, reusable seal matters. As with other Mishimoto clamps, this T-bolt clamp is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a universal Mishimoto Fabrication clamp rather than a vehicle-specific part, designed to secure pipes, hoses, and couplers with an outer diameter ranging from 1.65″ (42.01 mm) up to 1.97″ (50.01 mm). Because it isn’t tied to a specific make or model, it can be used across a wide range of fabrication, piping, and hose-clamping projects wherever a clamp of this diameter range is needed.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 1.65″ (42.01 mm) to 1.97″ (50.01 mm)
- T-bolt design provides a strong and secure grip
- Included self-locking nut prevents loosening with movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
- Reusable design
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-175
- Product Type: Fabrication
- Clamp Style: T-Bolt Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Finish: Plain
- Color: Silver
- Grade Type: Premium
- Size: 1.75 in

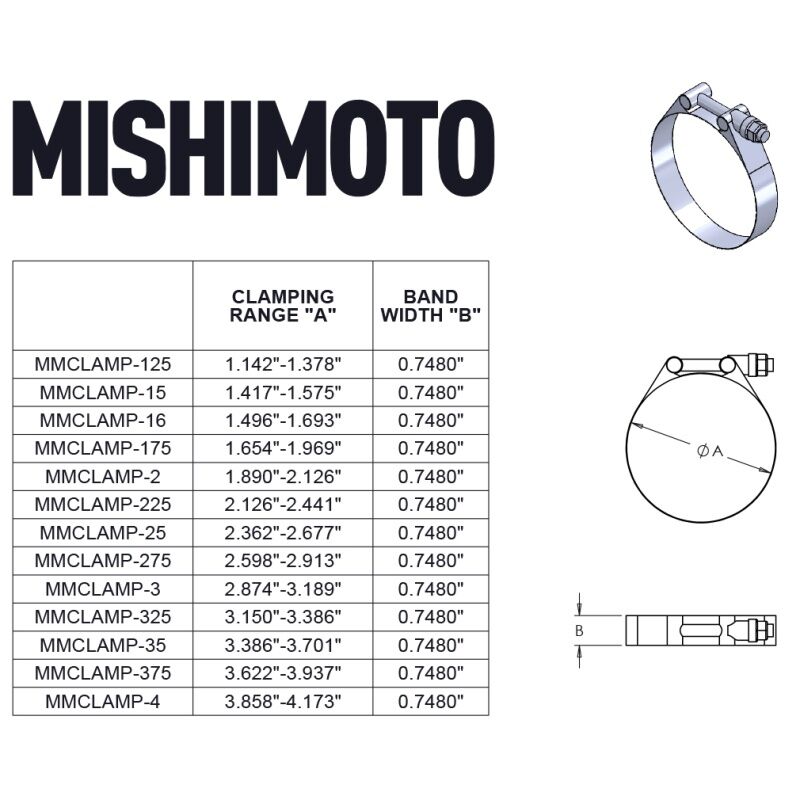

- Minimum Diameter: 1.65 in
- Maximum Diameter: 1.96 in
- Band Width: 0.75 in
- Reusable: Yes
- Recommended Tightening Torque: 27 in-lbs (3 NM)
- SAE Number: N/A
- Includes: (1) Mishimoto Stainless Steel T-Bolt Clamp; Mishimoto Lifetime Warranty
Frequently Asked Questions
What diameter range does the Mishimoto MMCLAMP-175 T-bolt clamp fit?
This clamp secures pipes, couplers, and hoses with an outer diameter from 1.65″ (42.01 mm) up to 1.97″ (50.01 mm), with a listed minimum diameter of 1.65 in and maximum diameter of 1.96 in.
Is the Mishimoto MMCLAMP-175 clamp reusable?
Yes, this T-bolt clamp is reusable.
What material is the MMCLAMP-175 clamp made from?
It is made from stainless steel, with a steel spring, and finished in a plain silver finish.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 27 in-lbs (3 NM).
What comes included with the Mishimoto T-Bolt Clamp?
Each purchase includes one Mishimoto Stainless Steel T-Bolt Clamp and is backed by the Mishimoto Lifetime Warranty. Clamps are sold individually.
Is a colored coating available for this clamp?
An optional wear-resistant titanium nitride gold coating is available and provides unique engine bay styling.
