Description

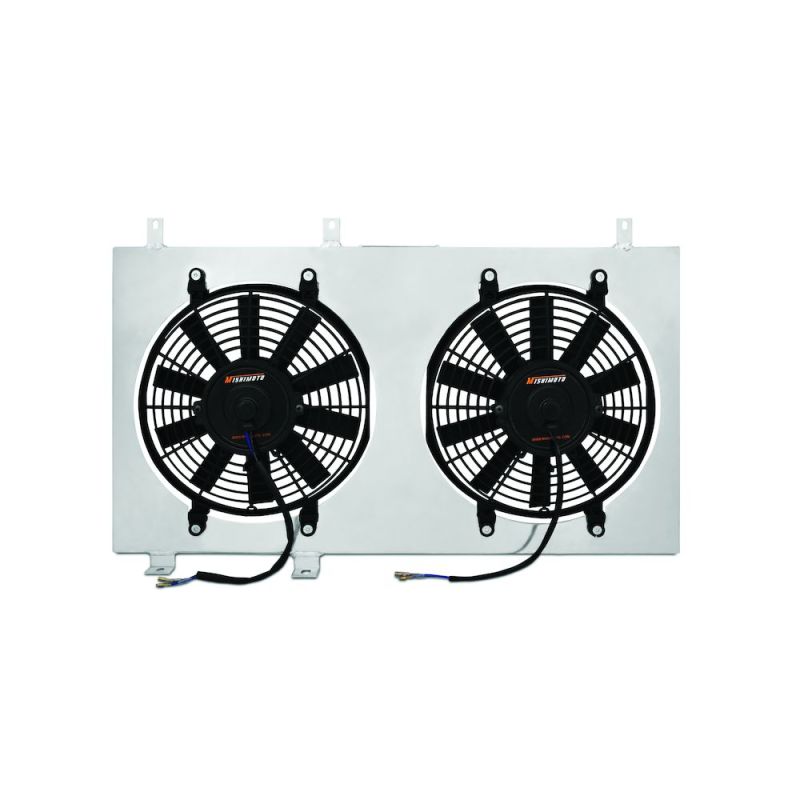

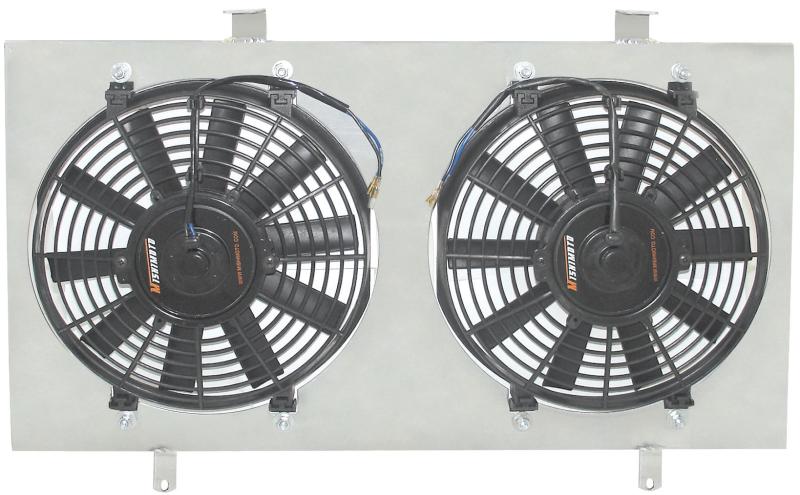

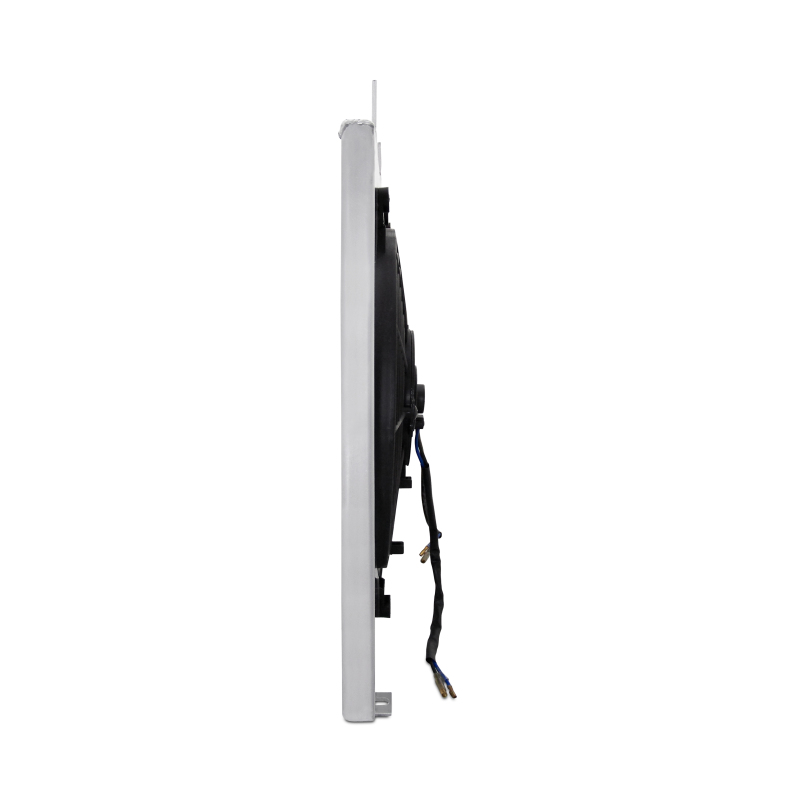

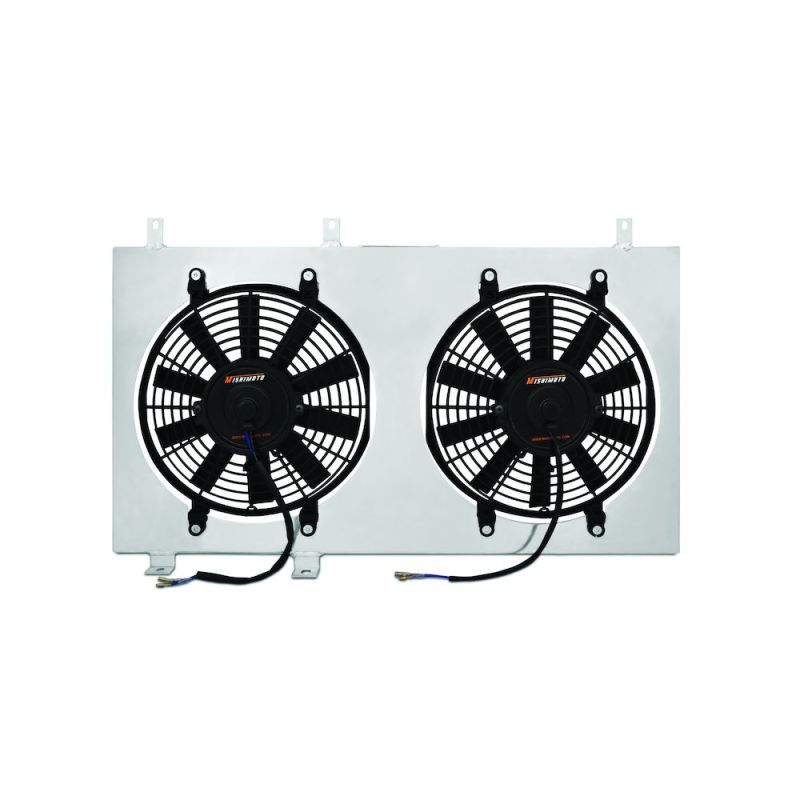

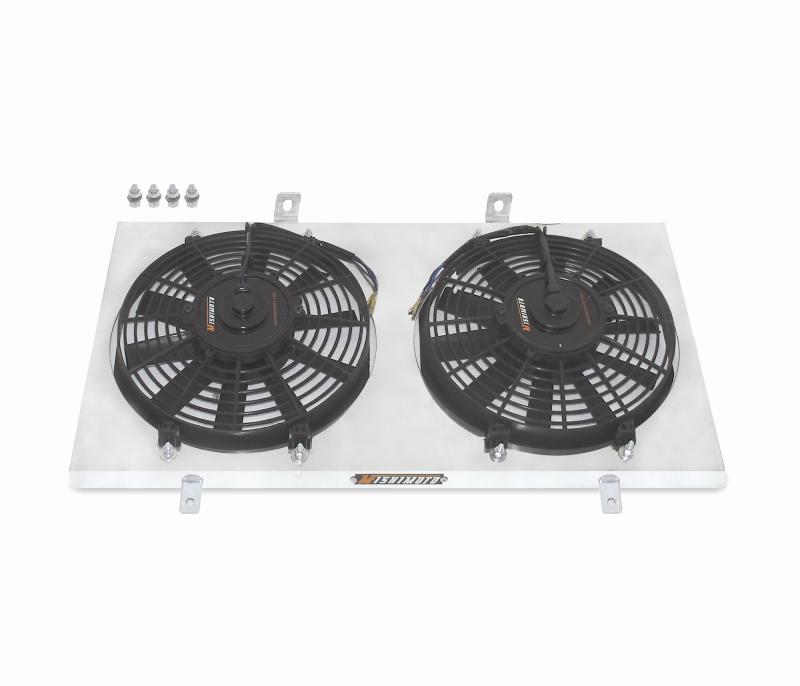

The Mishimoto Toyota MR2 Aluminum Fan Shroud Kit (MMFS-MR2-90) pairs a purpose-built aluminum shroud with two 12-inch Mishimoto slim electric fans capable of moving up to 1150 CFM each. Designed as a performance-grade cooling upgrade, this kit is built to direct more air through the radiator and keep the MR2’s engine bay running cooler under demanding conditions.
Cooling performance depends on getting air efficiently through the radiator core, and this Mishimoto fan shroud kit is engineered to do exactly that. By securing the fan blades in position and channeling airflow more effectively, the shroud helps protect surrounding engine components while the two plug-in electric fans push additional air across the radiator. The aluminum shroud construction keeps the assembly lightweight, and the kit arrives with mounting hardware and a motor already included for a straightforward install.
Vehicle Applications
This fan shroud kit is designed for the 1991 to 1995 Toyota MR2, covering both the Base and Turbo trims for those model years. Mishimoto notes that the kit is intended for turbo applications and is compatible with both OEM and Mishimoto MR2 radiators; some installations may require additional wiring for the fans. Techspec references identify the SW20 chassis and 3SGTE engine code for this application.
Features
- Includes one aluminum fan shroud and two 12-inch Mishimoto slim electric fans
- Each electric fan delivers up to 1150 CFM of airflow
- Plug-in electrical connection with motor included for straightforward installation
- Straight-type plastic fan blades in black, 10 blades per fan
- Aluminum shroud construction helps keep the assembly lightweight
- All mounting hardware is included
- Intended for turbo applications; compatible with OEM and Mishimoto radiators, though fans may require additional wiring
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-MR2-90
- Product Type: Cooling
- Shroud Material: Aluminum
- Housing Finish: Aluminum
- Shroud Color: Silver
- Grade Type: Performance
- Width: 3.5 in
- Height: 14.6 in
- Depth: 3.5 in
- Length: 26.22 in
- Fan 1 Diameter: 12 in
- Fan 2 Diameter: 12 in
- Blade Quantity (per fan): 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Maximum CFM (each fan): 1150
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Blade Included: Yes
- Mounting Hardware Included: Yes
- Control Module Included: No
- Fan Clutch Mounted: No
- Engine Code: 3SGTE
- Chassis Code: SW20
Frequently Asked Questions
What is included in the Mishimoto MR2 fan shroud kit (MMFS-MR2-90)?
The kit includes one aluminum fan shroud, two 12-inch Mishimoto slim electric fans, mounting hardware, and coverage under the Mishimoto Lifetime Warranty.
Which Toyota MR2 models does this fan shroud fit?
This kit fits the 1991-1995 Toyota MR2, including both Base and Turbo trims.
How much airflow do the included fans provide?
Each of the two 12-inch electric fans is rated to deliver up to 1150 CFM.
Will I need to do any additional wiring for installation?
According to Mishimoto’s notes, this kit is intended for turbo applications and is compatible with OEM and Mishimoto radiators, though fans may require additional wiring.
What material is the fan shroud made from?
The shroud is made from aluminum, with an aluminum housing finish and a silver shroud color.
Does this fan shroud kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
