Description

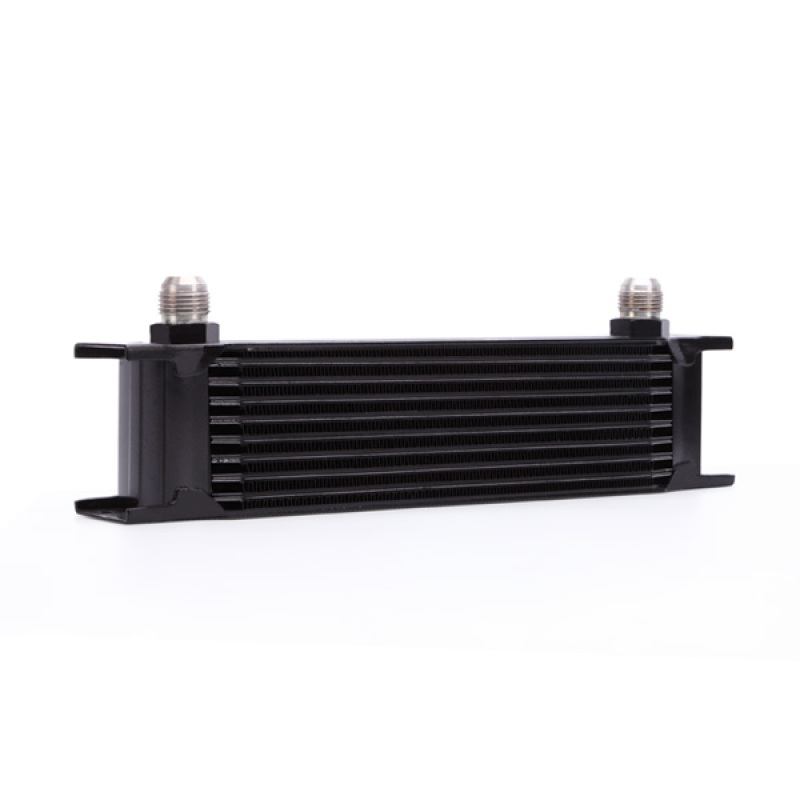

The Mishimoto Universal 10-Row Oil Cooler Kit, part number MMOC-UBK, is the black, non-thermostatic version of Mishimoto’s bar-and-plate performance oil cooler system. Built around a 10-row stacked-plate core finished in a stealth black anodized coating, this kit ships complete with preassembled stainless steel braided lines and AN-flare hardware so it can be installed across a wide range of vehicles rather than a single application.
Keeping oil temperatures under control is critical for any enthusiast pushing a high-performance engine, and the Mishimoto oil cooler kit is engineered to protect essential high-wear components such as piston rings, skirts, and cam bearings by delivering consistently cooler oil to the engine. The 10-row bar-and-plate core is built to withstand high fluid pressures while minimizing pressure loss, and the included 3/4-in -16 and M20 x 1.5 sandwich plate adapters allow this Mishimoto cooler kit to support fitment across most makes and models. Every hose is preassembled with -10AN fittings and dowty seals for durable, leak-free connections, making this a genuinely universal oil cooler kit rather than a single-vehicle part.
Vehicle Applications
Because this is a universal-fit Mishimoto cooler, no specific make, model, or engine application is required for installation. The included M20 x 1.5 and 3/4-in -16 UNF sandwich plate adapters, along with the -10AN braided hose fittings, are designed to accommodate most makes and models, giving installers the hardware needed to adapt the kit to a broad range of engine bays rather than a fixed factory fitment.
Features
- Universal fitment for installation across most makes and models
- 10-row bar-and-plate stacked-plate core withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
- Includes a standard billet anodized aluminum sandwich plate (this Black Cooler option is the non-thermostatic version; a thermostatic sandwich plate is available as an option for additional operating temperature control)
- Preassembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak-free connections
- Includes 3/4-in -16 and M20 x 1.5 sandwich plate adapters that support fitment for most makes and models
- Available in Sleek Silver or Stealth Black finishes (this listing is the Stealth Black version)
- Backed by a Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-UBK
- Product Type: Cooling
- Color: Black
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Row Quantity: 10
- Core Height: 2.76 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Core Color: Black
- Kit Includes: 10-row oil cooler, 4ft stainless steel braided hose with -10AN fittings (straight and 90-degree swivel), 5ft stainless steel braided hose with -10AN fittings (straight and 90-degree swivel), -10AN fittings, dowty oil seals, large O-ring, 1/8-in NPT Allen key plugs, sandwich plate adapters, and Mishimoto Lifetime Warranty
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb maximum)
Frequently Asked Questions
Is the Mishimoto MMOC-UBK oil cooler kit thermostatic?
This MMOC-UBK option is the black, non-thermostatic version of the Mishimoto Universal 10-Row Oil Cooler Kit. Mishimoto also offers an optional thermostatic sandwich plate for safe daily-driver warm up and additional operating temperature control.
What is included with the Mishimoto Universal 10-Row Oil Cooler Kit?
The kit includes a 10-row oil cooler, a 4ft stainless steel braided hose and a 5ft stainless steel braided hose (each with -10AN fittings, including one straight and one 90-degree swivel fitting), -10AN fittings, dowty oil seals, a large O-ring, 1/8-in NPT Allen key plugs, sandwich plate adapters, and a Mishimoto Lifetime Warranty.
Will this oil cooler kit fit my vehicle?
This is a universal fitment kit. It includes 3/4-in -16 UNF and M20 x 1.5 sandwich plate adapters designed to support installation on most makes and models.
What type of core does the Mishimoto MMOC-UBK use?
It uses a 10-row bar-and-plate performance-grade core finished in black anodized aluminum, built to withstand high fluid pressures while reducing oil temperatures and minimizing pressure loss.
What fitting type does the Mishimoto oil cooler kit use?
Both the inlet and outlet use male AN Flare fittings, and the kit’s hoses are preassembled with -10AN fittings and dowty seals for leak-free connections.
What is the recommended torque for installing the fittings?
Mishimoto recommends a torque specification of 15-25 lb-ft for all straight fittings and banjo bolts, and advises not to exceed the maximum torque rating of 35 ft-lb.
