Description

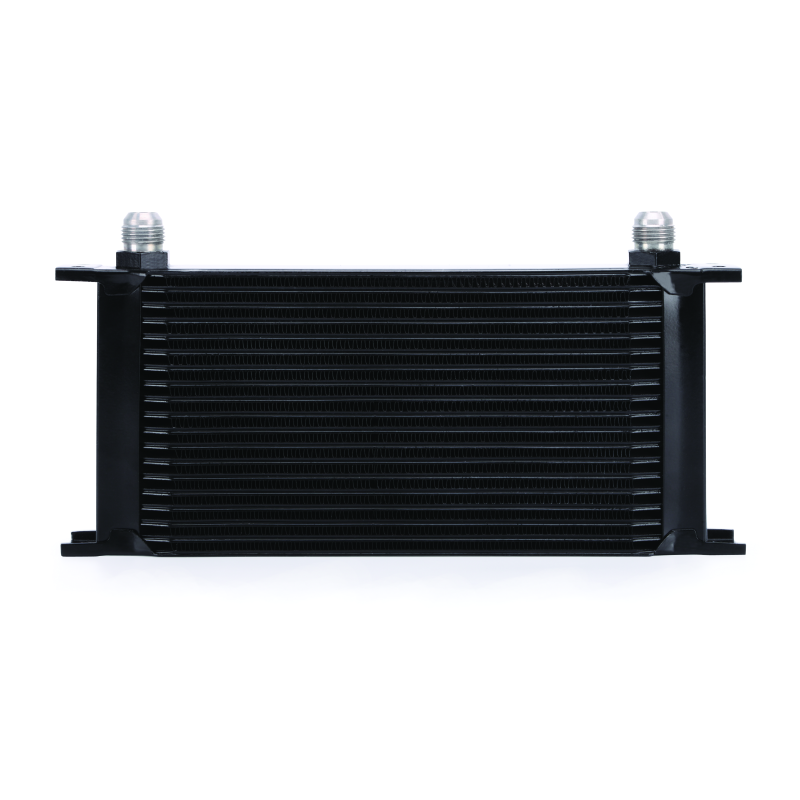

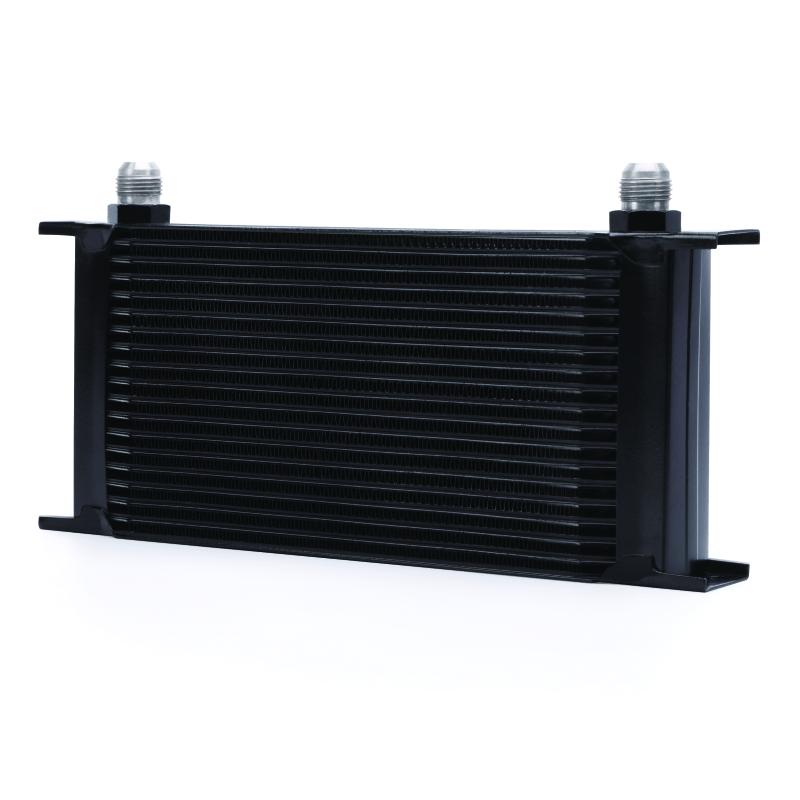

The Mishimoto Universal 19 Row Oil Cooler (MMOC-19BK) is a stealth black, anodized bar-and-plate oil cooler built with a 19-row core for serious heat rejection. Unlike the silver, gold, red, white, and blue versions in the lineup, this Stealth Black finish skips the Mishimoto logo entirely for a cleaner, sleeper look under the hood.
Engine oil that runs too hot breaks down faster and loses its ability to protect critical, high-wear components. This Mishimoto oil cooler is engineered to pull heat out of the oil circuit so components like piston rings, skirts, and cam bearings stay properly lubricated even when a car is being pushed hard. As part of Mishimoto’s Cooling lineup, this oil cooler kit uses a bar-and-plate core construction rated for Performance-grade duty, and its design is focused on delivering effective temperature reduction while keeping pressure loss to a minimum so oil flow and pressure stay consistent under load.
Vehicle Applications
This Mishimoto oil cooler is a universal-fit unit rather than a vehicle-specific application, making it a flexible option for enthusiasts installing an auxiliary oil cooler on a performance build where a dedicated kit isn’t required. Because it ships as a standalone cooler with -10AN male AN Flare fittings on both the inlet and outlet, it can be plumbed into a wide range of oil cooling setups as part of a custom installation.
Features
- 19-row stacked-plate, bar-and-plate core for optimal fluid temperature reduction
- Helps extend the life of high-wear engine components by keeping oil temperatures in check
- Engineered for minimal pressure loss through the core
- Stealth Black anodized finish with no Mishimoto logo (logo appears on one side of the Silver, Gold, Red, White, and Blue color options)
- -10AN male, AN Flare inlet and outlet fittings
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-19BK
- Color / Core Color: Black
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Row Quantity: 19
- Core Height: 5.43 in
- Core Width / Core Length: 11 in
- Core Thickness: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 6.44 in
- Overall Width: 1.97 in
- Inlet Fitting Type: AN Flare, -10AN, Male
- Outlet Fitting Type: AN Flare, -10AN, Male
- Inlet Outside Diameter: 0.625 in
- Outlet Outside Diameter: 0.625 in
- Includes: Mishimoto Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What color is the Mishimoto MMOC-19BK oil cooler?
The MMOC-19BK is finished in anodized Black, part of the Mishimoto Universal 19 Row Oil Cooler lineup that also comes in Sleek Silver, Bold Gold, Red, White, or Blue.
Does the black oil cooler have the Mishimoto logo on it?
No. According to Mishimoto, only the silver, gold, red, white, and blue oil coolers have the Mishimoto logo on one side; the stealth black option does not have a logo.
What type of fittings does this oil cooler use?
It uses -10AN male AN Flare fittings on both the inlet and outlet, each with a 0.625 in outside diameter.
What is the core construction and row count?
It is a bar-and-plate core with 19 rows, rated as a Performance grade cooler.
What are the dimensions of the MMOC-19BK cooler?
The core measures 5.43 in high, 11 in wide, and 1.97 in thick. Overall dimensions are 12.95 in height, 6.44 in length, and 1.97 in width.
What is included with the Mishimoto Universal 19 Row Oil Cooler?
The package includes the Mishimoto Oil Cooler and is backed by the Mishimoto Lifetime Warranty.
