Description
The Mishimoto Universal Muffler, part number MMEXH-MF-25CCBR, is an oval-body 304 stainless-steel muffler engineered with a 2.5-inch inside diameter center inlet and a 2.5-inch inside diameter center outlet, making it a straightforward drop-in for exhaust systems built around that piping size. Its perforated, fiberglass-packed, straight-through core is designed to tone down exhaust volume while still letting the engine growl and breathe freely, and the brushed satin-finished stainless body brings a clean, purposeful look to the underside of any car or truck.
This Mishimoto muffler is built for enthusiasts who want their exhaust to sound intentional rather than obnoxious. Because the core is straight-through rather than baffled, exhaust gases keep moving efficiently even as some of the raw volume is dialed back, so you get a fuller note without the drone or restriction that can come with cheaper designs. The 304 stainless-steel body and precision TIG welds are built to stand up to road grime, moisture, and heat cycling, and the satin brushed finish keeps that appearance consistent over time. As a universal-fit muffler with a center inlet and center outlet, it’s meant to slot into custom or replacement exhaust builds where a 2.5-inch pipe diameter and center-to-center layout are needed.
Vehicle Applications
This is a universal-fit Mishimoto muffler rather than a vehicle-specific part, so it is designed to work with any car or truck exhaust system built around a 2.5-inch inside diameter pipe with a center inlet and center outlet configuration. Because the connections are slip-fit, it’s intended to be welded or clamped into an existing 2.5-inch exhaust layout, making it a flexible choice for custom exhaust fabrication, muffler replacement, or upgrade projects on vehicles that already run 2.5-inch piping.
Features
- Universal muffler reduces exhaust volume without restricting flow

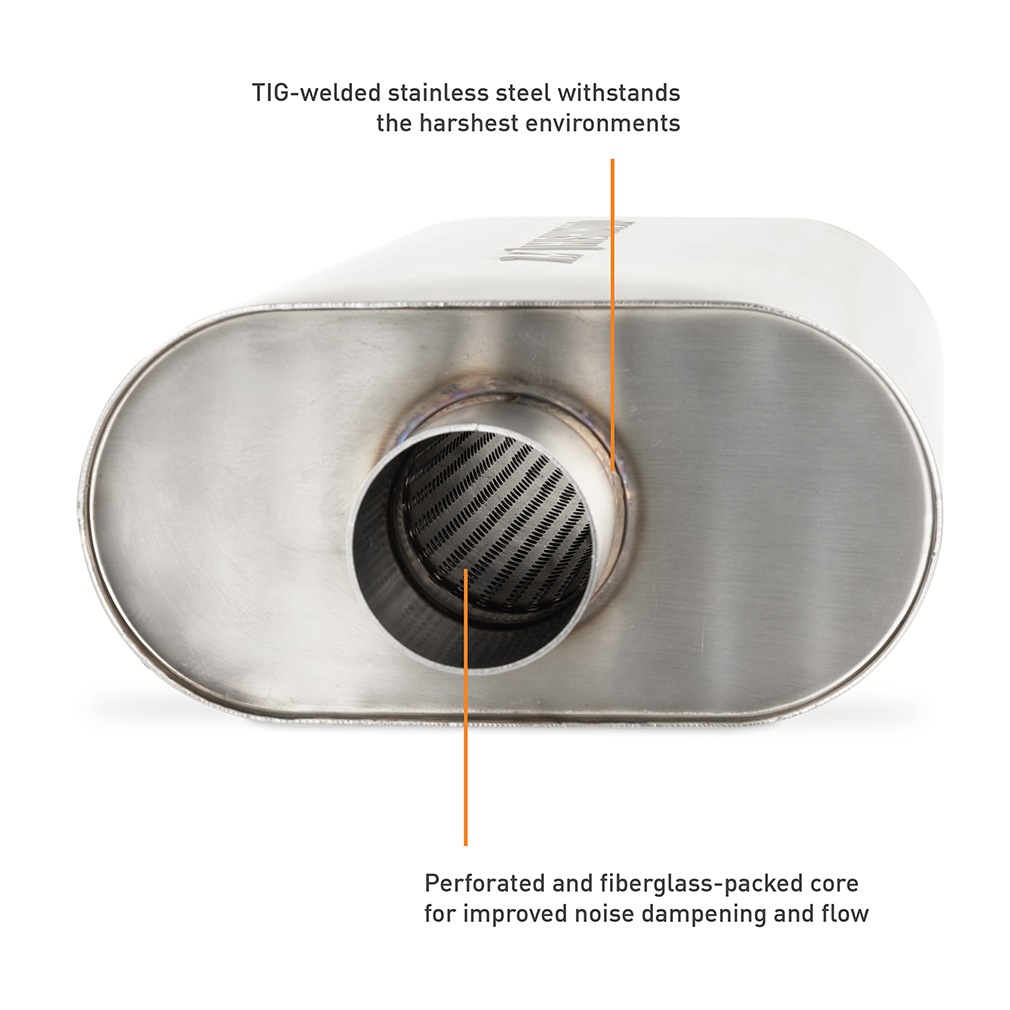

- Straight-through perforated core for improved sound and performance
- 2.5-inch inner diameter inlet/outlet for easy installation over existing piping
- Center inlet and outlet for easy pipe routing

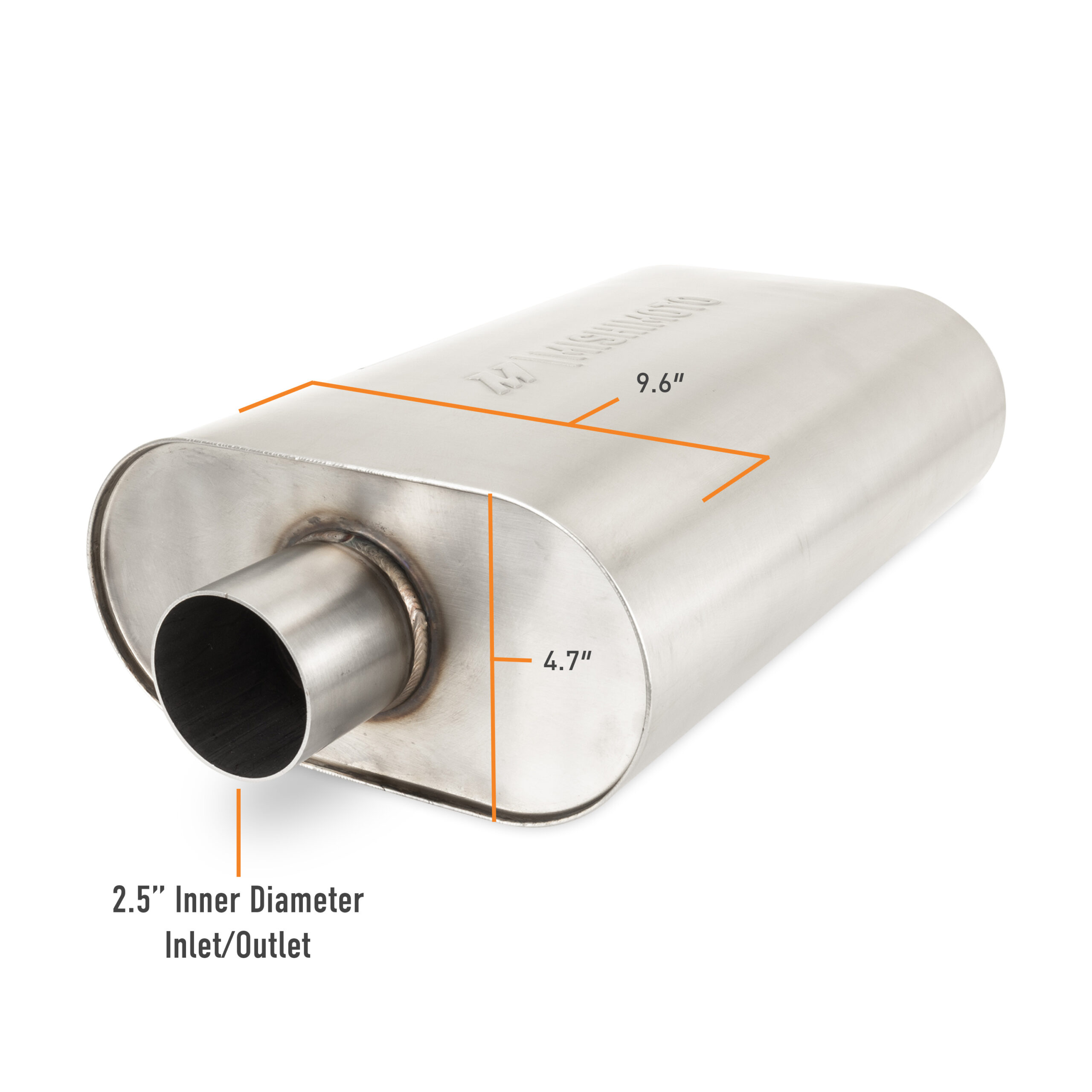

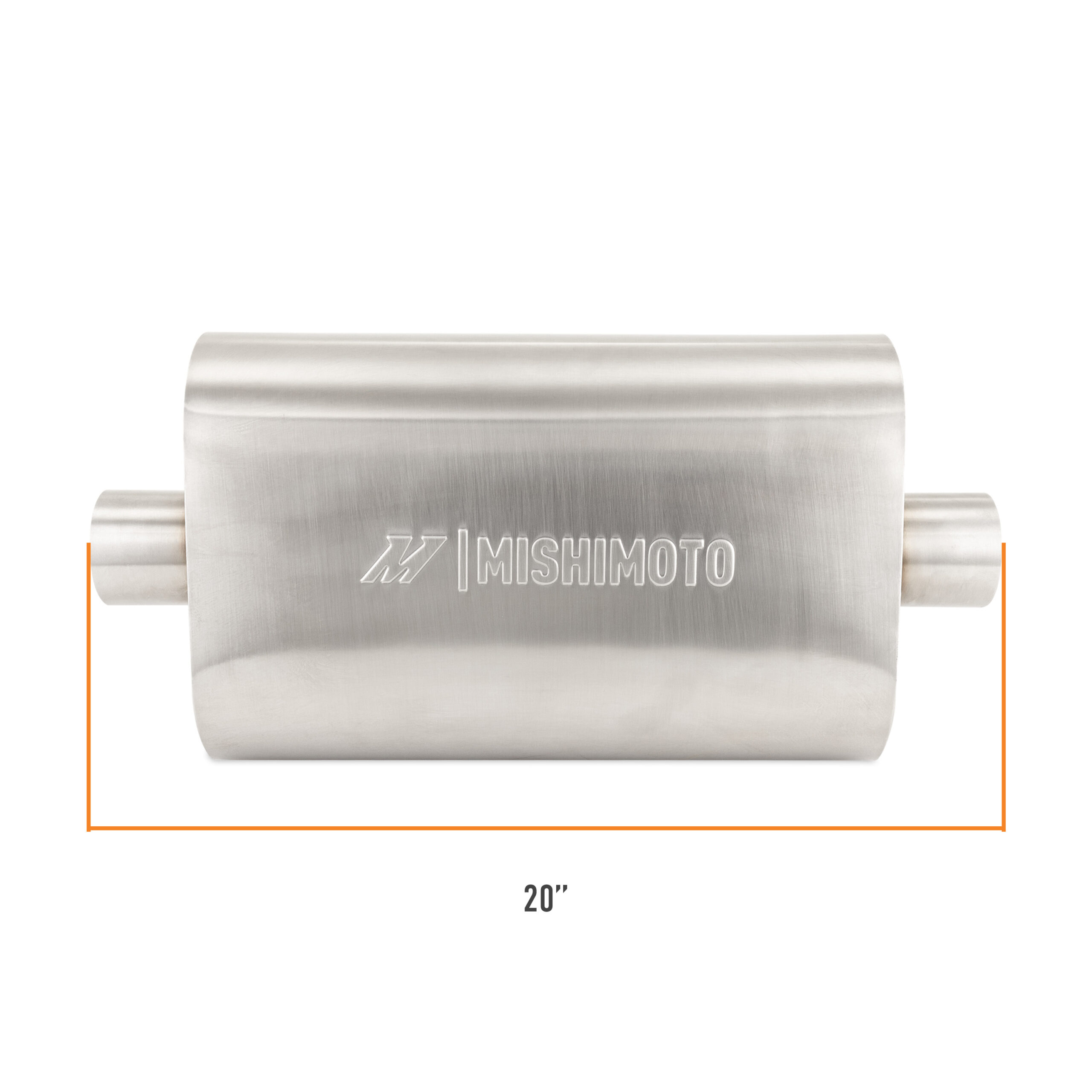

- Muffler body measures 20in L x 9.6in W x 4.7in H
- 304 stainless-steel body and precision TIG welds resist corrosion
- Brushed satin finish for a sleek look
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-MF-25CCBR
- Body Material: 304 Stainless Steel
- Body Shape: Oval
- Color: Natural
- Finish: Satin
- Inlet Location: Center
- Outlet Location: Center
- Inlet Inside Diameter: 2.5 in
- Outlet Inside Diameter: 2.5 in
- Pipe Diameter: 2.5 in
- Body Length: 20 in
- Body Width: 9.6 in
- Body Height: 4.7 in
- Weight: 8.5 lbs
- Inlet Connection: Slip-Fit
- Grade Type: Performance
- Universal or Specific Fit: Universal
- Hanger Included: No
- Heat Shield Attached: No
- Reversible: No
- Tunable: No
- Includes: (1) Mishimoto Universal Muffler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What material is the Mishimoto MMEXH-MF-25CCBR muffler made from?
It is built from 304 stainless steel with a brushed satin finish and precision TIG welds.
What size inlet and outlet does this Mishimoto muffler use?
It has a 2.5-inch inside diameter center inlet and a 2.5-inch inside diameter center outlet, with a slip-fit inlet connection.
Is this muffler a universal fit or made for a specific vehicle?
It is a universal-fit muffler designed to work with any exhaust system built around a 2.5-inch center-to-center pipe layout.
What are the dimensions of this muffler’s body?
The muffler body measures 20 inches long, 9.6 inches wide, and 4.7 inches tall, and it weighs 8.5 lbs.
Does this muffler include a hanger or heat shield?
No, a hanger is not included and no heat shield is attached.
What warranty comes with this Mishimoto muffler?
It is backed by the Mishimoto Lifetime Warranty.
