Description

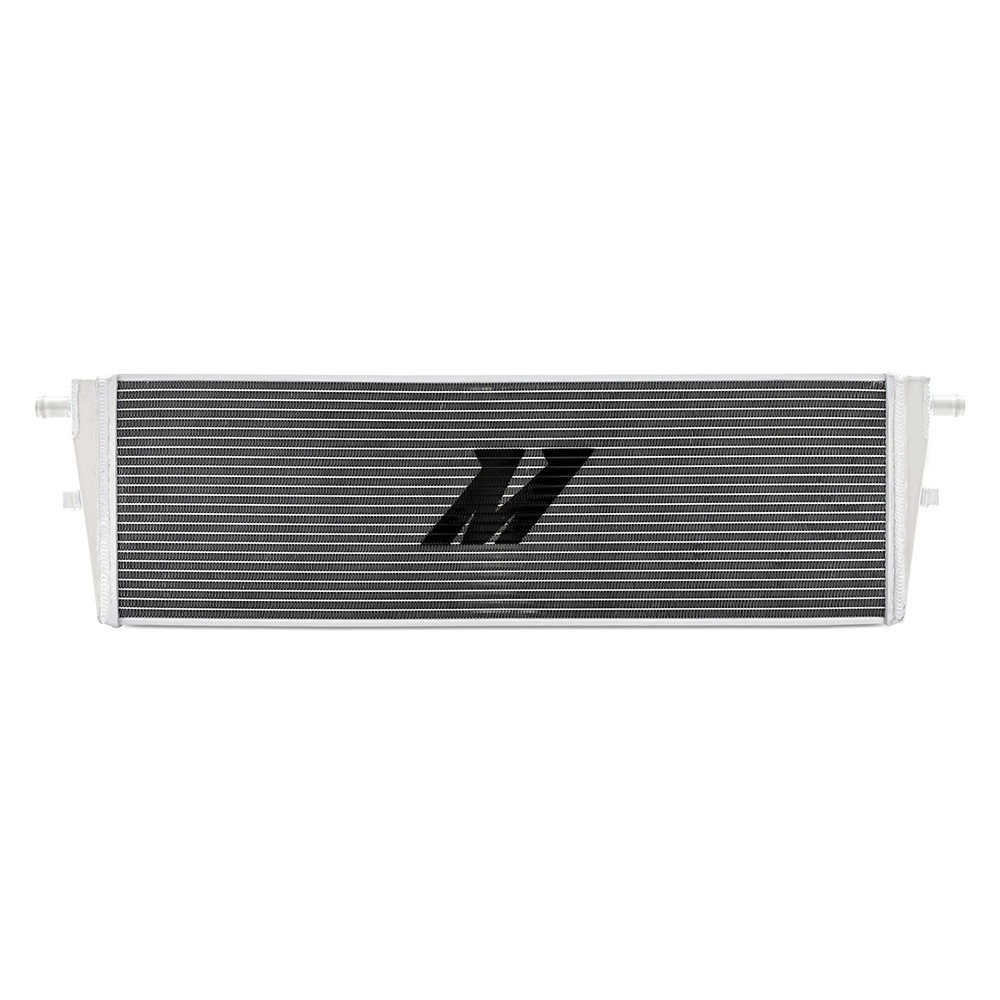

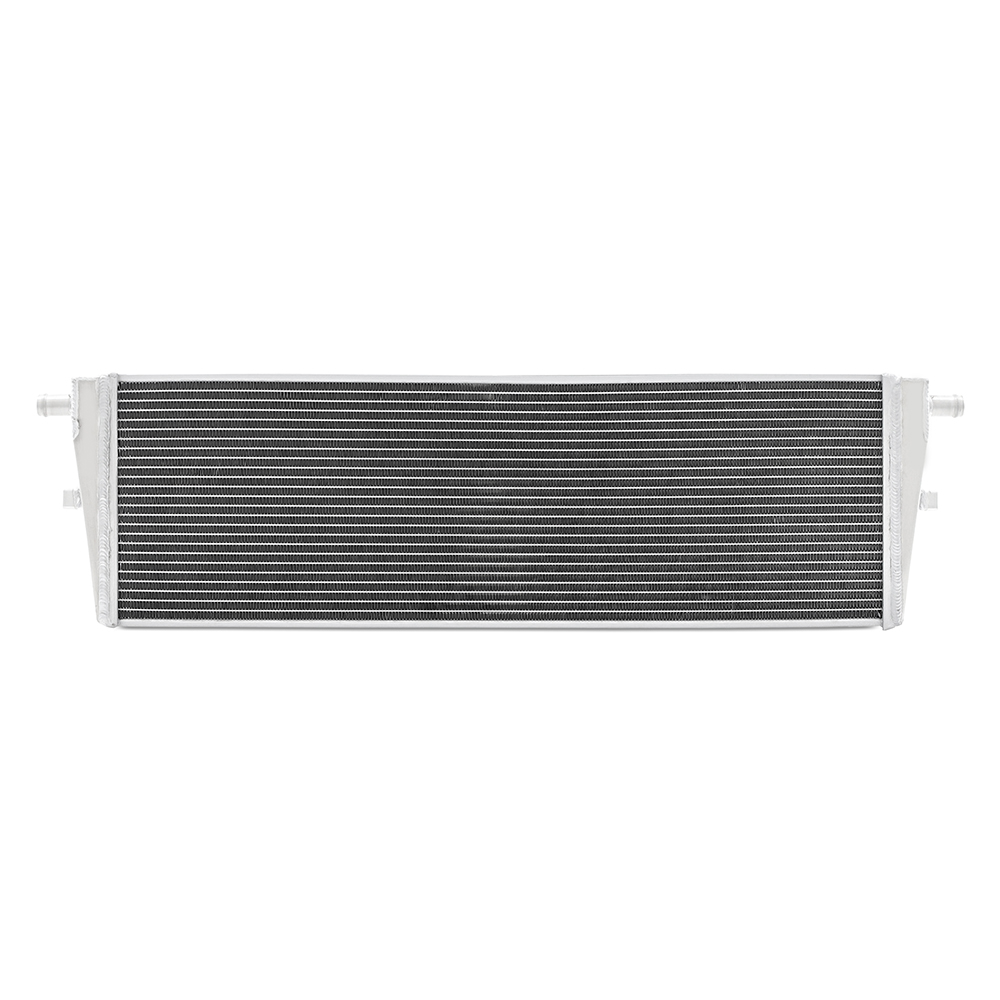

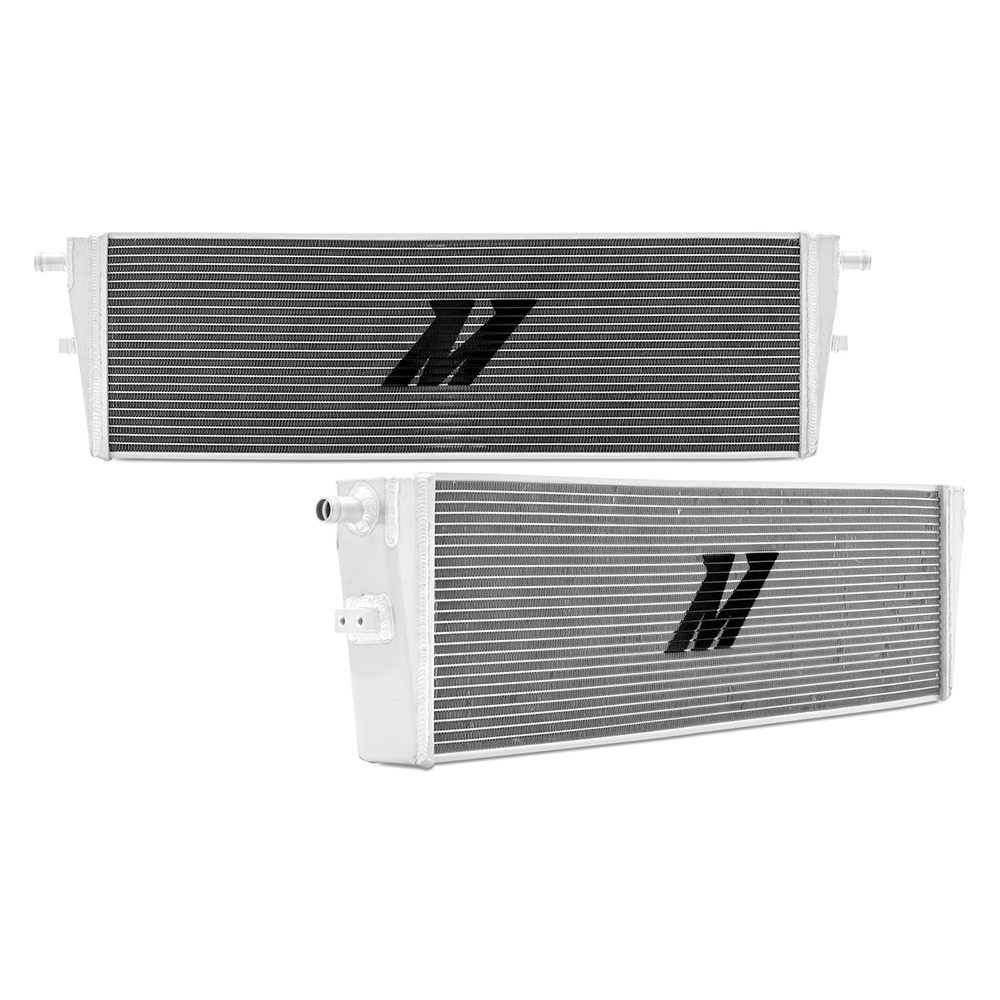

The Mishimoto Universal Air-to-Water Heat Exchanger (MMRAD-HE-02) is a purpose-built, three-row aluminum core designed to pull heat out of your air-to-water intercooler circuit before it ever reaches the charge-air cooler. Rated to provide effective cooling support for charge-air cooling systems up to 750 hp, this heat exchanger is engineered for forced-induction builds that demand consistent coolant temperatures under boost. It’s one of four universal Mishimoto heat exchangers – each scaled to support builds up to 1,500 hp – with the MMRAD-HE-02 offering a 3-row core configuration for serious street and track applications.
Built entirely from TIG-welded aluminum, this Mishimoto cooling component is engineered to handle the pressure and heat cycling that come with high-boost, liquid-to-air intercooling setups. Its strategically designed 3-row cross-flow core is aimed at maximizing flow and heat dissipation, while bead-rolled 3/4-in inlet and outlet fittings promote leak-free connections to your existing plumbing. Robust 1/2-in thick threaded mounting bosses on each end tank simplify installation into a custom air-to-water intercooler system, and because it’s a universal-fit heat exchanger, it can be integrated into a wide variety of turbocharged builds rather than being tied to one specific vehicle. Backed by the Mishimoto Lifetime Warranty, this heat exchanger is built to serve as a long-term centerpiece of your charge-air cooling system.
Vehicle Applications
The Mishimoto MMRAD-HE-02 Air-to-Water Heat Exchanger is a universal-fit cooling component rather than a vehicle-specific part – no particular make, model, chassis, or engine code is required for installation. It is designed to be plumbed into any custom air-to-water intercooler system, making it suitable for turbocharged builds across a wide range of platforms where a liquid-to-air heat exchanger is needed to support charge-air cooling up to 750 hp.
Features
- Universal heat exchanger for use with air-to-water intercooler systems
- Provides effective cooling support for charge-air cooling systems up to 750 hp
- Strategically designed 3-row core offers maximum flow and heat dissipation

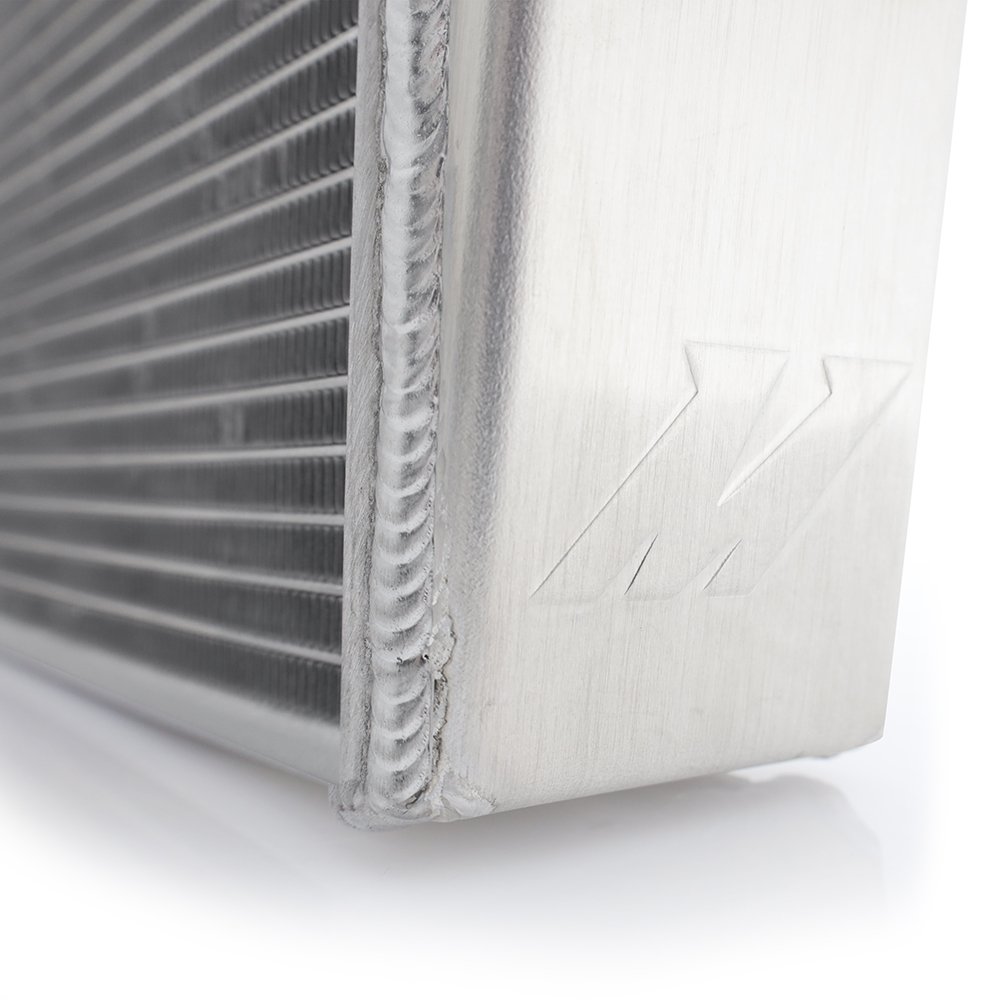

- All-aluminum TIG-welded construction for superior strength and durability

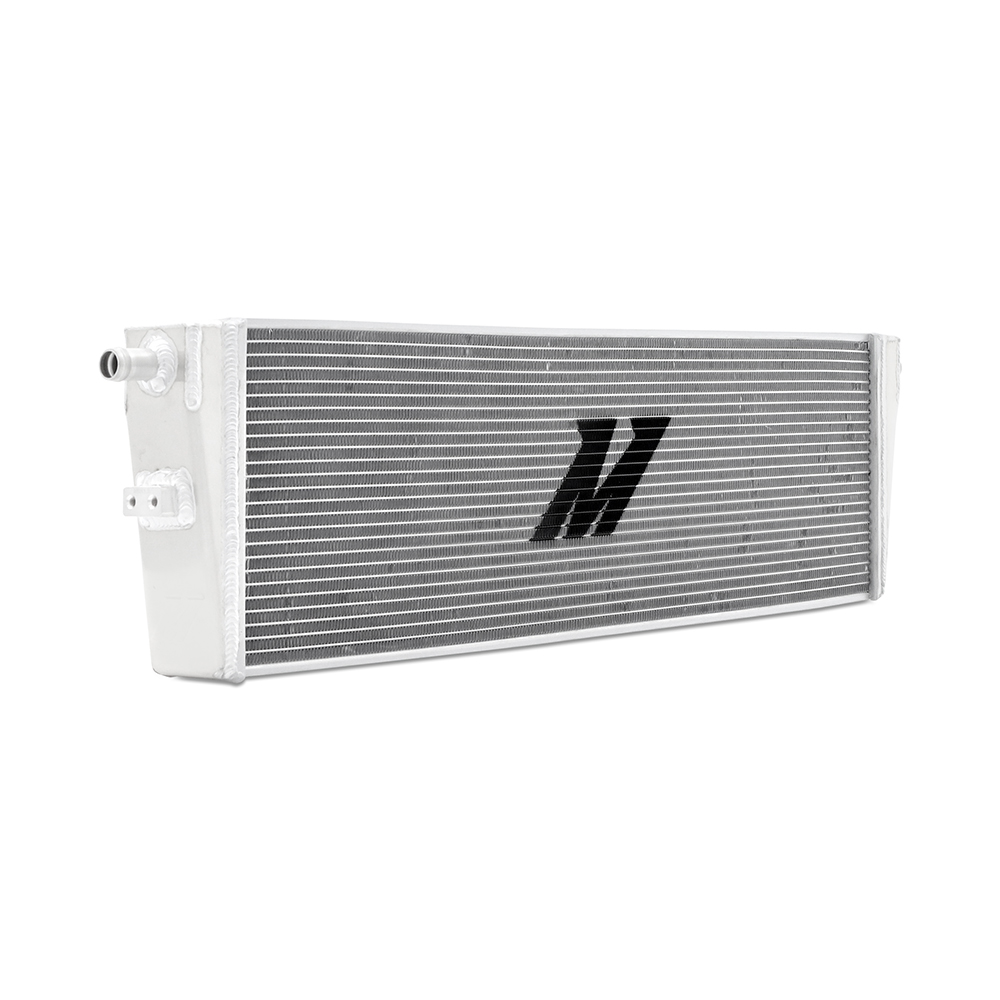

- Robust 1/2-in thick universal mounting bosses on each end tank
- Bead-rolled 3/4-in inlet and outlet provide a leak-free connection
- Cross-flow core design with Top Left inlet and Top Right outlet
- Uncoated aluminum finish

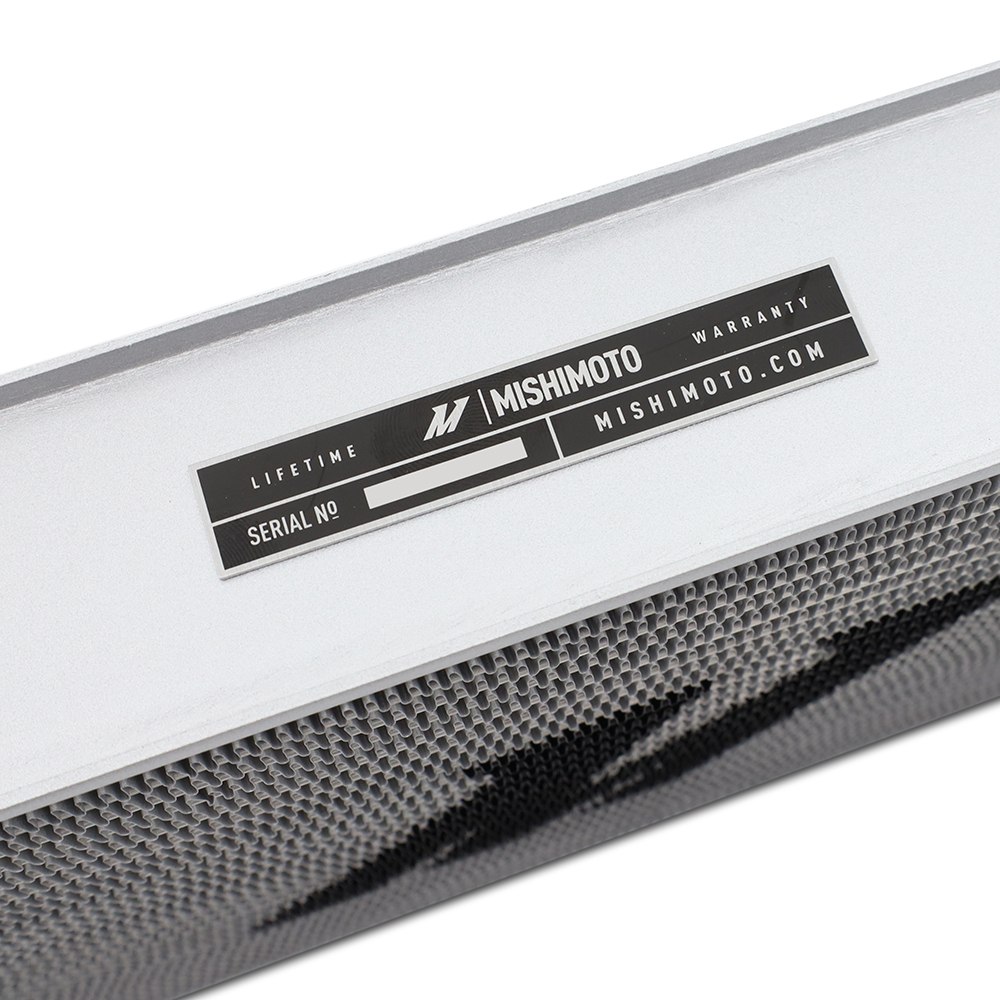

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Finish: Uncoated
- Core Configuration: 3-row, cross-flow
- Core Length: 25.98 in
- Core Height: 7.81 in
- Core Thickness: 2.04 in
- Overall Length: 31.85 in
- Overall Height: 8.55 in
- Overall Width: 2.67 in
- Inlet Location: Top Left
- Outlet Location: Top Right
- Fluid Capacity: 0.4 gal
- Drain Plug Included: No
- Radiator Cap Included: No
- Transmission Oil Cooler Included: No
- Mounting Point Thread Size: M6x1.0
- Includes: Mishimoto Heat Exchanger, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the Mishimoto MMRAD-HE-02 heat exchanger used for?
It’s a universal air-to-water heat exchanger designed to reduce coolant temperatures within a liquid-to-air intercooler system before that coolant reaches the intercooler.
How much horsepower can this heat exchanger support?
The MMRAD-HE-02 is designed to provide effective cooling support for charge-air cooling systems up to 750 hp.
What is the core configuration of this heat exchanger?
It uses a strategically designed 3-row, cross-flow aluminum core built for maximum flow and heat dissipation.
Does this heat exchanger fit a specific vehicle?
No, it’s a universal-fit component intended for custom air-to-water intercooler systems rather than a specific make or model.
What size are the inlet and outlet fittings?
The heat exchanger features bead-rolled 3/4-in inlet and outlet fittings for leak-free connections.
Does it include a drain plug or radiator cap?
No, this heat exchanger does not include a drain plug or radiator cap.
