Description

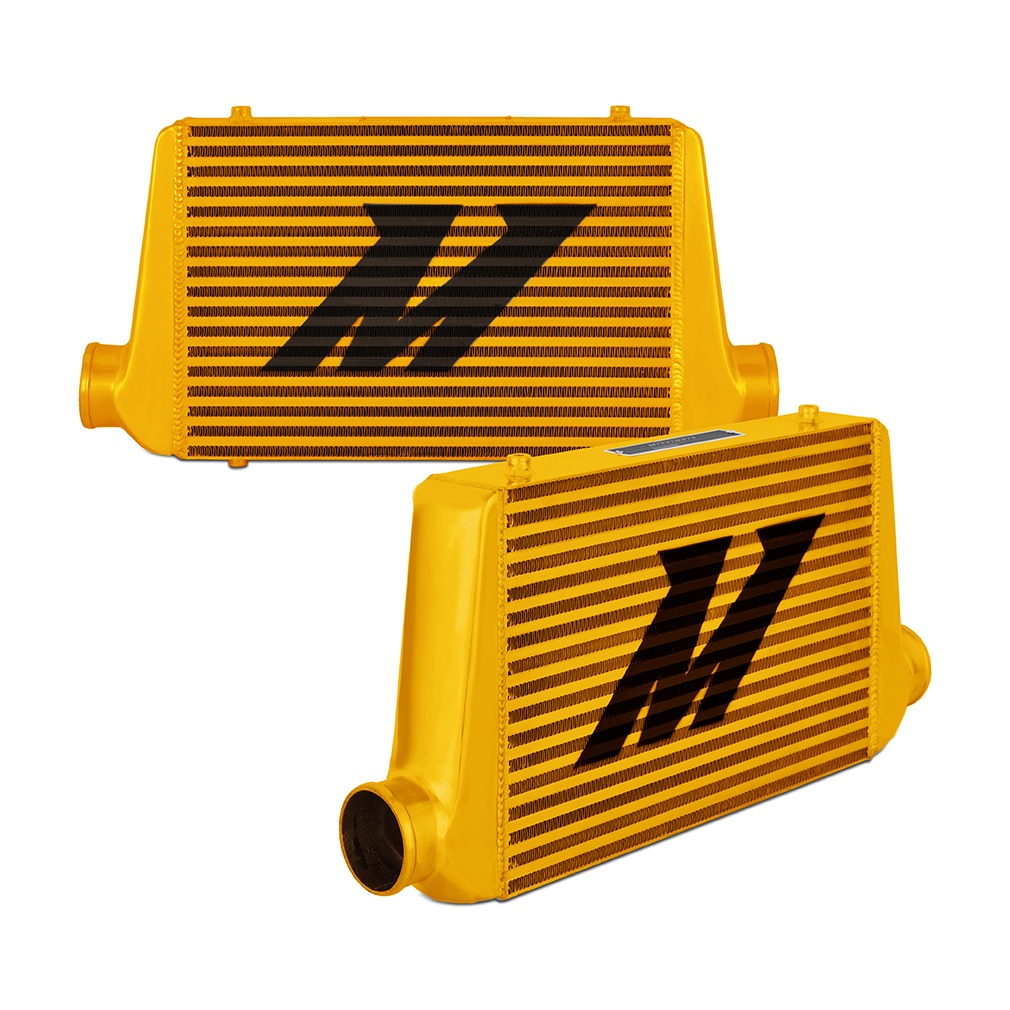

The Mishimoto MMINT-UGG is a universal front-mount intercooler built for smaller turbo setups that still demand serious cooling capacity. Finished in an all-gold coating with the Mishimoto logo stamped on just one side for a sleeper look, this bar-and-plate core unit is TIG welded from 6061 aluminum for a clean, durable build that stands apart from typical black or polished intercooler offerings.
As a dedicated forced induction component, this intercooler is engineered to keep intake air temperatures in check as boost pressure climbs, which is exactly what a forced induction system needs to perform consistently. The bar-and-plate core promotes strong heat transfer to help pull heat out of compressed air before it reaches the engine, while the robust, one-piece cast aluminum end tanks are built to withstand high boost pressures without flexing. Whether you’re upgrading an existing induction system or building out a performance induction setup from scratch, the MMINT-UGG gives smaller turbo applications a real path to improved, consistent cooling under load.
Vehicle Applications
This is a universal-fit intercooler rather than a vehicle-specific unit, so it isn’t tied to a particular make, model, or year. Instead, Mishimoto designed it around four M8 x 1.25 threaded universal mounting points, allowing it to be mounted into a wide range of smaller turbo and forced induction builds where a front-mount intercooler of this size and shape is needed.
Features
- Durable bar-and-plate core provides superior heat transfer while effectively reducing intake air temperatures
- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Four M8 x 1.25 threaded universal mounting points for a universal fit
- Constructed from durable 6061 aluminum
- Precision TIG-welded joints won’t crack under pressure
- Gold-coated finish with the Mishimoto logo on only one side for a sleeper appearance
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-UGG
- Product Type: Forced Induction
- Type / Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Gold
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Overall Length: 24.5 in
- Overall Height: 13.1 in
- Core Length: 17.5 in
- Core Height: 11.75 in
- Core Thickness: 2.76 in
- Maximum Recommended Horsepower: 700 HP
- Maximum Recommended Boost Pressure: 32 PSI
- Includes: (1) Mishimoto Intercooler with Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the maximum recommended horsepower for the Mishimoto MMINT-UGG intercooler?
Mishimoto lists a maximum recommended horsepower of 700 HP for this intercooler.
What is the maximum recommended boost pressure for this intercooler?
The maximum recommended boost pressure is 32 PSI.
What material is the MMINT-UGG intercooler core made from?
It features a 6061-aluminum, TIG-welded bar-and-plate core with aluminum inlet tanks.
Is this intercooler designed for a specific vehicle?
No, it is a universal front-mount intercooler with four M8 x 1.25 threaded universal mounting points, designed for smaller turbo applications rather than a specific vehicle.
What comes included with the Mishimoto MMINT-UGG?
It includes (1) Mishimoto Intercooler backed by the Mishimoto Lifetime Warranty.
Does the Mishimoto logo appear on both sides of the intercooler?
No, only one side of the intercooler features the Mishimoto logo.
