Description

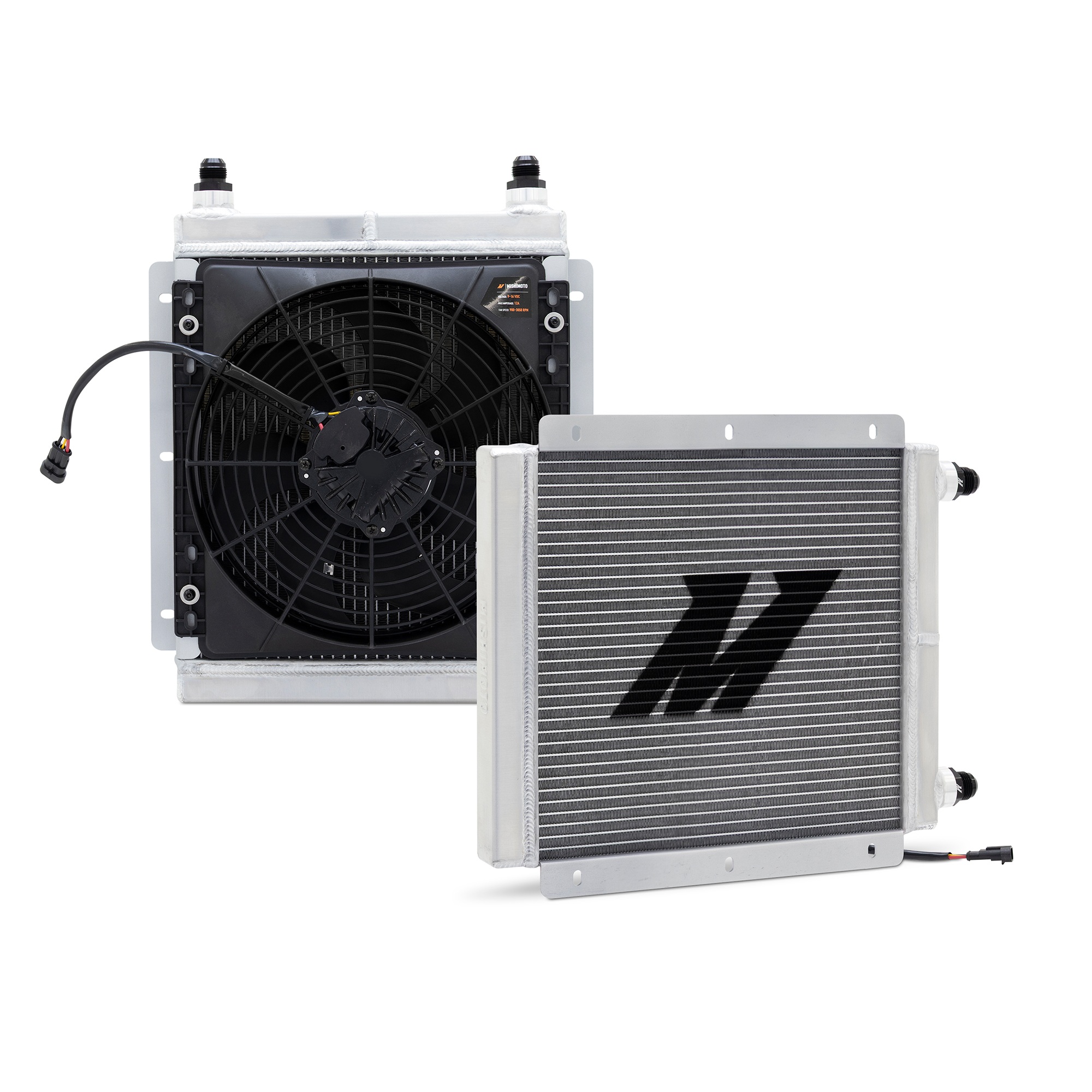

The Mishimoto Universal Heat Exchanger Kit (MMHE-UNI-BRLS-K) pairs a high-pressure tube-and-fin core with a pre-mounted 12″ brushless fan rated for 1,177 CFM, giving builders a single, ready-to-install cooling solution for demanding thermal management projects. Backed by the Mishimoto Lifetime Warranty, this kit is engineered to handle sustained high pressure while moving serious airflow through its integrated shroud.
This Mishimoto cooling component is built as a true universal heat exchanger, meaning it can be configured to support electric vehicle systems, coolant systems, oil cooling circuits, and more. The tube-and-fin core is rated to a 100psi working pressure, and the attached brushless fan is designed to deliver superior heat dissipation even in demanding environments where consistent airflow is critical. For builders looking to dial in precise thermal control, this heat exchanger is fully compatible with the Mishimoto Universal Fan Controller, allowing the brushless fan speed to be tuned to the application. Whether you’re setting up an oil cooler kit, a coolant loop, or an EV thermal management system, this Mishimoto cooler is designed to be adapted to the job at hand, with all necessary fittings and mounting hardware included to simplify installation.
Vehicle Applications
Because this is a universal heat exchanger kit rather than a vehicle-specific cooler, it is designed to be installed across a wide range of custom and OEM-based cooling setups rather than a single make or model. It is intended for builders configuring EV cooling systems, coolant systems, or oil cooling circuits, giving fabricators and installers the flexibility to mount this core and brushless fan assembly into the layout that best fits their specific project.
Features
- Universal design can be set up to cool EV applications, coolant, oil, and more

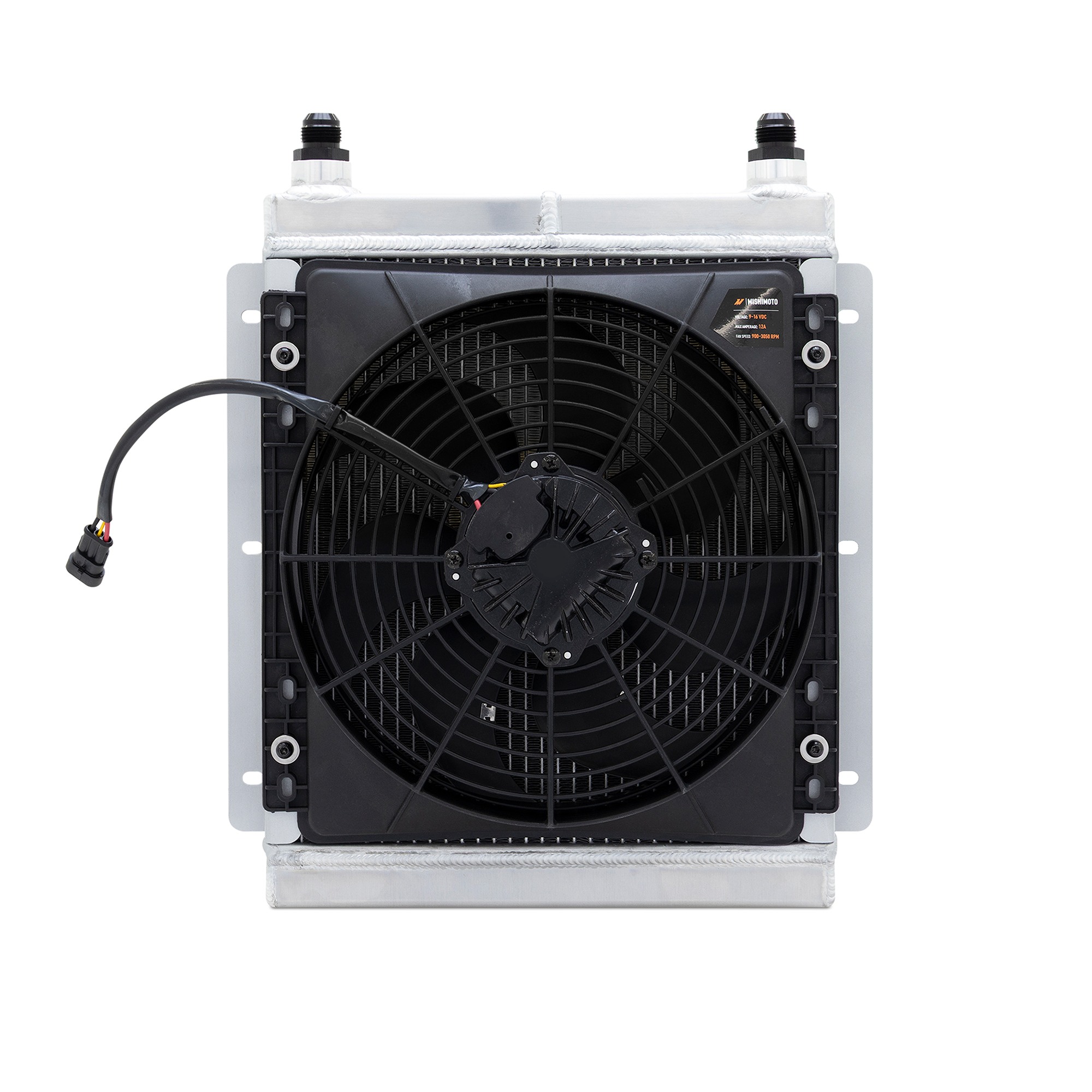

- Includes 12″ brushless fan rated for 1177 CFM with integrated shroud for superior heat dissipation
- Compatible with the Mishimoto Universal PWM Fan Controller for precise thermal management
- Durable high-pressure tube-and-fin style core for long-lasting performance
- Includes all necessary fittings and mounting brackets
- Fan controller for the brushless fan is not included

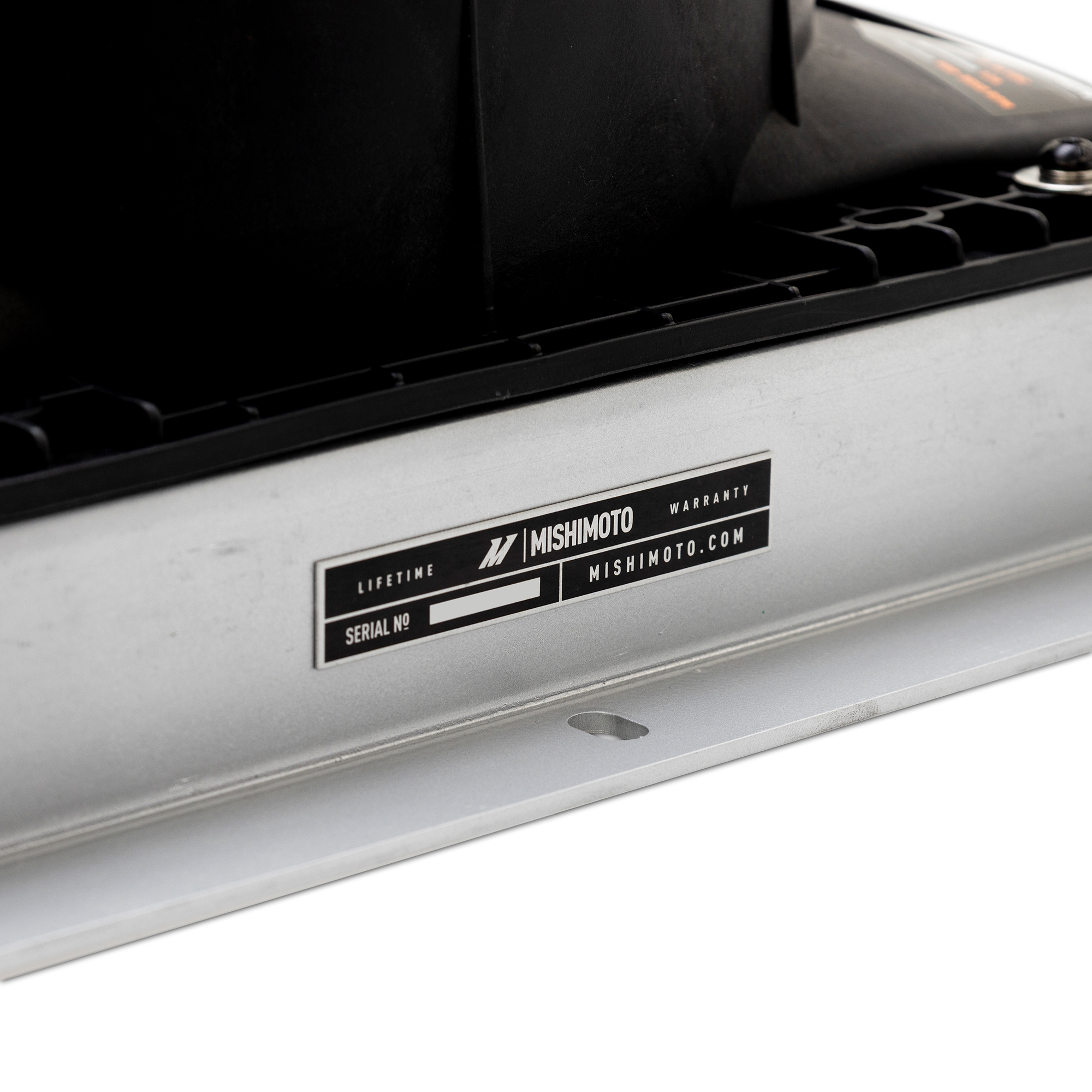

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Grade Type: Performance
- Core Construction: Tube-And-Fin
- Core Height: 13.7 in
- Core Length: 14.2 in
- Core Thickness: 1.9 in
- Overall Width: 3.76 in
- Overall Height: 16.2 in
- Overall Length: 18.1 in

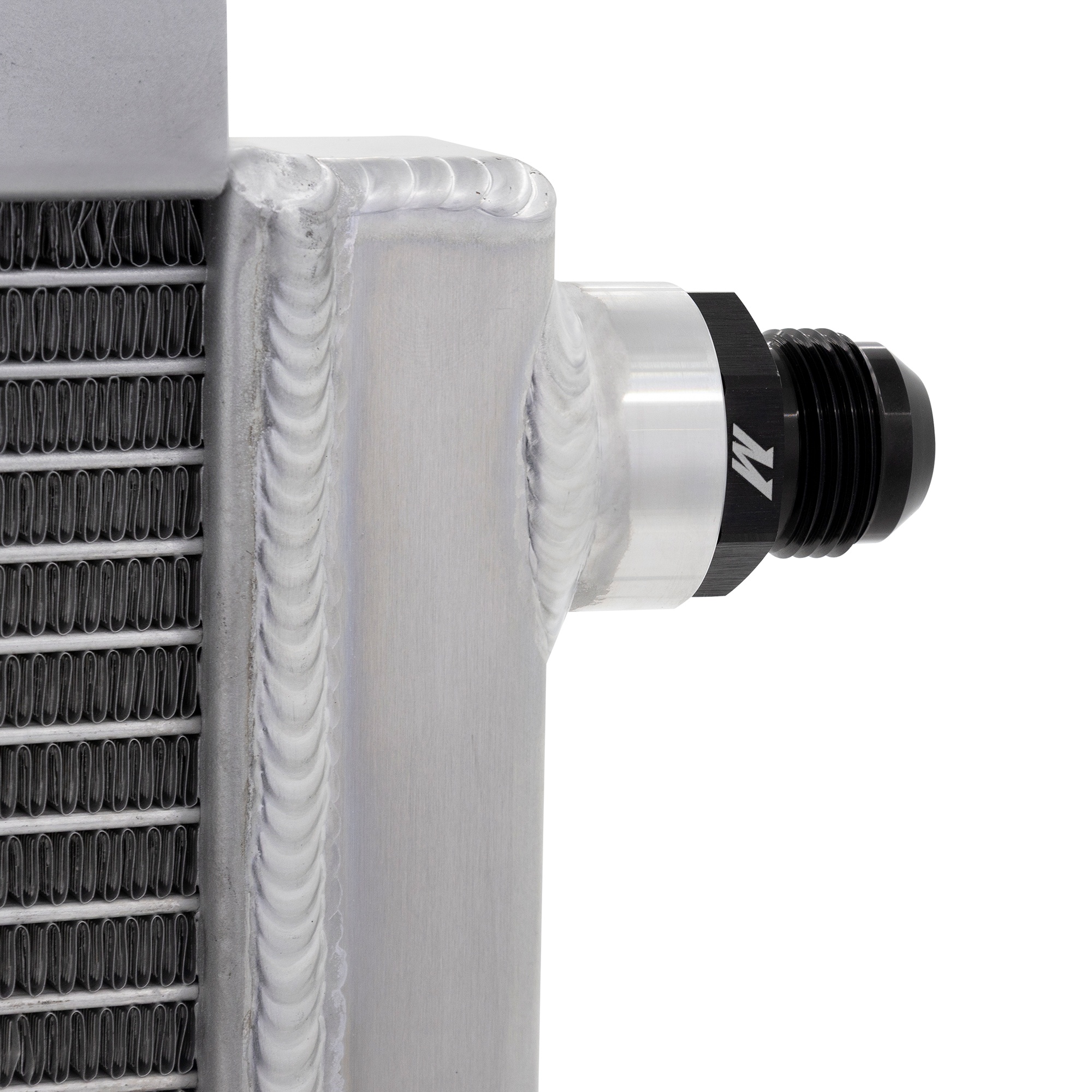

- Inlet: 1 1/16″-12 ORB
- Outlet: 1 1/16″-12 ORB
- Working Pressure: 100psi
- Fan Airflow: 1177 CFM
- Fan RPM Range: 900 – 3050
- Voltage: 9-16 VDC
- Max Amps: 12
- Amp Draw (Running): 9.2 (Peak Amps: 12)

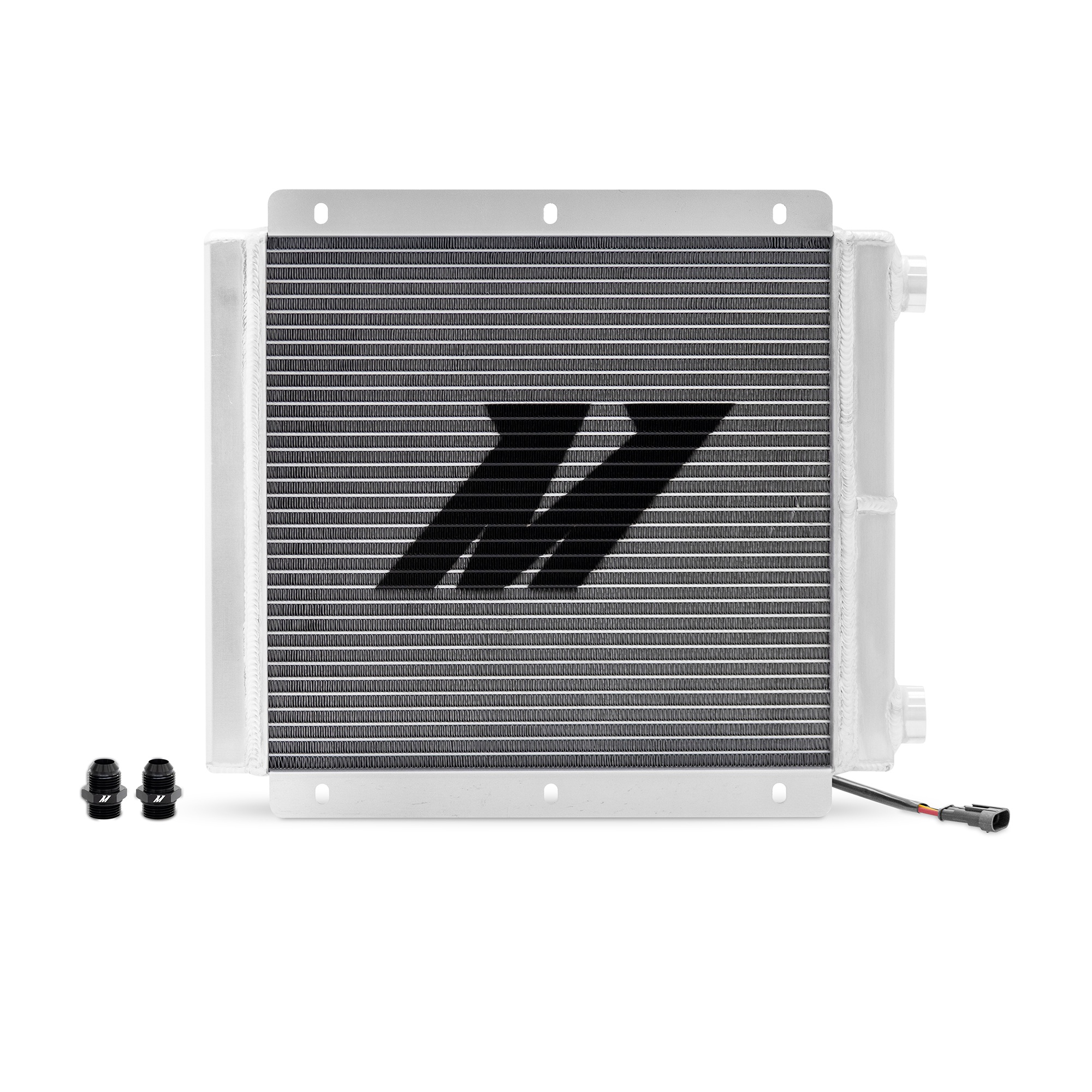

- Includes: Attached Fan, (2) Fittings, Heat Exchanger, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the CFM rating of the fan on the Mishimoto Universal Heat Exchanger Kit?
The kit includes a 12″ brushless fan rated for 1,177 CFM, with an operating RPM range of 900 – 3050.
Does this heat exchanger kit include a fan controller?
No, a controller for the brushless fan is not included. The heat exchanger is compatible with the Mishimoto Universal Fan Controller for precise thermal management.
What is the working pressure rating of the core?
The tube-and-fin core has a 100psi working pressure rating.
What comes included with the MMHE-UNI-BRLS-K kit?
The kit includes the attached fan, (2) fittings, the heat exchanger, and coverage under the Mishimoto Lifetime Warranty, along with all necessary mounting brackets.
What voltage and amp draw does the fan require?
The fan operates on 9-16 VDC, has a maximum amp rating of 12, and a running amp draw of 9.2 amps with a peak of 12 amps.
What applications is this heat exchanger designed for?
This universal heat exchanger can be set up to cool EV applications, coolant systems, oil cooling systems, and more.
