Description

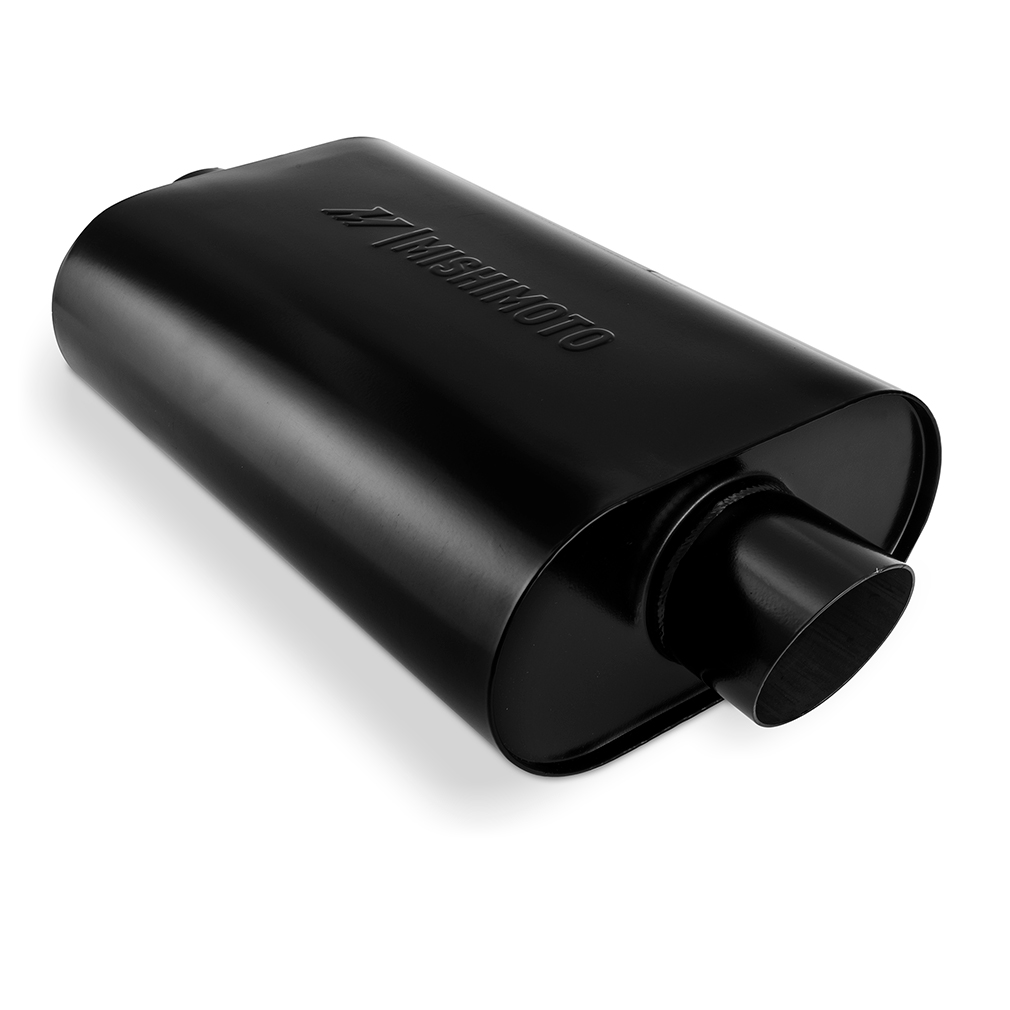

The Mishimoto Universal Muffler with Angled Tip (MMEXH-MF-AT-25CCBK) is an oval, black-finished 304 stainless-steel muffler built with a perforated, fiberglass-packed straight-through core and a center inlet sized at 2.5 inches inside diameter. It’s designed to fit over your existing piping via a slip-fit inlet connection, and it wears a painted angled exhaust tip for a finished look.
This Mishimoto muffler tames excess exhaust volume without choking flow, letting your engine breathe while taking the edge off the raw exhaust note. The straight-through perforated core is packed with fiberglass to help manage sound, while the 304 stainless-steel body and precision construction are built to stand up to demanding underbody environments. A matte black enamel finish gives the muffler a sleek, understated look that blends into nearly any exhaust setup, and because it’s a universal-fit component, it’s an easy way to dial in the exhaust tone on a wide range of builds using 2.5-inch piping.
Vehicle Applications
This Mishimoto muffler is a universal-fit component rather than a vehicle-specific part, so it isn’t tied to a particular make, model, or year. It’s engineered to slip over 2.5-inch exhaust piping via its center inlet, making it a flexible option for builders and fabricators working on a variety of cars and trucks that run 2.5-inch tubing and want to add a muffler stage with an angled tip finish.
Features
- Universal muffler reduces exhaust volume without restricting flow

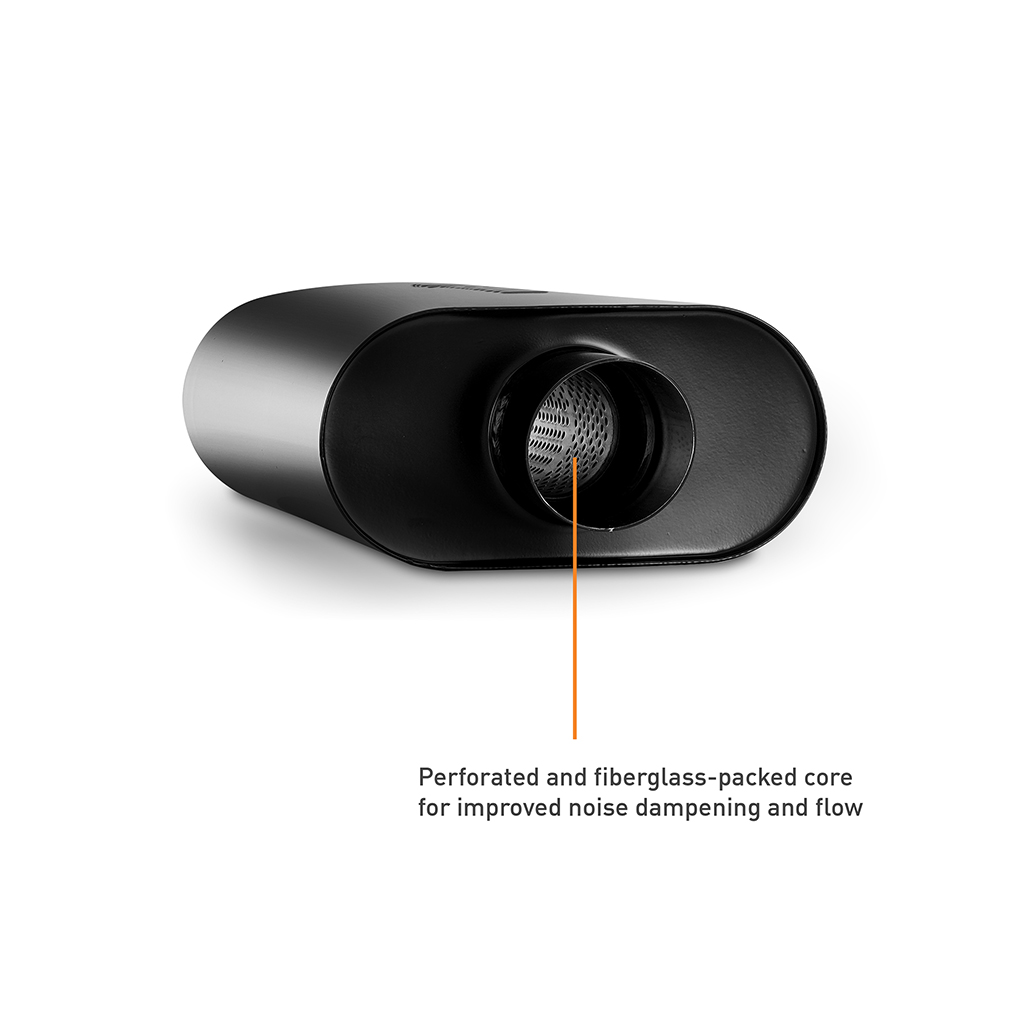

- Straight-through perforated core, fiberglass-packed, for improved sound while allowing the engine to breathe

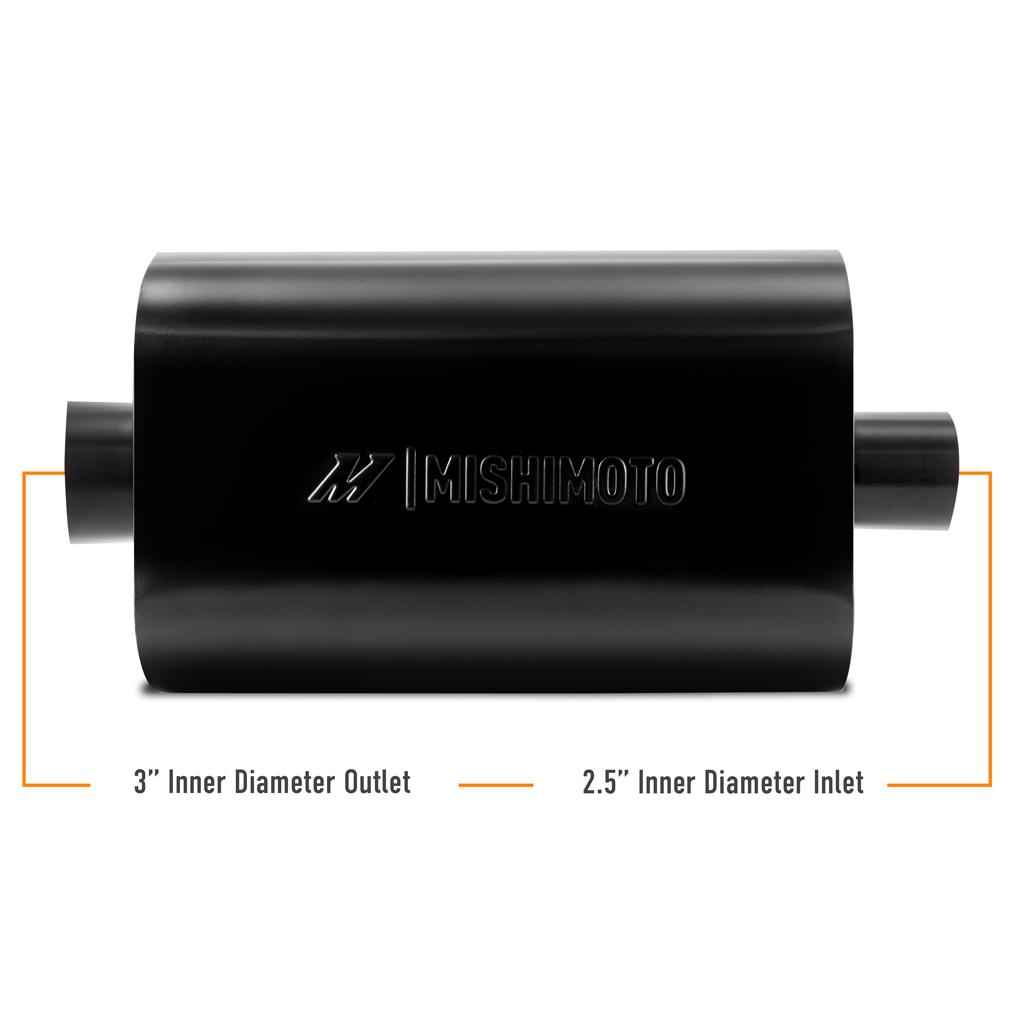

- 2.5-inch inside diameter center inlet for easy installation over existing piping
- Slip-fit inlet connection
- Center inlet and outlet locations for straightforward pipe routing
- Oval-shaped 304 stainless-steel body measuring 20 in L x 9.6 in W x 4.7 in H

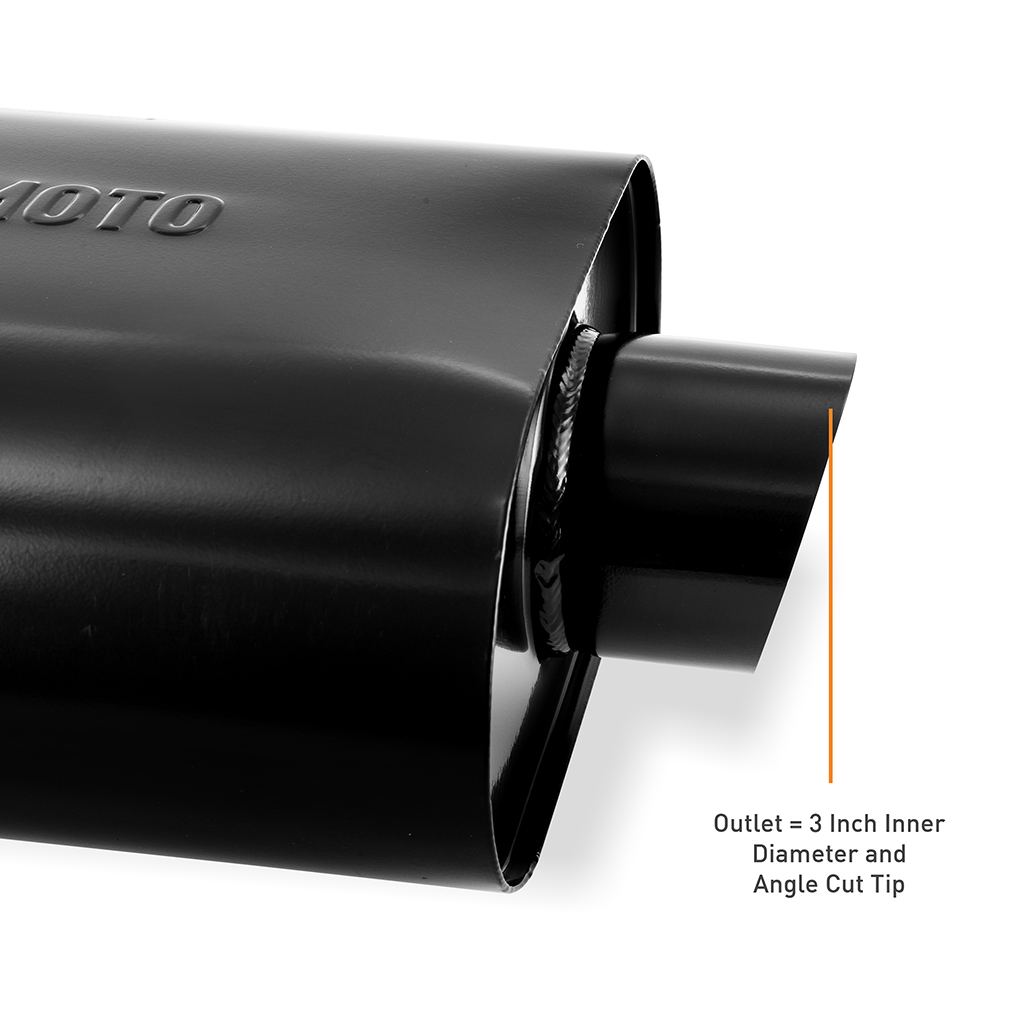

- Painted angled exhaust tip finished in black
- Black enamel/painted finish for a sleek look
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-MF-AT-25CCBK
- Shape: Oval
- Finish: Painted, Black
- Body Material: 304 Stainless Steel
- Inlet Inside Diameter: 2.5 in
- Inlet Location: Center
- Outlet Location: Center
- Body Length: 20 in
- Body Width: 9.6 in
- Body Height: 4.7 in
- Hanger Included: No
- Heat Shield Attached: No
- Reversible: No
- Tunable: No
- Universal or Specific Fit: Universal
- Grade Type: Performance
- Exhaust Tip Cut: Angle
- Exhaust Tip Resonated: No
- Exhaust Tip Intercooled: No
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Finish: Painted
- Clamps Included: No
- Inlet Connection: Slip-Fit
- Pipe Diameter: 2.5 in
- Weight: 8.5 lbs
- Overall Length: 20 in
- Overall Width: 9.6 in
- Overall Height: 4.7 in
- Includes: (1) Mishimoto Universal Muffler with Angled Tip; Mishimoto Lifetime Warranty
Frequently Asked Questions
What size piping does the Mishimoto Universal Muffler with Angled Tip fit?
It features a 2.5-inch inside diameter center inlet with a slip-fit connection designed to fit over 2.5-inch piping.
Is this muffler vehicle specific?
No, it is a universal-fit muffler, not tied to a specific make or model.
What material is the muffler made from?
The muffler body and exhaust tip are made from 304 stainless steel with a painted black finish.
Does the Mishimoto muffler include a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
What are the dimensions and weight of this muffler?
The body measures 20 inches long, 9.6 inches wide, and 4.7 inches high, and it weighs 8.5 pounds.
Does the muffler include a hanger or heat shield?
No, this muffler does not include a hanger or an attached heat shield.
