Description
The Mishimoto Wrinkle Red Cold Air Intake (MPN: MMAI-MIA-16WRD) is a direct-fit performance air intake system engineered specifically for the 2016-2021 Mazda Miata. Finished in a striking wrinkle red powder-coat, this intake pairs a CNC-machined MAF housing with a high-flow oiled filter to give the ND Miata a more aggressive intake tone and cleaner engine bay aesthetic.
Built to complement the Miata’s reputation as a light, nimble driver’s car, this cold air intake replaces restrictive factory intake tubing with a smoother aluminum intake pipe and CNC-machined MAF housing for more accurate sensor readings. The multi-layered cotton air filter is designed to let your engine breathe more freely, while the intake still relies on the stock intake duct to route cold air into the filter. Whether you’re searching for a cold air intake, an upgraded air intake filter, or simply a cool air intake system that looks as good as it sounds, this Mishimoto intake system is built to answer the question of what a cold air intake system does: it works to improve airflow into the engine while adding an aggressive induction note under acceleration.
Vehicle Applications
This Mishimoto air intake system is designed as a direct fit for the 2016-2021 Mazda Miata (ND chassis) equipped with the US-model 2.0L SkyActiv engine, engine code PE-VPS. It is built specifically for this application and will not fit the 1.5L engine found in other markets, so confirm your Miata is the US-spec 2.0L SkyActiv variant before ordering.
Features
- Direct fit for 2016-2021 Mazda Miata
- Highly aggressive intake tone under acceleration
- Smooth design eliminates restrictions and improves airflow

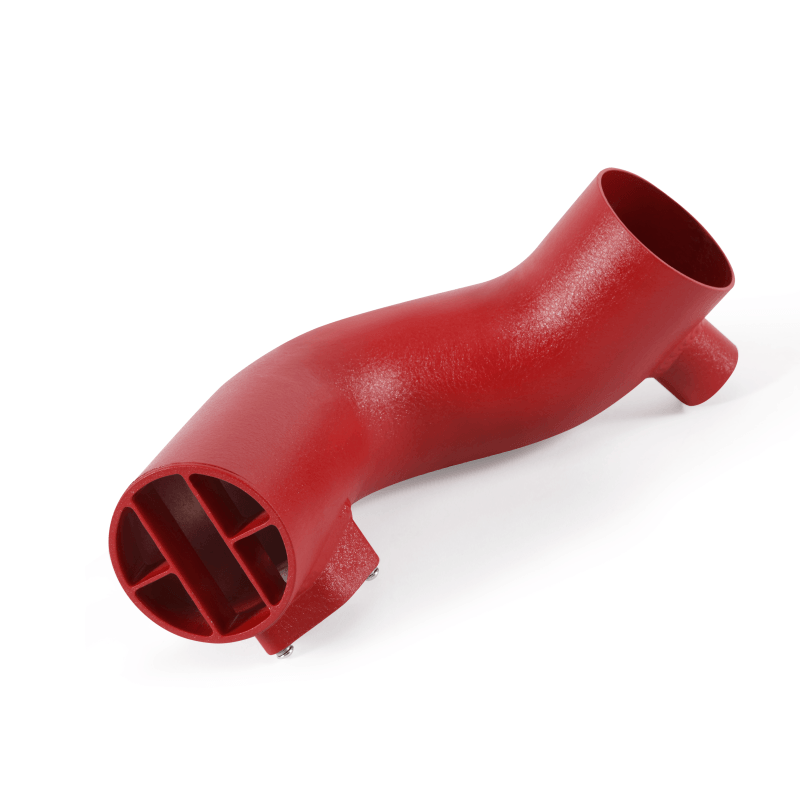

- Aluminum intake pipe includes CNC-machined MAF housing
- Steel airbox for weight savings
- Powder-coated airbox helps keep unwanted hot air from entering the air filter
- Functions with the stock intake duct, which supplies cold air to the intake filter
- Mishimoto High-Flow Oiled Air Filter receives maximum airflow from the front of the vehicle
- Available in polished, wrinkle black, or wrinkle red pipe finishes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Finish: Powder-Coat (Wrinkle Red)
- Pipe Material: Aluminum
- Hose Color: Red
- Filter Color: Red
- Filter Material: Multi-layered cotton
- Grade Type: Performance
- Air Filter Part Number: MMAF-2756S
- Engine Code: PE-VPS
- Chassis Code: ND

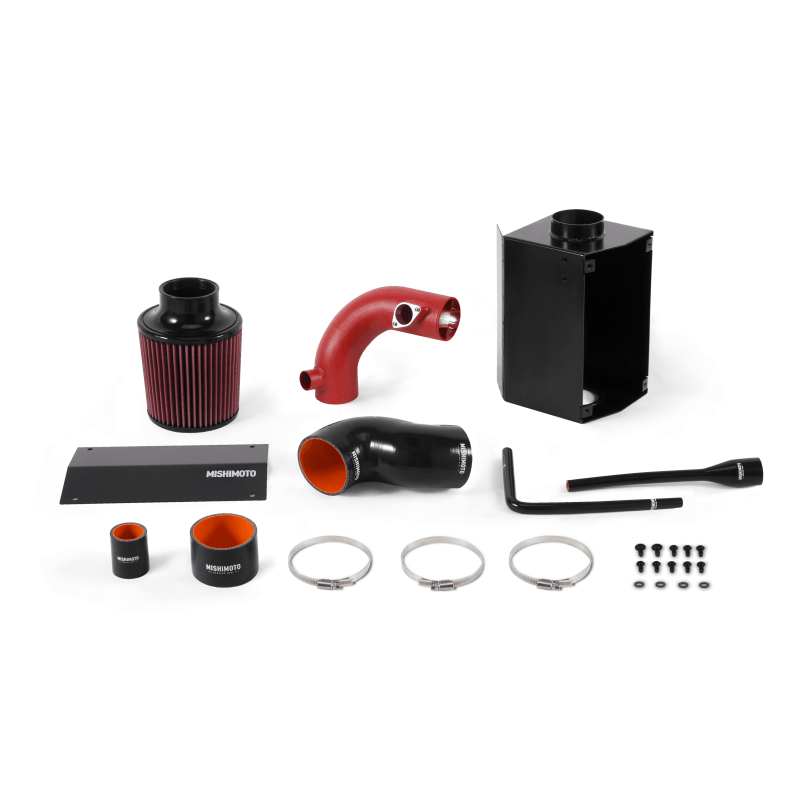

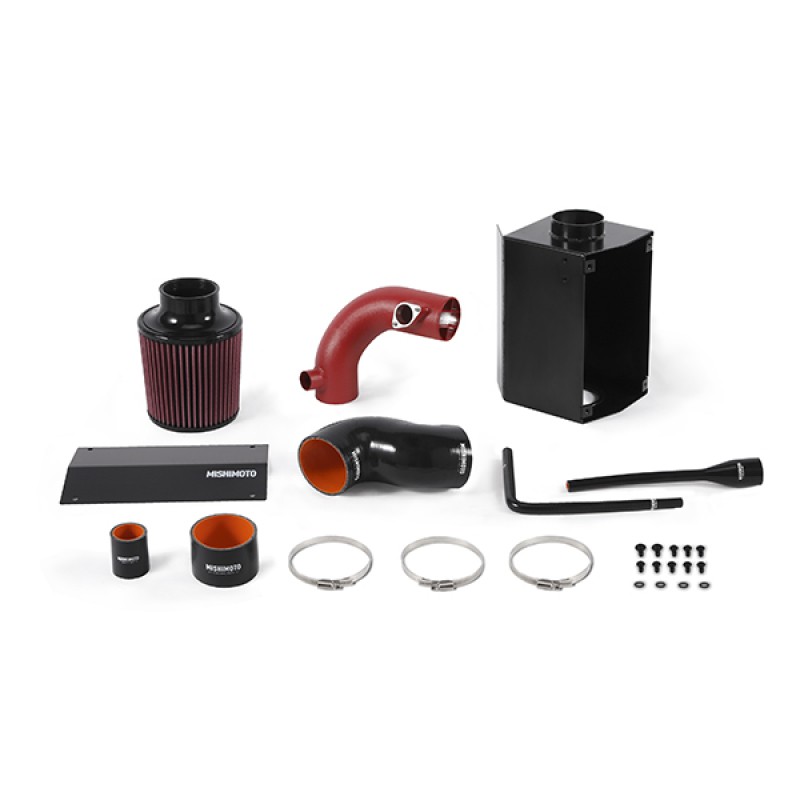

- Includes: (1) Aluminum Intake Pipe, (1) High-Flow Oiled Filter, (1) Steel Airbox, (1) Silicone Sound Imposer Hose, (1) Silicone Fresh Air Duct Hose, (1) Silicone Coolant Overflow Tank Hose, (3) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What years and engines does this Mishimoto intake fit?
This intake fits the 2016-2021 Mazda Miata equipped with the US-model 2.0L SkyActiv engine, engine code PE-VPS, ND chassis. It will not fit the 1.5L engine found in other markets.
What is included with this Mishimoto air intake kit?
The kit includes (1) Aluminum Intake Pipe, (1) High-Flow Oiled Filter, (1) Steel Airbox, (1) Silicone Sound Imposer Hose, (1) Silicone Fresh Air Duct Hose, (1) Silicone Coolant Overflow Tank Hose, (3) Worm Gear Clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What color and finish is this specific intake?
This version features a wrinkle red powder-coat finish with a red hose color and red filter color. It is also available in polished or wrinkle black finishes.
What type of air filter does this intake use?

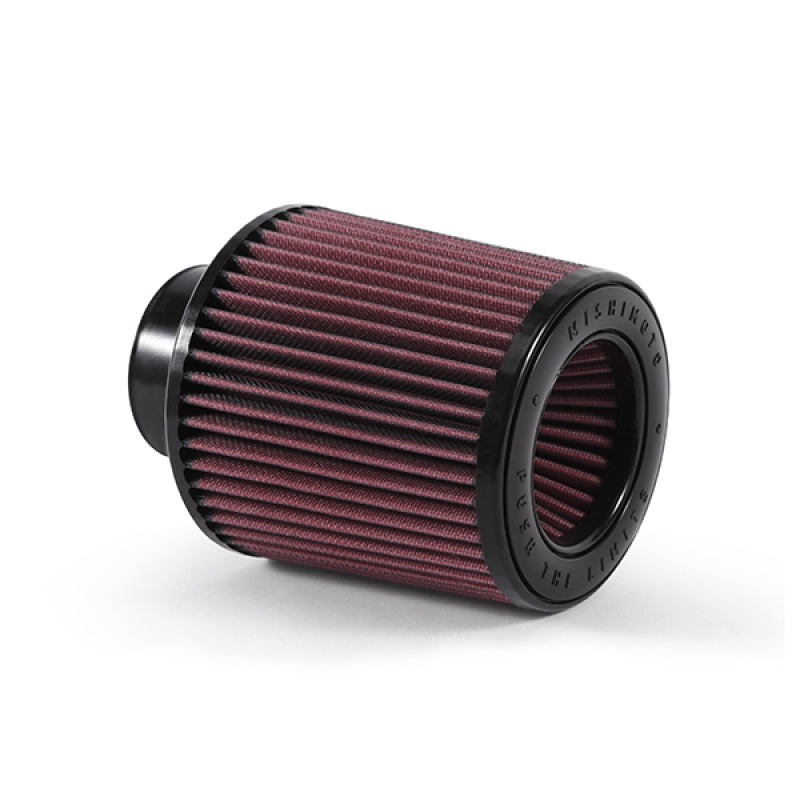

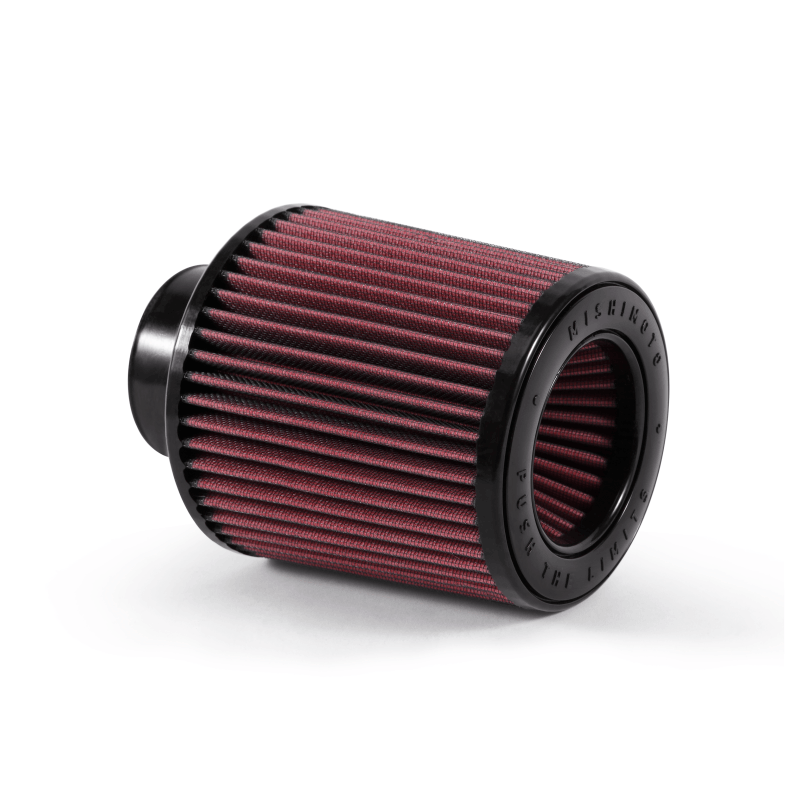

It uses a Mishimoto High-Flow Oiled Air Filter made from multi-layered cotton, part number MMAF-2756S, which is a Performance grade filter.
How often should the air filter be serviced?
Mishimoto recommends cleaning and re-oiling the oiled air filter every 10,000–15,000 miles during normal driving, and servicing more frequently in dusty or off-road conditions. Filter re-oiling is not included in the Lifetime Warranty.
Does this intake come with a warranty?
Yes, this intake is backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
