Description
The Mishimoto XL Baffled Oil Catch Can, part number MMBCC-CBTWO-XLBK, is a patent-pending, two-port catch can machined entirely from 6061-T6 billet aluminum and finished in black anodizing. Built around an internal air diverter and a 50-micron bronze filter, this can is engineered to pull oil particles out of PCV/CCV air before it ever reaches your intake, giving your car engine cleaner air to breathe.
Unlike heated air-oil-separator systems that let blow-by drain straight back into the oil pan, Mishimoto’s design keeps captured oil and contaminated vapor permanently out of the crankcase unless you choose to route it back yourself. The internal baffle keeps that collected oil from sloshing around under hard driving, while the increased turbulence created by the air diverter forces more oil to settle out before the filtered air passes through. With a 7.5 fluid ounce capacity, this catch can is sized for heavy blow-by collection or for stretching out your service interval, and because both the filter and the can itself are fully washable, maintenance never means buying a new filtration system. For anyone researching engine parts for car projects who wants to protect the components of an automobile engine from oil-laden blow-by, this catch can is built to be a long-term, serviceable piece of the intake and PCV system.
Vehicle Applications
The Mishimoto XL Baffled Oil Catch Can is a universal component designed to install on the PCV and CCV systems found in car engines generally, rather than being tied to a specific make, model, or engine code. Its top-mounted plumbing allows the can to be oriented from multiple angles, so it can be positioned to fit within the engine bay of a wide range of vehicles that route crankcase or positive-crankcase-ventilation gases, making it a flexible option for anyone upgrading the parts of a car engine’s breather system.
Features
- Separates oil particles from PCV/CCV air using a 50-micron bronze filter
- 100-percent billet 6061 aluminum, sealed can construction
- Helps defend the intercooler, intake system, and other essential components from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation

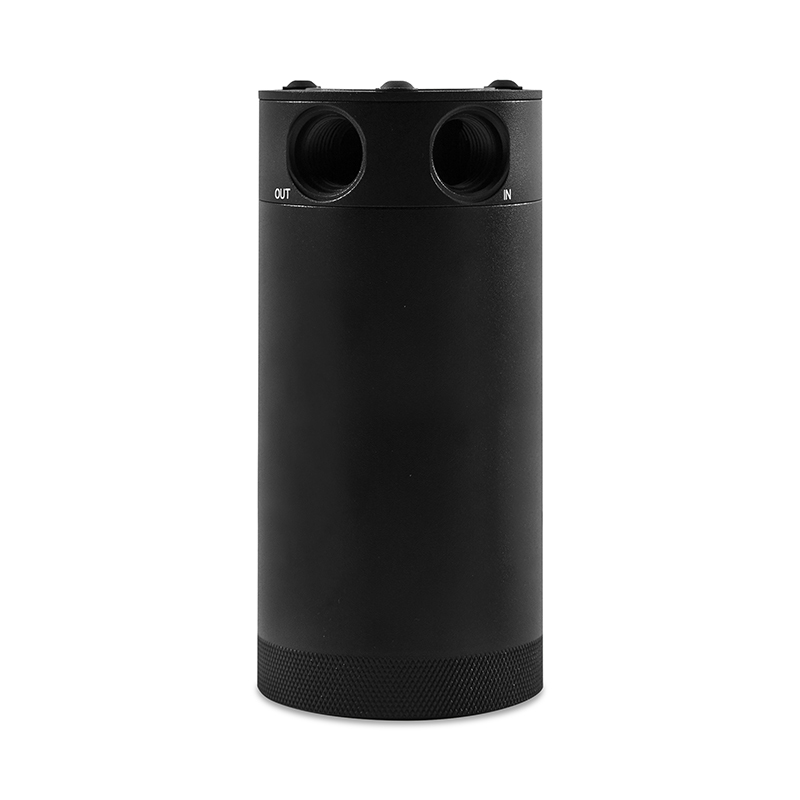

- Features one inlet and one outlet for straightforward CCV/PCV installation
- Filter and can are both fully serviceable and 100-percent washable
- Safe for pressurized applications

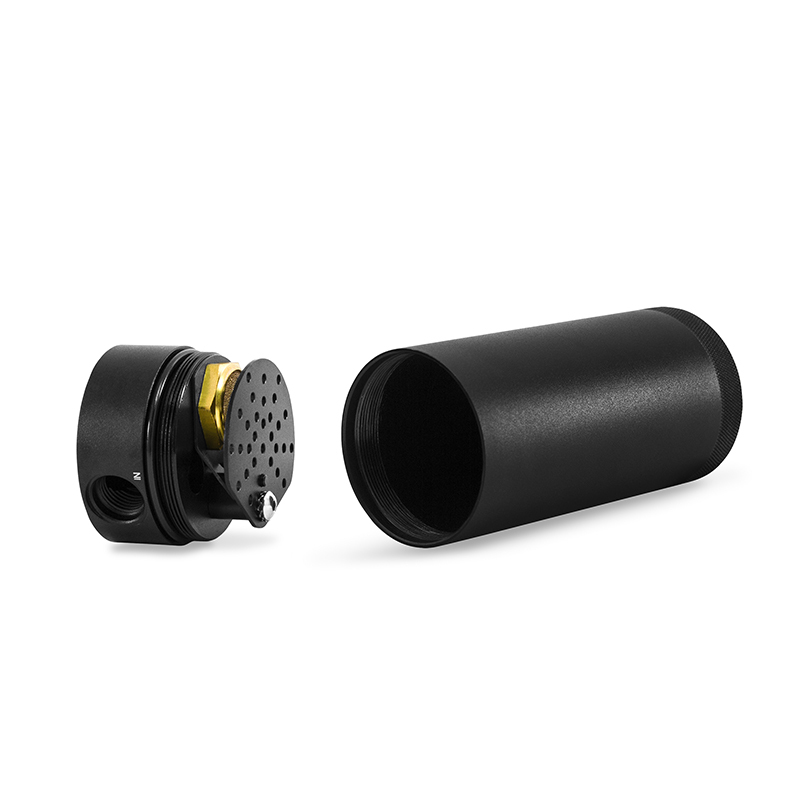

- Internal air diverter increases air turbulence to improve oil separation
- Internal baffle keeps collected oil from splashing under race conditions
- Sealed with Viton O-rings to keep captured blow-by inside the can
- Removable drain plug allows for a return line to the oil pan

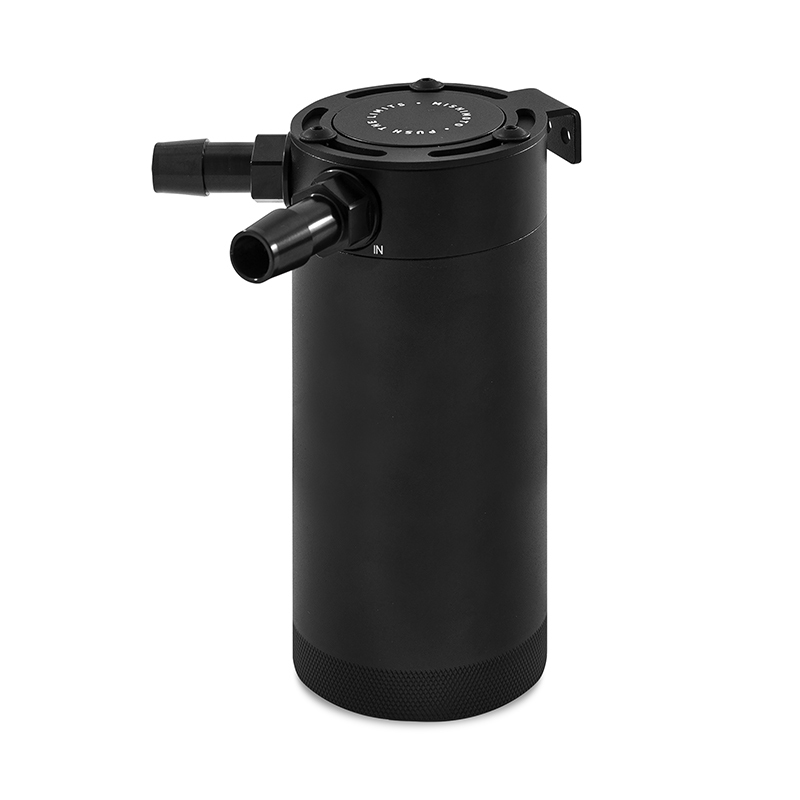

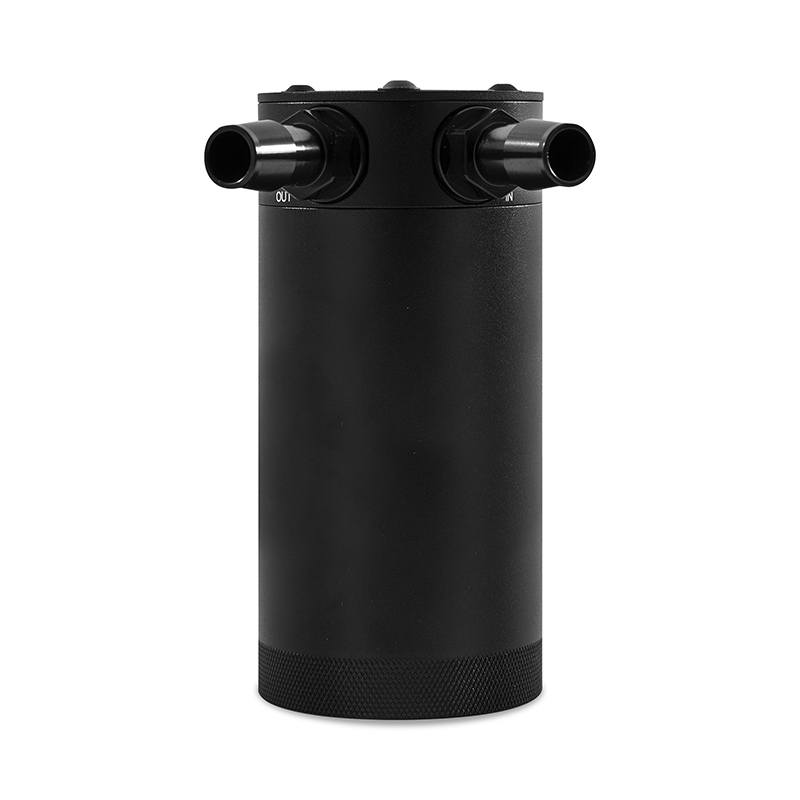

- Includes 2 black anodized, CNC-machined aluminum barbed 1/2-in hose fittings
- Universal mounting bracket allows for multiple mounting angles/configurations
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-CBTWO-XLBK
- Can Material: 6061-T6 billet aluminum
- Can Type: Twist off
- Can Finish: Anodized
- Color: Black
- Maximum Can Capacity: 7.5 fluid ounces
- Can Outside Diameter: 2.5 in
- Height: 6.25 in
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Inlet/Outlet/Drain Thread: M16 x 1.5
- Drain Plug Thread Size: 3/8 NPT
- Inlet Port Quantity: 1 / Outlet Port Quantity: 1
- Interior Baffle: Yes
- Drain Plug Included: Yes
- Hose Included: Yes
- Mounting Bracket Included: Yes

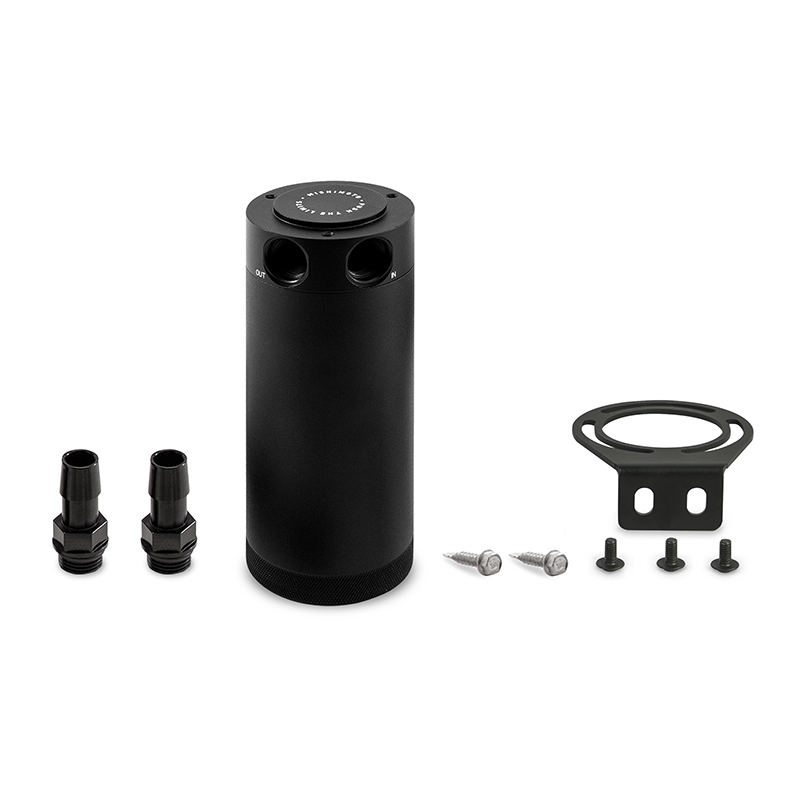

- Includes: (1) XL 2-Port Baffled Oil Catch Can, (2) aluminum 1/2-in barbed fittings, (1) universal mounting bracket, (2) self-tapping screws, Mishimoto Lifetime Warranty
Frequently Asked Questions
How much oil can the Mishimoto XL Baffled Oil Catch Can hold?
It has a maximum can capacity of 7.5 fluid ounces, suited for heavy blow-by collection or extending your service interval.
What is the can made from and how is it finished?
The can is 100-percent billet 6061-T6 aluminum with an anodized black finish.
What thread sizes are used on the inlet, outlet, and drain?
The inlet, outlet, and drain area use M16 x 1.5 threads, and the drain plug thread size is 3/8 NPT.
Does the catch can include mounting hardware and fittings?
Yes, it includes a universal mounting bracket, two self-tapping screws, and two black anodized, CNC-machined aluminum barbed 1/2-in hose fittings.
Can the catch can be cleaned and reused?
Yes, both the filter and the can are fully serviceable and 100-percent washable, unlike catch cans that require filter replacement.
What is included in the box with the Mishimoto XL Baffled Oil Catch Can?
It includes (1) XL 2-Port Baffled Oil Catch Can, (2) aluminum 1/2-in barbed fittings, (1) universal mounting bracket, (2) self-tapping screws, and the Mishimoto Lifetime Warranty.
