Description
Overview
The FASS No-Drop Series Plus Fuel System brings the proven performance of the Titanium Signature Series Plus to your 2005-2018 or 2021-2024 Dodge RAM Cummins 5.9L or 6.7L in a package built to support 1000-1200hp builds. Engineered as a complete dedicated fuel system, the No-Drop Plus Kit pairs a high-performance FASS lift pump platform with the included Fuel Sump, so you get everything needed for a clean, straightforward installation and nothing you don’t.

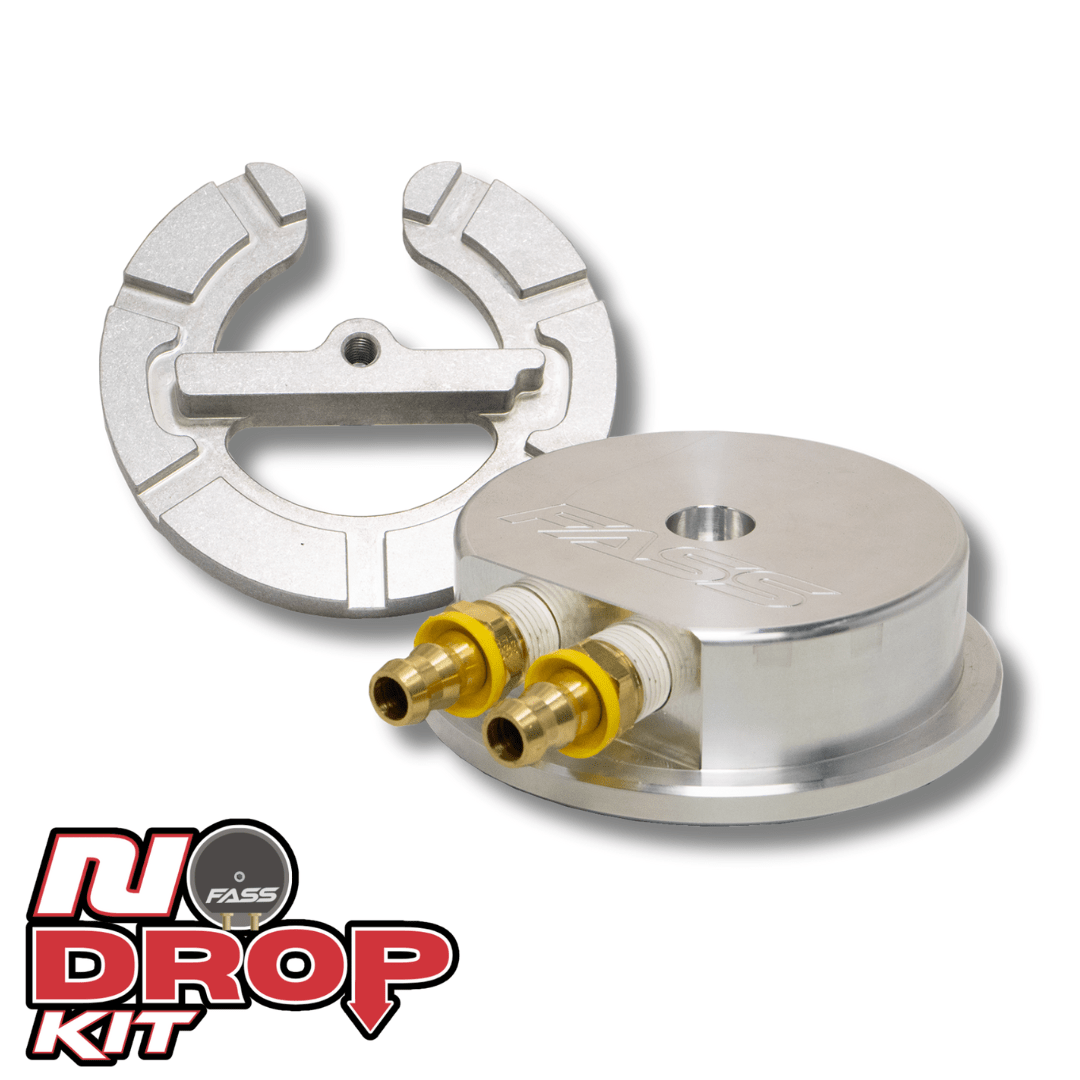

What sets the No-Drop approach apart is the integrated Fuel Sump, which draws fuel directly from the bottom of the tank and eliminates the need to drop the fuel tank during installation. That single design decision drastically simplifies the job and makes upgrading to a premium FASS system easier and more affordable than sourcing a Titanium Signature Series Plus and a Sump Kit separately.

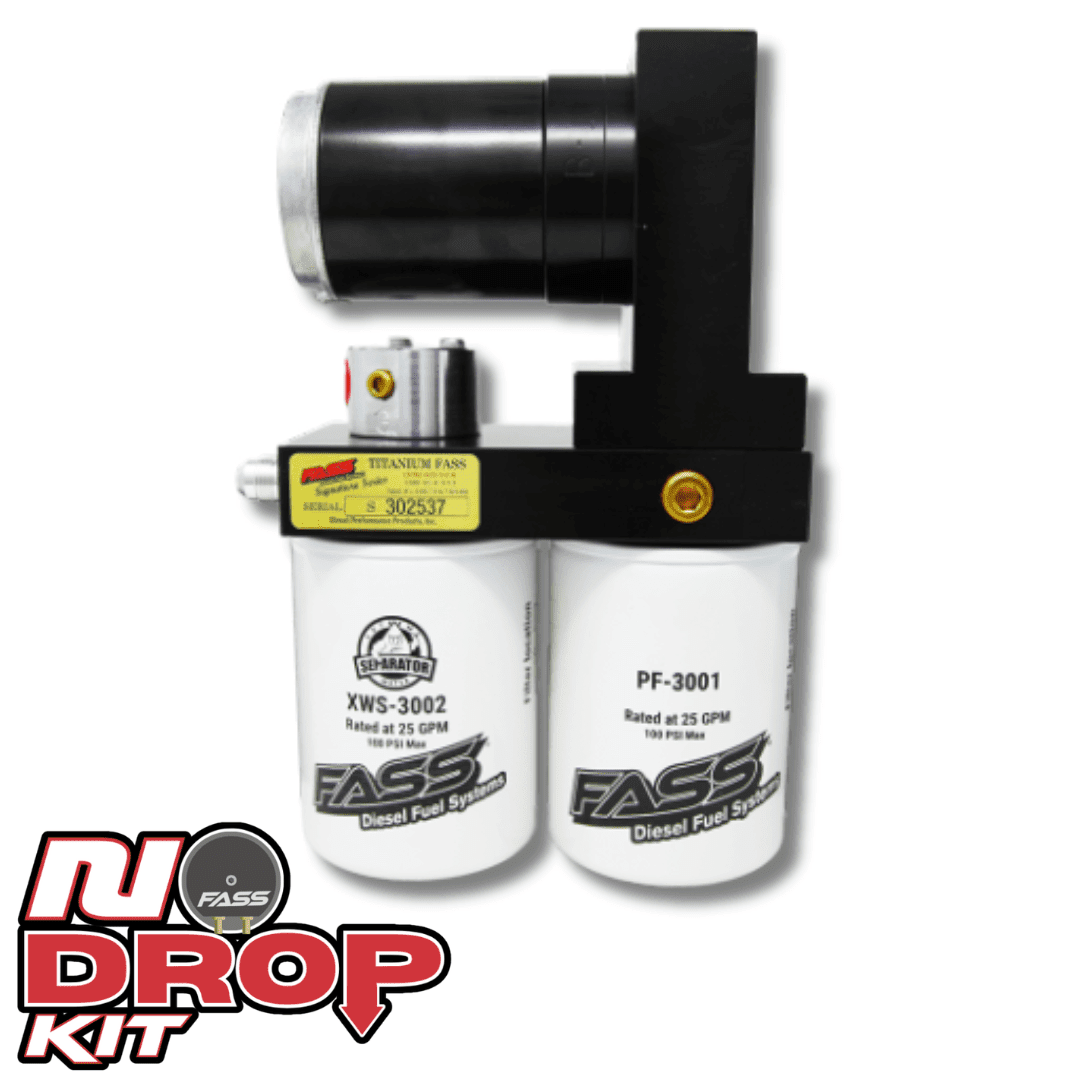

Titanium Signature Series Plus Upgrades
The Titanium Signature Series Plus is the next evolution of the popular Titanium Signature Series. It arrives equipped with ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel line for an ultra-clean, finished appearance under the truck. The system is constructed from durable 6061 T-6 billet aluminum and finished in black, giving it the strength and looks to match a serious diesel build.
Key Benefits
Beyond the streamlined install, this system is about protecting your injection components and delivering the consistent fuel supply a high-horsepower Cummins demands. It increases fuel lubricity by at least 10 percent, can triple the life of injection components, and keeps your fuel exceptionally clean by removing over 99 percent of water, eliminating entrained air and vapor, and filtering debris down to 2 microns absolute. With far more fuel flow than OEM and a steady 16-18psi, it’s ready to feed demanding builds.
- Includes the FASS Fuel Sump to prevent removing the fuel tank during installation
- 6061 T-6 billet aluminum construction, black finish, ORB fittings and black fuel line for a clean install
- Increases fuel lubricity at least 10 percent and can 3x the life of injection components
- Removes over 99 percent of water, eliminates entrained air and vapor, filters to 2 microns absolute
- Provides far more fuel flow than OEM at a consistent 16-18psi
- Electric Fuel Heater Kits available for cold environments
Fitment
Designed for 2005-2018 and 2021-2024 Dodge RAM Cummins trucks equipped with the 5.9L and 6.7L engines, and supporting builds in the 1000-1200hp range. Sold as each, this No-Drop Series Plus Kit bundles the components together for meaningful savings over buying the fuel system and sump separately. For those running in cold climates, add an Electric Fuel Heater Kit to keep fuel flowing when temperatures drop.
