Takeda AFE-56-10020R-p Stage-2 Cold Air Intake System Black Mazda 3 14-18 L4 2.0L

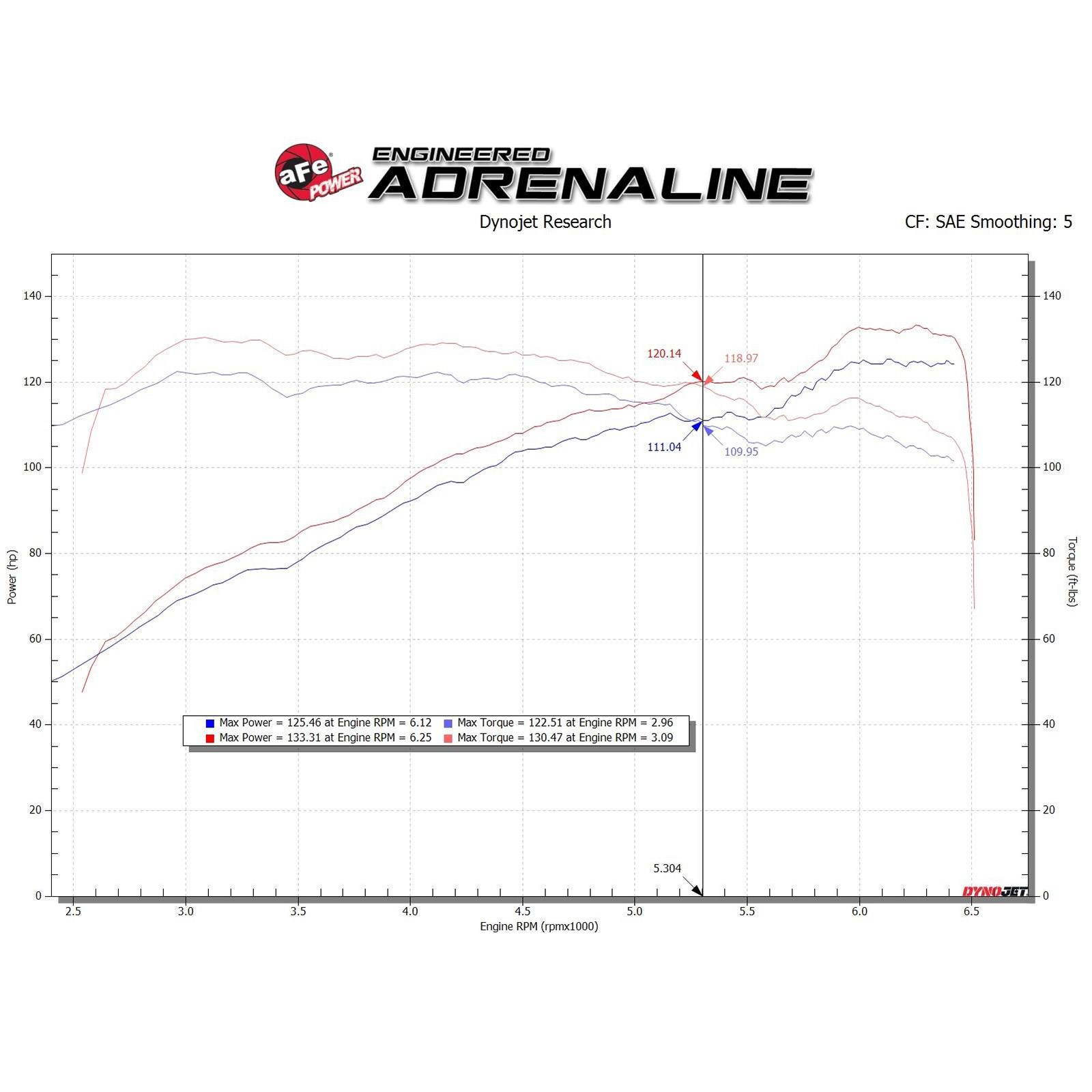

  • +9 HP & +8 Lbs. x Ft. TQ
  • Outflows Factory Intake by 71%

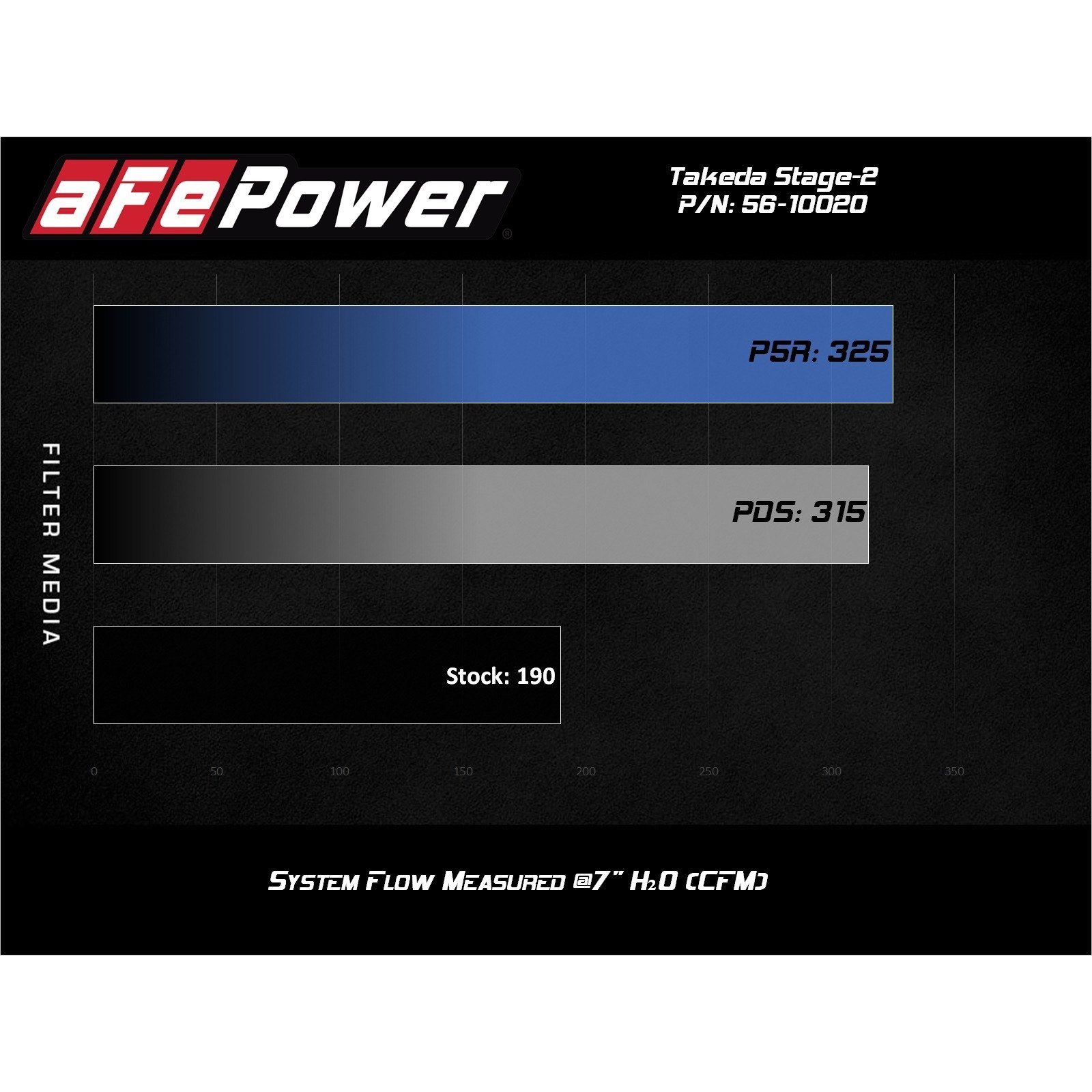

  • Measured Flow: 325 CFM @ 7 IN H2O
  • Open-Element Design Allows For Viewing of Massive Air Filter
  • Seals to Hood to Reduce Intake Air Temperature
  • Built-In Scoop Provides Increased Air Flow
  • Washable and Reusable Pro 5R Air Filter for Maximum Air Flow

-

Price range: $354.00 through $365.00

Out of stock
SKU AFE-56-10020R-p
UPC AFE-56-10020D : 802959560464 | AFE-56-10020R : 00802959560471
Add to wishlist Add to compare

Description

Model: Pro DRY S Filter 56-10020D

Features

  • Dyno-Proven Gains up to +8 HP & +9 Lbs. x Ft. TQ
  • Outflows Factory Intake by 66%
  • Measured Flow: 315 CFM @ 7″ H2O
  • Open-Element Design Showcases the Air Filter and Delivers an Aggressive Air Intake Sound
  • Built-In Scoop Provides Air Directly into the Housing
  • Washable and Reusable Pro DRY S Air Filter for Maximum Convenience

Large Three Layer Performance Air Filter:
This 7″ tall 360-degree radial flow air filter features a 3-1/2″ flange and our oil-free Pro DRY S media with three layers of synthetic media for maximum convenience. Its progressive layering provides great filtration efficiency and dust holding capacity, while not requiring the use of oils. This media is best suited for street use. Its inverted top makes for more filter surface area, resulting in longer service intervals.

One-Piece Housing:
The included air filter is surrounded by an open-element XLPE (cross-linked polyethylene) polymer housing that minimizes warm engine air for maximum performance. Its open design allows for easy viewing of the air filter and delivers an aggressive Air Intake sound. It utilizes the vehicle’s OE air inlet with no additional hardware. An additional auxiliary air inlet is available for use to bring in air from the front of the vehicle when under power, or can be closed with an included plug if desired.

Dyno-Tuned Intake Tube:
This system features a high quality, computer-designed, dyno-tuned intake tube to achieve maximum power gains while maintaining a perfect fit. Its XLPE material is heat soak resistant and extremely durable.

Hassle-Free Installation:

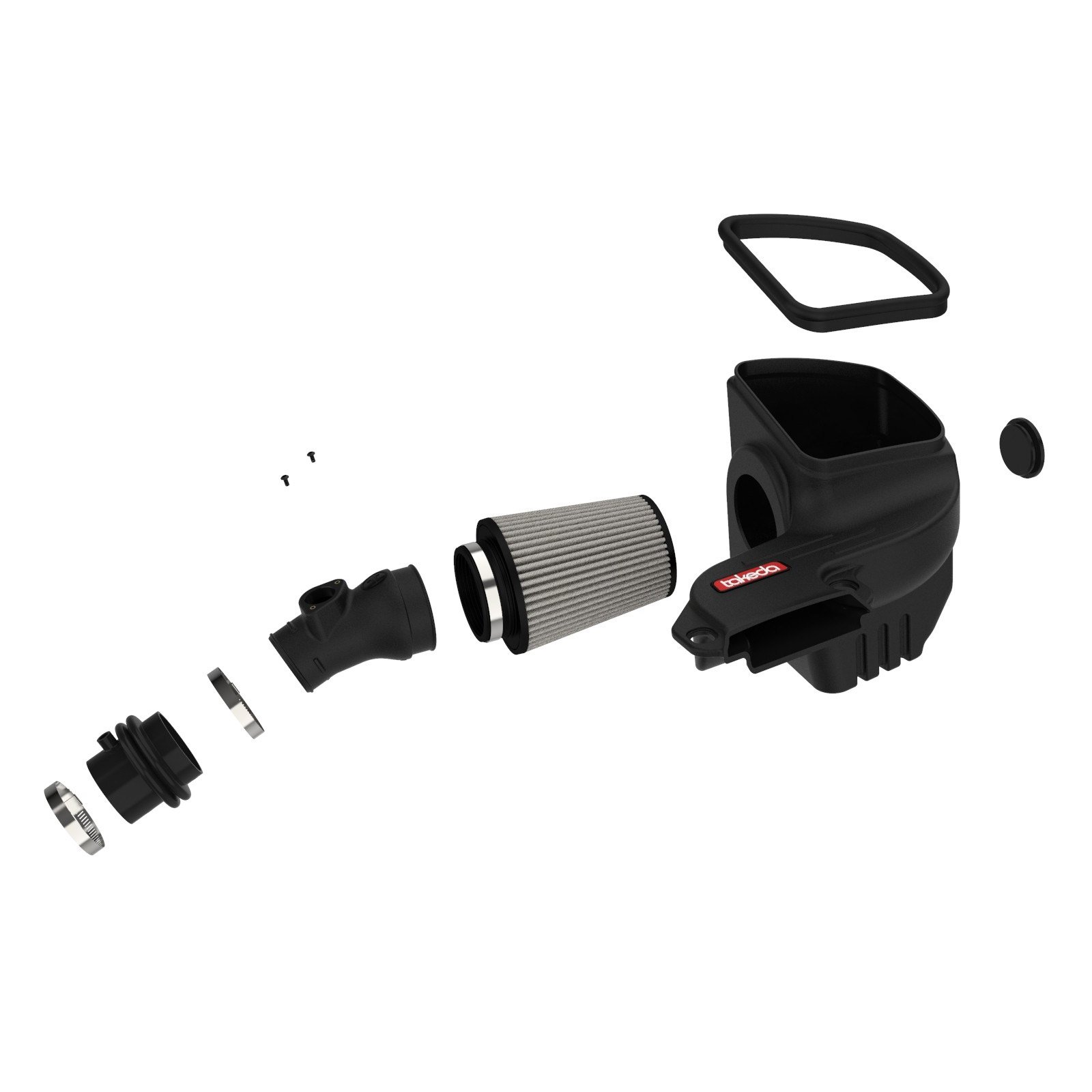

This is a direct fit intake system that utilizes factory mounting points and requires no cutting or modifications. All necessary clamps, couplings, and hardware are included. Its revolutionary design, featuring our patent pending filter-to-housing interface, uses half the number of parts of a traditional cold air intake system.

Emissions Disclaimer:
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

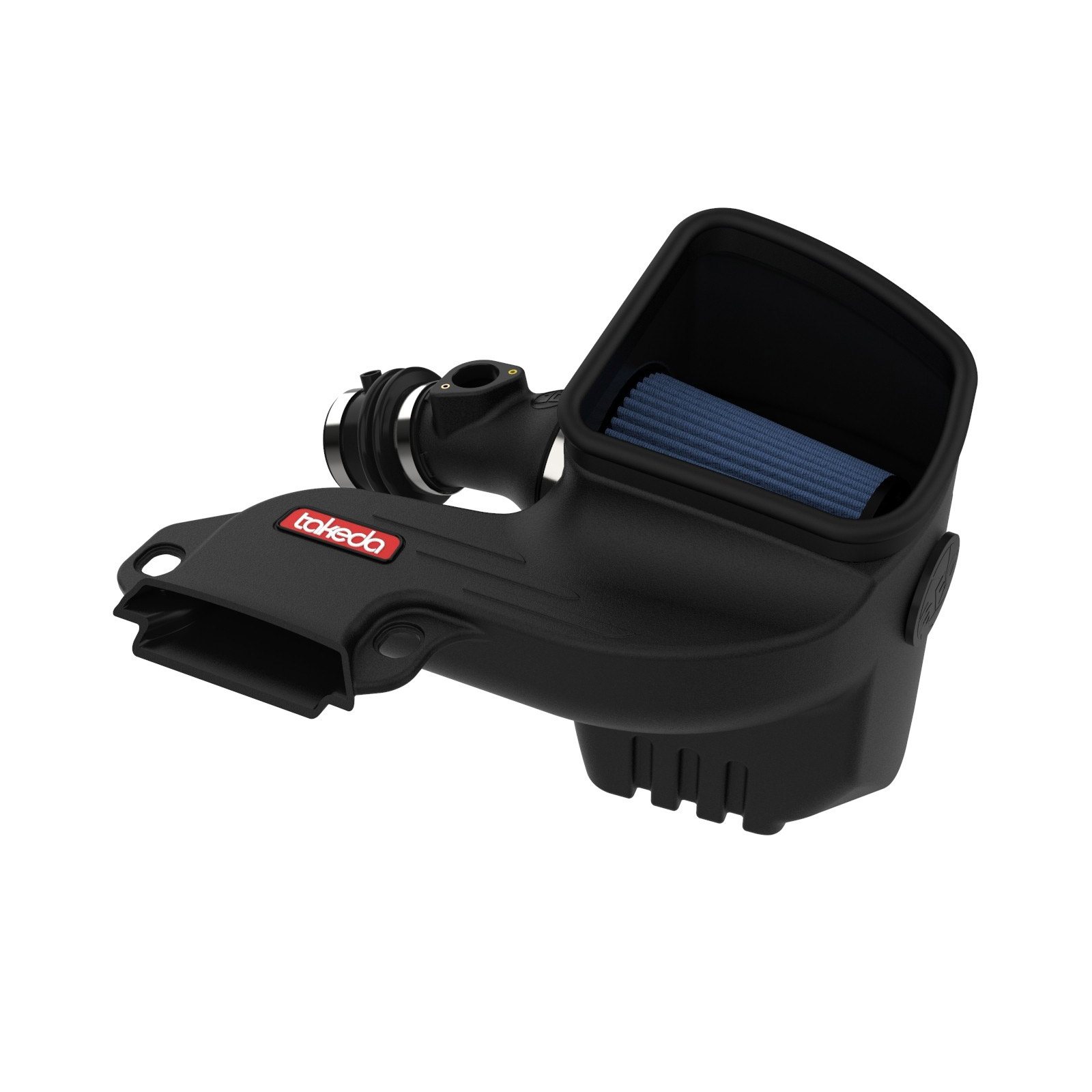

Model: Pro 5R Filter 56-10020R

Features

  • Dyno-Proven Gains up to +9 HP & +8 Lbs. x Ft. TQ
  • Outflows Factory Intake by 71%
  • Measured Flow: 325 CFM @ 7″ H2O
  • Open-Element Design Showcases the Air Filter and Delivers an Aggressive Air Intake Sound
  • Built-In Scoop Provides Air Directly into the Housing
  • Washable and Reusable Pro 5R Air Filter for Maximum Performance

Large Five Layer Performance Air Filter:
This 7″ tall 360-degree radial flow air filter features a 3-1/2″ flange and our pre-oiled Pro 5R media with five layers of progressively finer cotton gauze media for maximum performance. It provides your engine with the largest amount of high-flowing air and delivers the highest power gains in most cases. This media is perfect for street and/or track use. Its inverted top makes for more filter surface area, resulting in longer service intervals.

One-Piece Housing:
The included air filter is surrounded by an open-element XLPE (cross-linked polyethylene) polymer housing that minimizes warm engine air for maximum performance. Its open design allows for easy viewing of the air filter and delivers an aggressive Air Intake sound. It utilizes the vehicle’s OE air inlet with no additional hardware. An additional auxiliary air inlet is available for use to bring in air from the front of the vehicle when under power, or can be closed with an included plug if desired.

Dyno-Tuned Intake Tube:
This system features a high quality, computer-designed, dyno-tuned intake tube to achieve maximum power gains while maintaining a perfect fit. Its XLPE material is heat soak resistant and extremely durable.

Hassle-Free Installation:
This is a direct fit intake system that utilizes factory mounting points and requires no cutting or modifications. All necessary clamps, couplings, and hardware are included. Its revolutionary design, featuring our patent pending filter-to-housing interface, uses half the number of parts of a traditional cold air intake system.

Emissions Disclaimer:
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

Specification

Model

Pro 5R Filter, Pro DRY S Filter

Brand

Compatibility

, , , ,

Air Filter Flange Inside Diameter

3.5

Air Intake Tube Color

Black

Air Intake Tube Material

Cross-linked Polyethylene

Coupler Color

Black

Coupler Included

Yes

Filter Included

Yes

Housing Color

Black

Housing Material

Cross-linked Polyethylene

Modifications Required

No

Mounting Hardware Included

Yes

System Type

Open Element Intake

Tuning Required

No

Coupler Material

Silicone

WARNING CA Proposition 65

Yes

WARNING Message

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

UPC

AFE-56-10020D : 802959560464 | AFE-56-10020R : 00802959560471

MPN

56-10020D | 56-10020R

Oiled or Dry Media

Dry, Oiled

Air Filter Color

Blue, Gray
