Description
Overview

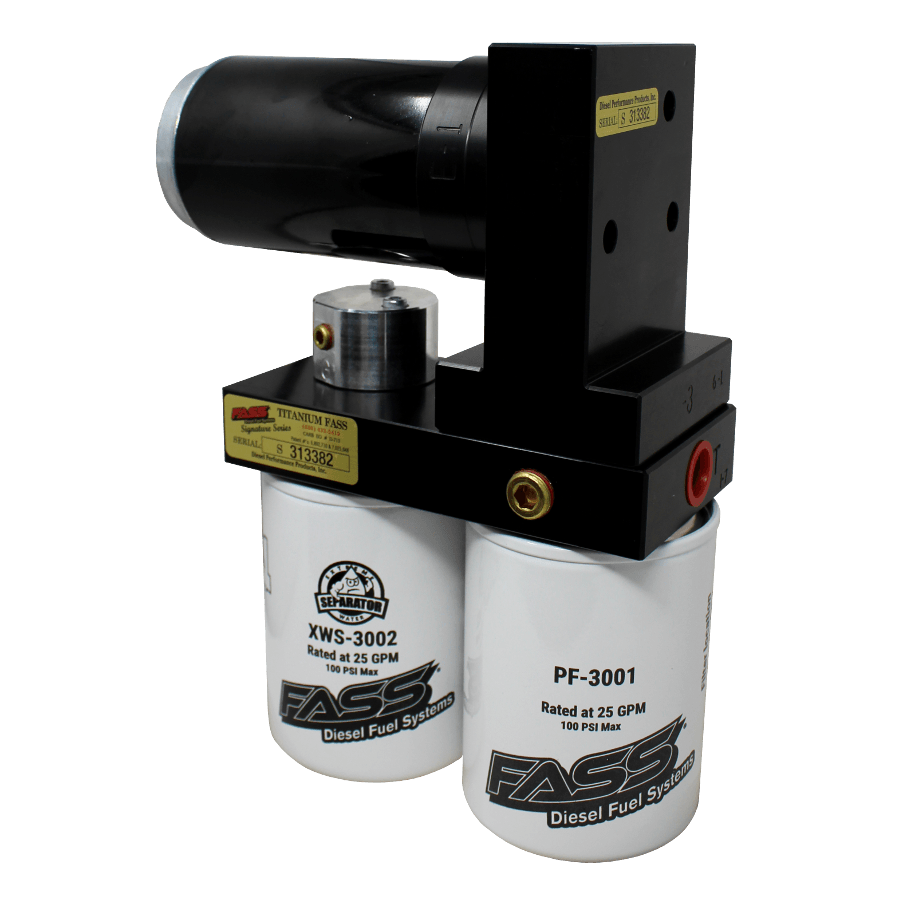

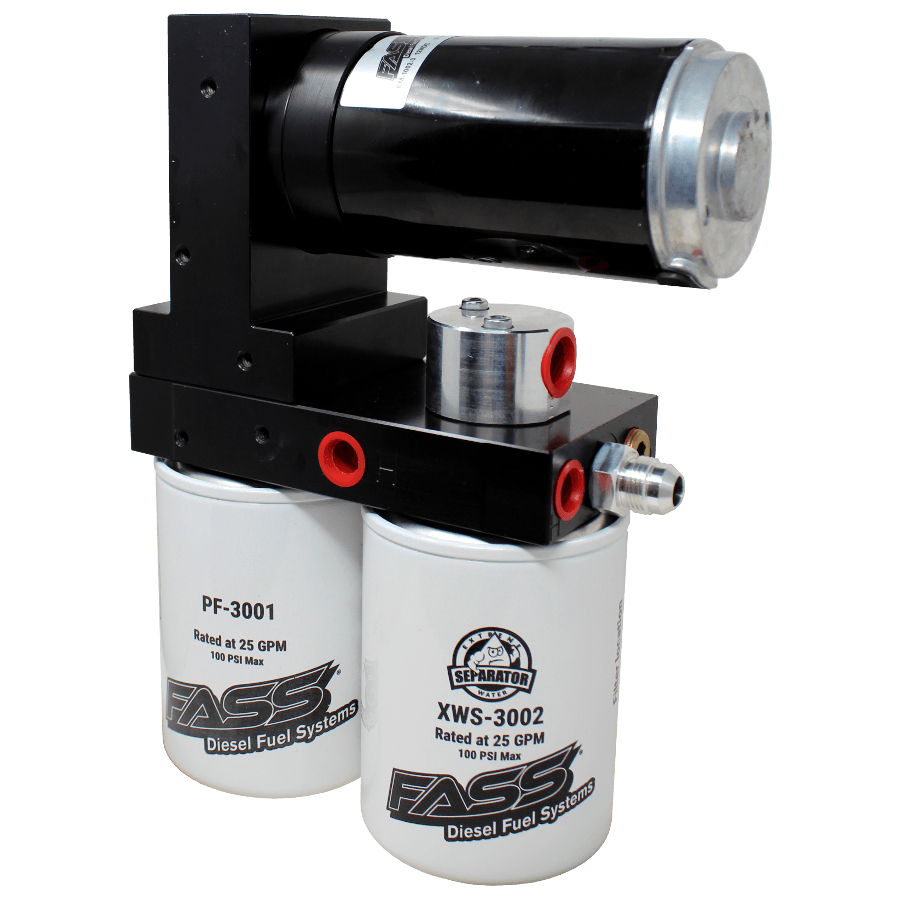

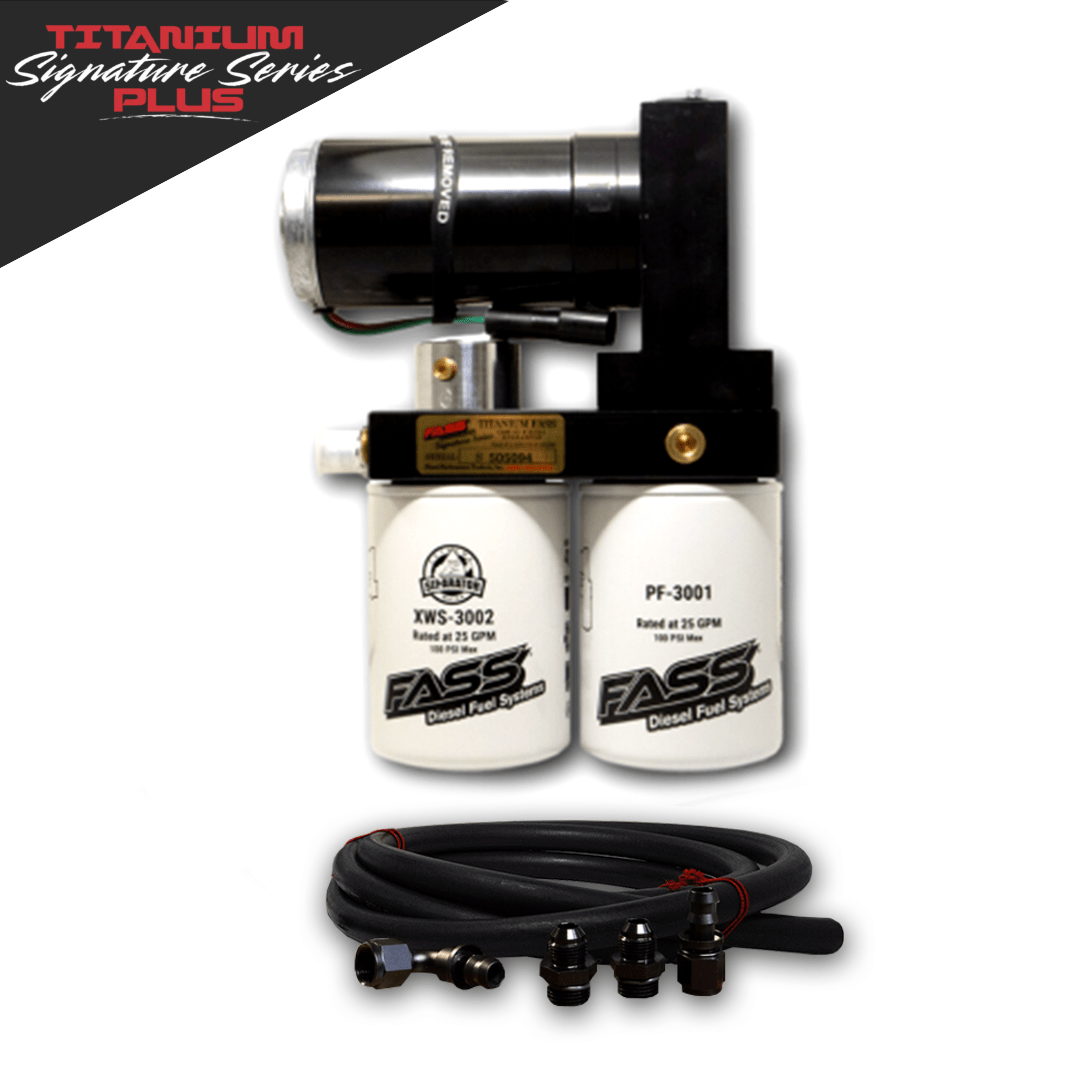

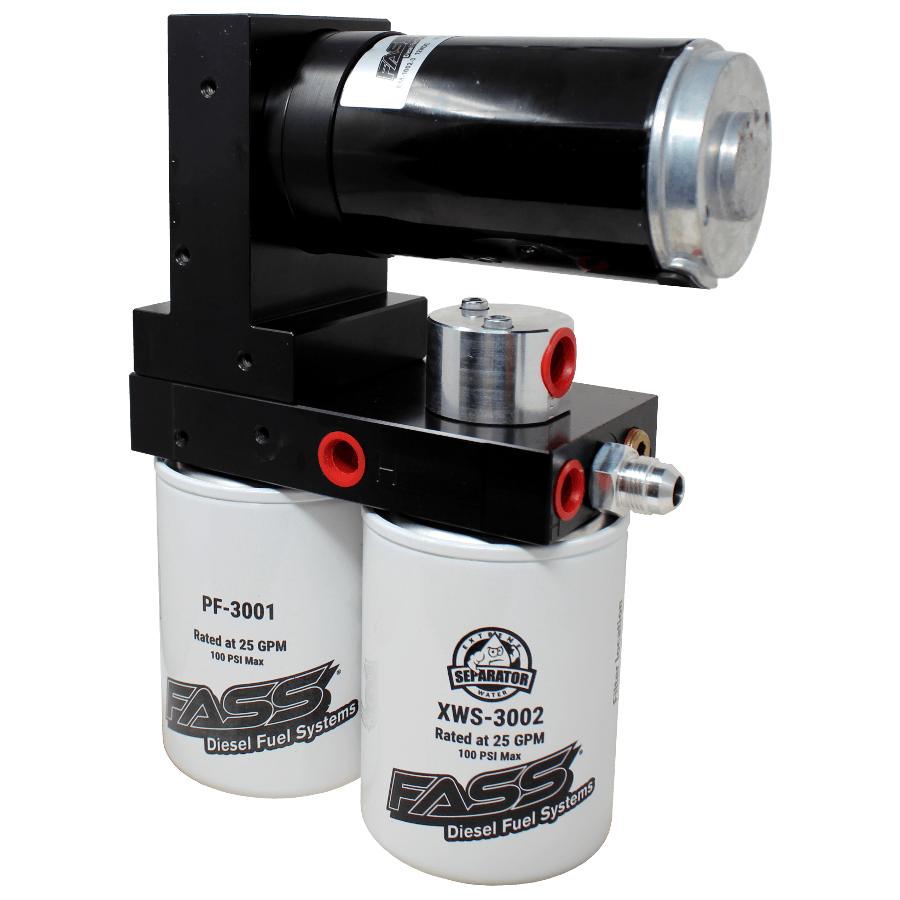

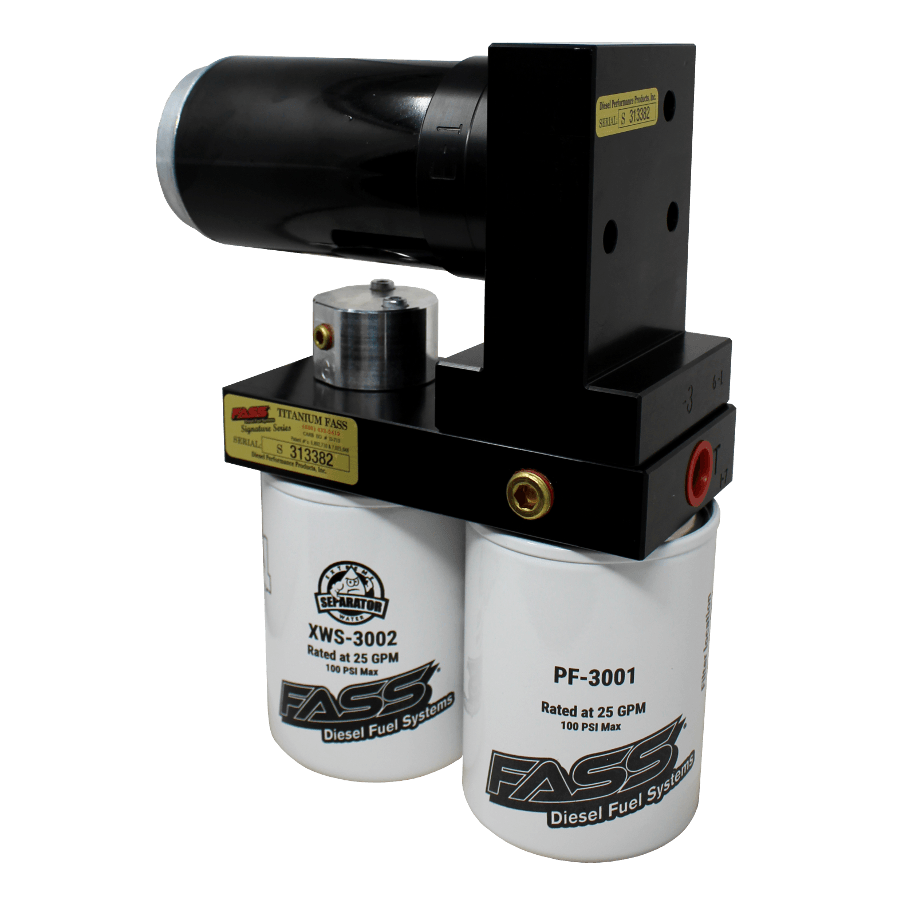

The FASS Titanium Signature Series Plus is the next evolution of the popular Titanium Signature Series Fuel System, engineered to be a top-performing, long-lasting, and reliable aftermarket filtration and fuel delivery solution for your diesel truck. Built for the 1999-2007 Ford Powerstroke 6.0L and 7.3L, this dedicated fuel system is rated at 220 gallons per hour and 55 psi, delivering enough clean, air-free fuel to support builds in the 600-900hp range.
What sets the Signature Series Plus apart is the attention to detail. It comes equipped with ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel line, giving your engine bay an ultra-clean, factory-plus finished installation. The system is constructed from durable 6061 T-6 billet aluminum in a black finish, sold as each.
Advanced Filtration & Fuel Protection
Powerstroke diesel engines are well known for injector failure issues, and FASS Filtration Systems are designed to eliminate the failures that are fuel related. The Titanium Signature Series Plus provides advanced filtration benefits that help protect your Powerstroke injection system and effectively extend the life of both the injection system and your injectors.
These protective benefits include an improved 2-micron filtration rating, a built-in water separation filter, and the FASS patented air/vapor removal process. By separating water, filtering out harmful contaminants down to 2 microns, and removing air and vapor from the fuel supply, the system helps ensure your injectors receive only clean, consistent diesel fuel.
Key Highlights
- Rated at 220 gallons per hour to support up to 900 HP on the 7.3L Powerstroke
- Operating pressure of 55 psi for reliable, consistent fuel delivery
- ORB (O-Ring Boss) fittings with 6061 aluminum black anodized fittings and black fuel line for a clean install
- Constructed from 6061 T-6 billet aluminum in a black finish
- Improved 2-micron filtration rating with a built-in water separation filter
- FASS patented air/vapor removal process to protect your injection system
- Backed by the FASS limited lifetime warranty
Fitment
This Titanium Signature Series Plus Fuel System is engineered for the 1999-2007 Ford Powerstroke, covering both 6.0L and 7.3L Truck/SUV applications in the 600-900hp range. Whether you are running a daily-driven Powerstroke or a higher-horsepower build, this system delivers the clean, air-free fuel supply your engine demands.
Engineered by FASS to be a top-performing, longest-lasting, and reliable filtration system, the Titanium Signature Series Plus combines premium billet construction, advanced 2-micron filtration, and refined ORB fittings to protect your investment and keep your Powerstroke running strong.
