Description
Overview

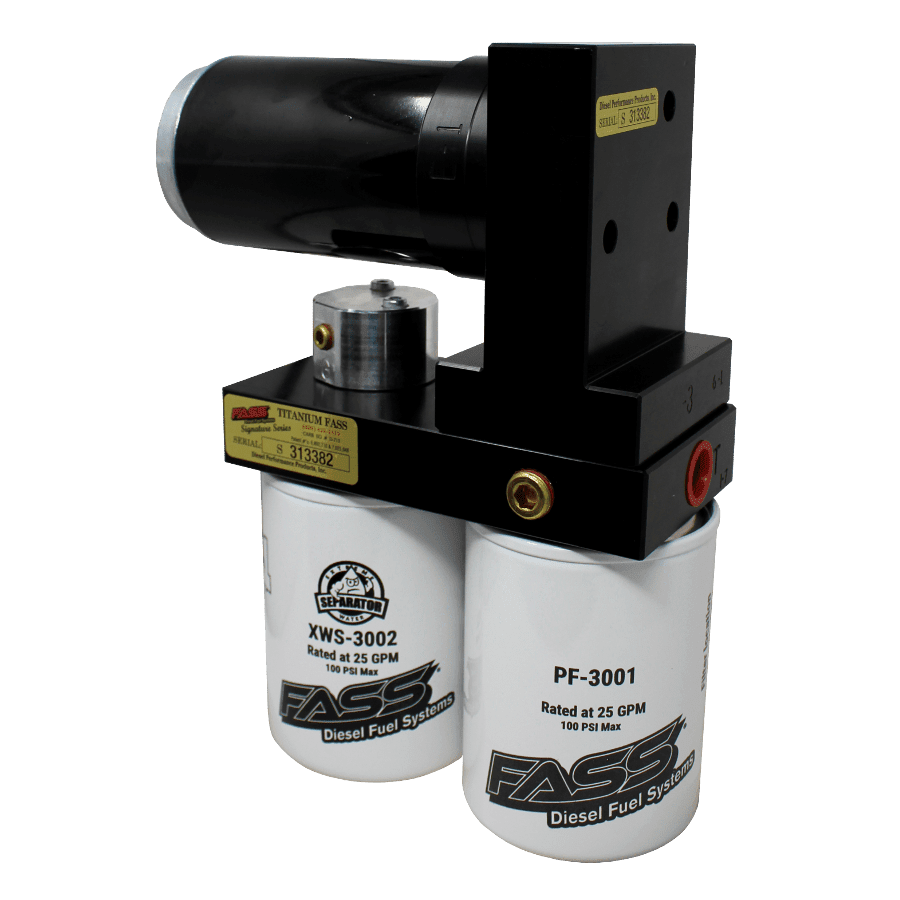

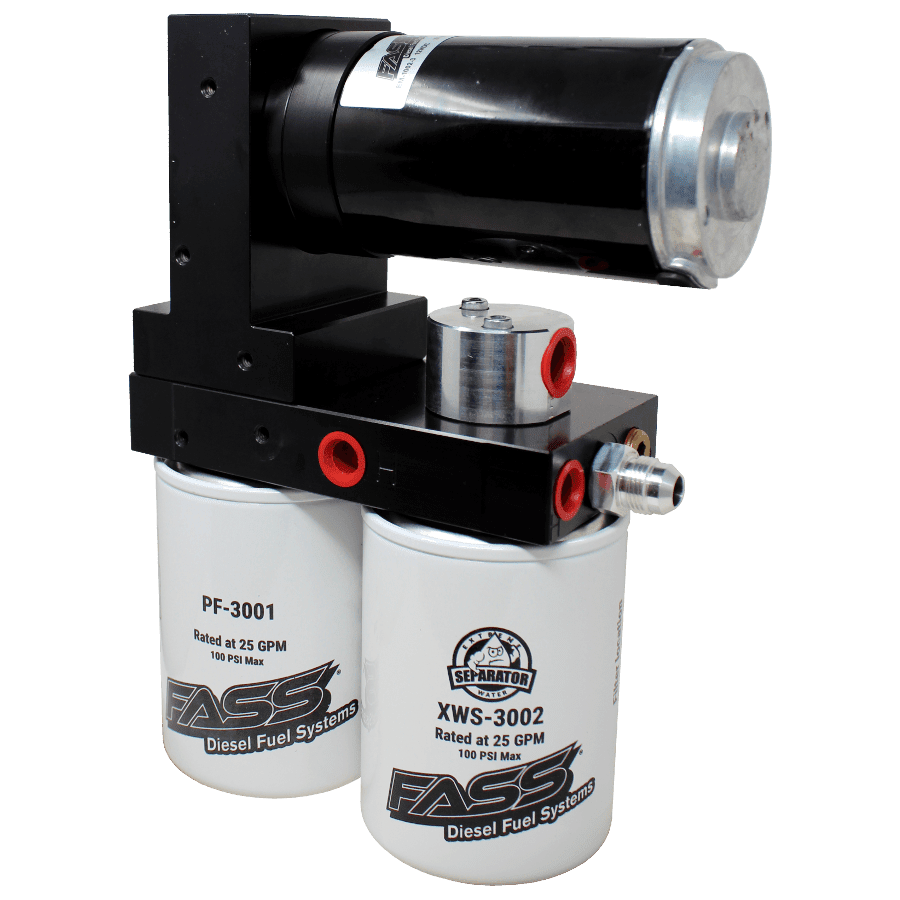

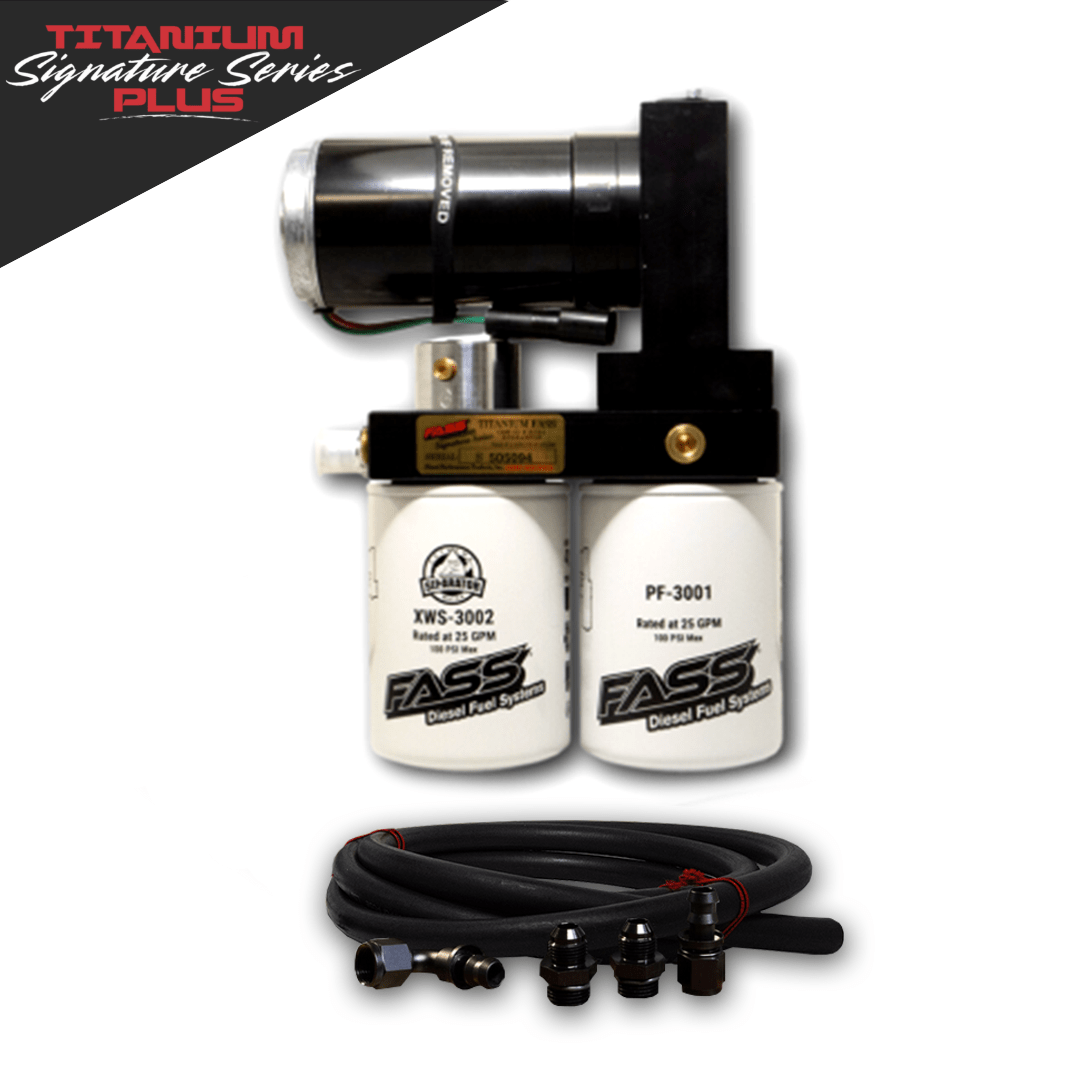

The FASS Titanium Signature Series Plus Fuel System is the next evolution of the popular Titanium Signature Series, engineered to be a top-performing, long-lasting, and reliable aftermarket fuel and filtration system for your diesel. Built for the 1999-2007 Ford Powerstroke 6.0L and 7.3L, it combines high-volume fuel delivery with advanced filtration in one clean, purpose-built package. Rated at 240 gallons per hour, it can support your 7.3L Powerstroke diesel engine with enough fuel for up to 1200 HP.
What sets the “Plus” apart is its refined, ultra-clean installation. It comes equipped with ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel line, all working together for a factory-clean, blacked-out look under the hood and along the frame. The pump body is machined from 6061 T-6 billet aluminum for durability and finished in black.
Key Benefits
Powerstroke diesel engines are known for injector failure issues, and FASS filtration systems are designed to eliminate those that are fuel related. The Titanium Signature Series Plus delivers advanced filtration benefits that help protect your Powerstroke injection system, effectively extending the life of both your injection system and your injectors. These benefits include an improved 2-micron filtration rating, a built-in water separation filter, and FASS’s patented air/vapor removal process, which strips damaging air and vapor out of your fuel before it reaches the engine.
Operating at 55 psi and sold as each, this system is backed by a FASS limited lifetime warranty, reflecting the confidence FASS places in its engineering and materials.
Highlights
- 240 GPH flow rate supporting builds up to 1200 HP on the 7.3L Powerstroke
- 2-micron filtration rating for superior injector and injection system protection
- Built-in water separation filter to keep water out of your fuel
- FASS patented air/vapor removal process for cleaner, more consistent fuel
- ORB (O-Ring Boss) fittings, black anodized 6061 aluminum fittings, and black fuel line for an ultra-clean install
- 6061 T-6 billet aluminum construction, operating at 55 psi
- Backed by a FASS limited lifetime warranty
Fitment
The Titanium Signature Series Plus is designed for 1999-2007 Ford Powerstroke trucks and SUVs equipped with the 6.0L or 7.3L diesel engine. Whether you’re running a daily-driven workhorse or a high-horsepower build, this system pairs high-volume fuel delivery with the filtration your Powerstroke needs to run stronger and last longer. Choose the FASS Titanium Signature Series Plus when you want maximum fuel support, cleaner fuel, and a clean, blacked-out installation.
