Description
Overview

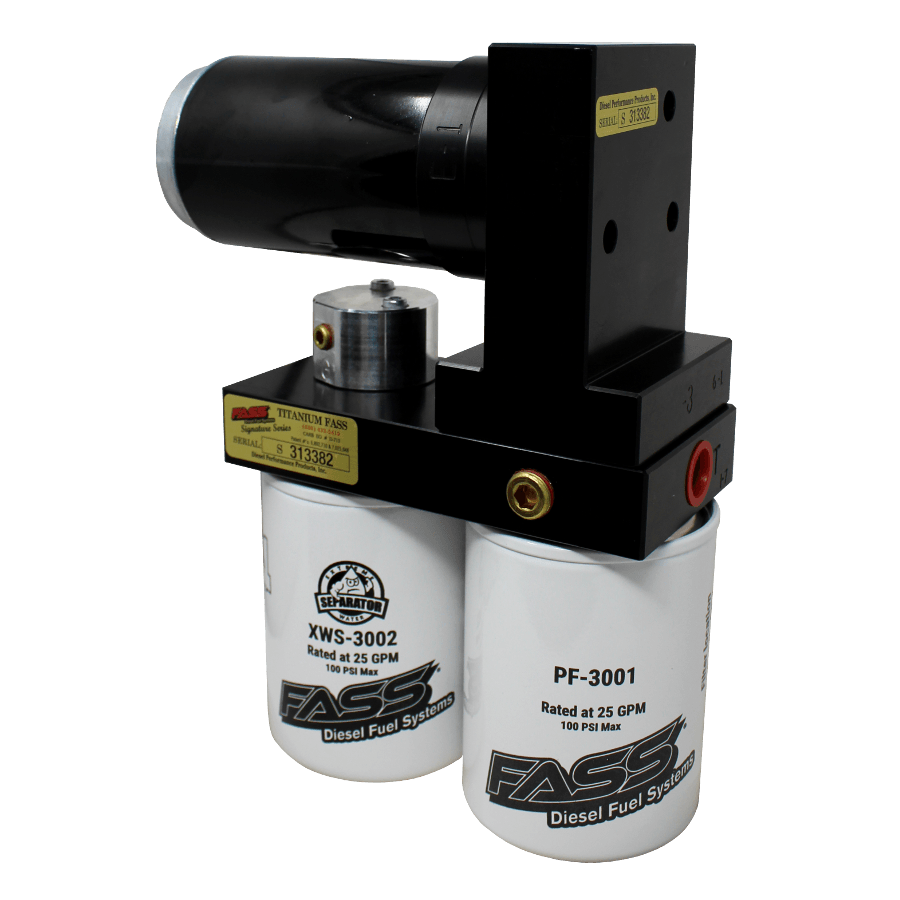

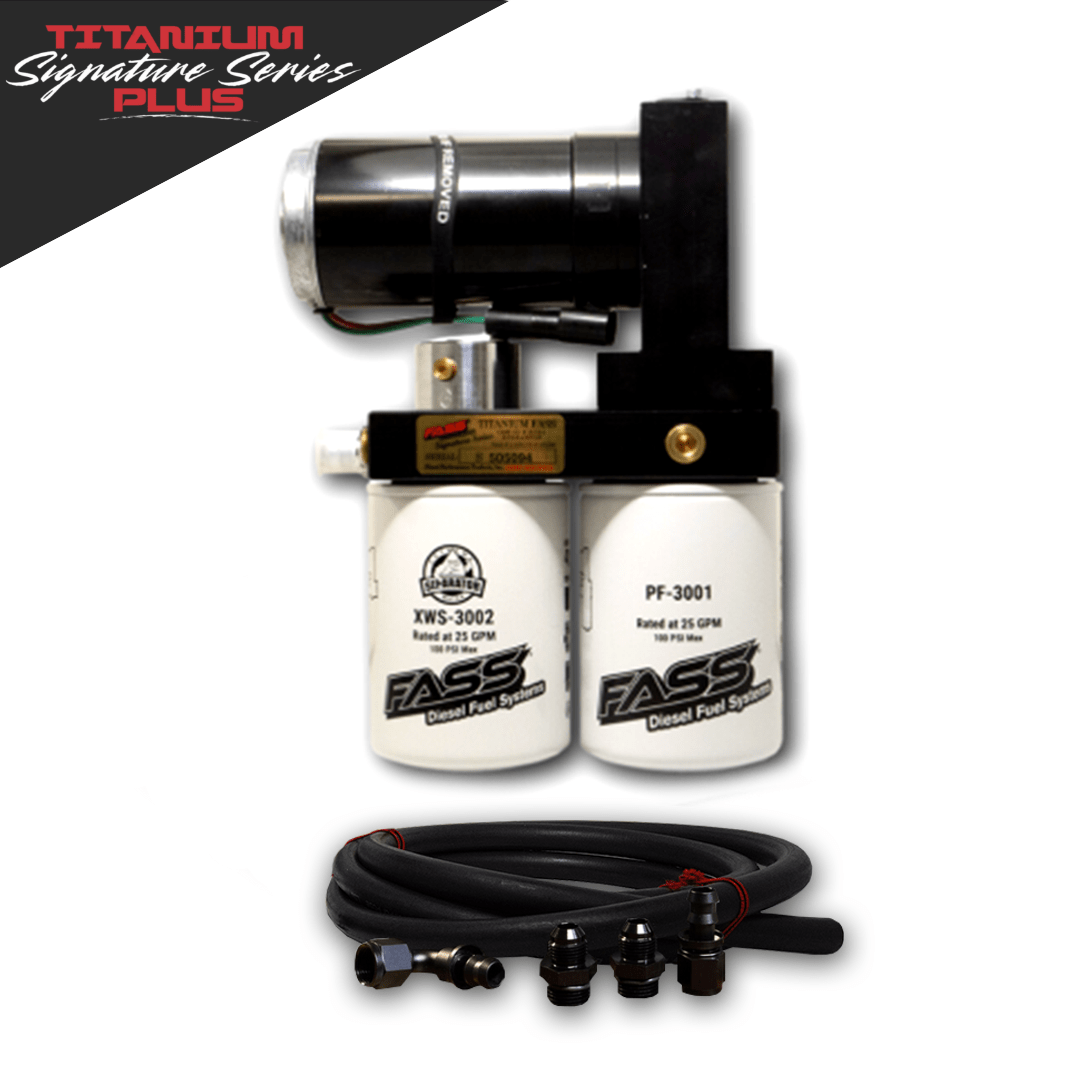

The FASS Titanium Signature Series Plus Fuel System is the next evolution of the popular Titanium Signature Series, engineered by FASS Fuel Systems to be a top-performing, long-lasting, and reliable aftermarket lift pump and filtration system for your Dodge RAM Cummins. Built to fit 2005-2018 and 2021-2024 Cummins 5.9L and 6.7L trucks, it is designed for serious builds in the 1200-1500hp range, delivering a massive 290 gallons per hour of clean, consistent fuel to feed high-output injection systems.
What sets the Plus apart is its ultra-clean, purpose-built plumbing. It comes equipped with ORB (O-Ring Boss) fittings, black anodized 6061 aluminum fittings, and black fuel line, giving your engine bay a stealthy, finished look while the CNC-machined 6061 T-6 billet aluminum construction and black finish deliver durability where it counts.
Advanced Filtration & Protection
Cummins diesel engines are known for fuel-related injector failures, and FASS filtration systems are designed to eliminate those failures at the source. The Titanium Signature Series Plus features an improved 2-micron filtration rating, a built-in water separation filter, and the FASS patented air/vapor removal process. Together, these systems strip out damaging contaminants, water, and entrained air before they ever reach your injection system, helping protect your injectors and extend the life of both your injectors and your entire injection system.
Performance You Can Rely On
Operating in the 16-18psi range and rated at 290 gph, this system supplies enough fuel to support your Dodge RAM Cummins 5.9L diesel engine for up to 1500 HP. Whether you’re chasing big power numbers or simply want cleaner, more reliable fuel delivery for daily driving, the consistent flow and superior filtration keep your engine fed and protected.
- 290 gallons per hour flow rating to support up to 1500 HP
- 2-micron filtration for maximum contaminant removal
- Built-in water separation filter to keep water out of your injection system
- FASS patented air/vapor removal process
- Operating pressure of 16-18psi
- ORB fittings, black anodized 6061 aluminum fittings, and black fuel line for an ultra-clean install
- CNC-machined 6061 T-6 billet aluminum construction in black
- Backed by a FASS limited lifetime warranty
Fitment
The Titanium Signature Series Plus is engineered for 2005-2018 and 2021-2024 Dodge RAM Cummins 5.9L and 6.7L trucks and SUVs, covering the 2005-2024 Cummins application range. Sold as each, it is the ideal upgrade for owners who demand top-tier filtration, high flow, and a refined, blacked-out installation. Protect your Cummins injectors, feed your build, and enjoy the peace of mind that comes with a limited lifetime warranty.
