Description
Overview

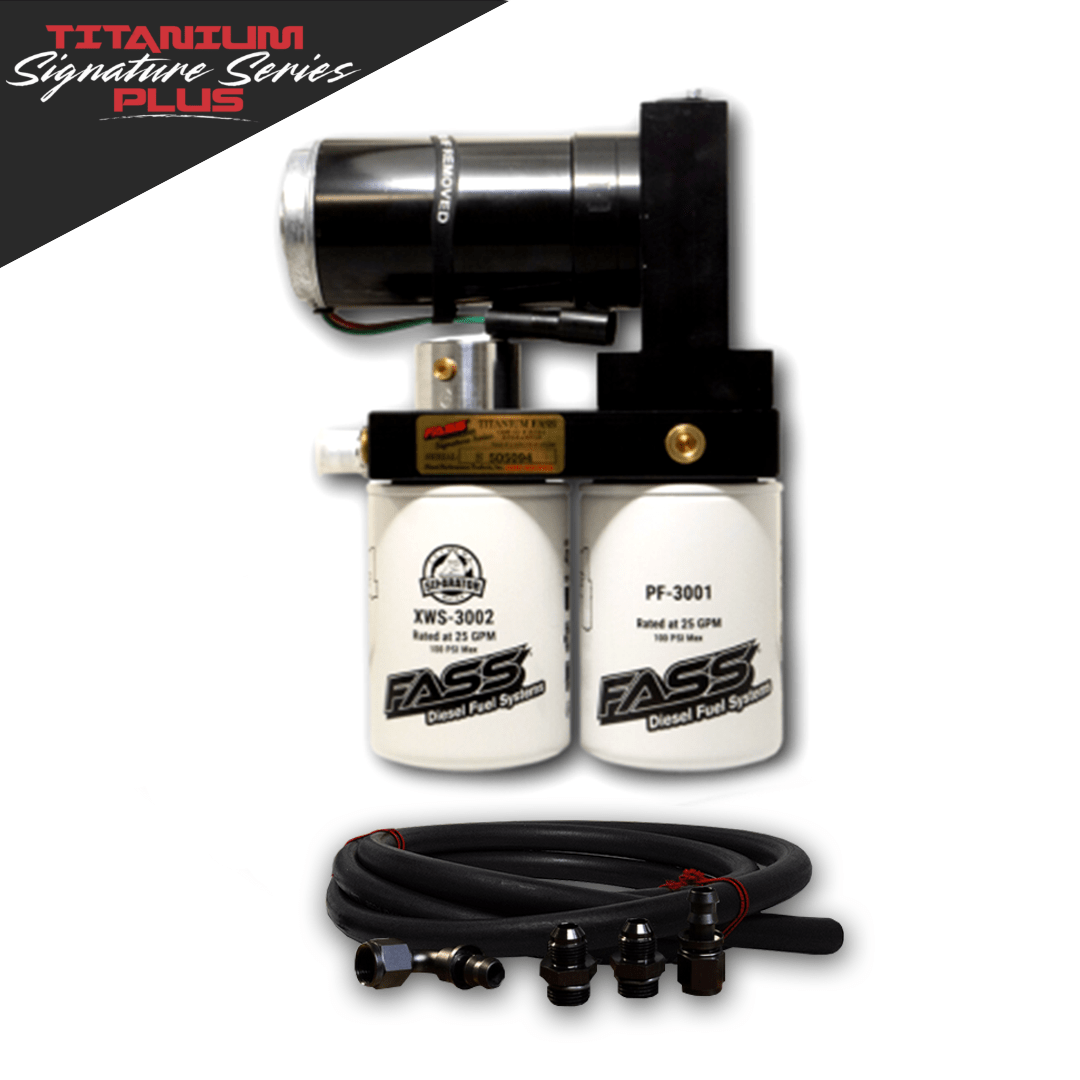

The FASS Titanium Signature Series Plus Fuel System is the next evolution of the popular Titanium Signature Series, purpose-built to feed the 2017-2022 Ford Powerstroke 6.7L diesel. Engineered by FASS to be a top-performing, long-lasting, and reliable aftermarket filtration system, this Dedicated Fuel System delivers clean, air-free diesel to your injection system while supporting builds all the way up to 900 HP. Rated at 220 gallons per hour, it has the flow capacity to keep high-horsepower Powerstroke trucks and SUVs running strong.
What sets the Plus apart is the attention to a truly clean installation. It comes equipped with ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel line, all working together for an ultra-clean, finished look under the hood. The pump body is machined from durable 6061 T-6 billet aluminum in a black finish, giving you a system that looks as serious as it performs.
Advanced Filtration & Injector Protection
Powerstroke diesel engines are known for fuel-related injector failure issues, and FASS filtration systems are designed to eliminate the problems that stem from contaminated or aerated fuel. The Titanium Signature Series Plus delivers advanced filtration that helps protect your Powerstroke injection system and effectively extends the life of both the injection system and the injectors themselves.
These protective benefits come from an improved 2-micron filtration rating, a built-in water separation filter, and FASS’s patented air/vapor removal process. Together, they strip water, particulates, and entrained air and vapor out of the fuel before it ever reaches your engine, so your injectors receive clean, dense, consistent diesel every time.
Key Highlights
- 220 gallons per hour flow rate, supporting up to 900 HP
- Operates at 65 psi to feed the 6.7L Powerstroke injection system
- ORB (O-Ring Boss) fittings with 6061 aluminum black anodized fittings and black fuel line for an ultra-clean install
- 2-micron filtration for improved contaminant removal
- Built-in water separation filter to guard against water damage
- Patented FASS air/vapor removal process for denser, cleaner fuel
- 6061 T-6 billet aluminum construction in a black finish
- Backed by the FASS limited lifetime warranty
Fitment
This system is engineered specifically for the 2017-2022 Ford Powerstroke 6.7L, fitting Powerstroke Truck and SUV applications in the 700-900hp range. Sold as each, the Titanium Signature Series Plus is a complete upgrade for owners who want maximum flow, superior filtration, and long-term injector protection from a system that’s built to last.
If you’re chasing higher horsepower or simply want to safeguard your injection system for the long haul, the Titanium Signature Series Plus combines proven FASS engineering with premium billet construction and a clean, professional installation.
