Description
Overview

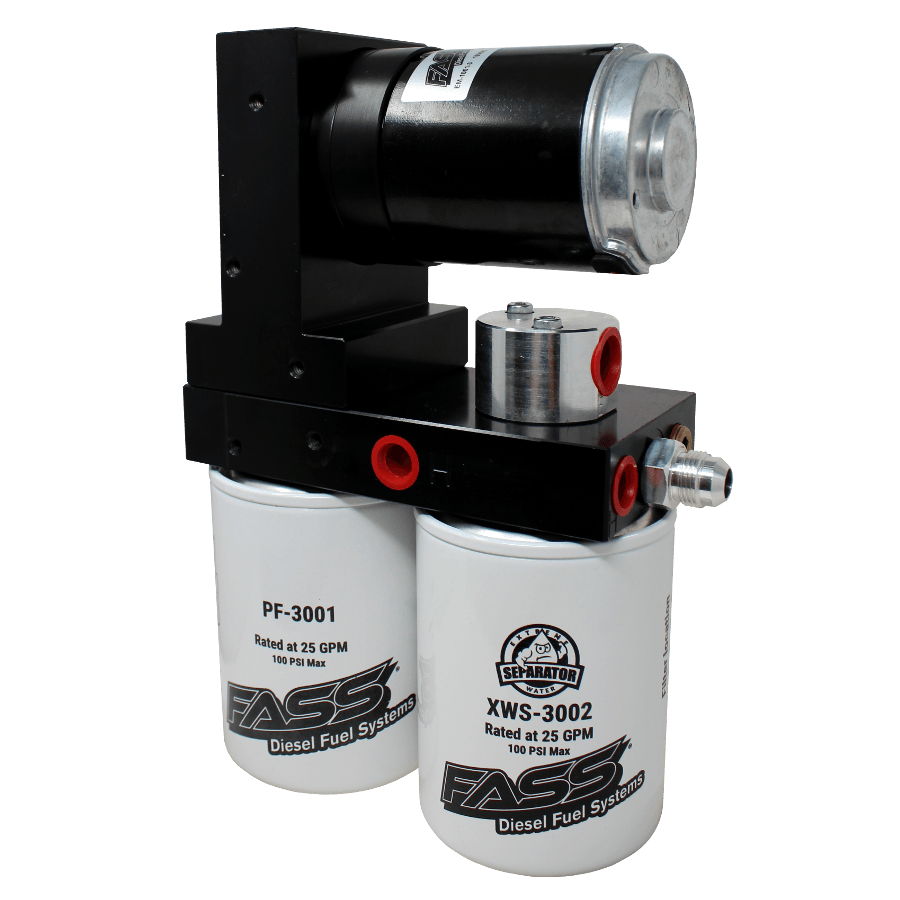

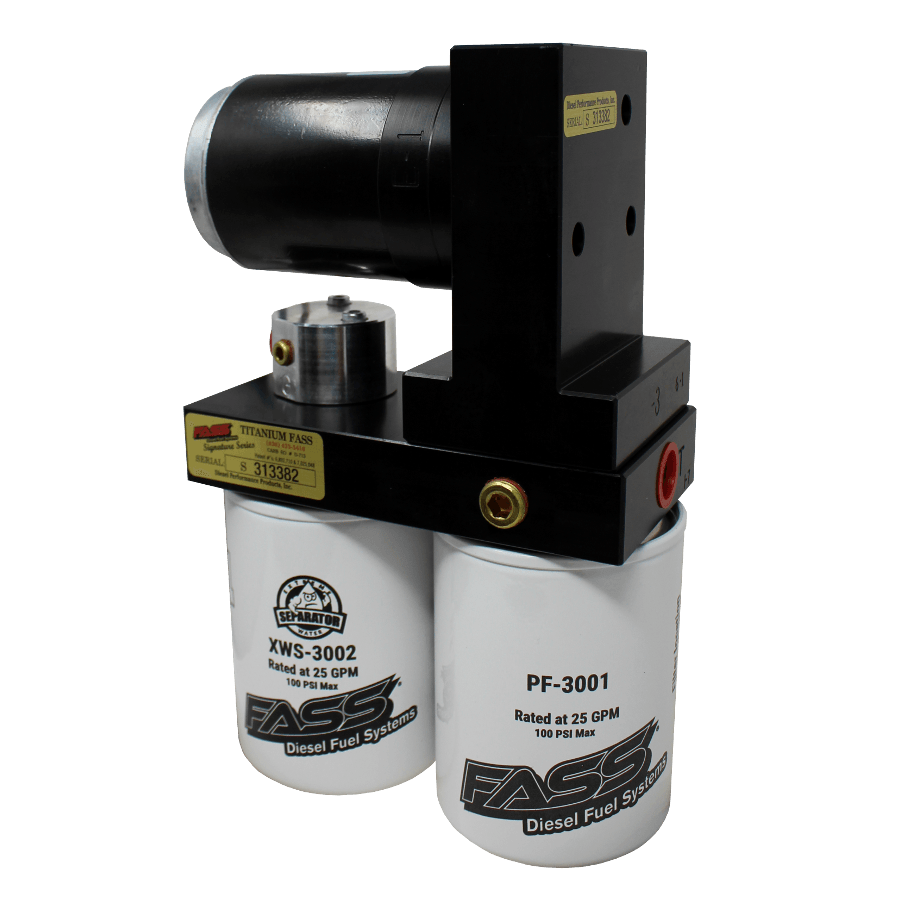

The FASS Titanium Signature Series Plus Fuel System is the next evolution of the popular Titanium Signature Series, purpose-built for the 2020-2023 GM Duramax 6.6L. Engineered by FASS Fuel Systems to be a top-performing, long-lasting, and reliable aftermarket filtration system, this dedicated fuel system delivers clean, air-free diesel to your injection system while supporting builds from 500 to 900 horsepower. Rated at 220 gallons per hour and constructed from 6061 T-6 billet aluminum, it operates in the 70-75 psi range to keep your GMC or Chevrolet Duramax fed under demanding conditions.
Cleaner Installation, Advanced Engineering
What sets the Plus apart is the attention to a truly clean install. It comes equipped with ORB (O-Ring Boss) fittings, 6061 aluminum black anodized fittings, and black fuel line for an ultra-clean, finished appearance under the hood and along the frame. The result is a fuel system that not only performs but looks the part on your Duramax truck or SUV.
Protect Your Injection System
Duramax diesel engines are known for fuel-related injector failure issues, and FASS filtration systems are designed to eliminate those problems at the source. The Titanium Signature Series Plus offers advanced filtration benefits that protect your injection system and extend the life of both your injectors and pump. These benefits include an improved 2-micron filtration rating, a built-in water separation filter, and the FASS patented air/vapor removal process that strips damaging air and vapor out of the fuel before it reaches your engine.
Key Highlights
- Engineered specifically for 2020-2023 GM Duramax 6.6L trucks and SUVs
- Supports fuel delivery for builds up to 900 HP (500-900hp range)
- Flows 220 gallons per hour at 70-75 psi
- 2-micron filtration with built-in water separator
- FASS patented air/vapor removal process
- ORB fittings, black anodized 6061 aluminum fittings, and black fuel line
- 6061 T-6 billet aluminum construction, finished in black
- Backed by the FASS limited lifetime warranty
By combining high flow capacity with precision filtration and water separation, the Titanium Signature Series Plus keeps your fuel clean, consistent, and free of the air and vapor that contribute to premature injector wear. Whether you’re running a daily driver or pushing toward 900 horsepower, this system is built to keep pace and last.
Sold as each and finished in black, the Titanium Signature Series Plus is the upgrade of choice for Duramax owners who want maximum protection, reliable performance, and a professional-grade appearance. Give your 6.6L diesel the filtration and fuel supply it deserves.
