Description
The Mishimoto MMOC-WRX-06TBK is a direct-fit oil cooler kit purpose-built for the Hawkeye-generation Subaru WRX and STI, pairing a large 19-row bar-and-plate oil cooler with a black anodized finish and a thermostatic sandwich plate for extra oil temperature control. This is the Black Cooler, Thermostatic configuration of Mishimoto’s WRX oil cooler kit, engineered to deliver a 50°F (34°C) temperature drop with minimal pressure loss whether you’re driving to work or lapping a track.
A high-horsepower Subaru needs a reliable, efficient way to manage oil temperatures, since excessive heat accelerates oil degradation and can lead to engine damage over time. This Mishimoto oil cooler kit mounts behind the front bumper and grille for optimal airflow, adds .65 qt to total oil capacity, and uses a CNC-machined spacer that allows installation without removing the factory heat shield. Whether you’re searching for a proven Mishimoto oil cooler, a complete Mishimoto oil cooler kit, or dependable cooling hardware for a track-driven Subaru, this kit is designed as a bolt-on cooling upgrade backed by the Mishimoto lifetime warranty.
Vehicle Applications
This oil cooler kit is a direct fit for the 2006–2007 Subaru Impreza WRX, WRX Limited, WRX STI, and WRX TR, as well as the 2007 Subaru Impreza WRX STI Limited. It is designed around the GD-chassis EJ255 and EJ257 engines and fits both automatic and manual applications. Because it mounts behind the front bumper and grille, it will not fit vehicles equipped with front mount intercoolers, and Mishimoto recommends inspecting the oil filter housing for installation compatibility; fitment has been confirmed against Subaru part 21311AA051.
Features

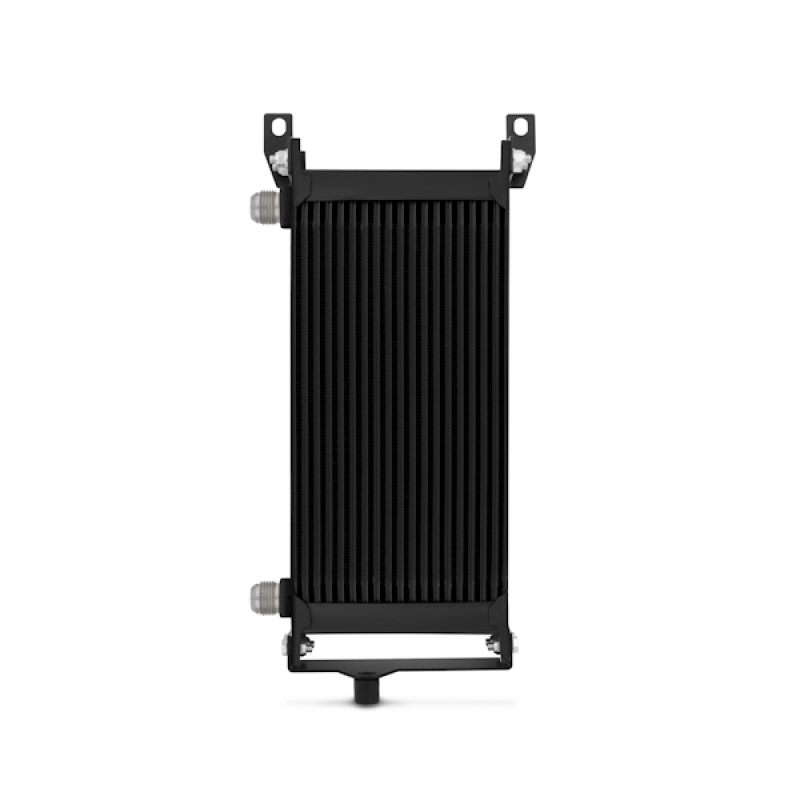

- 19-row bar-and-plate oil cooler delivers a 50°F (34°C) temperature drop with minimal pressure loss
- Direct fit for the WRX platform, adding .65 qt to total oil capacity
- CNC-machined spacer allows installation without removing the factory heat shield

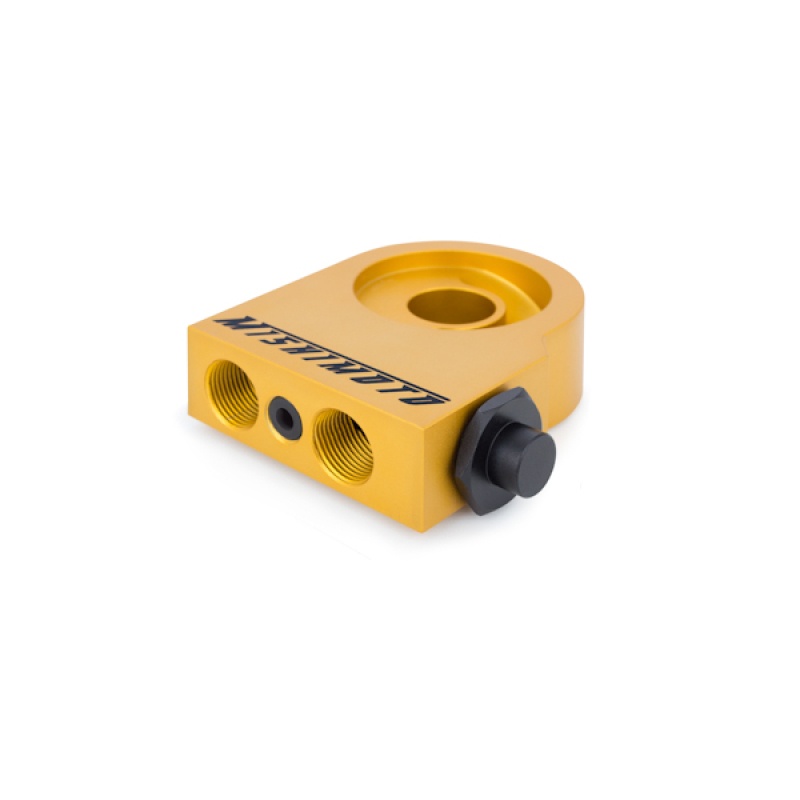

- Thermostatic sandwich plate included on this Black Cooler, Thermostatic configuration for additional oil temperature control
- Stealth black anodized cooler finish with black core color

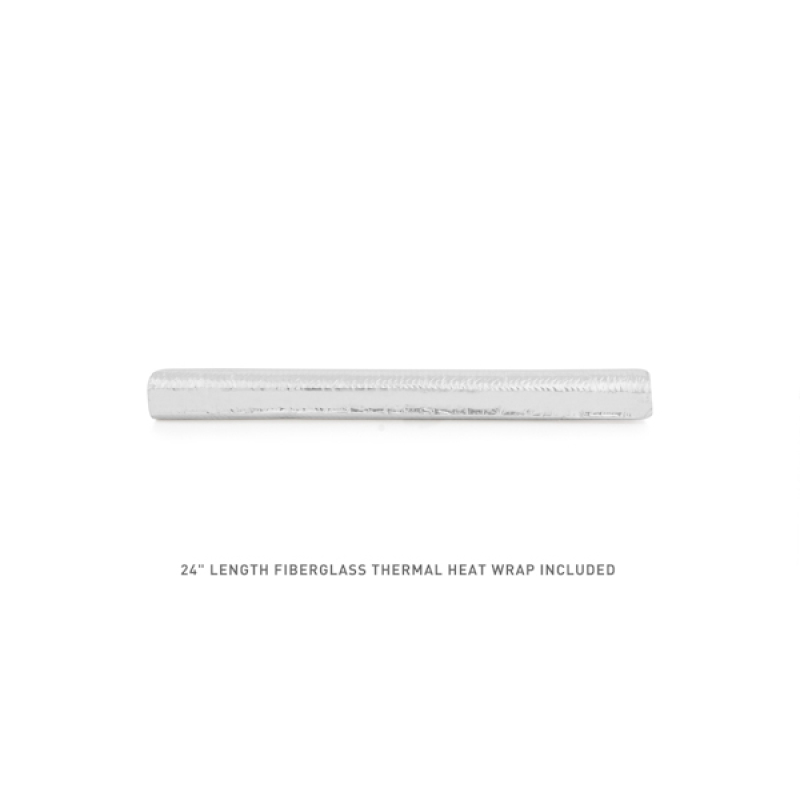

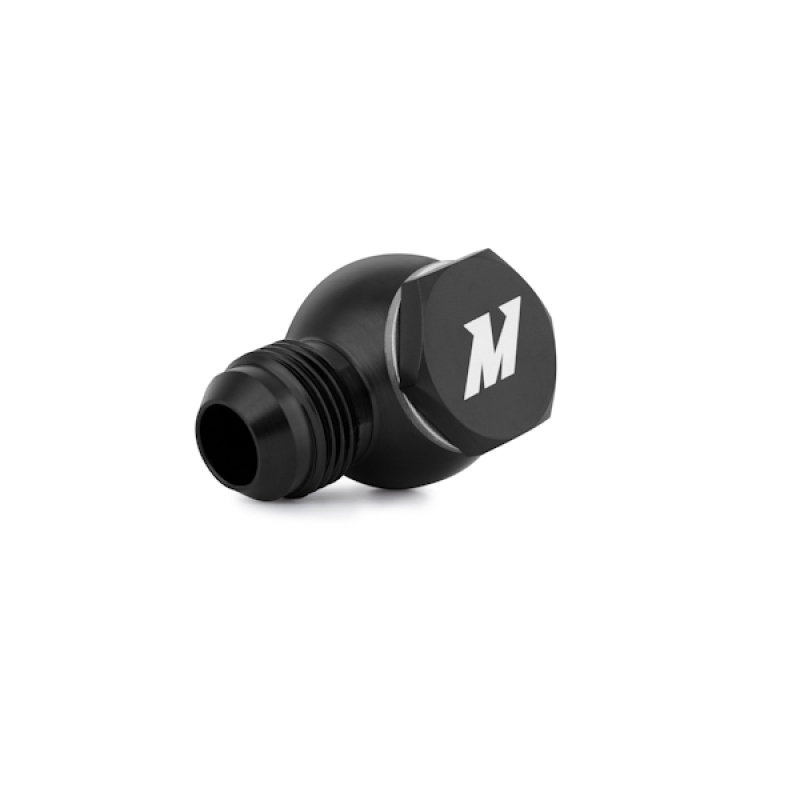

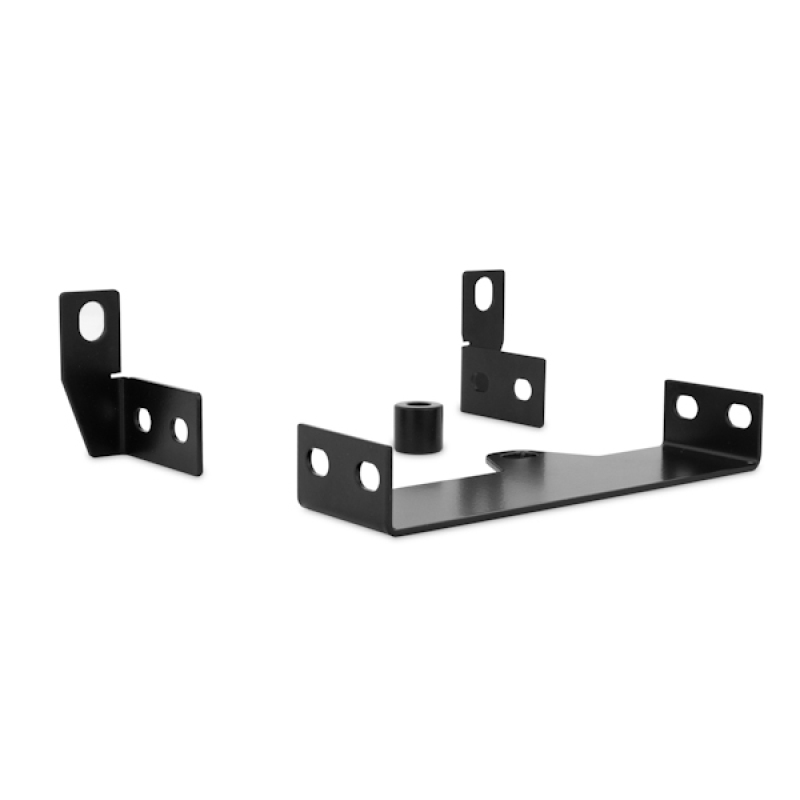

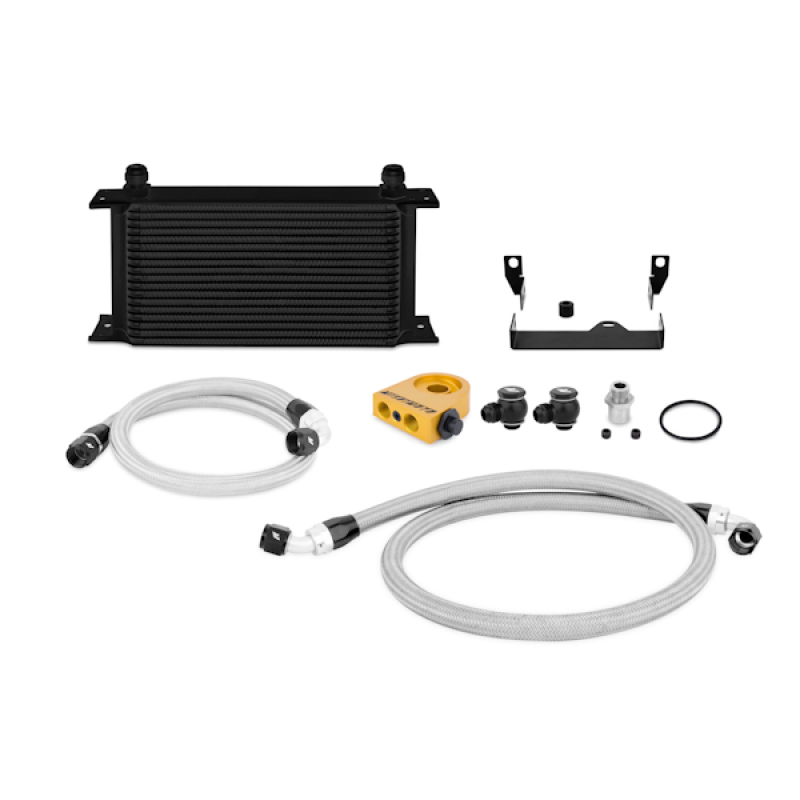

- Kit includes application-specific mounting brackets, a 2ft 2in and a 2ft 8in stainless steel braided hose with -10AN fittings, an oil sandwich plate, a stainless steel sandwich plate adapter (M20), a black banjo fitting with M20 x -10AN bolt, a 2in Thermashield silver braided line protector, a black rubber protector square, and a mounting hardware set
- Backed by the Mishimoto lifetime warranty
Specifications
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Row Quantity: 19
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Color / Core Color: Black
- Finish: Anodized
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Recommended torque for straight fittings and banjo bolts: 15–25 lb-ft (do not exceed 35 ft-lb)
Frequently Asked Questions
Which Subaru models does this Mishimoto oil cooler kit fit?
It fits the 2006–2007 Subaru Impreza WRX, WRX Limited, WRX STI, and WRX TR, plus the 2007 Subaru Impreza WRX STI Limited.
Will this kit work on a car with a front mount intercooler?
No, this kit will not fit vehicles equipped with front mount intercoolers.
Does it fit both manual and automatic WRX/STI models?
Yes, it fits automatic and manual applications.
Does this kit include a thermostatic sandwich plate?
Yes, this Black Cooler, Thermostatic version includes a thermostatic sandwich plate for additional oil temperature control.
How much does this kit add to oil capacity?
It adds .65 qt to the total oil capacity.
What is included with the kit?
Application-specific mounting brackets, the 19-row oil cooler, a 2ft 2in and 2ft 8in stainless steel braided hose with -10AN fittings, an oil sandwich plate, a stainless steel sandwich plate adapter (M20), a black M20 x -10AN banjo fitting with bolt, a 2in Thermashield silver braided line protector, a black rubber protector square, and a mounting hardware set.
