Description

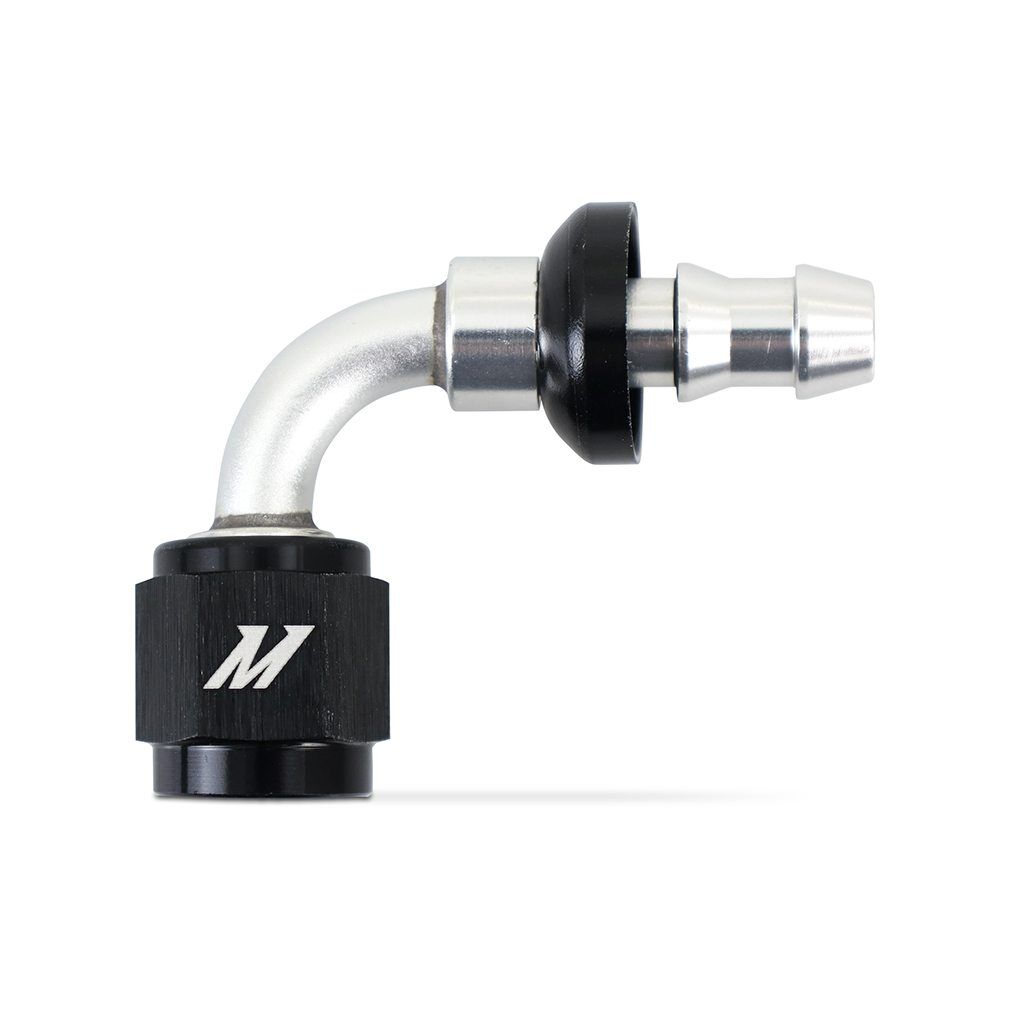

The Mishimoto -4AN Push Lock Fitting (MMFT-PL-490) is a 90-degree, silver and black anodized aluminum fitting built for custom fabrication work, from oil coolers to transmission coolers and catch cans. With a -4AN Push-Lock end on one side and a 7/16 in – 20 UNF connection on the other, it drops into custom plumbing setups without the hassle of traditional AN hardware.
Part of the Mishimoto Fabrication lineup, this push lock fitting is built for anyone who wants a clean, leak-free connection without sacrificing installation speed. Precision machining on the -4AN Push-Lock end delivers a secure seal with -4AN line, while the Performance-grade construction is rated to a maximum fluid pressure of 5000 PSI and a maximum fluid temperature of 248°F, making it suitable for use with engine oil, coolant, fuel, and similar fluids. The silver and black anodized aluminum finish is corrosion-resistant for a sleek, durable look, and the push-lock design means the fitting assembles in minutes.
Vehicle Applications
This is a universal fitting rather than a vehicle-specific part, so it is meant to integrate into custom fabrication projects rather than a single make or model. Builders can use the Mishimoto -4AN Push Lock Fitting to plumb custom oil coolers, transmission coolers, catch cans, and similar aftermarket setups wherever a 7/16 in – 20 UNF to -4AN Push-Lock connection is needed.
Features
- -4AN push lock port for simple installation
- Offered in straight, 45-degree, and 90-degree angles to allow for easy routing of lines; this listing is the 90-degree version
- Precision machining provides a leak-free connection with -4AN line
- Perfect for use with engine oil, coolant, fuel, etc.
- Corrosion-resistant anodized coating provides a sleek, durable finish
- Engineered to withstand high temperatures and substantial pressures
- Assembles in minutes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFT-PL-490
- Product Type: Fabrication
- Color: Silver and Black
- Angle: 90-Degree

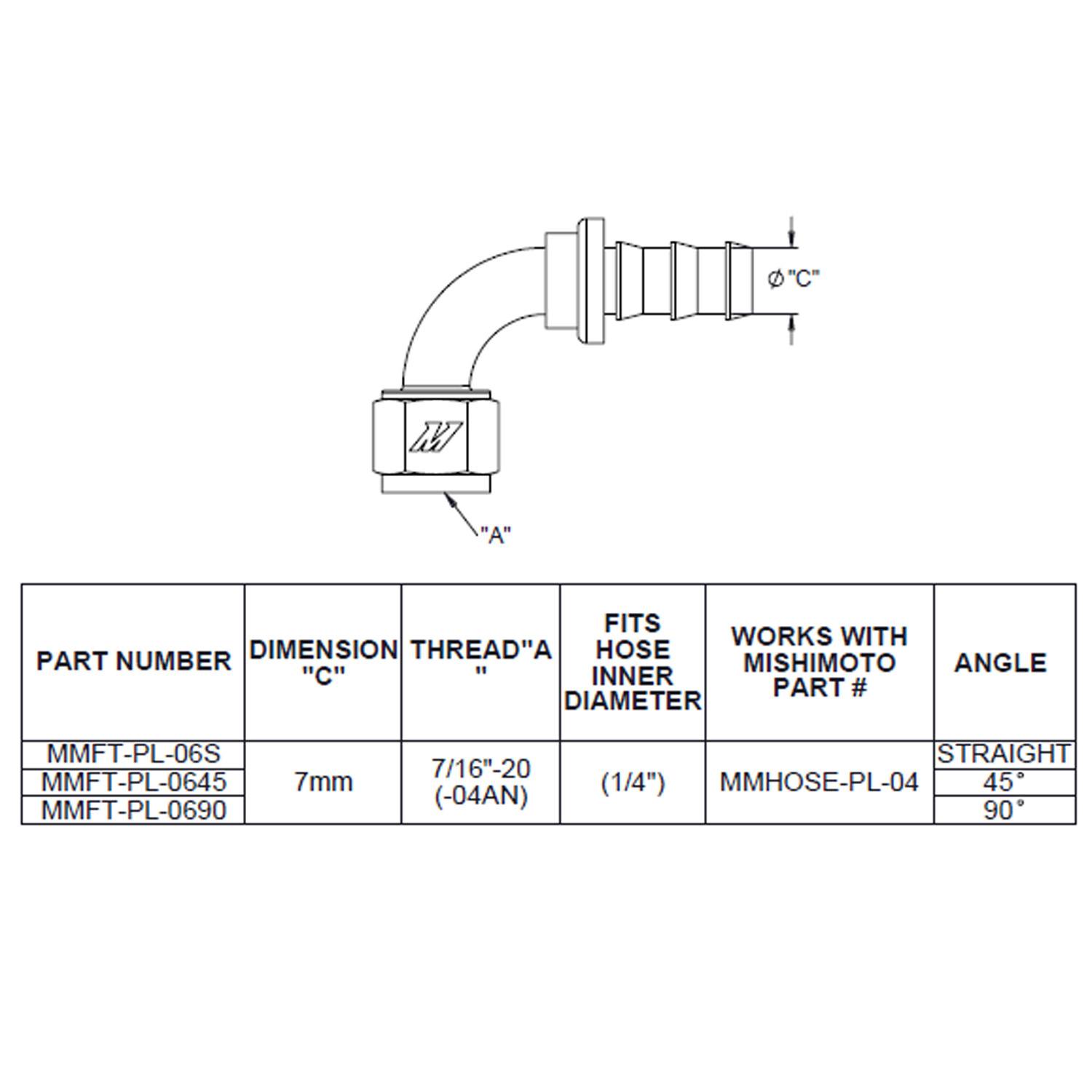

- End 1 Type: 7/16 in – 20 UNF
- End 2 Type: -4AN Push-Lock
- Grade Type: Performance
- Max Fluid Temperature: 248°F
- Max Fluid Pressure: 5000 PSI
- Includes: Mishimoto -4AN Push Lock Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle is the Mishimoto MMFT-PL-490 push lock fitting?
This fitting is the 90-degree version, and Mishimoto also offers straight and 45-degree angle options.
What are the connection types on this fitting?
One end is a -4AN Push-Lock connection and the other end is 7/16 in – 20 UNF.
What is the maximum pressure and temperature rating?
It is rated to a maximum fluid pressure of 5000 PSI and a maximum fluid temperature of 248°F.
What fluids can this fitting be used with?
It is suited for use with engine oil, coolant, fuel, and similar fluids.
What finish does the fitting have?
It features a silver and black anodized aluminum finish.
What’s included and is there a warranty?
It includes the Mishimoto -4AN Push Lock Fitting and is backed by the Mishimoto Lifetime Warranty.
