Description

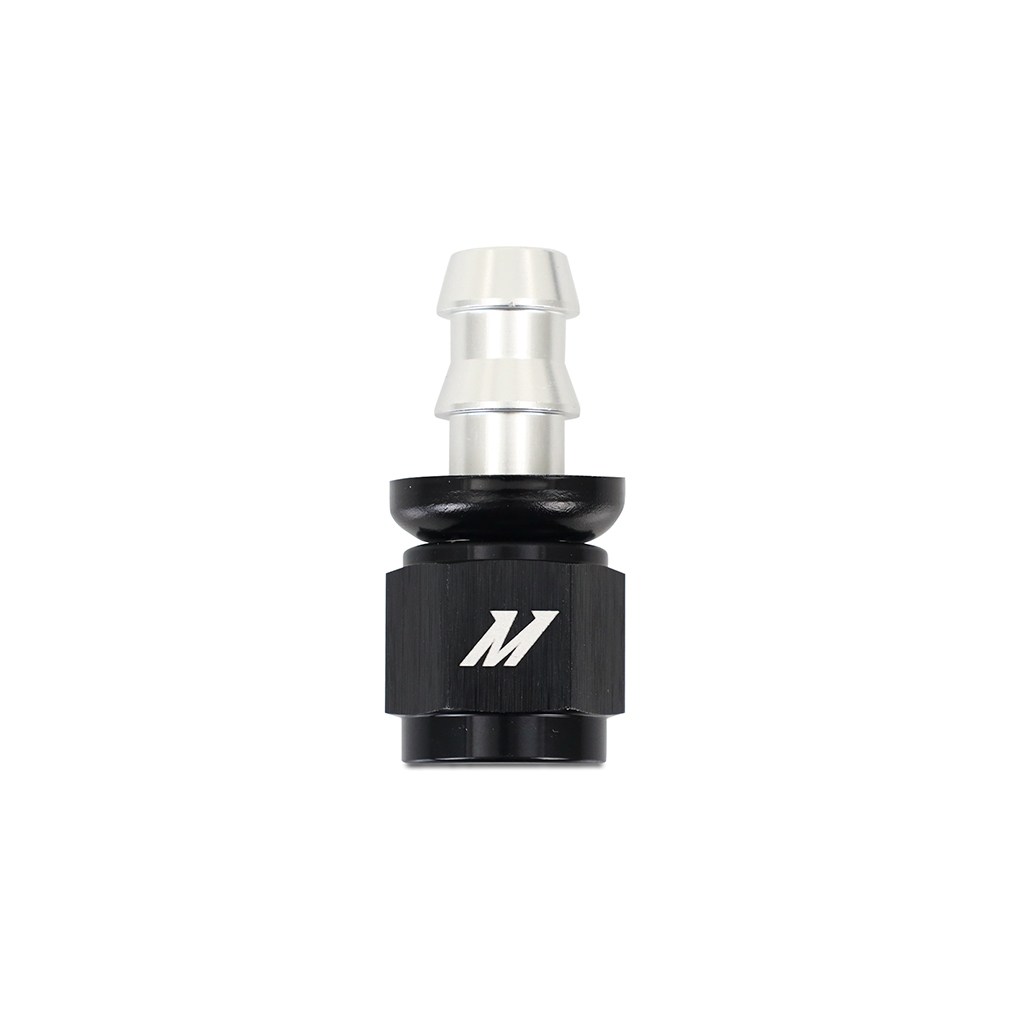

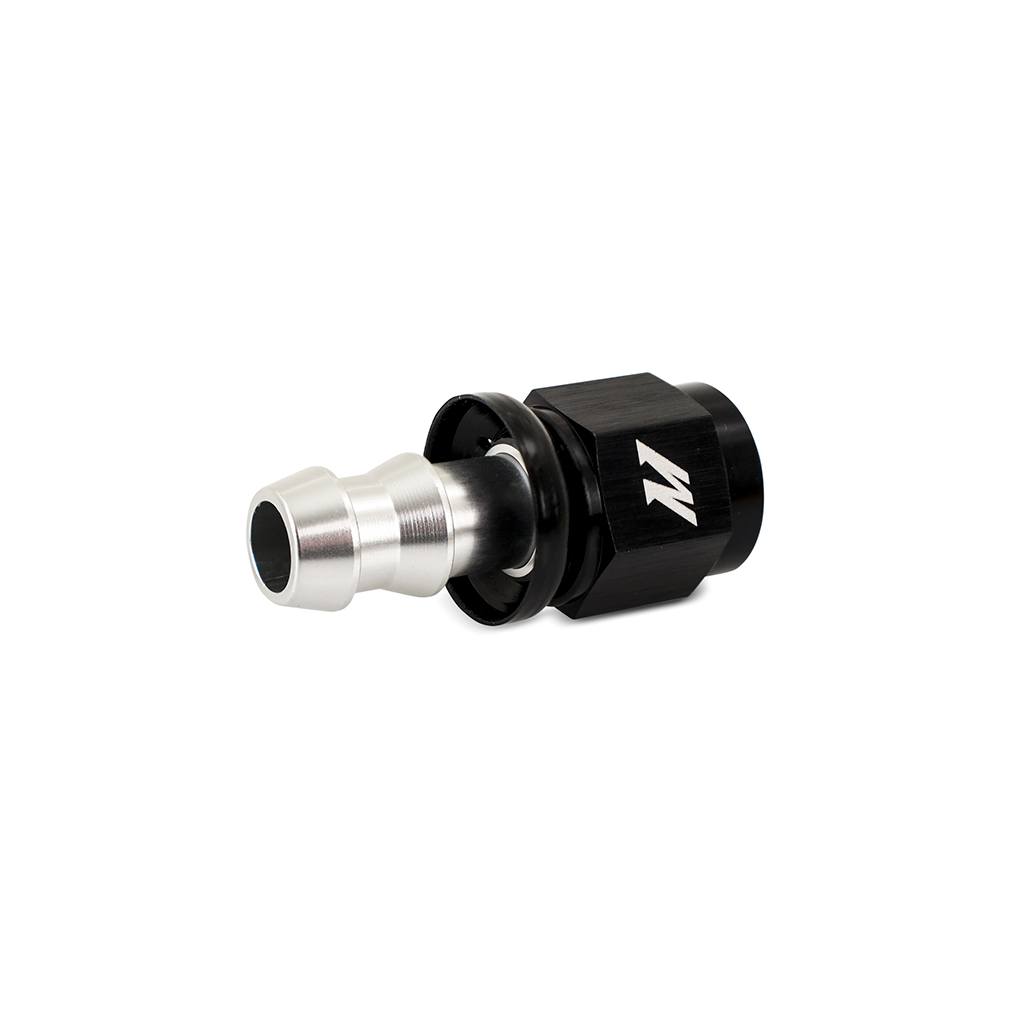

The Mishimoto -6AN Push Lock Fitting, part number MMFT-PL-6S, is a purpose-built Fabrication component designed to give custom fluid systems a clean, leak-free -6AN connection with a push-lock end for quick assembly. Finished in Mishimoto’s signature silver and black anodized aluminum, this fitting brings both function and a fresh, finished look to any engine bay build.
Machined to Performance grade specifications, this fitting pairs a 9/16 in – 18 UNF thread on one end with a -6AN push-lock connection on the other, allowing it to integrate cleanly into custom-fabricated cooling and fluid systems. It’s engineered to withstand substantial pressure and high temperatures, making it well suited for use with engine oil, coolant, fuel, and similar fluids. The corrosion-resistant anodized coating helps the fitting hold up under the hood while keeping a durable, sleek appearance, and the push-lock design means it assembles onto -6AN line in minutes without the fuss of traditional hose clamps or crimped ends.
Vehicle Applications
This Mishimoto -6AN Push Lock Fitting is a universal Fabrication piece rather than a vehicle-specific part, making it a versatile choice for builders working on custom oil coolers, transmission coolers, catch cans, and other fabricated fluid systems where a reliable -6AN connection point is needed. Because it isn’t tied to a particular make or model, it can be worked into whatever custom setup your build requires.
Features
- -6AN push-lock port for simple installation

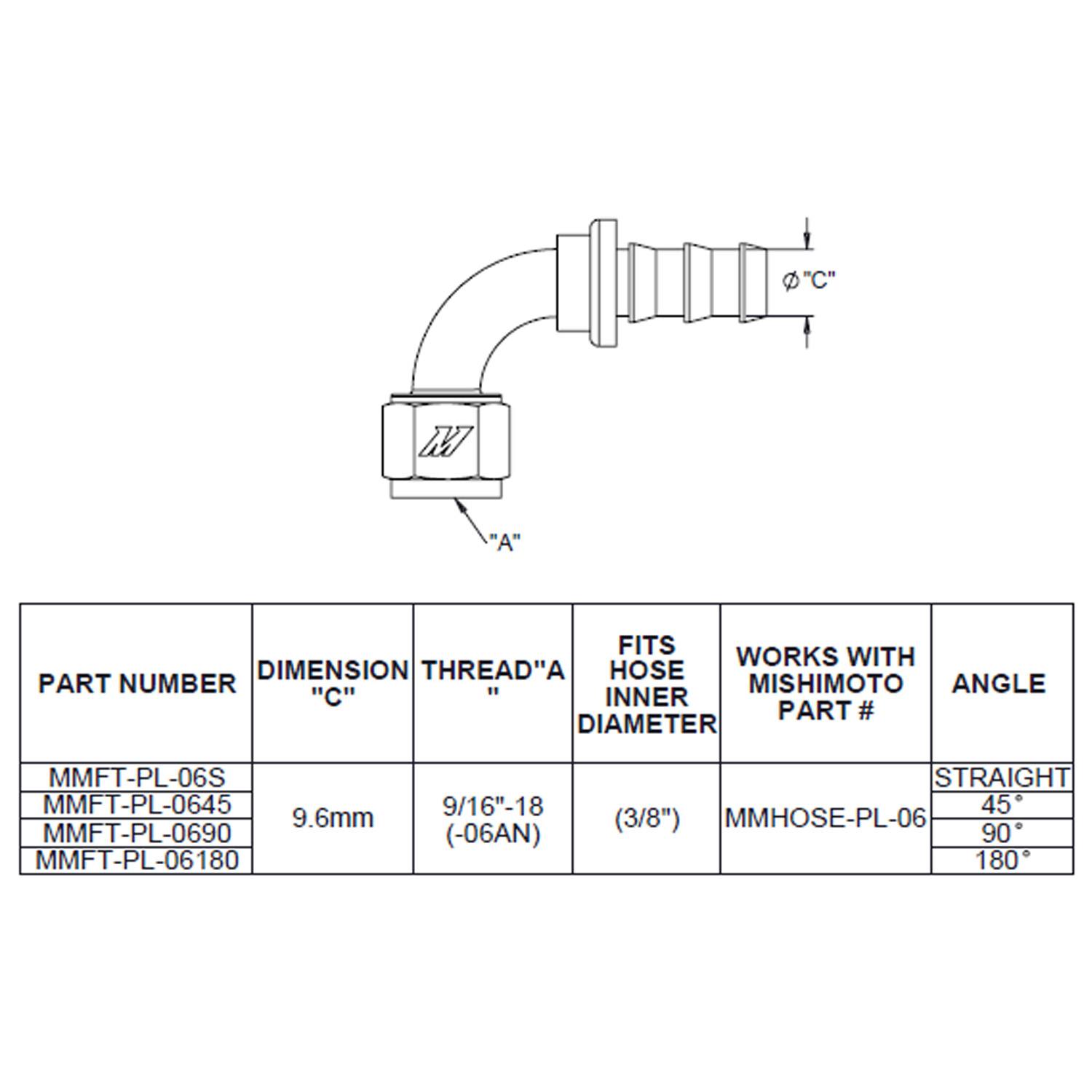

- Offered in straight, 45-degree, 90-degree, and 180-degree angles to allow for easy routing of lines
- Precision machining provides a leak-free connection with -6AN line
- Perfect for use with engine oil, coolant, fuel, and similar fluids
- Corrosion-resistant anodized coating provides a sleek, durable finish
- Engineered to withstand high temperatures and substantial pressures
- Assembles in minutes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFT-PL-6S
- Product Type: Fabrication
- Color: Silver and Black
- Angle Options: Straight, 45-degree, 90-degree, 180-degree
- End 1 Type: 9/16 in – 18 UNF
- End 2 Type: -6AN Push-Lock
- Grade Type: Performance
- Max Fluid Temperature: 248°F
- Max Fluid Pressure: 5000 PSI
- Includes: Mishimoto -6AN Push Lock Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle options are available for the Mishimoto -6AN Push Lock Fitting?
This fitting is offered in straight, 45-degree, 90-degree, and 180-degree angles to allow for easy routing of lines.
What are the two connection types on this fitting?
End 1 is a 9/16 in – 18 UNF thread, and End 2 is a -6AN push-lock connection.
What is the maximum pressure and temperature rating?
The Mishimoto -6AN Push Lock Fitting is rated to a maximum fluid pressure of 5000 PSI and a maximum fluid temperature of 248°F.
What color finish does this fitting come in?
It is finished in silver and black anodized aluminum.
What fluids can this fitting be used with?
It is suited for use with engine oil, coolant, fuel, and similar fluids.
What is included with the Mishimoto -6AN Push Lock Fitting?
The package includes the Mishimoto -6AN Push Lock Fitting and the Mishimoto Lifetime Warranty.
